2022 new design continuous mesh belt furnace for fastener hardening carburizing heat treatment

Product Overview

Description

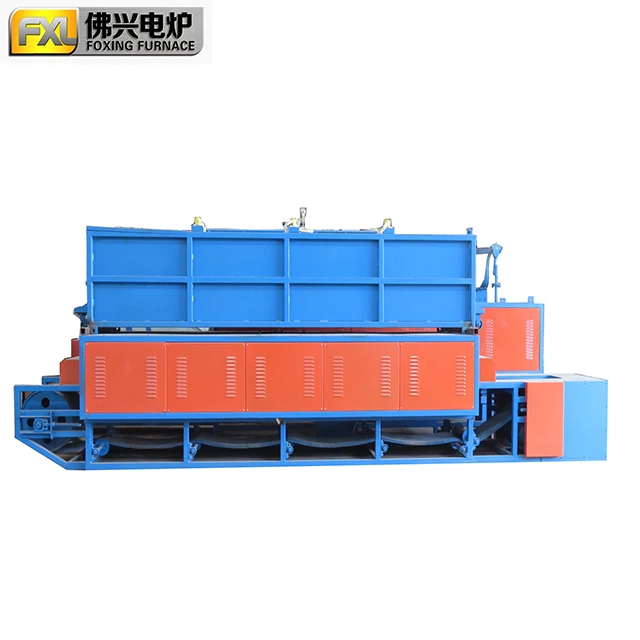

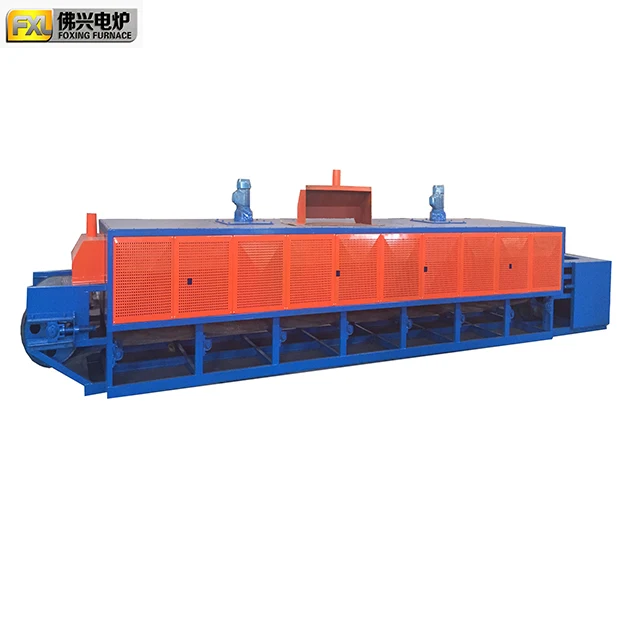

continuous mesh belt furnace

(1)Application:the production is a continuous working furnace,can complete the carburizing ,quenching and tempering heating treatment. Suitable for sheet carburizing , sheet carburizing  and quenching of the standard parts industry,Automobile, motorcycle, bicycle industry,Hardware industry,Textile machinery industry ,etc.

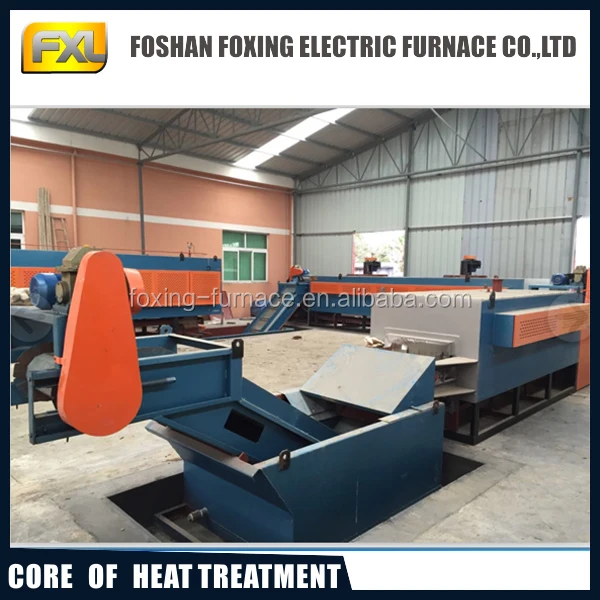

(2)Composition of  the  production line:composed with RWQ-120-10 model continuous mesh belt conveyor bright and smooth carburizing(quenching) furnace,quenching oil tank and FXL-60-5 continuous mesh belt conveyor tempering furnace. The  products can automatically complete the carburizing,quenching and tempering process by the machine.





1.rated heating power:120kw

2.voltage:380V/3phase

3.rated temperature:1050℃

4.effective heating dimension:4600(L)x400(W)x100(H)mm

5.overall dimension:7500(L)x1900(W)x1900(H)mm



Specification and main technical parameters:

model	rated power (KW)	rated temperature (°C)	Power supply	Workin Dimensions(length×wide×high) (mm)
FXL-40-9	40	1150	Three phase 380V	6000×300×100
FXL-50-9	50	1150	Three phase 380V	4000×300×150
FXL-75-9	75	1150	Three phase 380V	48000×500×50
FXL-140-5	140	1150	Three phase 380V	8000×700×60
FXL-200-9	200	1150	Three phase 380V	12600×700×80
