Fruit juices are now extracted from fruits of virtually all kinds, for sale on the international market.
This means dealing with many different raw materialspecifications from many different sources. You also have toobserve stringent hygiene standards so that consumers canrely on the quality and shelf life of these juices.
Fuyi decanter centrifuges have the versatility and hygienefocus to enable you to achieve all this – with maximum efficiency.
Producers use a wide variety oftechniques for processing different fruitsinto the almost innumerable varieties ofjuice now available
Decanter centrifuge
Fuyi decanter centrifuge
Fuyi decanter centrifugesare specially designed to handle highlevels of solids content during theseparation process. By removing thesolid matter and pulp, and then.clarifying the juice, the producer cancontrol the colour, taste and overallquality of the end product.
The decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.er, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system. The electric motor is of the variable
Basic drawing
Standard design
Fuyi designed the decanter centrifuge with a focus on hygiene, easy access, reliability and low noise levels.The rotating assembly is mounted on a compact welded box beam frame with main bearings at both ends. The cover is designed to ensure easy access.
The bowl is driven at the conical end by an electric motor and V-belt transmission. Bowl, conveyor, casing, inlet tube, outlets and other parts in contact with the process media are made from stainless steel AISI 316.

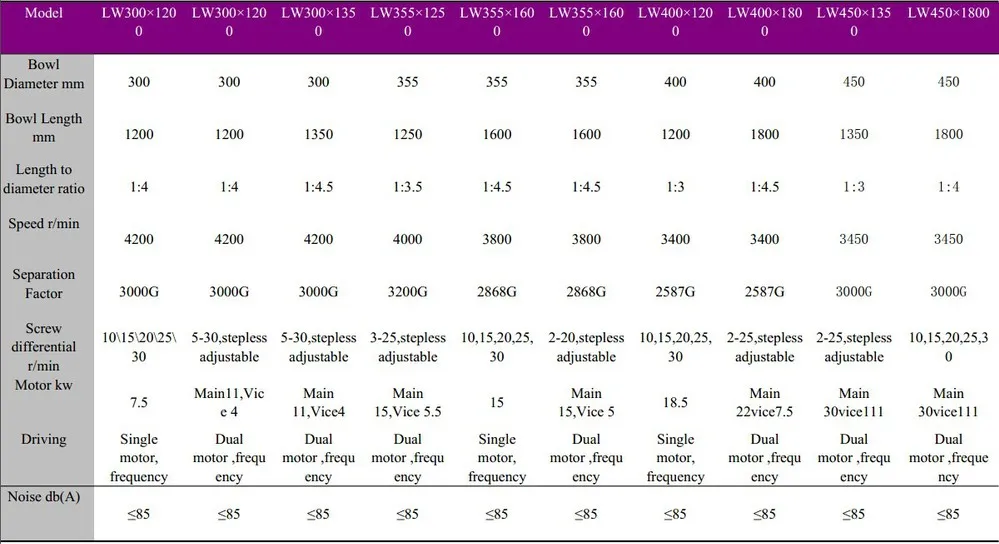

Decanter parameters

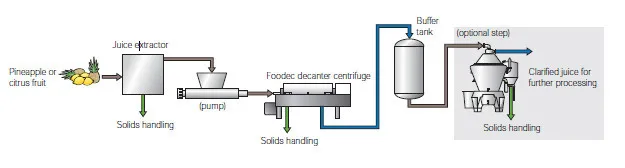

Pineapple and citrus juice

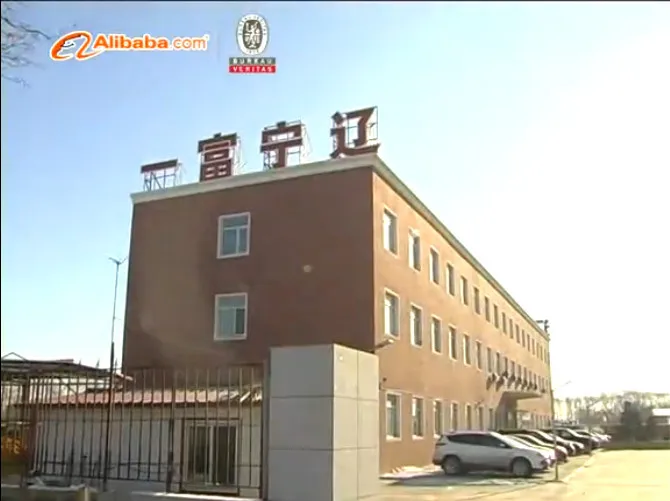

Company Information
Liaoning Fuyi Machinery Co.,Ltd.was established in June 2011 formerly known as Liaoyang Sunny Pharmaceutical Machinery Co.,Ltd.which was Nationl Separation Machinery Standardization Board Member and China General Machinery Industry Association Director . Today the company is the leader in mechanical separation technology in China .
Fuyi is specializing in the production and design of centrifuge , separator and filter equipment which is a high-tech enterprise combine with R&D ,Manufacturing, market prompting and sale.
The company cover more than 60 acres including the advance process plant ,office ,research centre and testing lab .
Fuyi’s president was the first developer and designed of Chinese First Tubular Separator who won many National Reward . The “Tubular Separator” National Standardization , currently in effect is drafted by our company . The company is certified in accordance with ISO9001:2000.
Fuyi Separator provide solution to all technological problems of liquid and solid with more than 30 years experience in centrifugal separation market . For better separation result , every series products is designed and manufactured based on the different liquid material thus customer can achieve perfect separation performance .
Separator and centrifuge made by Fuyi Separator are widely used in the range of areas
Pharmaceutical Bio-tech and Medicine Food and Dairy Chemical Various Oil
Fuyi Separator promise to provide the most professional technology and advance quality product for global customers.
We made the Standard , we beyond it.
Our Services
the suggestions from our customers, and offers the all-day, all-directional and top-grade market services. The technical and after-sale services are listed as follows: 1. Provide free technical training, guidance and information of accessories. 2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues. 3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance. 4. 24-hour hot line: 86-18104024665 . Once receive the customer complaints, we will response within 24 hours. 5. Free maintenance and replacement will be provided if defects result from quality failure of our product. 6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details. 7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation. 8. Our company will provide perfect after-sale services and technical support.
