PVC Oil Spill Booms

Product Overview

Description

PVC Oil Spill Booms



Towed Oil-absorbing Boom
Features:
Flake-shaped towed oil-absording boom and cylindrical towed oil-absorbing boom are available.
Strengthening ribs constitute the framework of the flake-shaped towed oil-absording boom , featuring higher strength and larger space for absording spilled   oil , suitable for towing operation to absorb spilled on the water surface of for fixed deployment to intercept spilled oil.
Nylon net with rolled oil-absorbing fibers and pulling cable fastened in the center of cylindrical towed oil-absorbing boom , suitable for retaining and absorbing spilled oil on coastal areas.
Description of Products
The towed oil-absorbing boom is made of oleophilic and hydrophoboic polypropylene fibers with smaller specific weight and is used to catch and absorb spilled oil and thinner oil slicks on polluted waters and beached . It is one of effective means for recovery and treatment of thinner layers of spilled  oil.
Technical Data :
Parameter                         Model	AHPT1000	AHPT300
Width /Section diametert (mm)	1000	10
Standard section length (mm)	20	3
Weight (kg)	12	10
Oil-absorting capability (kg/m)	14	2
Max U-typetowing speed(kn)	2





Solid Float PVC Boom



Features :

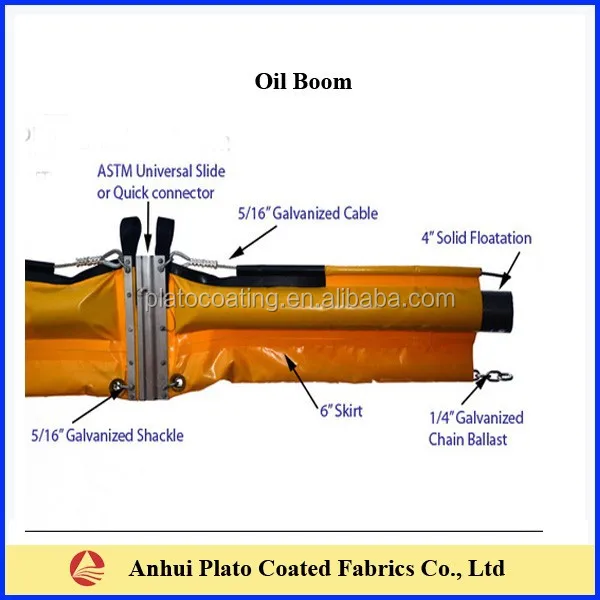

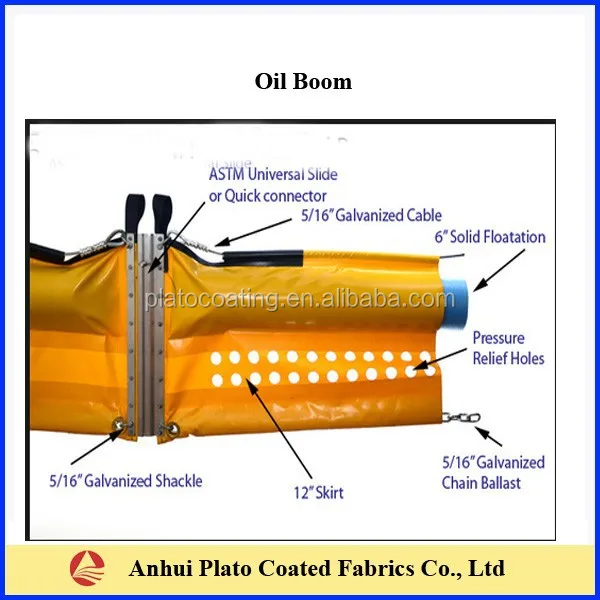

1.Fabricated with double-sided bright-colored high-strength PVC cloth with good resistance to Oil , sunlight and a long service time



2.Solid floats with greater reserve of buoyancy , good wave riding , vertical stability and oil   retention ability .



3.Pulling cable , strengthening ribbons and tensile ballast chain on the upper ,middle and lower parts of each boom body used as longitudinal structural elements to withstand forces, thus increasing its tensile strength .



4. Smooth external surface , good for oil guiding and cleaning.



Description of Products

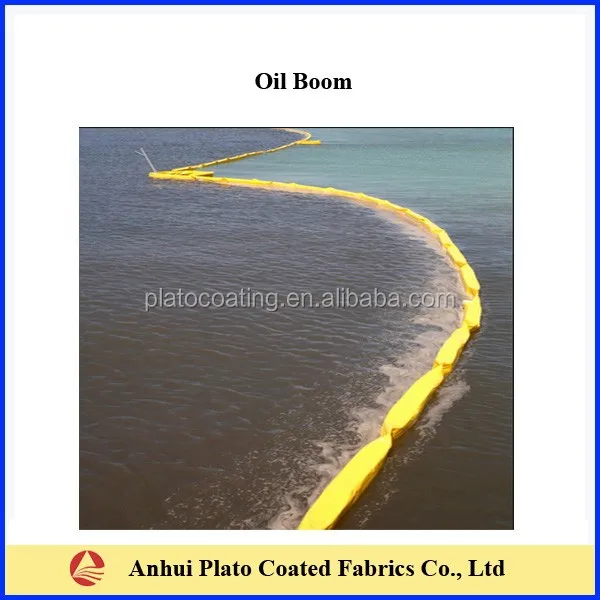

The solid float PVC boom is particularly suitable for the long-term fixed deployment on waters . It has been widely used on rivers , harbors , lakes , offshore oil platforms and other waters due to its quick deployment and convenient operation .



Technical Data :
Parameter           Model	AHP600	AHP700	AHP750	AHP800	AHP 900	AHP1000		AHP1100
Overall height(mm)	600	700	750	800	900	1000		1100
Freeboard(mm)	180	260	255	250	330	325		320
Draft(mm)	320	400	405	410	540	650		770







The solid float PVC boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer. It is widely used for long-term deployment on waters such as open seas, bays, harbors, wharfs, rivers, oil platform, oil-refining plants, oil piers, oil storage and also for emergent use in oil spilling accidents



• 1.    Made of the high strength fabric coated PVC on its two sides, having excellent resistance to oil and ageing.
• 2.    The solid float have a large capacity of  buoyancy and excellent wave and steadiness
• 3.    The boom body is provided with a pulling rope, a strengthening ribbon and tensile ballast chains serving as elements to withstand forces and has tensile strength



PVC Tarpaulin for Oil Boom  :

SPEC	STRUCTURE ( D )	TOTAL WEIGHT ( g/m2 )	TENSILE ( N/5cm )	TEAR STRENGTH ( N )	ADHESION ( N/5CM)
F-1050	2000X2000 15X15	1050	3500/3000	400/400	90
F-900	1000X1000 23X23	900	2600/2400	250/250	90
