China fabric leather mini laser cutting machine for sneakers
- Category: >>>
- Supplier: Liaocheng Shenhui Laser Equipment Co. Ltd.
Share on (60208347482):
Product Overview
Description

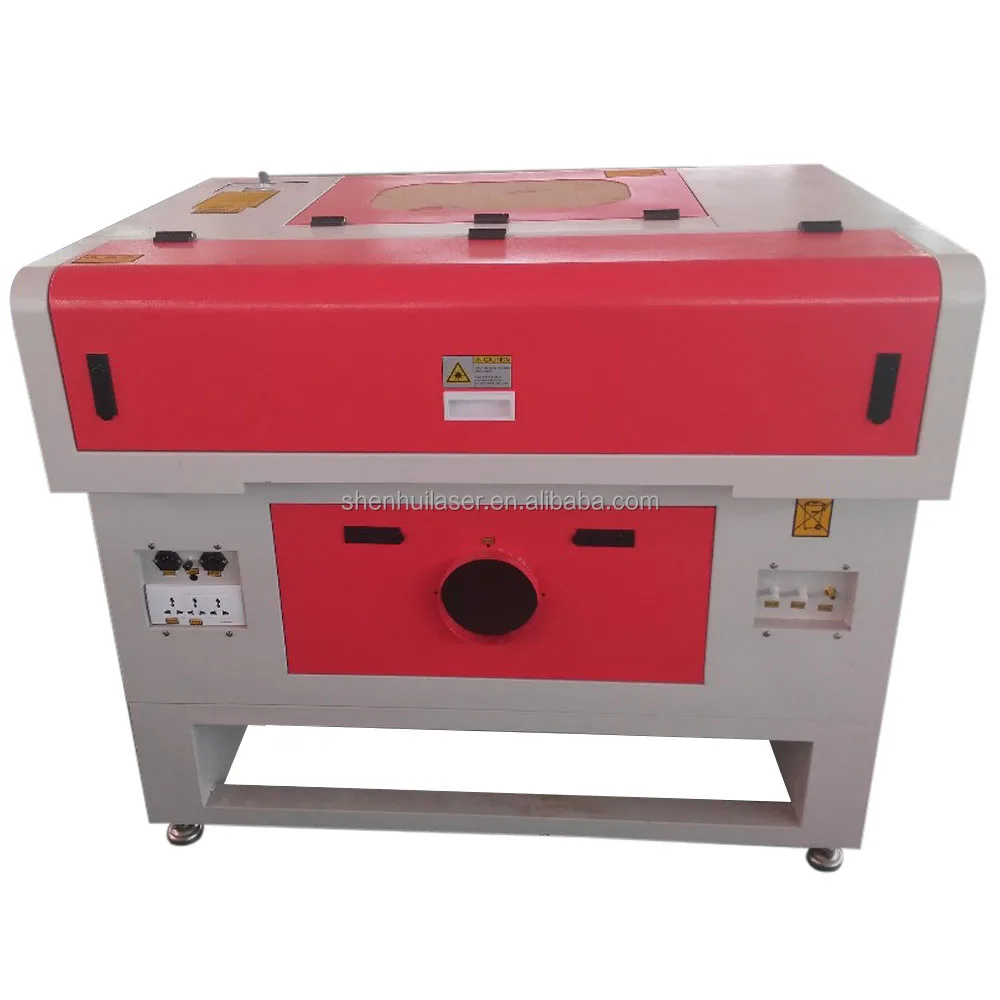

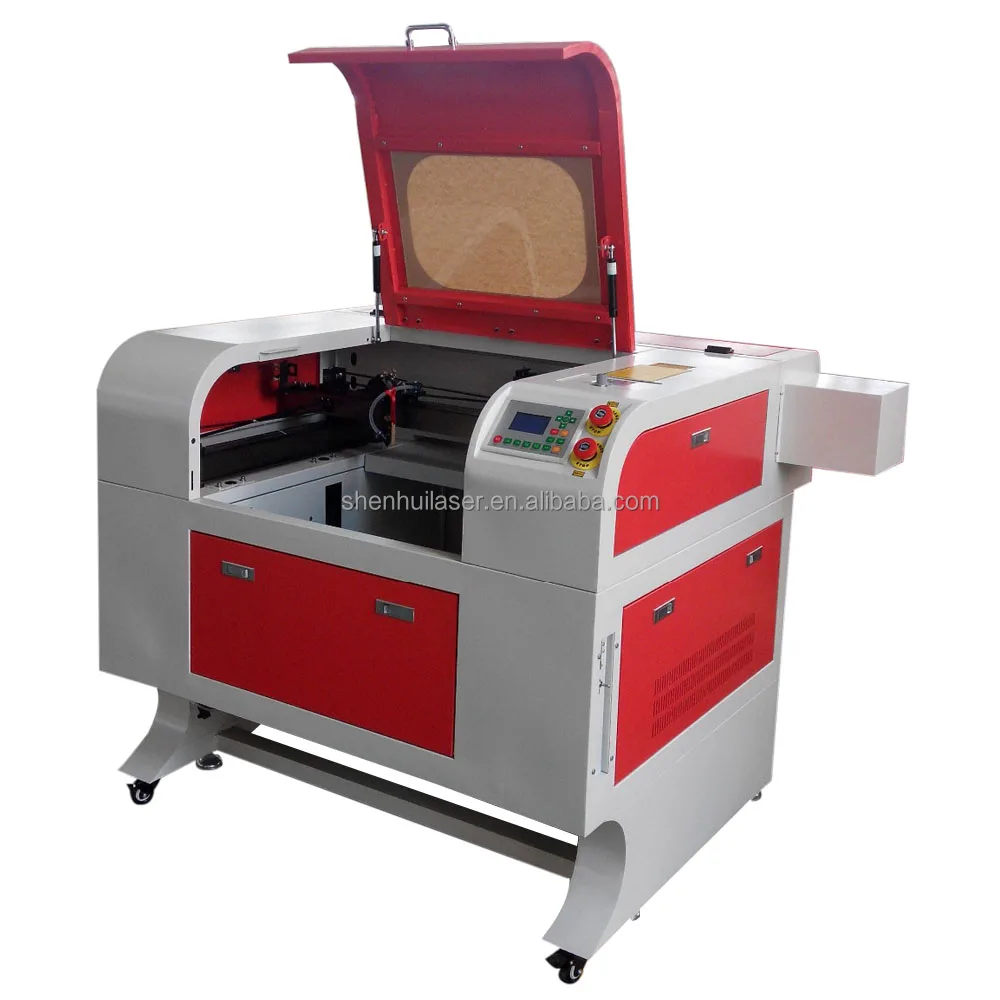

China fabric leather mini laser cutting machine for sneakers
Product Description
Applicable Materials
Plastic,wood,jade,crystal,rubber,plexiglass,wooder board,resin,rubber,bamboo product and other non-metal materials
Applicable Industry

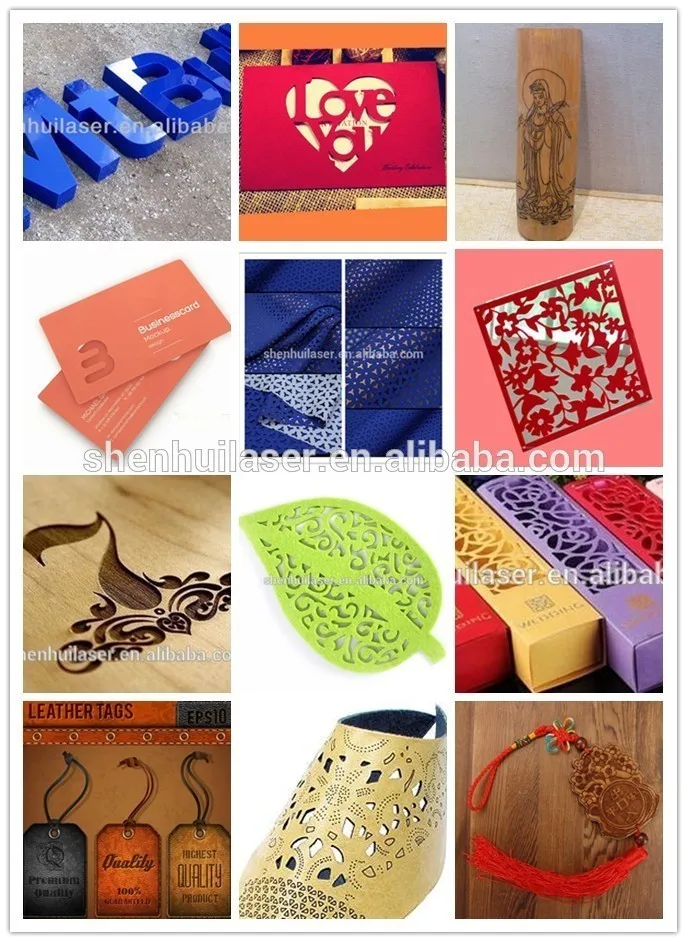

Mainly used for the engraving and cutting of little artistic works,such as engraved portraits,badges,breast cards and vorious engraved packages etc..
Technical Parameters
| Laser Power | 60w/80w(reci brand is optional) |
| Laser Type | Hermetic CO2 glass tube |
| Power Supply | AC220±10% 50HZ/AC110±10% 60HZ |
| Working Area | 400*600mm |
| Max Moving Speed | 0-40000mm/min |
| Worktable | Fixed/ up/down worktable |
| Locating Precision | <0.01 mm |
| Min Shaping Character | Character:3*3mm,letter:2*2mm |
| Resolution Ratio | ≤4500 dpi |
| Control Configuration | DSP |
| Data Transfer Interface | USB (offline) |
| System Environment | WINDOWS 2000/ XP/ Vista/ Win7 |
| Cooling Way | Water cooling |
| Graphic Format Supported | Files which CoreDraw.Photoshop.AutoCAD can identify |
| Compatible Software | CoreIDraw,AutoCAD |
| Cutting Thickness | 0-10 mm (depends on different materials) |
| Color Separation | Separation of cutting up to 256 colors |
| Sloping Engraving | Yes,slop can be designed discretionarily |
| Cuts off the Water Supply the Protection | Yes |
| Machine Dimension | 1480*1000*1170 mm |
| Package Dimension | 1600*1080*1250 mm |
| Net Weight | 200 kg |
| Gross Weight | 360 Kg |
| Optional Parts | Cylinder rotary/irregular rotary multicolor panel/multicolor TFTtouch screen CW3000/CW5000 double head |
Suggested Parameter
Below is suggested parameters for some materials. ( the parameters might be a bit different according to different machines) Our machine can also work on many other non-materials like rubber foam cardboard paper plastic glass rostone...if u want to know their parameters, u can contact me through Wechat/Whatapp/Skype/email.
| Materials | Power | Mode | Speed(mm/s) | Output(%) | Interval |
| Painted metal matrial | 60w | Scan | 200 | 28-30 | 0.08 |
5mm acrylic
| 40w | Scan | 350 | 15-18 | 0.08 |
| 40w | Cut | 6 | 85-90 | ||
| 80w EFR | Scan | 350 | 20-20 | 0.08 | |
| 80W EFR | Cut | 14 | 85-90 | ||
| leather | 40W | Scan | 300 | 11-11 | 0.08 |
| 40W | Cut | 15 | 35 | ||
| 80W EFR | Cut | 80 | 25-25 | ||
| Denim fabric | 40W | Cut | 50 | 50-50 | |
| 40W | Scan | 350 | 10-10 | 0.1 | |
| 80W EFR | Scan | 350 | 16-16 | 0.1 | |
| 80W EFR | Cut | 70 | 35-35 | ||
| 3mm plywood | 40W | Cut | 15 | 65-70 | |
| 40W | Dot | 30 | 9-9 | ||
| 40W | Scan | 350 | 15-15 | 0.08 |
Our Services
(1). we will provide you one year warranty. In the first year, if any problem, we will exchange new parts for you and we pay for the dhl fee(not include the laser tube and mirrors consumables.).
(2). to better serve you and assist you conveniently, we will provide you online technical support. If you have any question, you can discuss with our technician online by Skype, MSN, etc.
(3). we also provide onsite service. If you need, we will send our technician to your house if only you help us with getting the visa and bear the costs like flight tickets, food, hotel, etc.
Certifications
We have certification of CE of laser machine, CE of the motor, CE of the laser tube of our machine and all kinds of company certificantion.
Trade Shows
Shenhui Laser is invited to Shanghai International Ad & Sign Technology & Equipment Exhibition each year(APPPEXPO).
As the world's largest annual exhibition for advertising and sign industry, the APPPEXPO is held from Wednesday 8 to Saturday 11 March at the National Exhibition and Convention Center (Shanghai)(NECC) in the Shanghai Hongqiao Certral Business District.
Liaocheng Shenhui Laser Equipment Co.,Ltd attend this exhibition with its state-of-art technologies and machines. Shenhui sincerely invite both old and new customers to visit us for business discussion and give your valuable opinions. For any update on this event, please follow us at facebook/Linkedin or youtube.
We also attend Guangzhou Carton Fair twice every year, we will wait for u at Booth No. 1.1 J17-18
