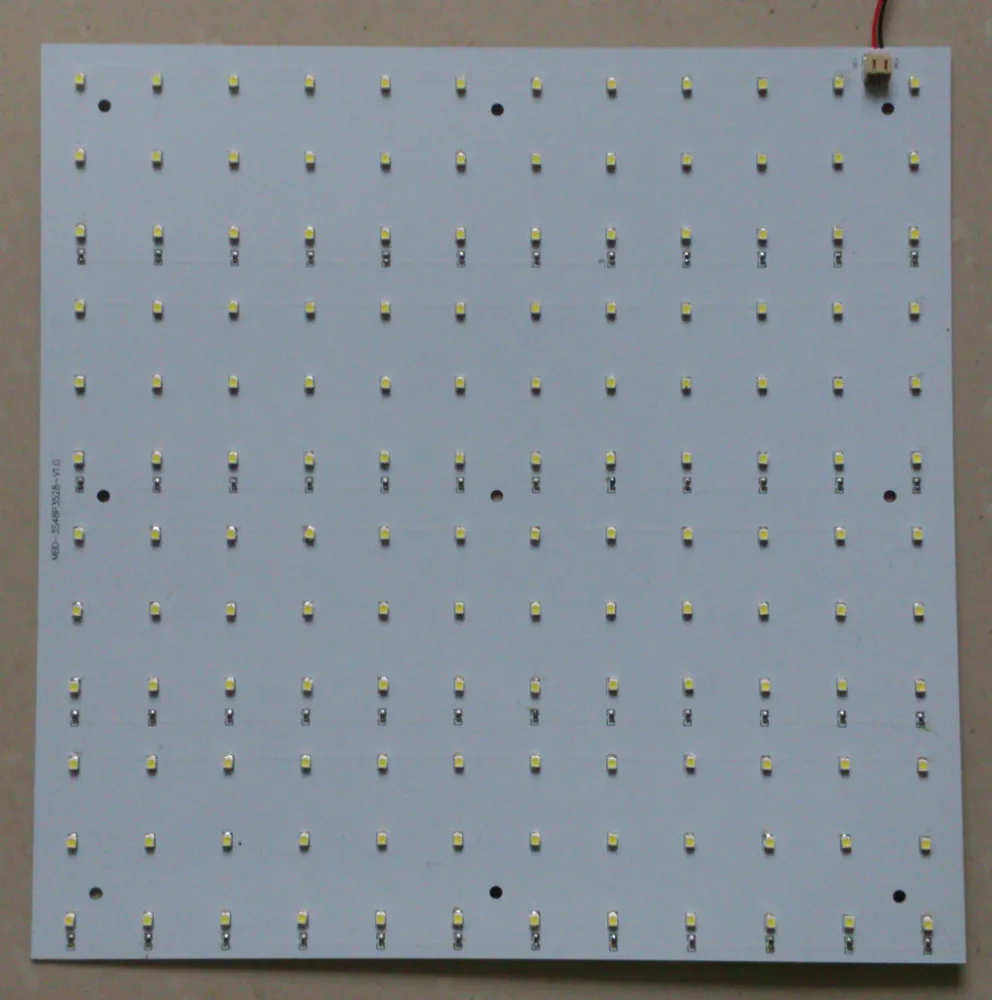

Shenzhen circuit board PCB printed circuit board  PCBA assembly



R2T is the industry which is customized & assembling factory,offering services from product design to the products manufacturing ,covers all PCB manufacturing from new product design to assembly and test.



1.Detailed Specification of PCB Manufacturing

Technical Item	Specifications
MCPCB Model	Aluminum Base Board
Model Material	Domestic Aluminum, Overseas Aluminum, CCAF-01, CCAF-04, CCAF-05
Surface Treatment	HASL / ENIG/ Chemical Sn/ OSP/Immersion silver etc.
Rise	MCPCB Single / Double-sided Aluminum Plate
Max. Size	1100mm * 450mm
Min. Size	10mm * 10mm
Processing Thickness	0.3 ~ 3.2mm
Min. Diameter of Punching	1.0mm
Min. Specifications Slot	Thickness below1.0mm: 0.8 * 0.8mm Thickness below1.2 ~ 3.0mm: 1.0 * 1.0mm
Red Silk Square Deviation Slot	+/-0.076mm
Smallest Aperture	0.5mm
Largest Aperture	No limited
V-cut Plate Thickness Range	0.6mm ~ 3.0mm
V-cut tolerance	+/-0.1mm
Smallest Components Font Tag	0.15mm
Copper Foil Thickness	0.5/1.0/1.5/2.0/3.0oz
Tolerance Molding	+/-0.15mm
Smallest  Window  pad	0.15mm
Processing Capacity	2000m2





2.Detailed Terms for Pcb Assembly



Technical requirement:



1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like5630,3528,3014 components SMT technology

3) PCB Assembly With CE,FCC,Rohs Approval

4) High Standard SMT&Solder Assembly Line
