Plywood Production Line/ Film faced plywood hot press/ Plywood hot press/ veneer dryer press machine



Introduction of plywood veneer dryer press machine





1.the veneer dryer machine is used to the drying and levling of the plywoods or the boards.



2.using thermal oil heating,configuration of high quality piston cylinder,metal hose and steamless steel tube of hot plate.



3. Reasonable design, smooth opening and closing , easy operation, short drying cycle , high efficiency, flat slab.



4.configurated with simultaneously clothing mechanism, fast closing,high production efficency.







Equipment name	Veneer dryer
Nominal pressure	2000 KN
Into direction of the boards	horizontal
Layers number	15
Interlayer spacing	70mm
Hot plate number	16
Hot plate dimension	2700×1370×42mm
Piston cylinder number	4
Piston cylinder diameter	Φ180mm
Piston cylinder stroke	1050mm
Proof pressure	≤16 MPa
Low pressure pump flow	285 L/min
Power	11 KW
Equipment quantity	About 25000 Kg
Equipment dimension	5600×1370×3090mm
Control mode	Automatic
Closed mode	Equipment with meanwhile closing mechanism





Introduction of plywood cold press machine(pre-press machine)



1.The main frame is made of high quality of GB steel sheet and it is welded toghter at a time.Reasonable structure,rigorous calculation of the power point,rigid,bearing pressure,high stability withouth distortion.

2.Using domestic high-quality cylinders,underneath cylinders. The main components are imported hydraulic parts ensuring the longer using life.

3.Maintenance is simple.It is easy to use.This machine can be designed  according to the users' requirement specification.

4. This machine is the key equipment of plywood, building templates production.





Equipment name	Cold press (pre-press)
Board input direction	Horizontal
Maximum layer spacing	1600mm
Workbench dimension	1400*2700mm
Piston cylinder diameter	Φ320mm
Piston cylinder number	2
Proof pressure	≤26Mpa
Piston cylinder stoke	1000mm
Piston cylinder position	up
Unit slab pressure	12.3Kgf/cm2
Slab size	1280×2560mm
Piston pump flow	14L/min
Allowable pressure	≤25Mpa
Power	7.5KW
High pressure pump flow	14L/min
Allowable pressure	≤21Mpa
Power	5.5KW
Conveyor motor power	2.2KW
Equipment quantity	13000kg
Equipment dimension	3600×4200×4220mm
Beam thickness(up beam and down beam)	1000 ,900mm
Stand column width	400mm
Steel plate thickness	35,12mm
Moved cross beam thickness	400mm
Steel plate thickness	30,20mm



Introduction of plywood hot press





1.The main steel frame is welded with  high-quality steel, the resonable structure, rigorous calculation of the power point, rigid, bearing pressure, high stability without distortion.



2. Microcomputer control, high degree of automation, high reliability, easy adjustment, long life



3. Hydraulic control system adopts imported hydraulic parts.The compression speed is quicl,accurate,high efficience.



4.Complerte model specifications,the size can be designed according to the users' needs.







Equipment name	Hot press
Nominal pressure	8000KN
Board input direction	horizontal
Layer number	15
Layer spacing	70mm
Hot plate number	16
Hot plate dimension	1370×2700×52mm
Piston cylinder number	4
Piston cylinder diameter	Φ320mm
Piston cylinder stroke	1050mm
Proof pressure	≤25 Mpa
No-load closing time	About 29S
Low pressure pump flow	355L/min
Allowable pressure	≤5 Mpa
Low pressure pump power	11KW
High pressure pump flow	About 35 L/min
High pressure pump power	7.5 KW
Unit slab pressure	24.2 Kgf/cm2
Slab(board) size	1280×2560mm
Equipment quantity	48,000 Kg
Equipment dimension	3590×1370×4570mm
Control mode	Automatic pumping station
The thickness of the upper and lower beams	1000,900mm
Steel plate thickness of the beam	35,20,12mm
Movable beam thickness	400mm
Steel plate thickness of the movable beams	30,20mm





Below are some pictures in plywood factory

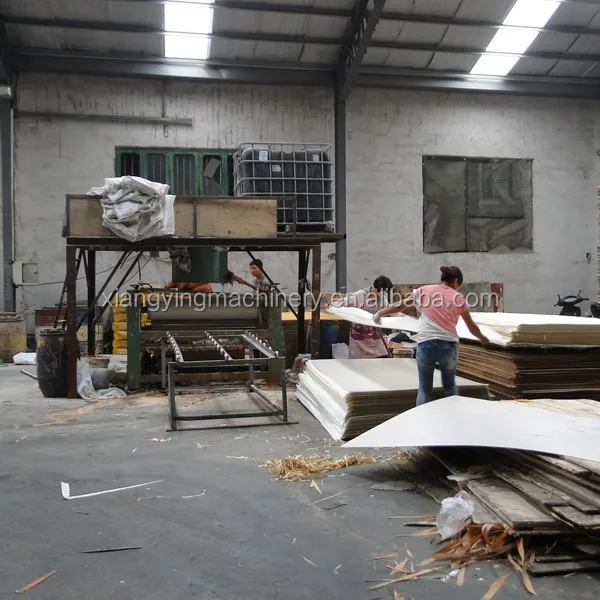

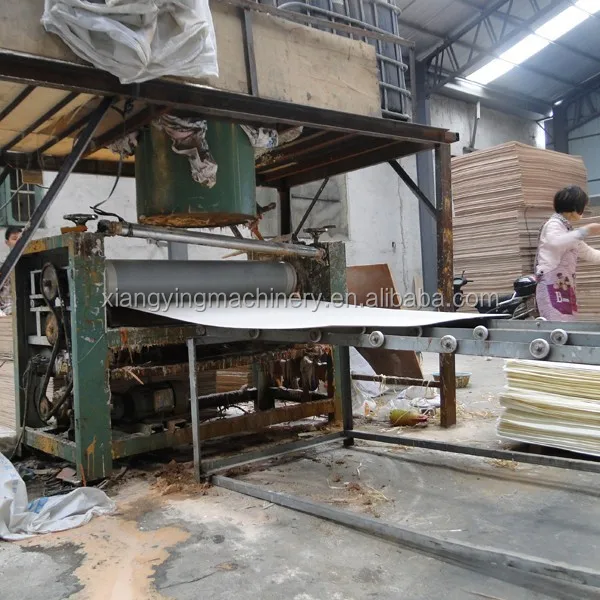

1) Glue spreader







2)Cold press

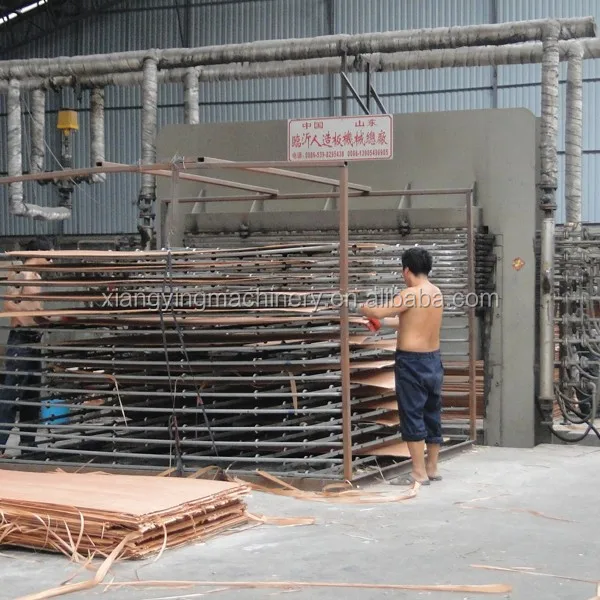

3)Hot press





4)Sanding machine





5)Edge triming saw





some failure reasons of the machine

Low-pressure pump cannot work

       1.power is not turned.

       2.fuse loose and poor contact

       3.A1’s poor contact or cut-off

       4.poor contact of start button, disconnection

       5.digital time relay, poor contact of 9,10(normally closed contact)

       6.CJX2 contactors’ power-off

       7.A2 line’s poor contact or cut-off

       8.low-pressure gauge’s poor contact or line’s cut-off

       9.the low-pressure gauge’s valves is 0

       10.motor’s wiring’s problem



The motor of high-pressure pump cannot work



       1.A3’s poor contact or cut-off



       2.low-pressure gauge’s poor contact or line’s cut-off



       3.the required values of low-pressure guage is high.



       4.CJX8 contactors’ power-off



       5.motor’s wiring’s problem



       6.high-pressure gauge’s poor contact or line’s cut-off
