XSZ 303III Professional Chinese Factory Offer Trinocular Optical Microscope
- Category: >>>
- Supplier: Ningbo Sheng Heng Optics & Electronics Co. Ltd.
Share on (60208857524):
Product Overview
Description
XSZ-303D Biological Trinocular Microscope
Product Description
Perfect Optical System
lHigh resolution and perfect definition from infinity correct optical system
l100X water objective instead of 100X oil objective, more be convenient for using
Perfect Appearance Design
lDrop-style integrated appearance design, looks elegant

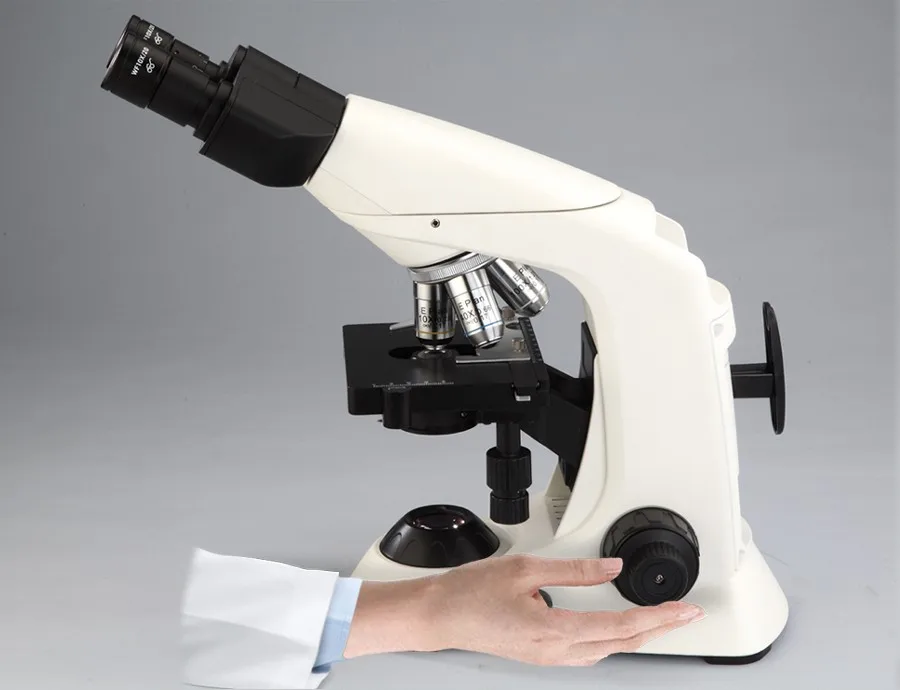

Perfect Ergonomics Design
lLow position operation, convenient for long-term using

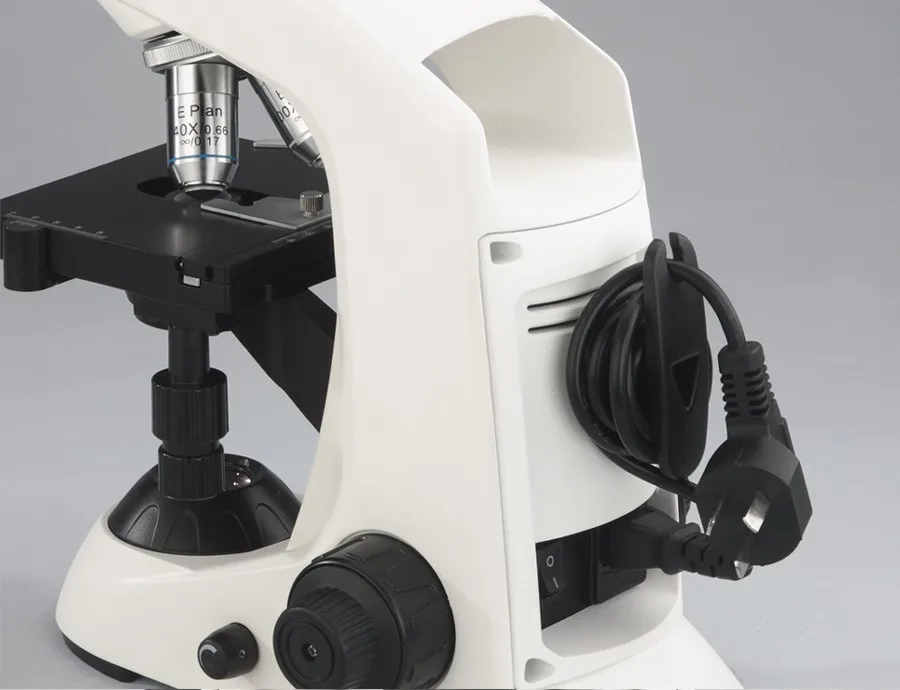

lNew wound device for cable, easy to move and keeping

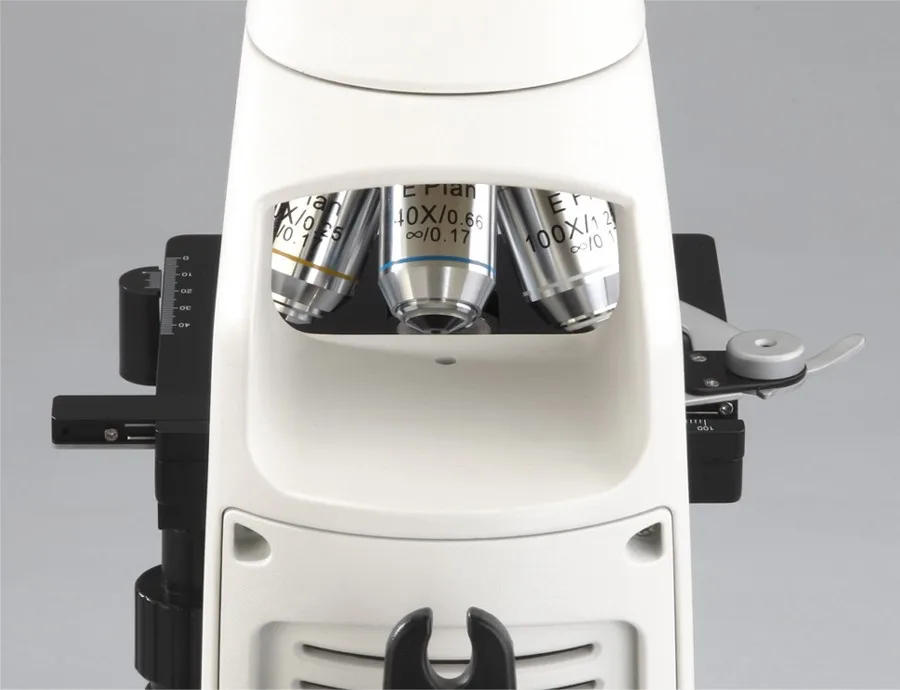

lThe changing of objectives can be watched by back side through the back watching window
Items | Specification | XSZ-303 | XSZ-303D |
Main Body |
| • | • |
Eyepiece | WF10X/20mm (High eyepoint) | •• | •• |
WF16X | °° | °° | |
Infinity Objective | EPLAN 4X/0.10 | • | • |
EPLAN 10X/0.25 | • | • | |
EPLAN 40X/0.65(S) | • | • | |
EPLAN 100X/1.25(S,Oil) | • | • | |
PLAN 4X/0.10 | ° | ° | |
PLAN 10X/0.25 | ° | ° | |
PLAN 20X/0.40(S) | ° | ° | |
PLAN 40X/0.66(S) | ° | ° | |
PLAN 60X/0.80(S) | ° | ° | |
PLAN 100X/1.25(S,Oil) | ° | ° | |
PLAN 100X/1.15(S,Water) | ° | ° | |
Observing Head | Seidentopf Binocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm | • |
|
Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm | ° |
| |
3MP built in integrated digital head |
| • | |
5MP built in integrated digital head |
| ° | |
Nosepiece | Quadplex | • | • |
Mechanical Stage | Size 125mmX120mm, Travel Range:76mmX30mm, Scale: 0.1mm | • | • |
Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder | ° | ° | |
Abbe Condenser | N.A.1.25,With iris Diaphragm | • | • |
Coaxial Coarse and Fine Focusing Knobs | Coarse Focusing Travel Range: 25mm Fine Focusing Travel Range: 2µm/division | • | • |
Aspheric Illumination | 3W LED Illumination,Voltage: 100V-240V | • | • |
Dark Field Unit | Dark Field Ring (Dry, N.A.0.9) | ° | ° |
Polarizing Unit | Analyzer, Polarizer | ° | ° |
C-mount | 1×C-mount(Available for Digital Photography) | ° |
|
0.5×C-mount(Available for Digital Camera) | ° | • (Built in) | |
Wire Winding Device |
| • | • |
Integrated Digital Microscope Specification:
Model | XSZ-303D320 | XSZ-303D500 |
Digital Chip | 3.2MP, 1/2 ", color CMOS | 5MP, 1/2.5 ", color CMOS |
Resolution | 2048×1536 Pixels (Maximum) | 2952×1944 Pixels (Maximum) |
Frame Rate | 15~30 fps | 15~30 fps |
C-mount | 0.5× | |
Data Transmission | USB2.0,Transmission rate: 480mps, external power supply is not necessary | |
Operating System | Available for Windows 2000 / XP / 7 | |
Image Analysis Software | Digital Image Analysis software for microscope | |
Integrated body with digital head, dust-proof, moisture proof and anti-demolition | ||
Packaging & Shipping
Foam Packing with Carton
Our Services
We offer one year warrantee for this product, But it's not include demage by shipping and wrong opperate.
Warmly Welcome to cooperate with us in near future.
...
