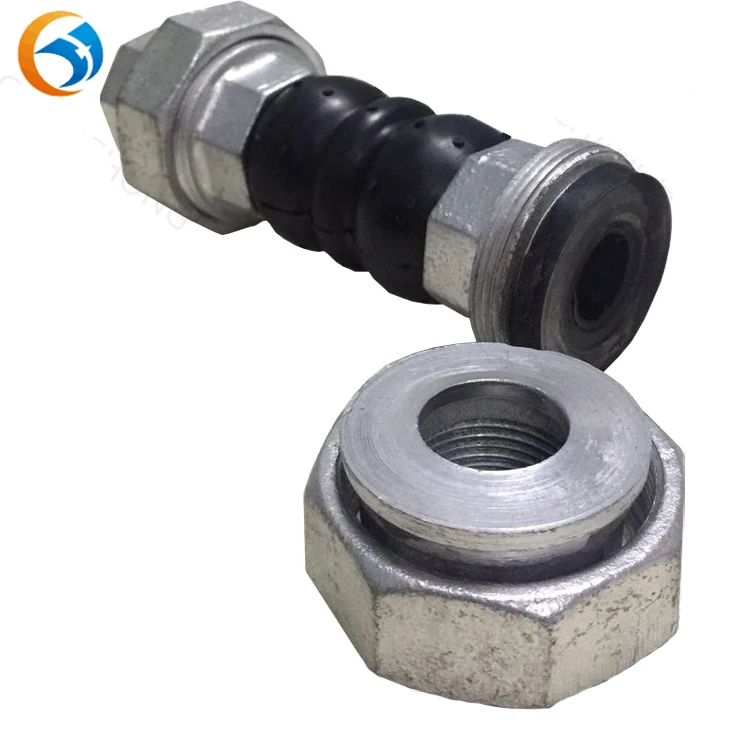

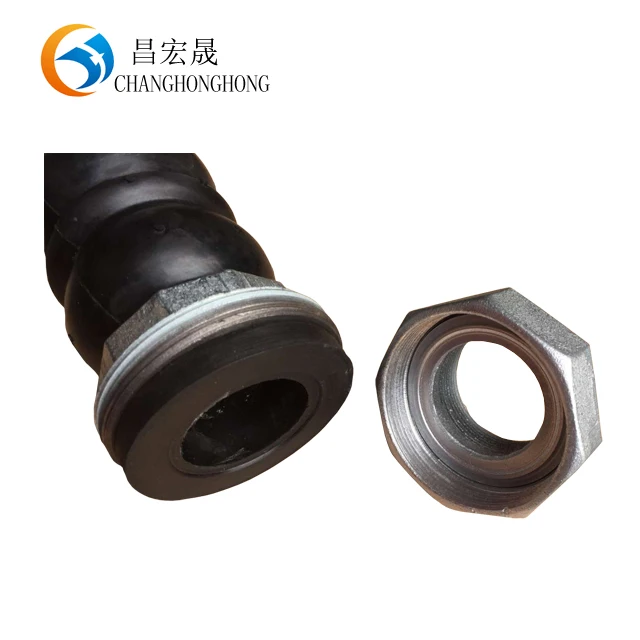

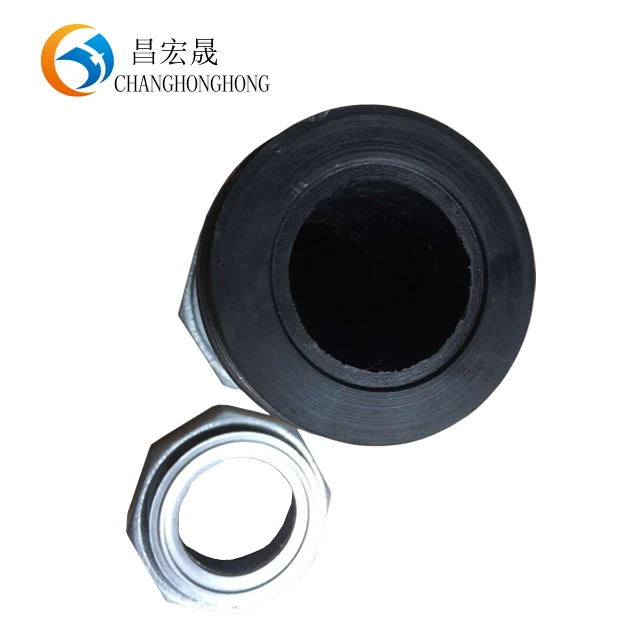

OEM threaded union type flexible connector
- Category: >>>
- Supplier: Henan Changhong Mechanical & Electrical Equipment Co. Ltd.
Share on (60209133412):
Product Overview
Description
plese click here and get a free sample you like
Certifications
| 1.Material | EPDM,NBR,CR,KFM,VITON,PTFE, |

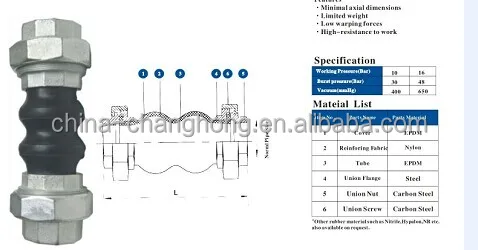

| 2.Construction | inner core,outer cover,frame,metallic ring, |
| 3.connector approval | flange,flange type,threaded type flexible coupling rubber |

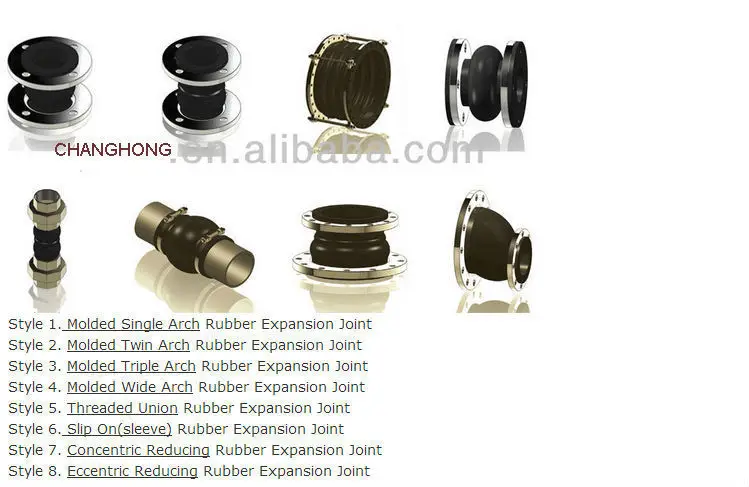

| 4.type | single sphere,double sphere and reducing sphere, |
| 5.threads | BSPT ,BSP,NPS,NPT,Metric |
| 6.flange drilled | BS,ANSI,DIN,JIS,UNI,or others provided drawings sample |
| 7.surface | galvanized ,epoxy |
| 8.normal size | single sphere(DN32-DN3000),double sphere(DN32-DN1200)threaed flexible coupling rubber (DN15-DN80) |
| 9.usage | protecting piping and equipment system from stress or motion |
Main data
| DN | Length | Axial displacement(mm) | Horizontal displacement | G.Weight | ||
| mm | inch | (mm) | Extension | Compression | (mm) | KG |
| 15 | 1/2' | 200 | 5-6 | 22 | 45° | 0.9 |
| 20 | 3/4' | 200 | 5-6 | 22 | 45° | 1.2 |
| 25 | 1' | 200 | 5-6 | 22 | 45° | 1.3 |
| 32 | 1 1/4' | 200 | 5-6 | 22 | 45° | 1.4 |
| 40 | 1 1/2' | 200 | 5-6 | 22 | 45° | 1.6 |
| 50 | 2' | 200 | 5-6 | 22 | 45° | 2.1 |
| 65 | 2 1/2' | 265 | 8-10 | 24 | 45° | 3.3 |
| 80 | 3' | 285 | 8-10 | 24 | 45° | 3.9 |
Note:
Standard item employs union BSPP,BSPT,or NPT thred.Both end optional with Floting
flanges avaiable,also extra ductile cables making & stabilizing ring between the two sphere.
How to ensure the quality 100% ?
What is your package ?
For threaded union type flexible connector
1. Inner package: plastic bag + carton cases one pcs/box or others
2.Outer pacakge :wooden cases (in usually the size of 1100mm*1100mm*1100mm
the 20 feet container can hold 18 wooden cases .)
3.Mix sizes per wooden cases or every size per wooden cases
WHY CHOOSE US?
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China or according to customer's requirements.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q: Do you accept small quantity order?
A: Of course we do.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
