mini lathe metal kaida light and metal mini bench lathe GHB 1440A digital lathe
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (60209376193):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings,
3. Headstock gears are made of high quality 4. steel ground and hardened.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation

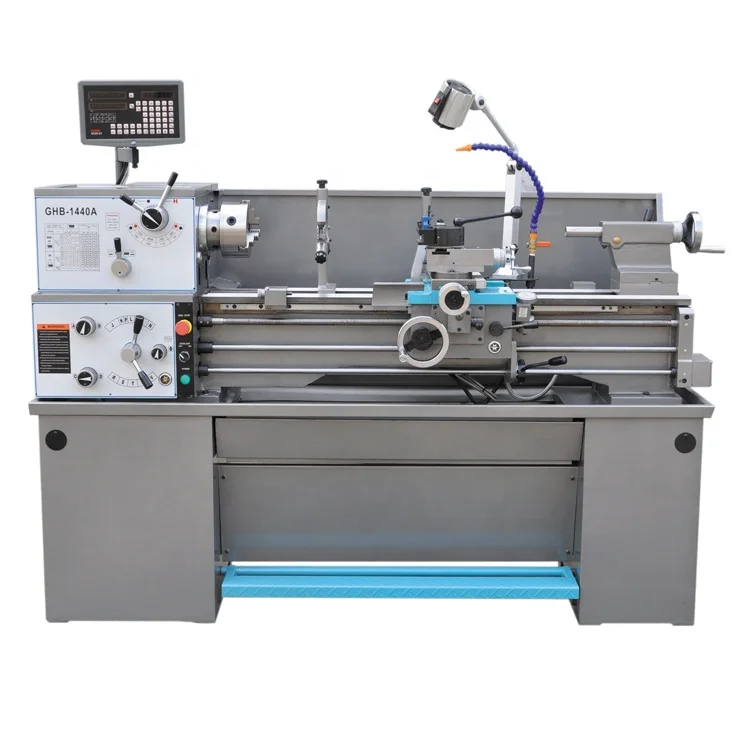

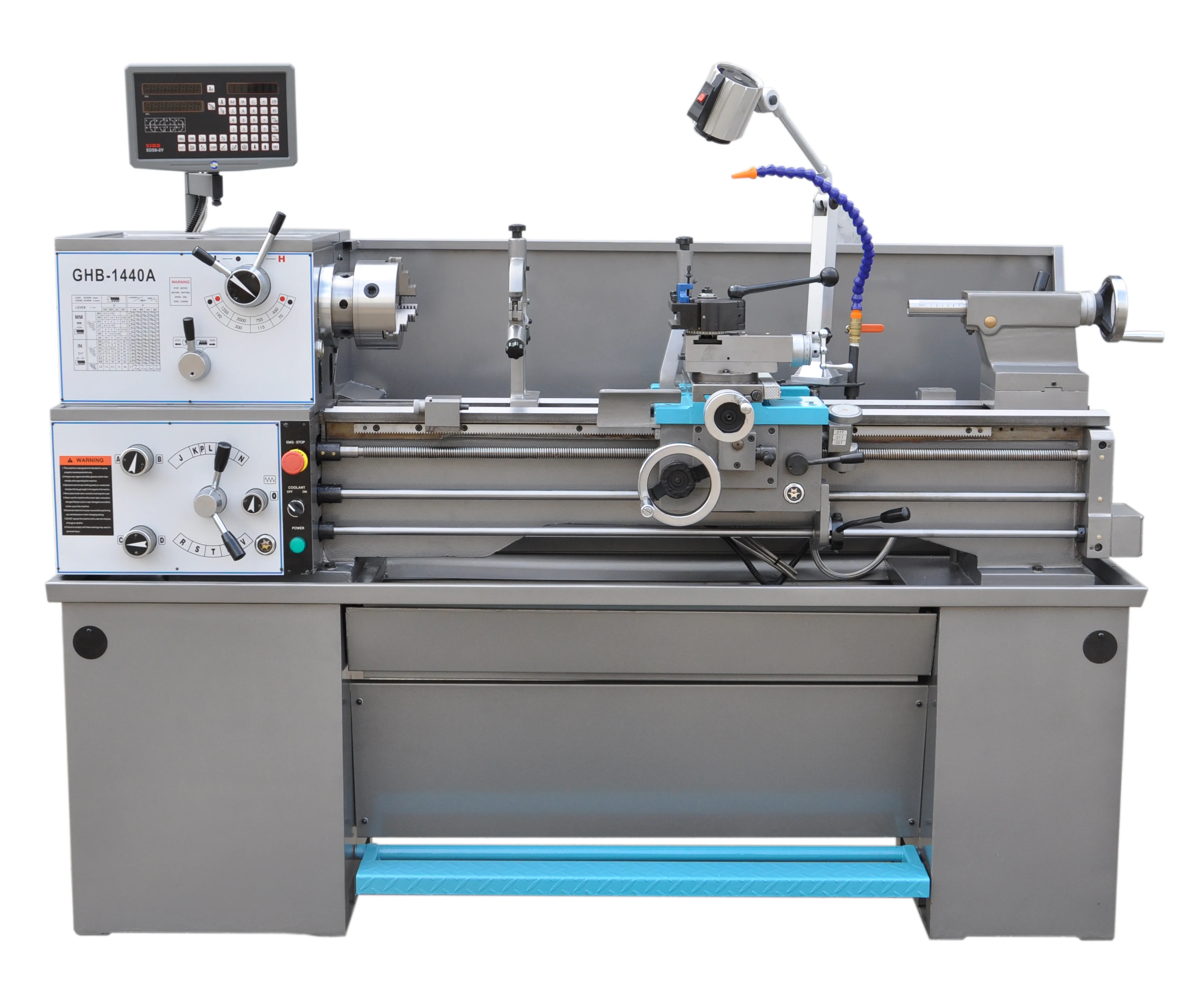

Front elevation
PRODUCT SPECIFICATIONS
MODELS | GHB-1340A | GHB-1440A | |||
CAPACITY | |||||
Max. swing over bed | Ф330 mm | Ф360 mm | |||
Max. swing over slide | Ф198 mm | Ф215 mm | |||
Max. swing over gap | Ф476 mm | Ф506 mm | |||
Width of bed | 186 mm | ||||
Distance between two centers | 1000 mm | ||||
SPINDLE | |||||
Spindle bore | Ф38 mm(1-1/2") | ||||
Taper bore of spindle | M.T.NO.5 | ||||
Steps of spindle speed | 8 | ||||
Range of spindle speed | 70-2000 rpm | ||||
Spindle nose | D4 | ||||
FEED | |||||
Range of longitudinal feeds | 0.0018"~0.0374" | ||||
Range of cross feeds | 0.0006"-0.0130" | ||||
THREADING | |||||
Metric pitch threads | 0.45-10 mm/23 | ||||
Whit-worth threads | 3-1/2-80T.P.I./38 | ||||
TAILSTOCK | |||||
Travel of tailstock quill | 95 mm | ||||
Taper bore of tailstock quill | M.T.NO.3 | ||||
OTHERS | |||||
Power of main motor | 2HP(1.5KW), 1PH | ||||
Net weight | 524 kg | 550 kg | |||
Gross weight | 620 kg | 680 kg | |||
PRODUCT CONFIGURATION
Chuck cover, tool post cover and leadscrew cover are optional.
Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.
Manual tailstock
Tool box with accessoires.
