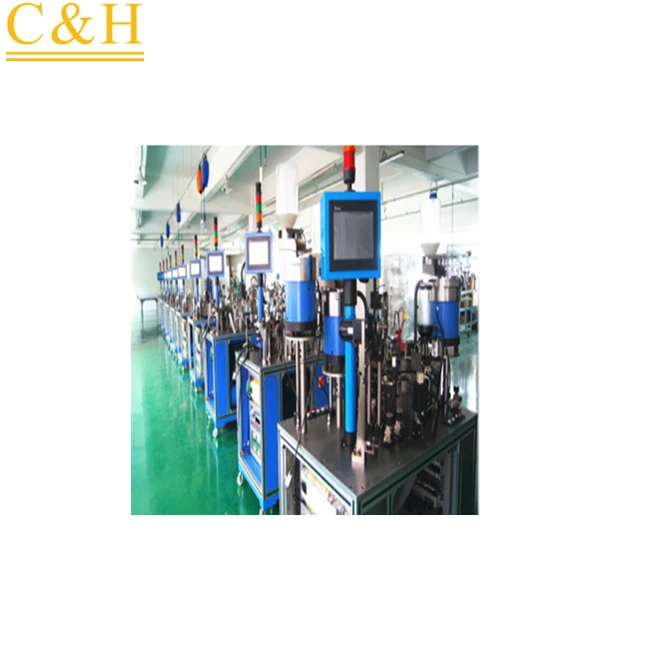

China manufacturer of automated assembly machine for ceramic fuse/auto blade fuse

Product Overview

Description

ceramic tube fuse machine

Title:    ceramic tube fuse machine



Introduction:



Model No.	C&H   0010156
Name	Glass tube fuse assembly machine
Function	Fully automatic operating system for the complete assemble of fuses
Dimension	1200mm * 800mm * 1940mm (L *W*H)
Power supply	AC 220V, 50HZ
Machine power	1.8KW
Productivity	40-50pcs/ min
Defective rate	<2%

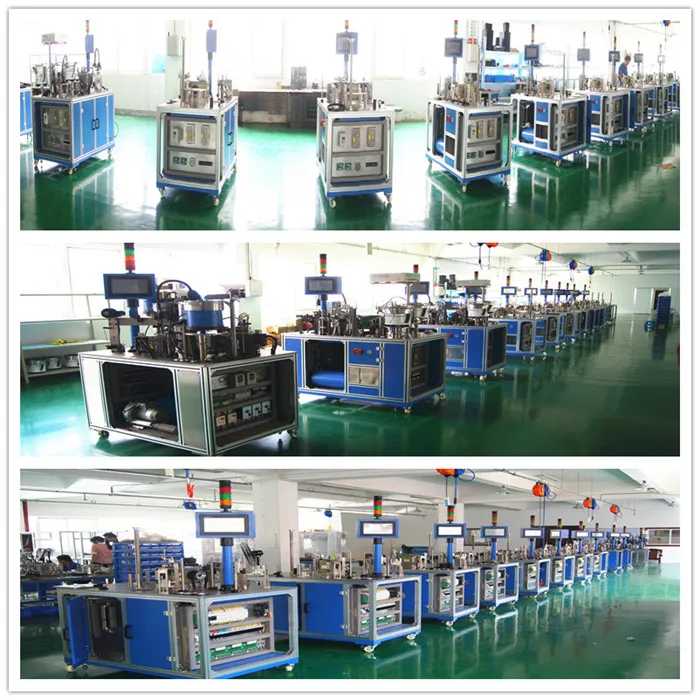

1. The fuse assembly machine is a fully automatic operating system for the complete mounting of fine wire fuses. Set up as an indexing table principle a rotating table with 36 receivers operates as a central tool carrier.

2. Machine can be equipped with a hopper feeder and a level (fillstand) control system. Defective tubes are sorted out by a vacuum control system. The fuse wire insertion system is controlled by a step-by-step motor. To solder the caps a hot air soldering unit (3 possible adjustments) is used, it's temperature is electronically controlled.

3. The finished parts are tested in a cap pull-off force device and in a length measuring station. The electrical testing is done in a 4-point contact station. A sorting unit sorts "good" and "no good" fuses.

4.The high-risk danger zone is covered by a safety cabin.(to do this or not is decided by buyer)



Advantage:



1.Main drive and fuse wire insertion with servo motors

2.Cap& tube feeding system through a bowl feeder out from bulk material

3.a precise center-mask-system for fixing the wire at the centric soldering position

4.solder station with electronic temperature control

5.various mechanical and electrical measuring stations for assuring quality while production

6.sorting system for accepted and rejects

7.usable types of fuse wire: blank fuse wire/ wound fuse wire





Packaging: 1. standard export packaging. (plywood case + plywood pallet )

                       2. according to customers' requirement



Shipping:   MAERSK, MSC,COSCO,OOCL etc.

1. Machinery parts manufacturing (good quality, high precision, long-lasting using)

2. Automation machines design (excellent team, fast-reply service)

3. Automation machines assembly and testing (rich experience, high reputation)

4. Delivery and after sales service (one year after sales service)



Q: Is it possible to know how are my products going on without visiting your company?

A: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the manufacturing progress.

ceramic tube fuse machine



Q: How can you ensure the quality?

A: We have QC department to control the quality from the begining to the end.



Q: Do you offer after-sale service

A: We offer one year after-sale service
