SF Flotation Cell ,Mineral Separator Flotation Machine
- Category: >>>
- Supplier: Yantai Jinpeng Mining Machinery Co. Ltd.
Share on (60209474039):
Product Overview
Description
Product Description

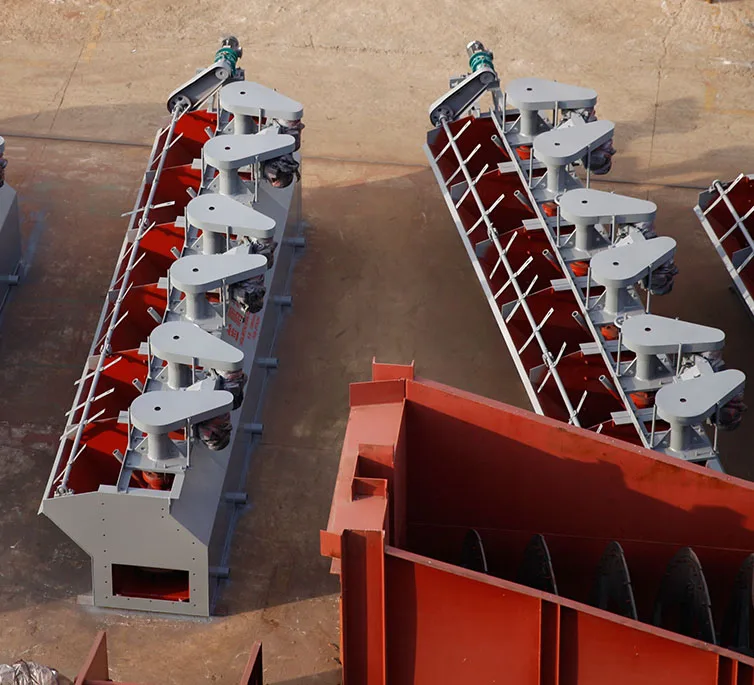

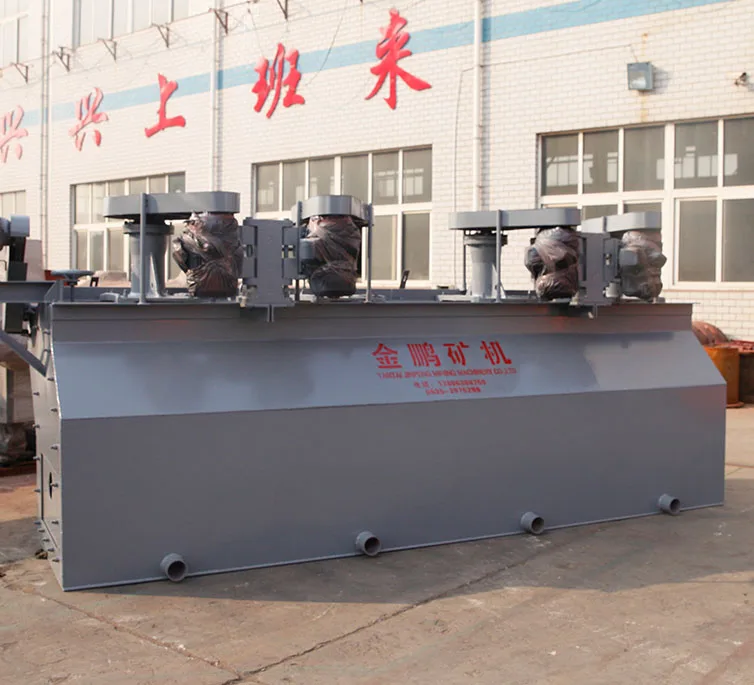

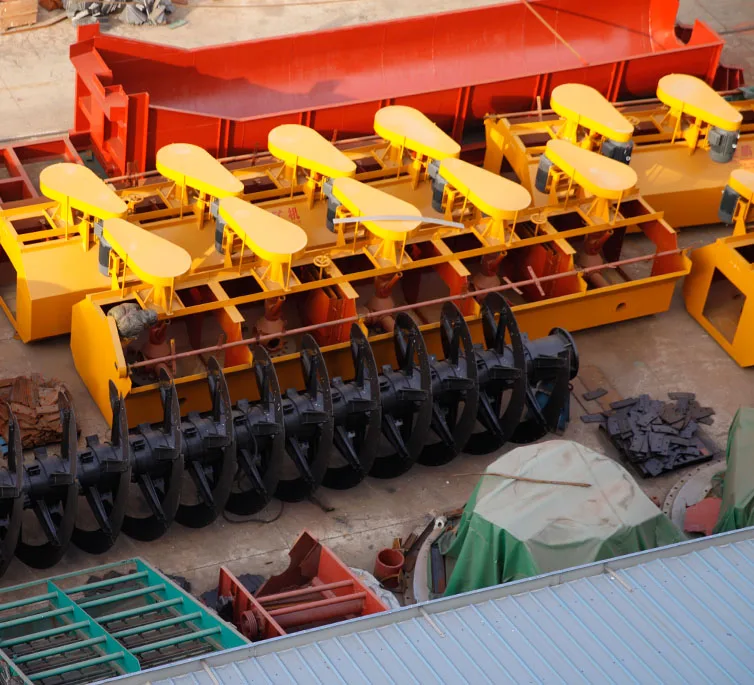

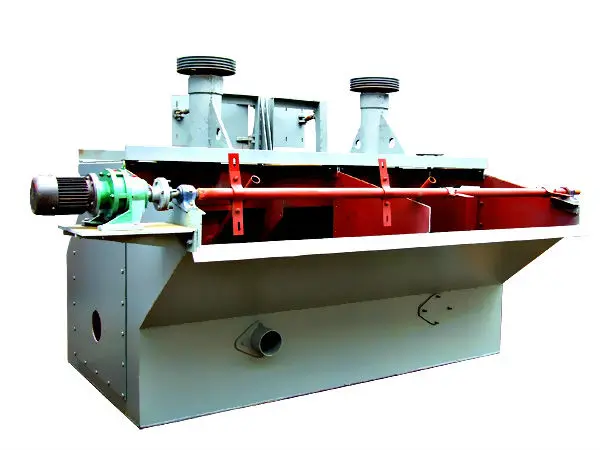

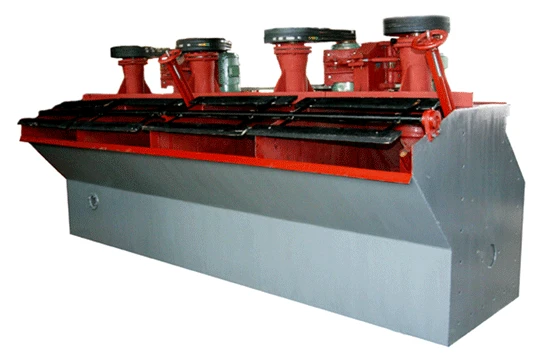

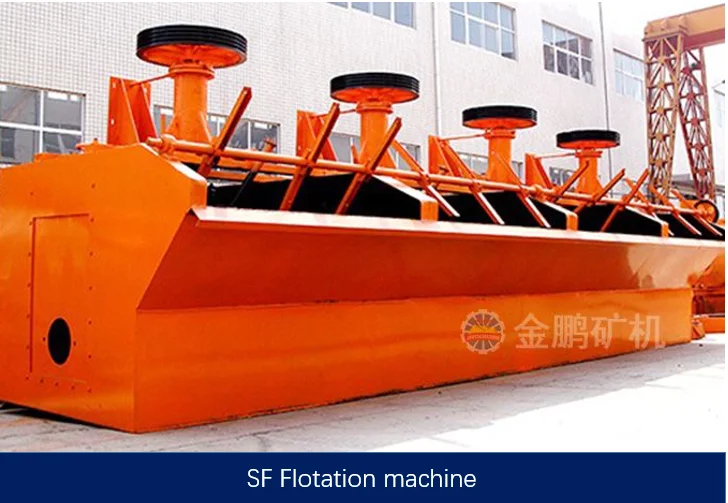

SF Flotation machine
Flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and
materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed
Production capacity : 0.2-24 m³/min
materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed
Production capacity : 0.2-24 m³/min
Applicable material : non-ferrous metals, ferrous metals and non-metallic mineral sorting
STRUCTURE
1. belt wheel 2. aspirating tube 3. center cylinder 4. principal axis 5. cell body 6. cover board 7. Impeller 8. honeycomb duct 9.false bottom 10. the upper blade 11.the lowerblade 12. impeller disk
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Advantage
1.Large air-absorption capacity and low power consumption
2.Long service life of vulnerable parts
3.Suitable for flotation of large particle size materials

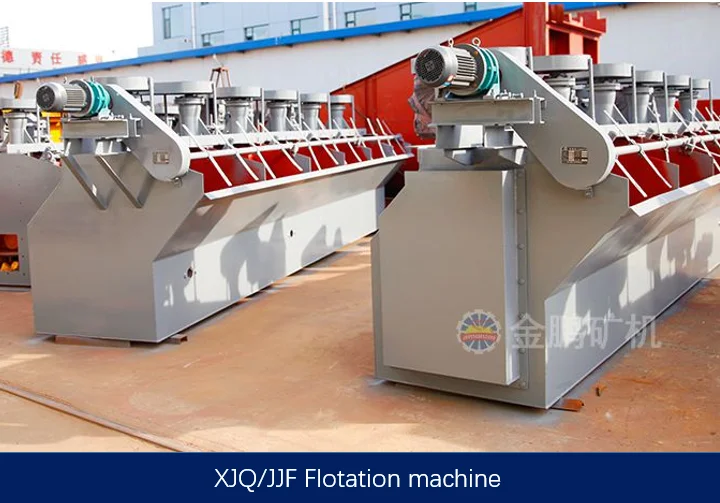

4.Can compose a joint flotation unit with JJF flotation cell
2.Long service life of vulnerable parts
3.Suitable for flotation of large particle size materials
4.Can compose a joint flotation unit with JJF flotation cell
Technical parameters.
SF Flotation machine | |||||||||||
Model | Effective volume m³ | Production capacity（m³/min） | Impeller diameter （mm） | Impeller revolutions （r/min） | 2 tanks weight （kg） | ||||||
SF-0.37 | 0.37 | 0.2-0.4 | 300 | 352-442 | 940 | ||||||
SF-0.7 | 0.7 | 0.3-1.0 | 350 | 336 | 1940 | ||||||
SF-1.2 | 1.2 | 0.6-1.2 | 450 | 312 | 2800 | ||||||
SF-2.8 | 2.8 | 1.5-3.5 | 550 | 280 | 4240 | ||||||
SF-4 | 4 | 2--4 | 650 | 235 | 5200 | ||||||
SF-6 | 6 | 3--6 | 760 | 191 | 6000 | ||||||
SF-8 | 8 | 4--8 | 760 | 191 | 8584 | ||||||
SF-16 | 16 | 5.0-16 | 850 | 169-193 | 14830 | ||||||
SF-20 | 20 | 5.0-20 | 730 | 186 | 19646 | ||||||
Customer Case

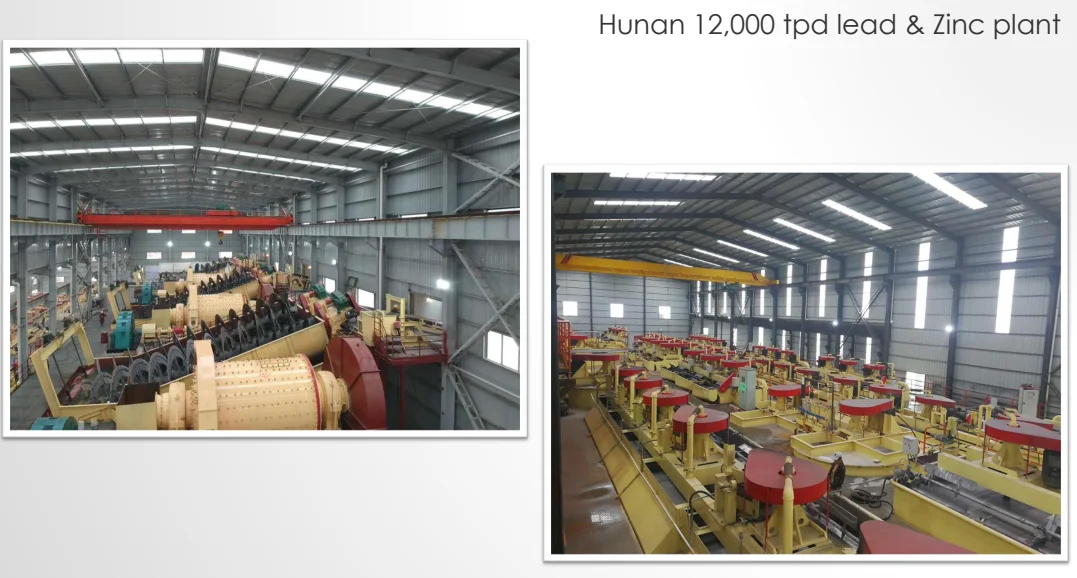

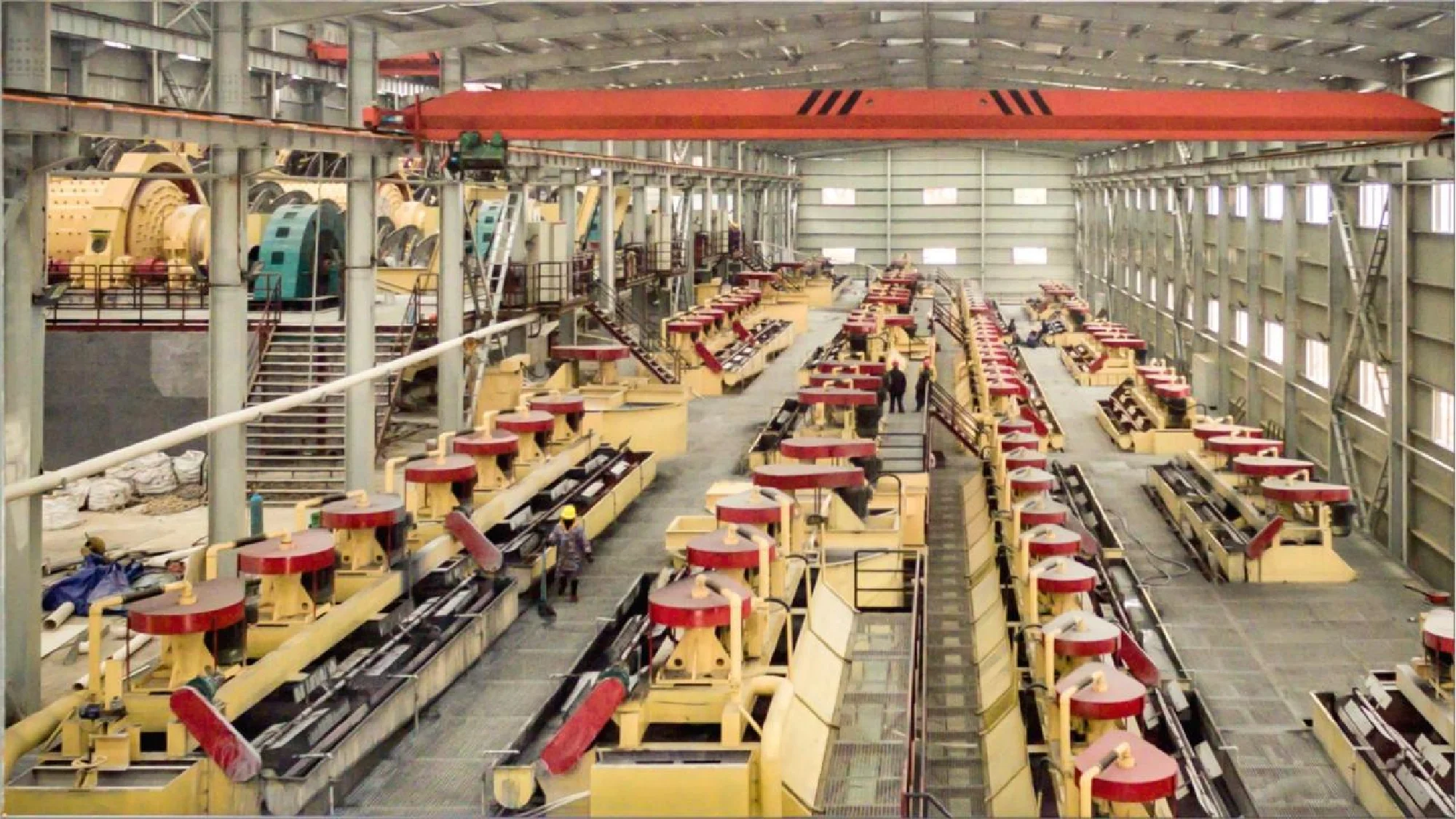

HUNAN 12,000 TPD LEAD & ZINC
PLANT
PLANT
Location: China
Ore type: Lead and Zinc
Design capacity: 12,000 tons per day
Main process:
Crushing: One stage Jaw crusher with one stage Impact
crusher
Grinding: One stage grinding with 3 sets of 3645 ball mill
Rougher+ Scavenger flotation- 69 sets 16 m³ flotation cells
Cleaner flotation- 21 sets 10 m³ flotation cells
Ore type: Lead and Zinc
Design capacity: 12,000 tons per day
Main process:
Crushing: One stage Jaw crusher with one stage Impact
crusher
Grinding: One stage grinding with 3 sets of 3645 ball mill
Rougher+ Scavenger flotation- 69 sets 16 m³ flotation cells
Cleaner flotation- 21 sets 10 m³ flotation cells
Recommend Products
Packaging & Delivery
We makes a classification package plan for all the kinds of equipments and materials. Transport the goods to Chinese port in batches, handle the procedure.
Company Information
JINPENG GROUP has more than 30 years experience in mining design and equipment manufacture. We can provide one-stop service that including research, design, manufacture, installation and commissioning, personnel training, after-sale service and management of dressing plant.
Mineral processing and smelting research institute
Our Mineral processing and smelting research institute has undertaken thousands of experimental research projects in various minesat home and abroad. In particular, nearly one hundred scientific tests have been carried out on the mines with low grade and refactory ore. The institute now has more than 30 processing, research and development personnel. and possesses national leading
technology in gold research
technology in gold research
Meanwhile, we obtained a number of scientific research achievements ,in recent years, we also made a major breakthrough in the field of non-metallic, particularly in fluorite ore, graphite ore, quartz, sodium potassium feldspar ore dressing research, which obtained a number of proprietary technology.
Our Metallurgical Design and research institude owns the professional qualifications of metallurgical industry issued by Ministry of construction. Since its establishment, the company has completed hundreds of mine engineering design projects, and won the national excellent engineering design awards many times. President xu baohua once served as the chief designer of the largest gold mine in Asia - zhongkuang gold industry (lingnan gold mine), the mine has advanced design technology, reasonable equipment selection, with the characteristics of saving investment and quick capital recovery. In recent years, based on the domestic market,at the same time, the design institute has also gone abroad by designing for hundreds of mineral processing plants in more than 40 countries , which is well received by users
Our Metallurgical Design and research institude owns the professional qualifications of metallurgical industry issued by Ministry of construction. Since its establishment, the company has completed hundreds of mine engineering design projects, and won the national excellent engineering design awards many times. President xu baohua once served as the chief designer of the largest gold mine in Asia - zhongkuang gold industry (lingnan gold mine), the mine has advanced design technology, reasonable equipment selection, with the characteristics of saving investment and quick capital recovery. In recent years, based on the domestic market,at the same time, the design institute has also gone abroad by designing for hundreds of mineral processing plants in more than 40 countries , which is well received by users

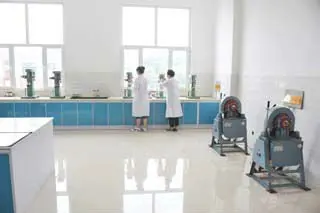

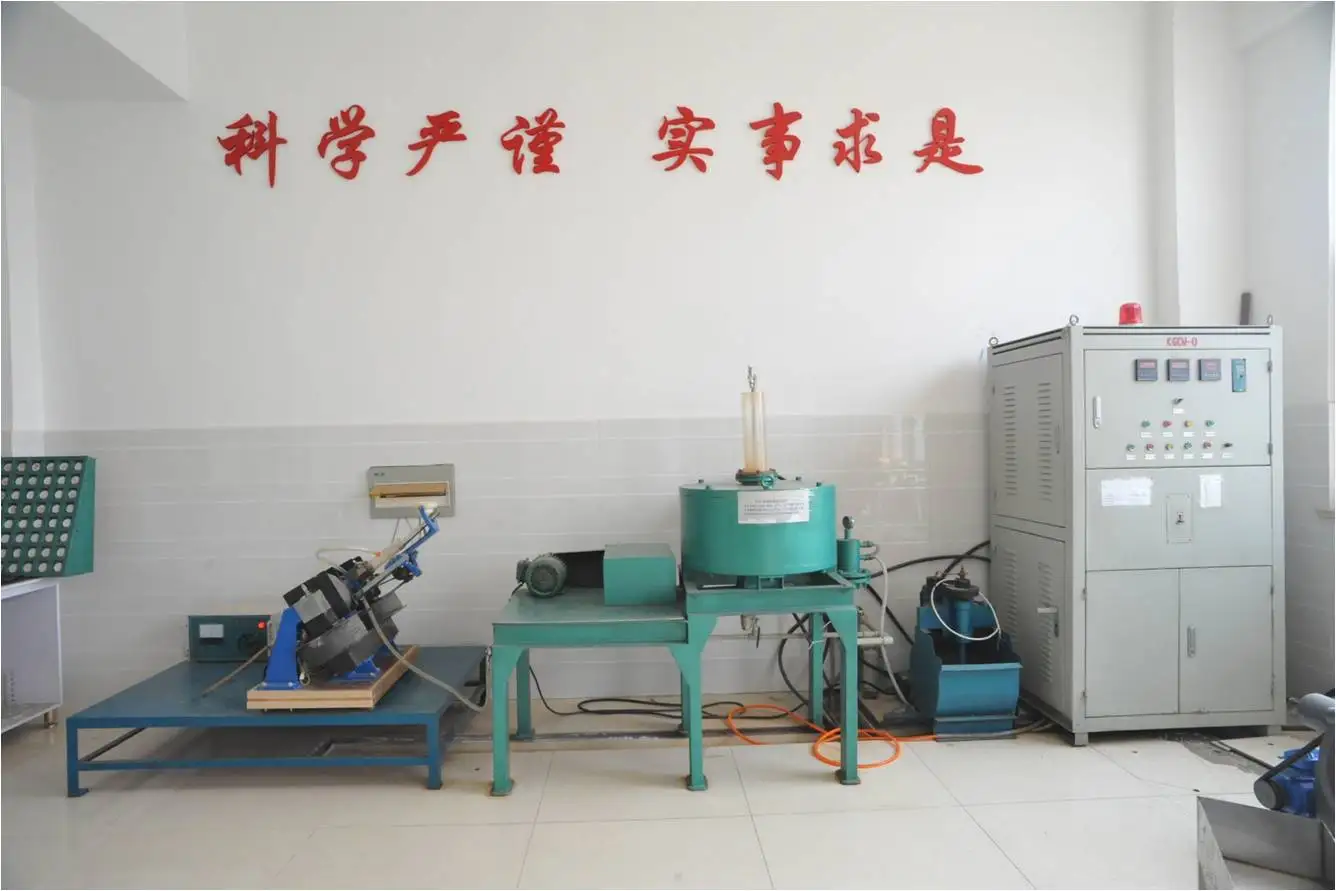

Laborotaries
