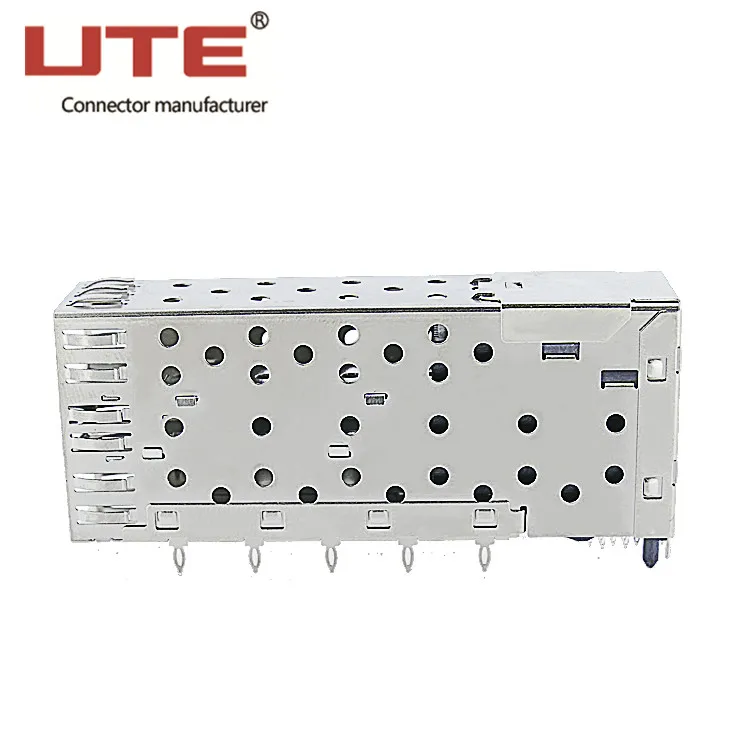

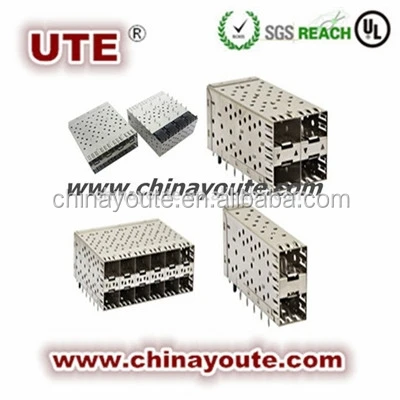

SFP Connector 1x1 Cage with EMI Spring Grounding Pin Press Fit

Electrical:

1,Voltage Rating: 120Voits AC Max

2,Current Rating:0.5Amp Max

3,Contact Resistance:35Milliohms Max.(Initial)

                                          70 Milliohms Max.(Final)

4,SFP Transceiver Insertion Force: 40N Max

5,SFP tRANSCEIVER eXTRACTION fORCE: 11.5N Max

6,Durability:100 Cycles Min.

Materials:

1,Cage:Nickel Silvrt,Thickness 0.25mm

2,Linght Pipe: High temperature PC,UL94V-0

3,Plastic Housing : High temperature PC,UL94V-0

4,Contacts:Phospher Bronze Plated with 15u/30u min,gold over nickel.

Environmental:

1,Operating:-55 ℃ to +85 ℃

2,Storge: -55 ℃ to +105 ℃

Q: how long Delivery time ?

A: RJ45/RJ11 Series: 12~20 days

SFP Series: 25~30 Days USB Series: 7~15 days

Pin Header/Female Pin header

Connector: 7~15 days

SATA/HDMI Series: 7~15 days

Q: How can I get quotation?

A:It is helpful for us to recommend the right item if we know your detail requirements

(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).

Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Q: Can I have samples?

A: Samples are available for evaluation.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.
