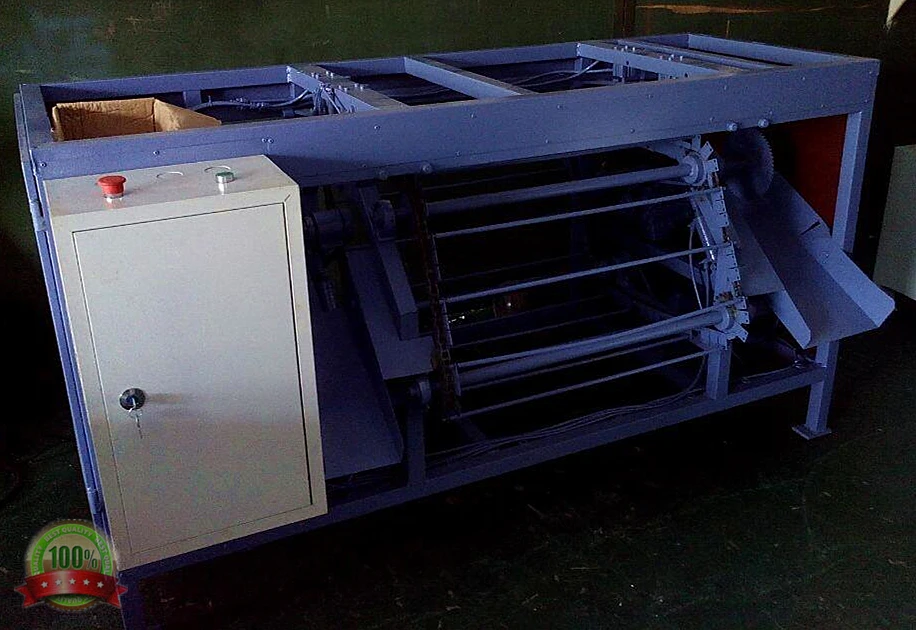

Woodworking automatic broom handle making machine

Product Overview

Description

Woodworking automatic broom handle making machine

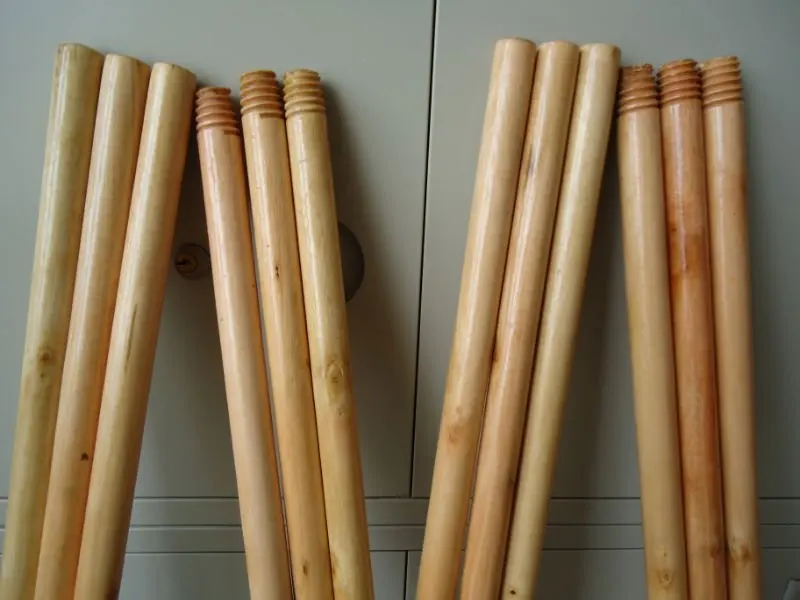

Broom handle making machine is mainly used for making the screw for the wooden broom or mop handle head. Make it more convinient for people to install and screw the rod on the broom, mop, shovel, farm tools and many other tools.



Automatic broom handle making machine has the cutting off function to make sure the rod's lengthe is the same. And it equips the end rounding function so that the round rod can make the round end while the rod is making the screw. It is easy and safety for worker to operate.











Technical Parameters:

Working length	600-1200mm
Max. Processing screw-pitch diameter	Ø28mm
Min. Processing screw-pitch diameter	Ø20mm
Max. Screw-pitch	6mm
Min. Screw-pitch	3mm
Milling cutter power	0.75kw
Manufacture efficiency	30 pcs/min
Overall dimension	1830×920×1000 mm
Machine weight	1000 kg
