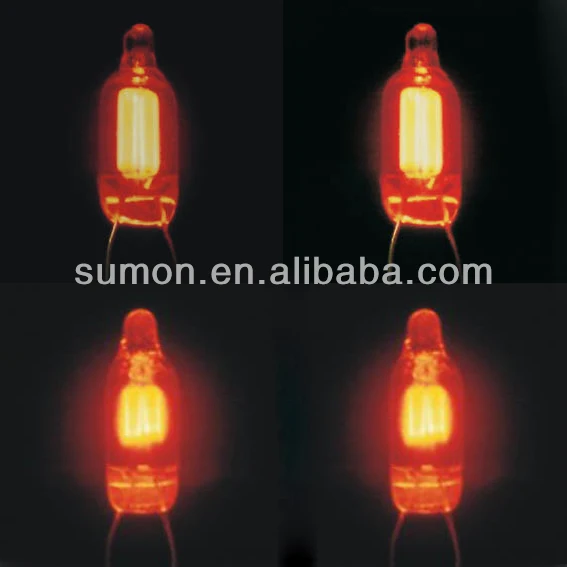

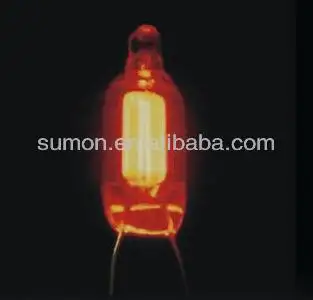

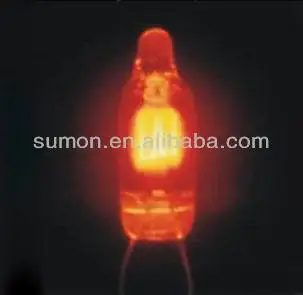

High quality Neon Lamp/ Red Standard Brightness NE 2

Product Overview

Description



USE AND CHARACTER



• Neon lamp is composed of glass tube, electrode treated by a special process and neon - argon gas. There are Standard, Medium, High, Ultra Brightness neon lamp, which can be chose by customers according to different requirements.
• According to the glass tube dia. and length, it can be separated as: 3x10, 4x10. 5x13, 6x13, 6x18 ETC.







TECHNICAL SPECIFICATION



TYPE NO		LAMP SIZE		WIRE SIZE		BREAKDOWN V(max)		CURRENT (Ma)	SERIES RESISTOR(KΩ)		LIFE(h)
		DIA (mm)	LENGHTH (mm)	DIA (mm) ±0.02	LENGHTH (mm) ±1	V(AC)	V(DC)		KΩ(110V)	KΩ(220V)
NE-2H	3x10.5	3.2	10.5	0.03	30	65	90	0.3	150	510	25000
	4x10.5	4	10.5	0.35	30	65	90	0.5	100	330	50000
	5x13	5	13	0.40	30	65	90	0.5	100	330	50000
	5x16	5	16	0.40	30	65	90	0.5	100	330	50000
	6x13	6	13	0.40	30	65	90	0.5	100	330	50000
	6x16	6	16	0.40	30	65	90	0.5	100	330	50000
	6x18	6	18	0.40	30	65	90	0.5	100	330	50000
	6x20	6	20	0.40	30	65	90	0.5	100	330	50000
	6x22	6	22	0.40	30	65	90	0.5	100	330	50000







CONTACTS
