clamp preformed guy grip dead end/120kn opgw tension clamps

Product Overview

Description

high quality Preformed Tension Set

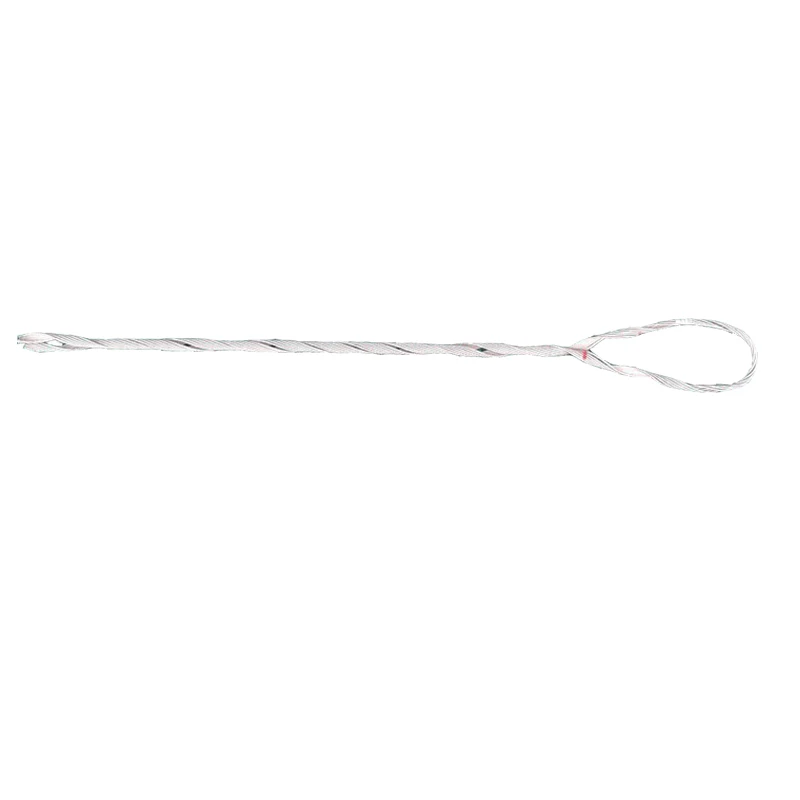

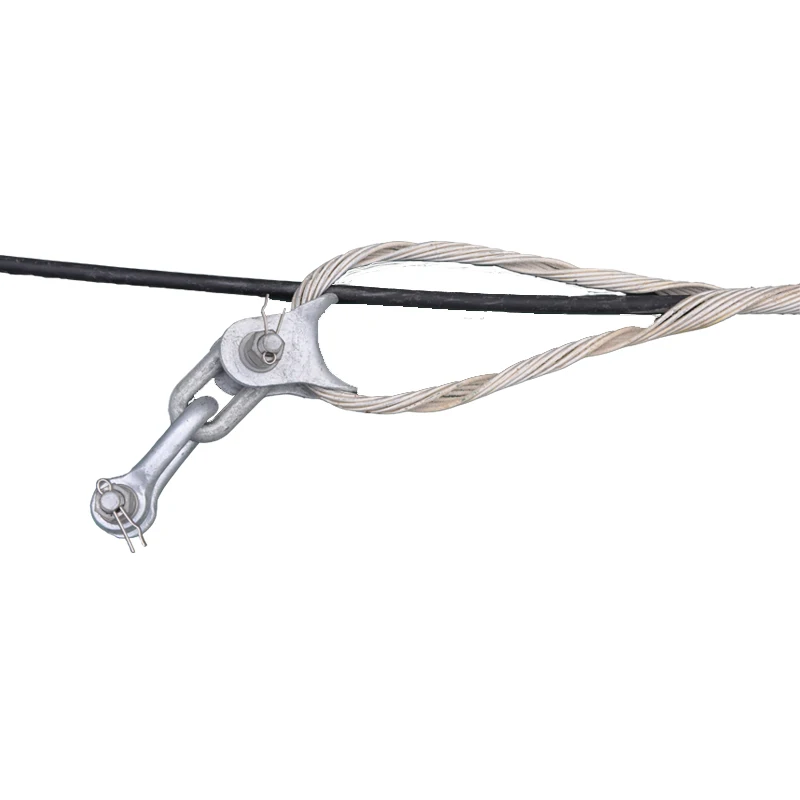

Preformed Guy Grip Tension Clamp











Type&Structure



1.Guy Grip Clamp can be divided into the ordinary for the ordinary Guy Grip clamp, adjustable Guy Grip clamp for fixed large-scale Tower and a large microwave tower Guy Grip clamp, etc..It can replace commonly used in domestic fixed-line tower on the UT Guy Grip clamp, wedge clamp, etc.







2.Guy Grip  clamp preformed wire legs twisted and the formation of air traffic control, rear for the preformed cutter ring.The formation of preformed wire legs wrapped in air traffic control when the Guy  line can produce a strong grip strength, and to fix the twisted ring anchor or tower on the ground.



Type	standered type	Suitable diameter(mm)	Suitable conductor type(mm2)	Clamp length(mm)	Weight(Kg)	Color code
ORN 3100	NL-25/G	6.60	25	636	0.20	Yellow
ORN 3101	NL-35/G	7.65-7.95	35	712	0.30	black
ORN 3102	NL-50/G	8.95-9.30	50	903	0.55	green
ORN 3103	NL-70/G	10.82-11.10	70	1018	0.85	blue
ORN 3104	NL-95/G	12.50	95	1335	1.70	red
ORN 3105	NL-100/G	13.00	100	1335	1.71	green
ORN 3106	NL-120/G	14.00	120	1464	2.20	blue



we can design and organize as your needs,if you want to get more information, please contact us freely.





Usage	1 For ADSS/OPGW cable line hanging.
	2 Usually installed on the terminal tower, tight tension tower and intersection angle tower etc.
Feature	1 The holding strength can reach over 95% RTS without the effects of stress concentration and  vibration stress.
	2 Excellent aluminium alloy improve the mechanical and resist-corrosion function,extend life.

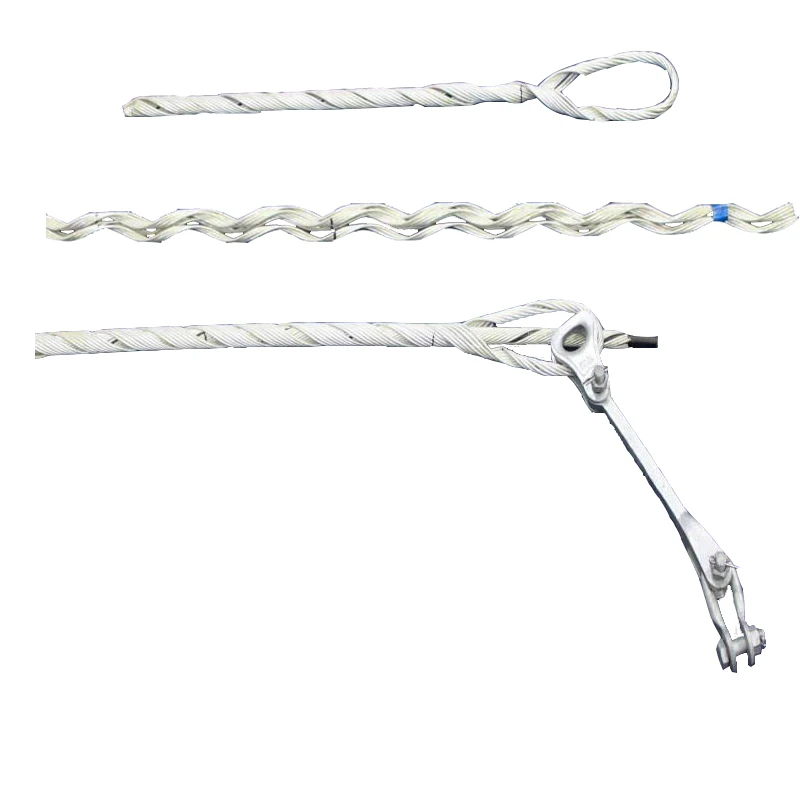

Composition	Inner preformed wire, outer preformed wire, link fittings, ground wire.
Order Tips	Please clarify cable diameter, RTS, cable’s elastic modulus magnitude and clamp materials required before place the the order.





ADSS/OPGW Tension Clamp Specification
