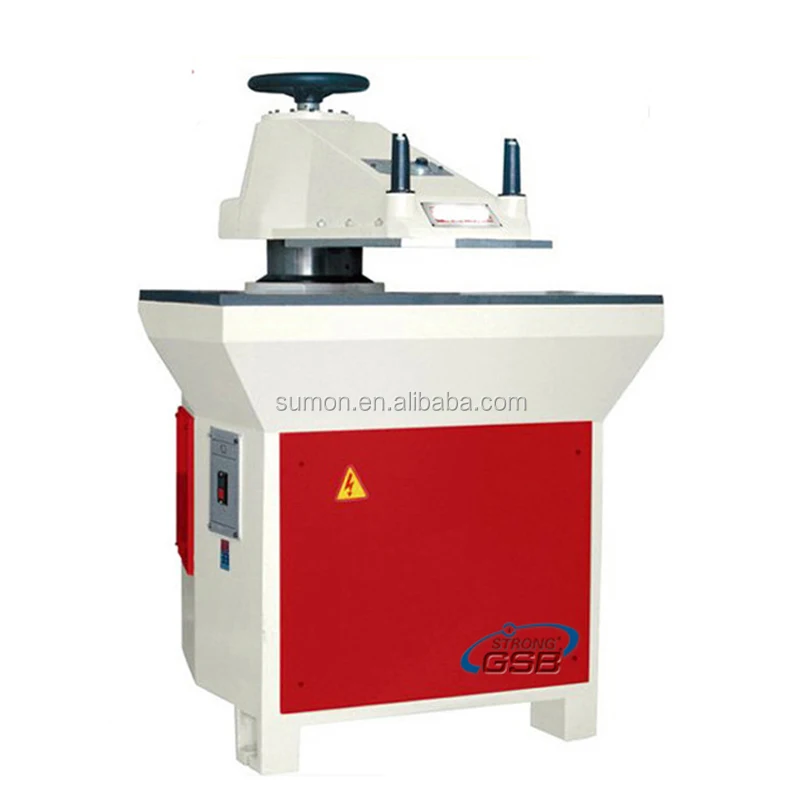

1. The machine is applicable to cutting of various nonmetal materials by die cutter.
2. The use of time control allows for simple and convenient setting of cutter depth.
3. Operation with both hands, safe and reliable.
4. The inertial energy of flying wheel is used so that the energy consumption is low ans the
operation stable.
5. The whole machine uses self-lubricating system to reduce wear and extend the service life of
the machine.
| Model number | GSB-80/100/120 | GSB-160 | GSB-200 |
| Max cutting force | 80KN/100KN/120KN | 160KN | 200KN |
| Stroke adjustment | 5-75mm | 5-75mm | 5-100MM |
| Distance between upper table and lower table | 50-120mm | 50-140mm | 65-150mm |
| Press Board size | 350x450mm | 350x460mm | 350x550mm |
| Cutting table size | 400x800mm | 410x900mm | 500x1000mm |
| Power | 380v/220v 50Hz/60Hz | 380v/220v 50Hz/60Hz | 380v/220v 50Hz/60Hz |
| Package size | 880x845x1420mm | 900x960x1570mm | 1080x1030x1600mm |
| Gross weight | 350kg | 510kg | 620kg |





Trade Terms: FOB, CFR, CIF, EXW, DDU
Payment terms: T/T, Western Union, PayPal, L/C, MoneyGram.
Payment Condition: 100% in advance OR 30% deposit in advance, 70% with the copy of bill of lading
Delivery Time: 5-7 working days after deposit,3-4 working days for inventory
Packing: Neutral Carton, Wooden case for large size
Shipping: By sea, by air and by express delivery
