3 inch tube stianless steel wire braid flexible metal exhaust hose connector
Why choose us?
1.100% quality assurance. Inner corrugated hose and outside wire braid are all made of stainless steel 304. This way can avoid media corrosion to the metal hose and largely prolong the life-span of the metal hose Poor quality metal hoses are usually made of SS202, even some suppliers use the material of SS201 to make the wire braid and inner tube. In this way, the life-span of metal hose are reduced largely and increase the maintenance and time cost to the customers. What’s worse, the poor quality metal hoses are easy to cause the leakage of media, and then cause the security incidents. 2. We manufactured all the metal hoses according to the request of pressure grade strictly. Never have the phenomenon of thin wall and poor waves. This way guarantee the hoses’ compressive strength and fatigue lifetime very well and prolong the life-span of metal hose. 3. We promise all the metal hose will be examined strictly before deliver even large quantity order. To the metal hose used in the high pressure environment, we even will arrange 3 to 4 times pressure test before deliver.
What is the features of our stainless steel metal hose?
1.Bend easily and easy to install.
2.It is able to bear corrosion resistance and heat resistance strongly, stainless steel materials can be used safely for years .
3.Outside is covered with stainless steel wire braided ,have high bearing capacity.
4. Applied to repeated motion region in high-temperature areas, good anti-fatigue performance.
5.Size,diameter and length can be produced as customer's requirement.
What is theconditionof our stainless steel metal hose?
Connection type
Flanged/threaded/shortcut
Hose material
Ss304/ss316
Diameter
DN6-DN700
Pressure
0.6-2.5MPA
Temperature
-196℃~+600℃
Length
According to your request
Thickness
5mm-20mm
What is theparametersof our stainless steel metal hose?
Inner Core: Corrugated Stainless Steel
Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
Stainless steel tubing formed into corrugations parallel to one another
Helical / Convoluted option available upon request
Outer Core:Braided Stainless Steel Layers
Purchase corrugated core hose with no layers, single or double braided
Flexible metal hose outer braid layers made from 304 stainless steel

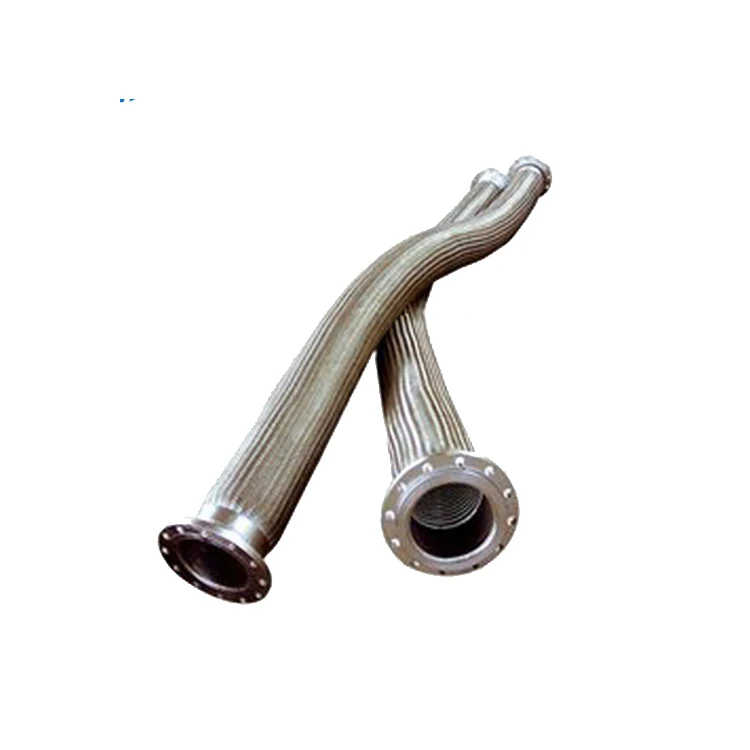

Photo show for 3 inch tube stianless steel wire braid flexible metal exhaust hose connector :
What is theapplication of our stainless steel metal hose?
For wire and cable protection tube and civilian shower hose. Widely used in aviation, aerospace, petroleum, chemical, metallurgy, power, paper, wood, textile, construction, pharmaceutical, food, tobacco, transportation and other industries.
Production Flow
FAQ
1.Q.Can you custom based on my size?
A.Yes, customized the size or length is aviailable, just according to your request.
2.Q.What is Minimum Order Quantity?
A.The MOQ is 1pcs of each kind.
3.Q.What is the price of your products?
A.Different kind of our products have different price, should be decided according to specified size.we can supply the best and competitive price to you.
4.Q.What is the payment terms?
A. You can througth T/T,Western union,Paypal,Escrow. Normally 30% deposit ,and 70% balance payment before shipment.
5.Q.What is the delivery time?
A.Norrmally after confirm payment 5-25 days.
6.Q.What is your company mainly manufacture?
A.Our company mainly manufacture rotary joint,metal hose,bellow and rubber expansion joint,hydraulic rubber hose.
HOW TO ORDER
To properly design a metal hose assembly for a particular application, the following design parameters must be determined:
1.Temperature--You should provide us this information as the temperature to which the assembly is exposed a proper fit
2.Size-- The diameter of the connections in which the assembly will be installed is needed to provide
3. Media--This is important since you must be sure that the assembly's components are chemicallycompatible with the media going through the hose as well as the environment in which the hose is installed
4.Pressure --Identify the internal pressure to which the assembly will be exposed. This information is important to determine if the assembly is strong enough for the application
5.Identify the necessary end fittings This is required since fittings for the assembly must be chosen to properly fit the mating connections.

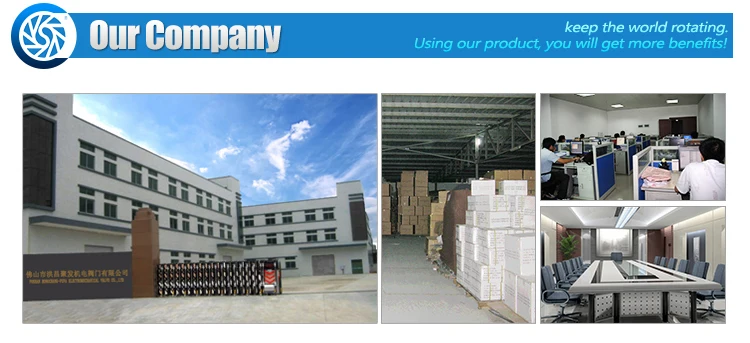

Company Information
Foshan Nanhai Hongchang Jefer Electromechanical Valve Co.,Ltd is a factory set up in 2006. We are specializing in researching, developing and manufacturing different kinds of rotary joints, flexible metal hose, rubber hose , bellow expansion joint and valve equipmentin China.
Our factory is covering over 10,000 square meters. Our R&D department consists of 3 engineers. Also, we have experienced QC personnel to check all our products strictly before packaging . All of our products meet the national standards and have pass ISO9001 certification. We obtain trust from customers by advanced technology, excellent quality and satisfactory service. Also, we specialized incustomized rotary jointstailored to meet your project requirements.
Our mission is: Offer high-quality goods, excellent service, and reasonable price to customers; Use our product, you will get more benefits!
