200mm Cobweb lens white led traffic light bulbs

Product Overview

Description



200mm Cobweb lens white led traffic light bulbs   JD200-3-CLW



Double cobweb Lens with the unique shape of spide-web,makes the led traffic light quite bright but not dazzling and the light even-distributed through secondary distribution of luminous intensity.

Features:

1.The housing is shaped one time out of PC and thus weights quite light

2.It’s sealed by silica gel and the IP grade is more than IP65

3.Anti-fire grade of the materials is UL-94V2/v0/5v.The service life is more than 10 years

4.Anti-vibration.Anti-wind pressure grade is more than 145KM/H

5.Our products up to 72 hours’ aging test before delivering

6.Up to national standard CE,and Chinese Standard GB-14887-2003

Modle	JD200-3-CLW
LED color	White
IP	IP65
Light intensity(cd)	≥455
Q’ty of led(pcs)	61
Half beam angle	30	30
Power(W)	≤8
Working temperature	-40~+80
Input Voltage	85VAC-265VAC,50HZ/60HZ,DC12V/DC24V
Outer shell	PC or Die-casting Aluminum

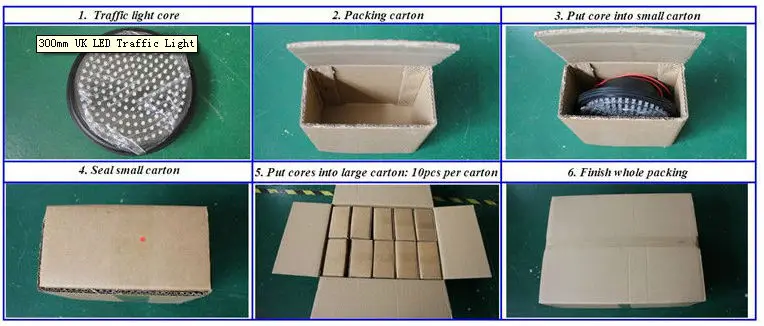

Packing Info:



Carton Size	Q'TY	GW	NW	Wrapper	Volume(CBM)
107*23*23cm	10pcs/carton	11.3kg	10kg	K=K Carton	0.06



Packing List:



Part name	Light	L Bracket	Sun Visor	M4x10 Screw	M4x20 Screw	Wiring Box And Gasket	Using Manual	Certificate
Q'ty.(pcs)	10	0	0	0	0	0	1	1





If you want to learn more and get latest price,

PLS add my trademanager or send inquiry to me.

I will be happy to service with you !
