heat resistant flexible sheet upvc roof for factory warehouse

Product Overview

Description

A roof tile is one of the ways to beautify your home,and its tested to last not just for years,but for decades..

Yuehao heat resistant flexible sheet upvc roof for factory warehouse are more and more popular in the world since it's excellent performance

1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental protection and energy conservation;
11. Easy to install

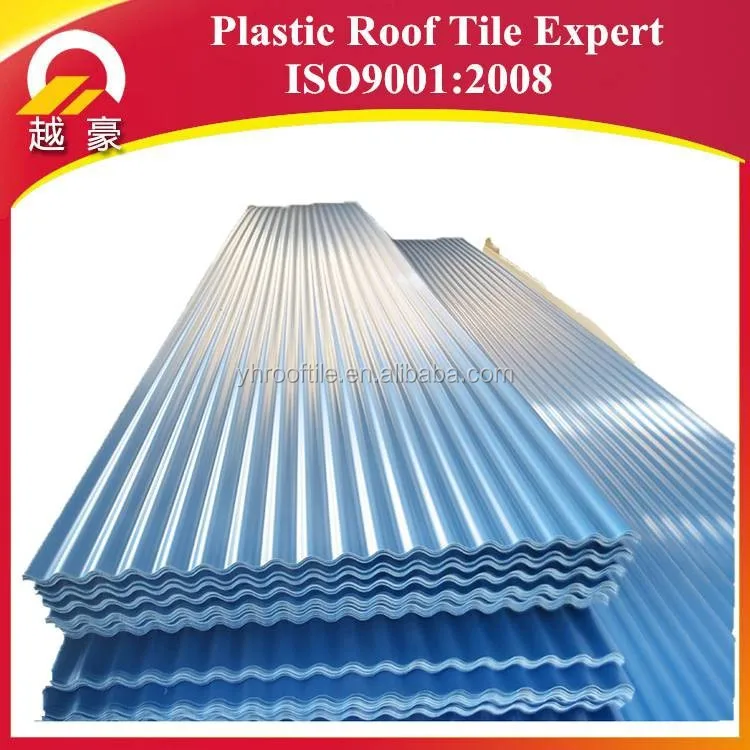

 Our range of PVC corrugated roof sheet is manufactured based on polyvinyl chloride resin. As

its name indicates, it adopts PVC as the main raw material. On the basis of a scientific ratio, the main material is then supplemented with anti-UV agent and other chemical raw materials to provide the end product with optimized overall performance.

    This economical class plastic roofing material has great color consistency, and is corrosion, fire, and weather resistant. As a kind of non-asbestos building materials, it is environmental friendly, and is available with bright colors.

 15 YEARS WARRANTY





Model	YH-PVC
Thickness	1.0±0.1mm	1.5±0.1mm	1.8±0.1mm	2.0±0.1mm	2.5±0.1mm	3.0±0.1mm
Weight	1.9±1kg/m2	2.8±0.1kg/m2	3.4±0.1kg/m2	3.8±0.1kg/m2	4.8±0.1kg/m2	5.8±0.1kg/m2
Length	5800mm , 11800mm or customized
Overall width	930mm		1120mm		Varies with the profile type
Effective width	840mm		1060mm		Varies with the profile type
Purlin spacing	700~900mm
Container Load capacity	Thickness		SQ.M./20 FCL (21 Tons)		SQ.M./20 FCL (26 Tons)
	1.0mm		11000 m2		13600 m2
	1.5mm		7200 m2		9000 m2
	1.8mm		6100 m2		7600 m2
	2.0mm		5500 m2		6800 m2
	2.5mm		4300 m2		5400 m2
	3.0mm		3600 m2		4500 m2







Test by SGS



Product Pictures







Application:

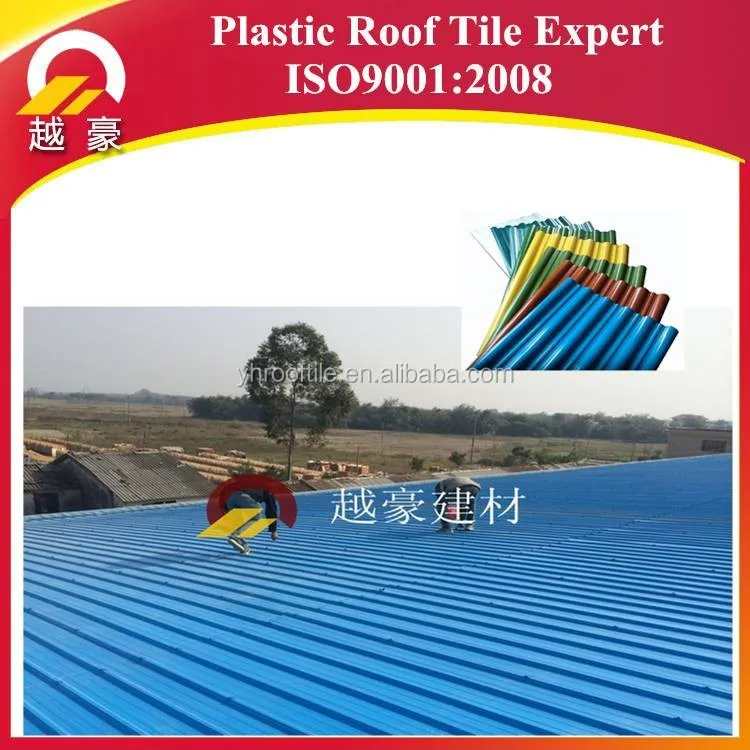

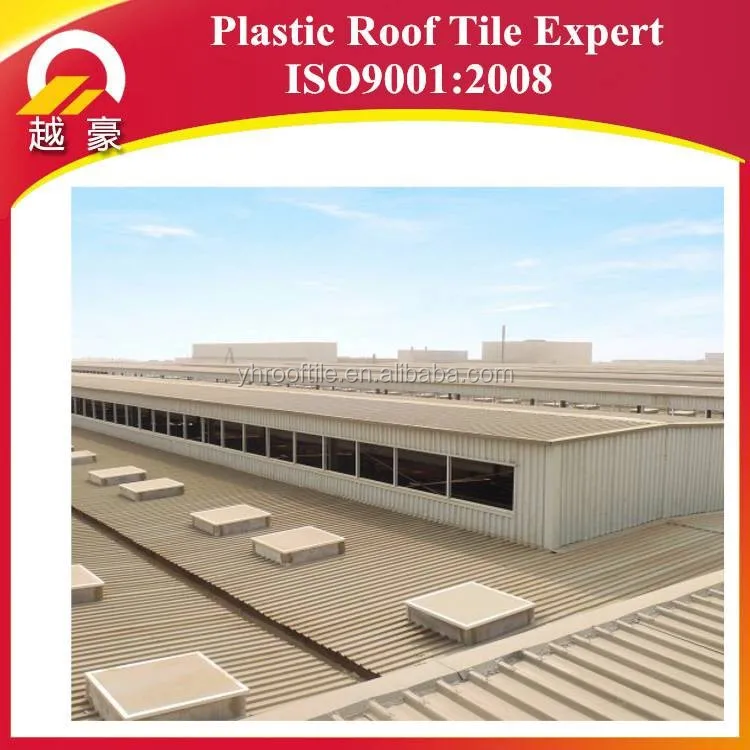

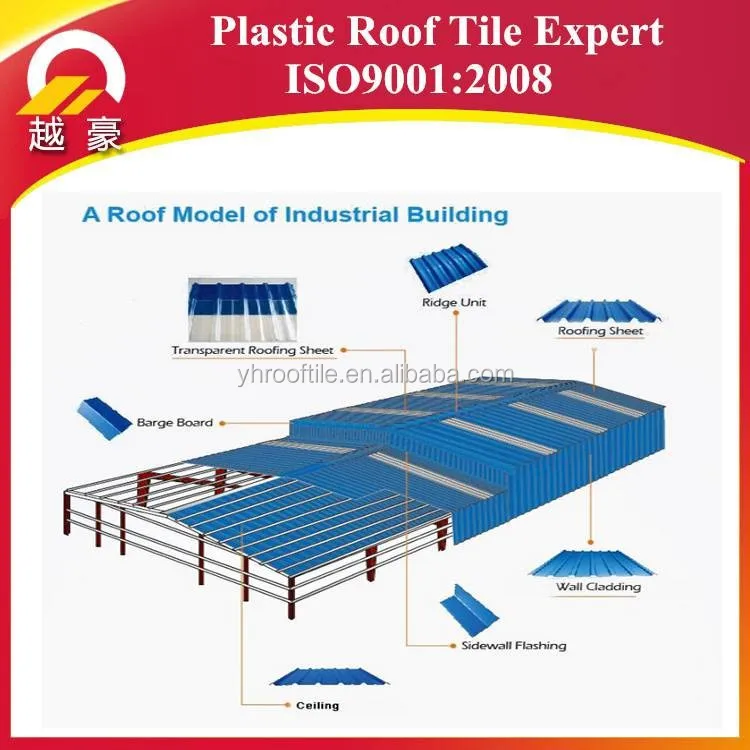

widely used for residential house,villa, workshop, warehouse, building lighting, greenhouse, sound-insulation walls and advertising boxes etc.We are the authorized supplier of roofing tiles for many government big projects in China,as well as Mid-East,South America etc.













Factory Tour:



Foshan Yue Hao Building Materials Technology Co.,Ltd is a  manufacturer of new-type engineering materials,specialized in producing selling ASA resin tiles, APVC  weather-resistant engineering tiles,PVC multilayer corrosion-resistant and heat-insulating tiles and other environment-friendly energy-saving products,which are widely used for workshop,warehouse,building,green house,sound-insulation walls,advertising boxes etc.

We have almost 20years solid factory experies,with  equipment and technology,all our products have passed the evaluation of ISO9001 Quality System Certification.Besides, the Yuehao ASA tile has gained the title of Famous Brand in Guangdong Province. With the high quality and proffessional production/service team,we are the authorized supplier of roofing tiles for many successful projects in China, Mid East,South America etc..

Located in Sanshui Lubao Industrial Park, We sincerely welcome you to visit us!

     FACTORY                                                                       WORKSHOP                                            SHOWROOM
