YHDC SCT 019 Split Core Current Transformer (CT) 0.75\
- Category: Transformers >>>
- Supplier: Beijing,Yaohua,Dechang,Electronic,Co.,Ltd.
Share on:
Product Overview
Description

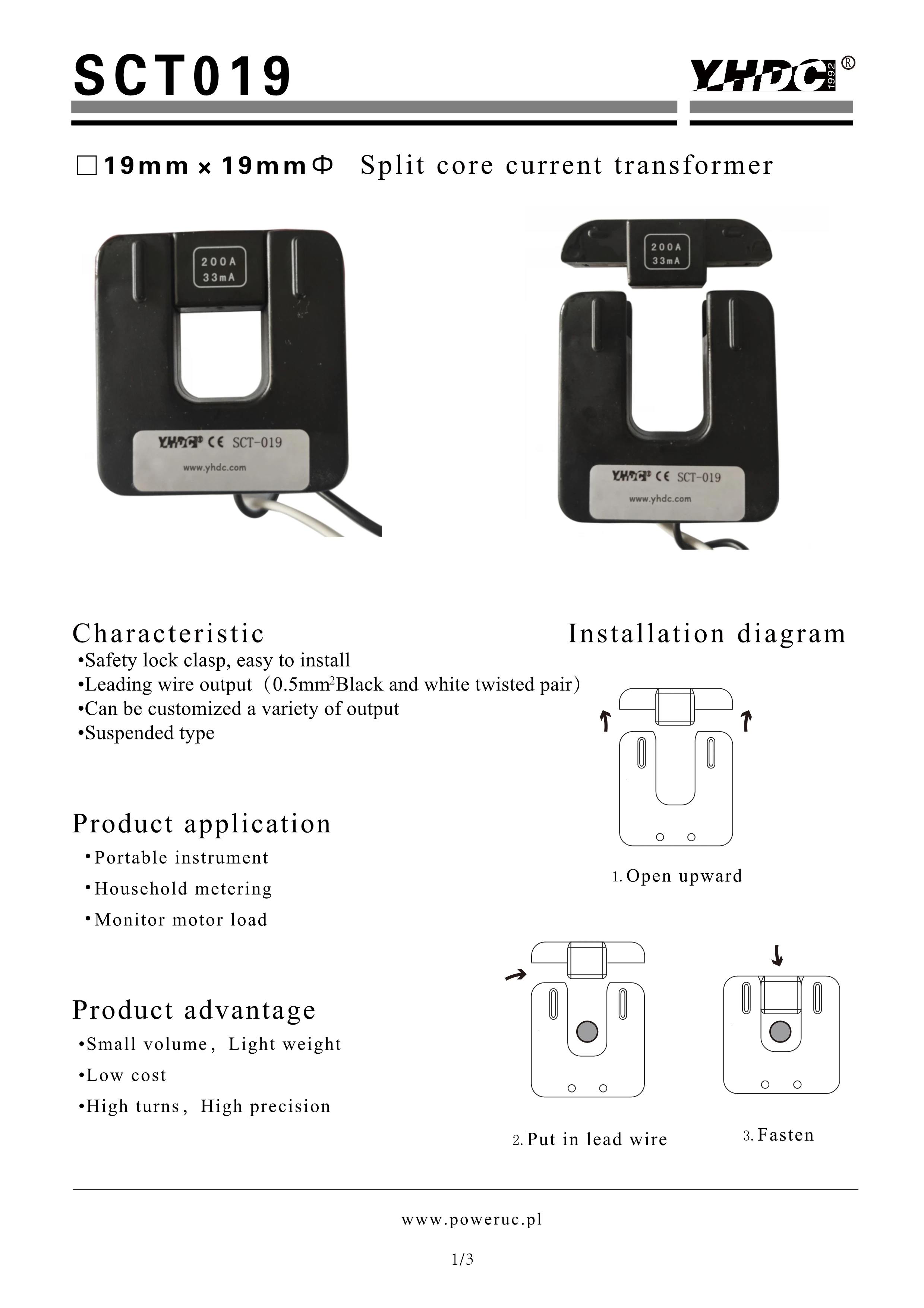

YHDC SCT-019 Split Core Current Transformer (CT) 0.75" ID 0-200A/0.333V
Model: SCT-019 Rated input current: 0-200A output : 0.333V
Characteristics:
Openning size: 19.1mm*19.1mm / 0.75" ID
Non-linerity±1%(10%—120% of rated input current)
Current output type and voltage output type (voltage output type built-in sampling resistor)
Purpose:Used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor et
Core material: ferrite
Mechanical strength: the number of switching is not less than 1000 times(test at 25°C)
Safty index:Dielectric strength(between shell and output)1000V AC/1min
Fire resistance property: In accordance with UL94-Vo
Work temperature: -25°C~+70°C
dielectric strength : 6KV
technical data of YHDC SCT-031-600 Split Core Current Transformer (CT) 1.25" ID 0.333V Output 600A Input
Output mode: Voltage output type built-in sampling resistor; Current output type built-in protective diode;
Forbidden to be opening operating for current type.
We are the manufacturer of YHDC SCT-019 Split Core Current Transformer (CT) 0.75" ID 0-200A/0.333V, we have our own factory, so that we can provide you OEM service and my split core current transformer have got ISO / ROHS certificate, there is no need for you to worry about the quality, meanwhile as the current transformer manufacturer, we can promise you low price and regular supply, welcome to order our YHDC SCT-019 Split Core Current Transformer (CT) 0.75" ID 0-200A/0.333V.
