Keestar Loop CUT automatic belt FIBC bag cutting length machine

Product Overview

Description

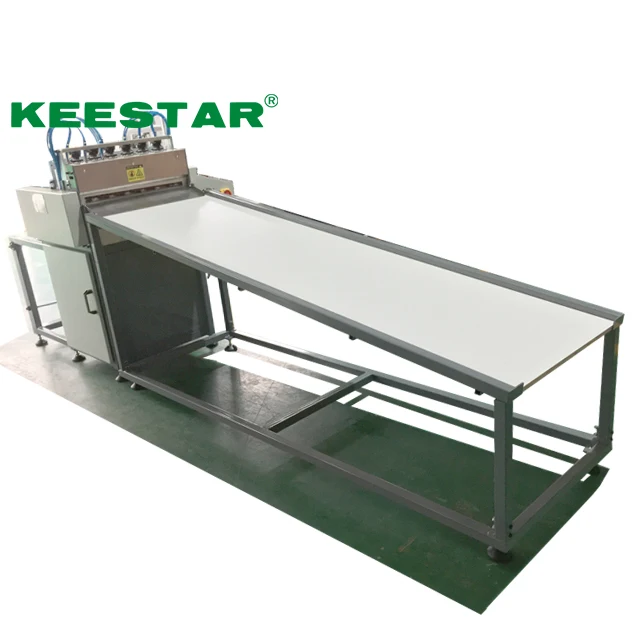

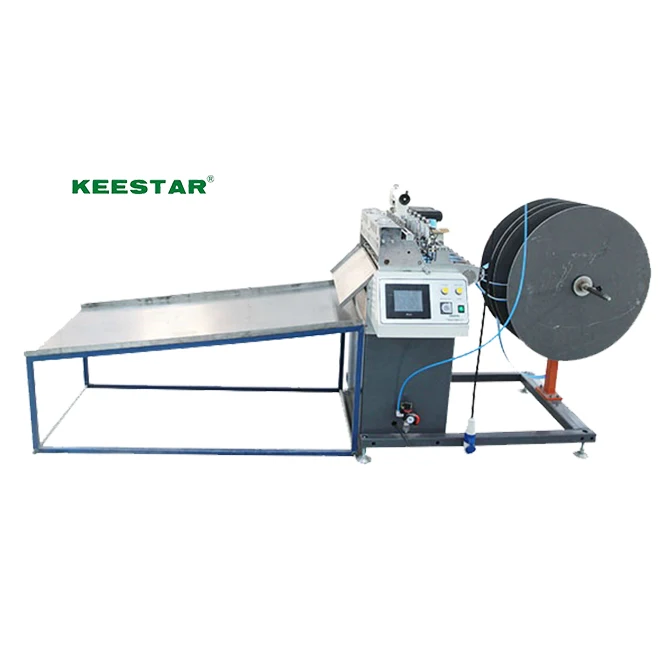

Keestar LoopCUT automatic belt FIBC bag cutting length machine







Attention:



1. Please oil the machine throughly before running.

2. Please follow the safety instruction strictly before put the machine into operation.

Specification:

Model	BAC-4/6
Number of cutting belt	10-300mm
Capacity of belt	1-6pic
Length of cutting	30-20,000mm
Accuracy	±0.5%
Output	30-60pic/min(less than 1500mm length)
Temperature	0-400°C
Power	3KW
Weight	280kg
Dimension	5,600 x 1,000 x 1,500mm

Keestar BAC-4/6 Automatic Belt Cutting Machine is an efficient equipment.

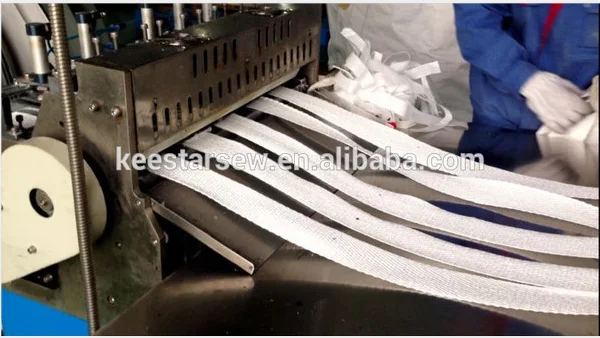

It is suitable for belt, ribbon, bandage, seat belt, parachute rope, PP band, bag belt cutting to length. With PLC accurate control,

Keestar BAC-4/6 could cut the set length with heat cutting automatic.

The powerful pneumatic upper and lower feeding guarantee the applications on different materials have have same high cuttinglength precision. Sling width less than 7mm could cut 6 strips in same time, and Sling with between 10-  7mm could cut 4 strips in same time.

Keywords: FIBC bag cutting machine;  automatic FIBC bag cutting machine ;  automatic belt cutting length machine
