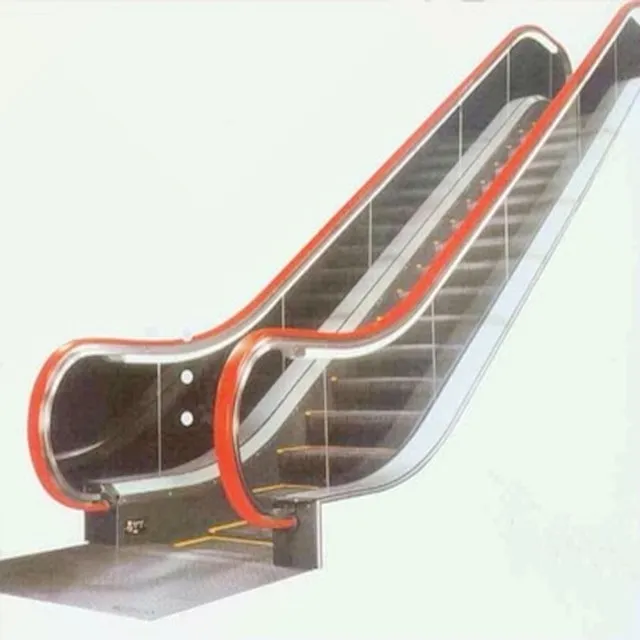

Commercial VVVF Indoor and Outdoor Electric Escalator
US $20000-$40000
Fuji 30angle escalator outdoor escalator made in china
- Category: Escalators >>>
- Supplier: Shandong,FUJIZY,Elevator,Co.,Ltd.
Share on:
Product Overview
Description
<
| Qoute term | FOB Qingdao China | |||||||
| Payment | T/T | |||||||
| Delivery Time | Within 30 days after receiving the deposit | |||||||
| Complement | below quotation based on our common export packing. | |||||||

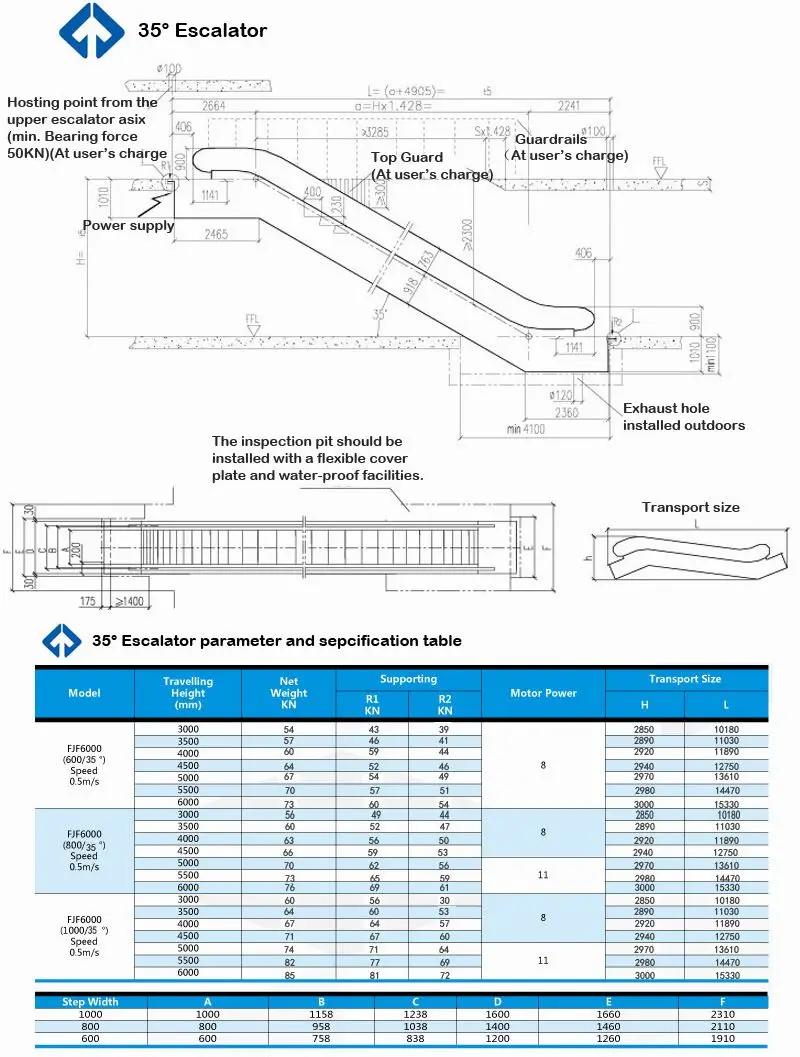

| Item No | FJF6000 | |||||||
| Inclination | 35° | |||||||
| Speed | 0.5m/s | |||||||
| Step Width | 800mm | |||||||
| Traveling Height | 4750mm | |||||||
| Horizontal Span | 11688mm | |||||||
| Power Voltage | 380V | |||||||
| Lighting Voltage | 220V | |||||||
| Frequency | 50HZ | |||||||
| Arrangement | Single | |||||||
| Motor Protecting Rate | IP21 | |||||||
| Motor Power | 8KW | |||||||
| Truss Material | Angle Iron | |||||||
| Balustrade Material | Tempered Safety Glass | |||||||
| Balustrade Height | 800mm | |||||||
| Balustrade Thickness | 10mm | |||||||
| Handrail Color | Black | |||||||
| Handrail Frame | Stainless steel | |||||||
| Inner and Decking Material | Stainless steel hairline | |||||||
| Skirting Assy | Stainless steel hairline | |||||||
| Comb Plate | ABS | |||||||
| Landing Plate Assy | Stainless steel | |||||||
| Step | Stainless steel | |||||||
| Step Color | Black | |||||||
| Unit Price | ||||||||
| This quotation is available in ONE month. | ||||||||

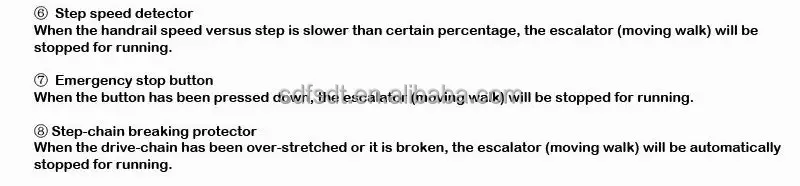

| STANDARD ELEVATOR FUNCTIONS | ||||||||
| 1 | LACK OF PHASE,ERROR PHASE PROTECTION | |||||||
| 2 | MOTOR OVER-LOAD PROTECTION | |||||||
| 3 | ELECTRICAL APPLIANCE LOOP PROTECTION | |||||||
| 4 | HANDRAIL INLET PROTECTION | |||||||
| 5 | COMB PLATE SAFETY DEVICEE | |||||||
| 6 | STEP SAGGING PROTECTION DEVICE | |||||||
| 7 | BROKEN DRIVE-CHAIN SAFETY DEVICE | |||||||
| 8 | BROKEN STEP CHAIN PROTECTION | |||||||
| 9 | OVER-SPEED PROTECTION | |||||||
| 10 | DIRECTION REVERSAL PROTECTION | |||||||
| 11 | SECURITY LINE | |||||||
| 12 | EMERGENCY STOP BUTTON | |||||||
| 13 | SKIRT PANEL PROTECTION | |||||||
| 14 | BRAKE PROTECTION | |||||||
| 15 | SAFETY INSPECTION SWITCH | |||||||
| 16 | STEP ILLUMINATION | |||||||
| 17 | ALARM BELL STARTING DEVICE | |||||||
| 18 | CONTROL DEVICE FOR HANDRAIL BREAKAGE | |||||||
| 19 | VVVF | |||||||
| MANUFACTURER AND BRAND FOR MAIN COMPONENTS | ||||||||
| 1 | CONTROLLER | MONARCH | ||||||
| 2 | MAIN CONTACTOR | FJZY | ||||||
| 3 | VICE CONTACTOR | FJZY | ||||||
| 4 | OVERLOAD RELAYS | FJZY | ||||||
| 5 | PHASE SEQUENCE RELAY | FJHD | ||||||
| 6 | BREAKER | FJZY | ||||||
| 7 | SWITCHING POWER SUPPLY | MINGWEI | ||||||
| 8 | TRAVEL SWITCH | HUNTER | ||||||
| 9 | CABLE | BST | ||||||
| 10 | REDUCER | TIANJIN HUAXING | ||||||
| 11 | MOTOR BRAND | TIANJIN HUAXING | ||||||
| 12 | TRUSS | FJZY | ||||||
| 13 | DRIVING UP AND DOWN COMPONENTS | QUANSHENG | ||||||
| 14 | STEP | QUANSHENG | ||||||
| 15 | CASCADE WHEEL | AODA | ||||||
| 16 | CASCADE CHAIN | AODA | ||||||
| 17 | HANDRAIL | SHANGHAI YULIAN | ||||||
| 18 | HANDRAIL GUIDE | FJZY | ||||||
| 19 | ENTRANCE HANDRAILS | FJZY | ||||||
| 20 | FRONT BOARD | FJZY | ||||||
| 21 | COMB PLATE | FJZY | ||||||
| 22 | OUTSIDE COVER | FJZY | ||||||
| 23 | APRON BOARD | FJZY | ||||||
| 24 | HANDRAIL RAILING | SHUANCHUAN | ||||||
| 25 | LUBRICATION SYSTEM | HADE | ||||||
