Hot sale Automatic High Speed Wire Twisting Machine (Spooler Machine)

Product Overview

Description

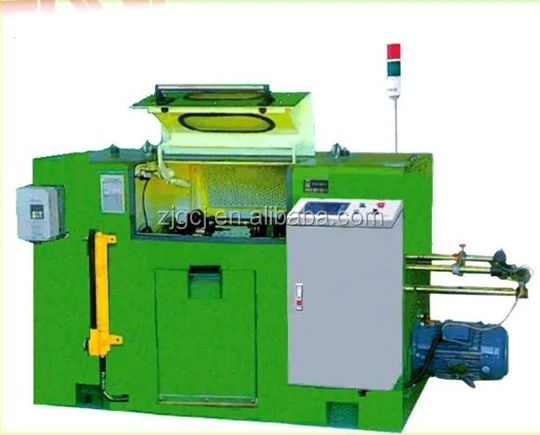

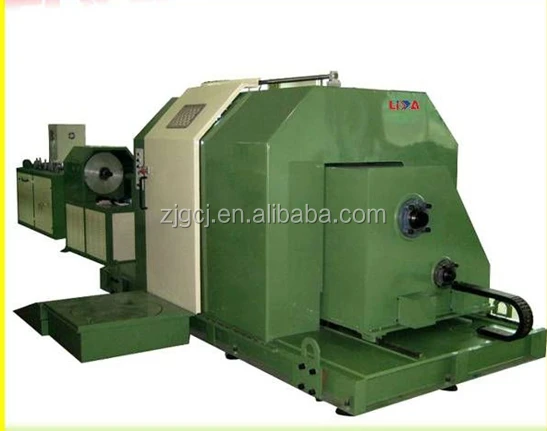

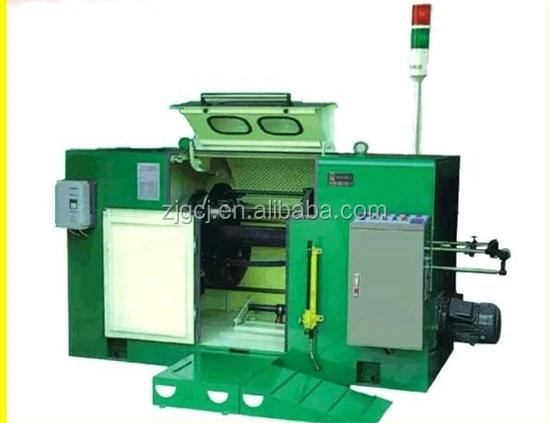

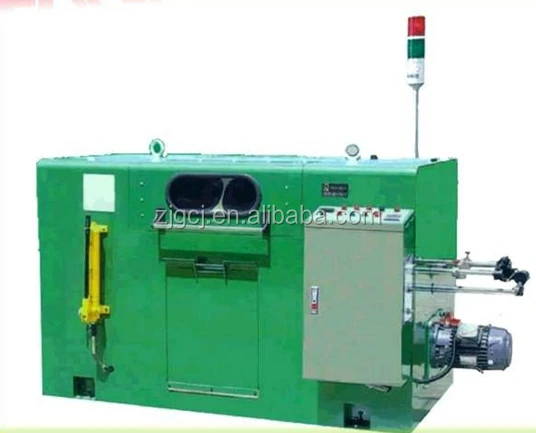

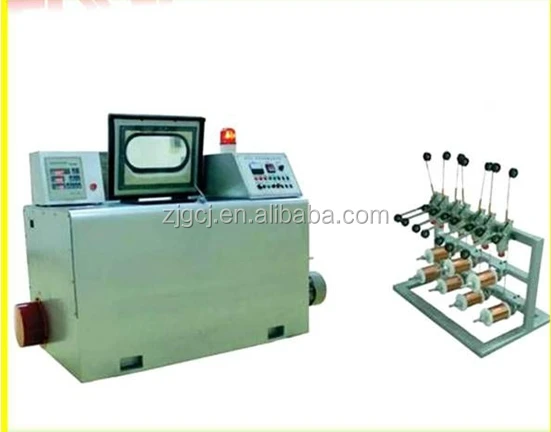

800P Automatic High Speed Wire Twisting Machine/ Spooler Machine

Usage for 800P Automatic High Speed Wire Twisting Machine Spooler machine:

800P  automatic high speed wire twisting machine is suitable for the stranding of enameled wire and copper wire of HDMI cable, computer traverse cable, head-phone cable, mobile cable, net cable, power cable, PVC wire, etc.



Main Features for 800P Automatic High Speed Wire Twisting Machine:

1. It is used for bunching cable, copper or aluminium wire.

2. This machine can adjust speed by frequency change.

3. Working steadily.

4. The twisting machine can automatically brake when the wire is broken.

5. Up and down by hydraulic drive.



800P Automatic High Speed Wire Twisting Machine Technical Parameter:

VOLTAGE	380V(Changeable)	TRAVERSING UNIT	Feed Rod,Traversing/Distance Adjustable
POWER	15HP Motor+15HP Frequency Converter No Load Current 14A	BRAKE	Magnetic
TWIST DISTANCE	21.52-145.66mm	CUTTING CONTROL	Auto Brake
TWIST DIRECTION	S/Z Optional Twist Direction	DIA. PER STRAND	0.3~1.8mm
TAKE-UP BOBBIN	Φ650~Φ800	AXIS PLATFORM	Hydraulic Elevator
MAX SPEED	1500RPM/1200RPM	NOISE	≤75 Decibel
STRANDING	Above 7 Wires	OILING	Import Oiling System, Auto Oiling
STRANDING SEC. AREA	0.18~6.5mm²	DIMENSION (L*W*H, M)	3.7*1.7*1.8





After-Sale Service for LY-800P Automatic High Speed Wire Twisting Machine:



1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.

2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.











We shall work with you as a team and to win as a team.



We provide not only quality products but also best service to you.
