Product Overview

Description

Best Selling Original Baofeng UV-5RA Dual Band Uhf Vhf Mobile Radio Cheap PMR Two Way Radio

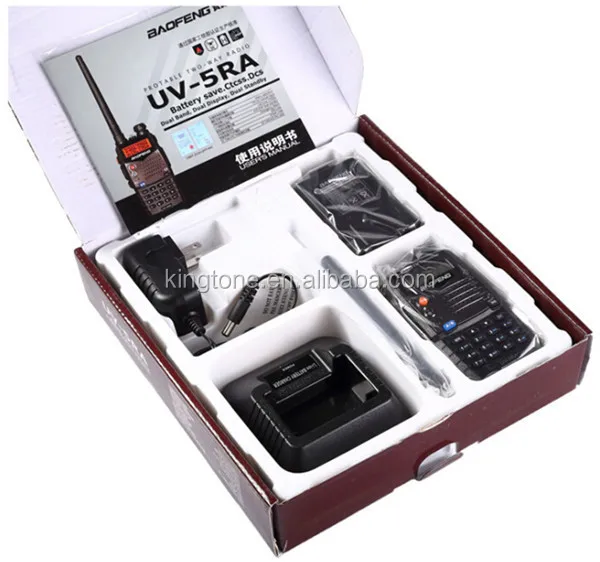

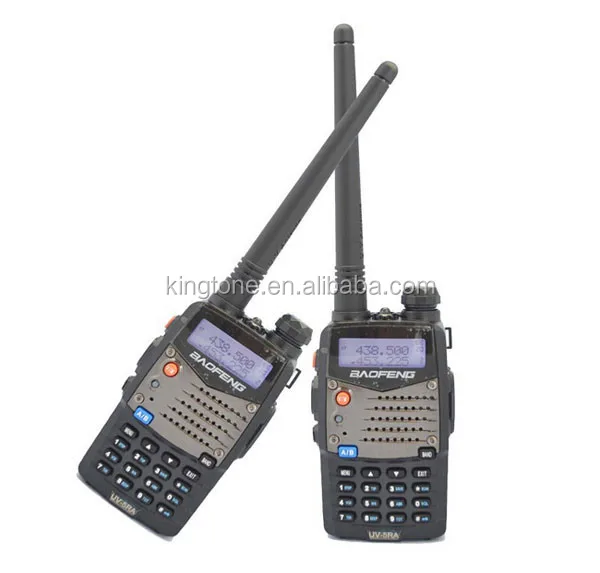

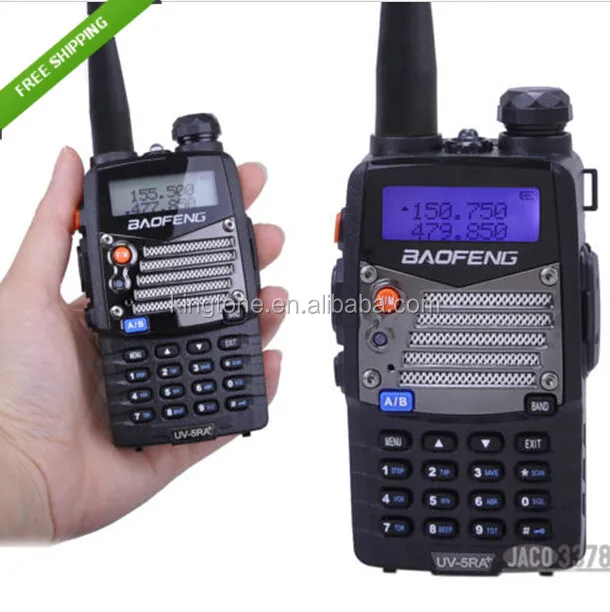

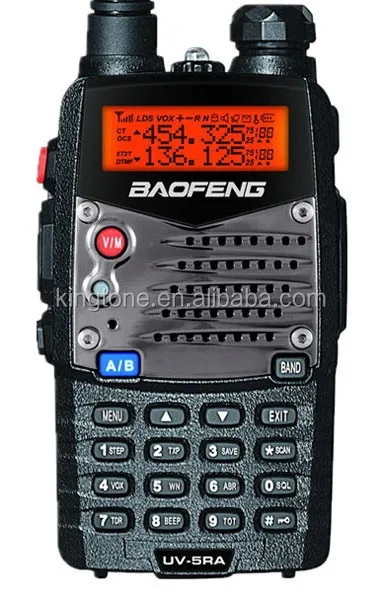

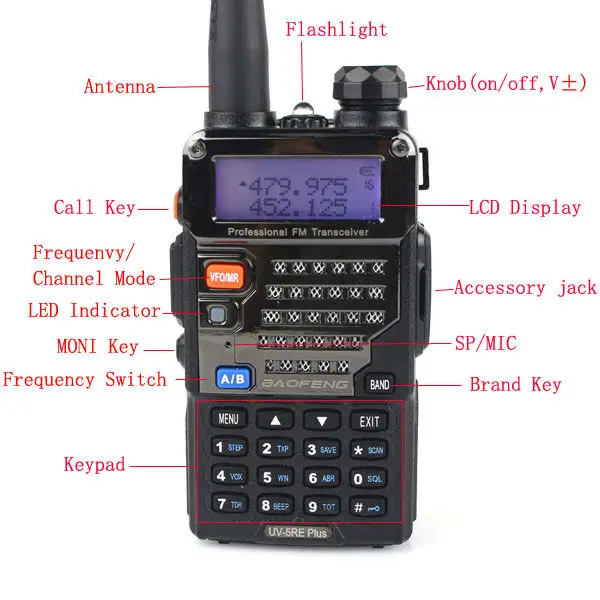

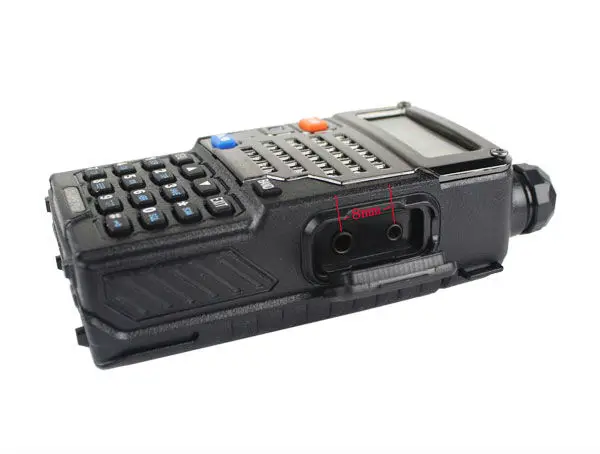

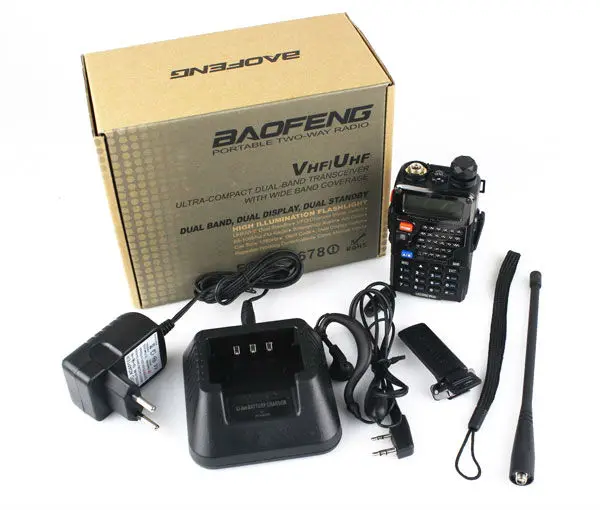

Photos of BAOFENG UV-5RA :









Radio Description

1. Frequency Range: 136-174MHz & 400-520MHz

2. Dual Band Display, Dual Frequency, Dual Standby

3. Output power: 5/1W

4. Channels : 128

5. 50 CTCSS / 104 DCS

6. VOX function

7. 1750Hz Tone

8. FM Radio Built-in (65.0MHz-108.0MHz)

9. LED Flashlight

10. Large LCD Display

11. High/Low RF Power Switchable

12. Emergency Alert

13. Low Battery Alert

14. Battery Save

15. Time-out Timer

16. Keypad Lock

17. Monitor Channel

18. Channel Step: 2.5/5/6.25/10/12.5/25KHz



Model: New BAOFENG UV-5RA

Color: Black

Frequency Range:

65-108MHz (FM Receive only) 136-174MHZ and 400-480HZ (TX/RX)

Channel Number: 128

Frequency Stability: ±2.5ppm

Antenna: High Gain Dual Band Antenna

Antenna Impedance: 50

Operating Voltage: DC 7.4V

Mode of operation: Simple or semi-duplex

Dimension (W x H x D): 100 x 52 x 32 mm

Weight: 250g (including battery, antenna)

Transmitter Output power: 4W / 1W (Max 5W)

Modulation Mode: 16k F3E / 11k F3E

Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation: <7 W

Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)

Pre-emphasis characteristics: 6dB

Current: <=1.6A(5W)

CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity: 8-12mv

Intermediation distortion: <10%



Features:

This BAOFENG UV-5RA transceiver is a micro-miniature multi band FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

* 25KHz/12.5KHz Switchable

* Frequency Range: 136-174 / 400-480MHz

* 128 groups Channels 50 CTCSS and 104 CDCSS

* Channel Step: 2.5/5/6.25/10/12.5/25KHz

* Dual-Band Display, Dual Frequency Display, Dual-Standby; A/B band independent operation







Technology Specification



Dual band, dual display, dual standby	A/B band independent operation
128 groups channels storage	Shortcut menu operation mode
VFO & Memory channels scan	Emergency Alarm
Tri-color background light selectable	0~9 grades VOX selectable
PTT & ANI ID	FM radio
Voice companding	50 CTCSS/104 DCS
	PC programmable
Wide/Narrow Band(25kHz/12.5kHz)	Transmitter time-out timer(TOT)
High/Low TX power selectable	Busy channel lock-out(BCLO)





Specifications:



Item number	UV5RA
General
Frequency Range	65-108MHz(FM Receive only)
	136-174MHZ and 400-520MHZ (TX/RX)
Channel No.	128
Frequency Stability	±2.5ppm
Antenna	High gain DualBand antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.4V
Mode of operation	Simple or semi-duplex
Dimension(W x H x D)	100 x 52 x 32 mm
Weight	250g(including battery, antenna)
Transmitter
Output power	4W / 1W (Max 5W)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation	<7μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	<10%
