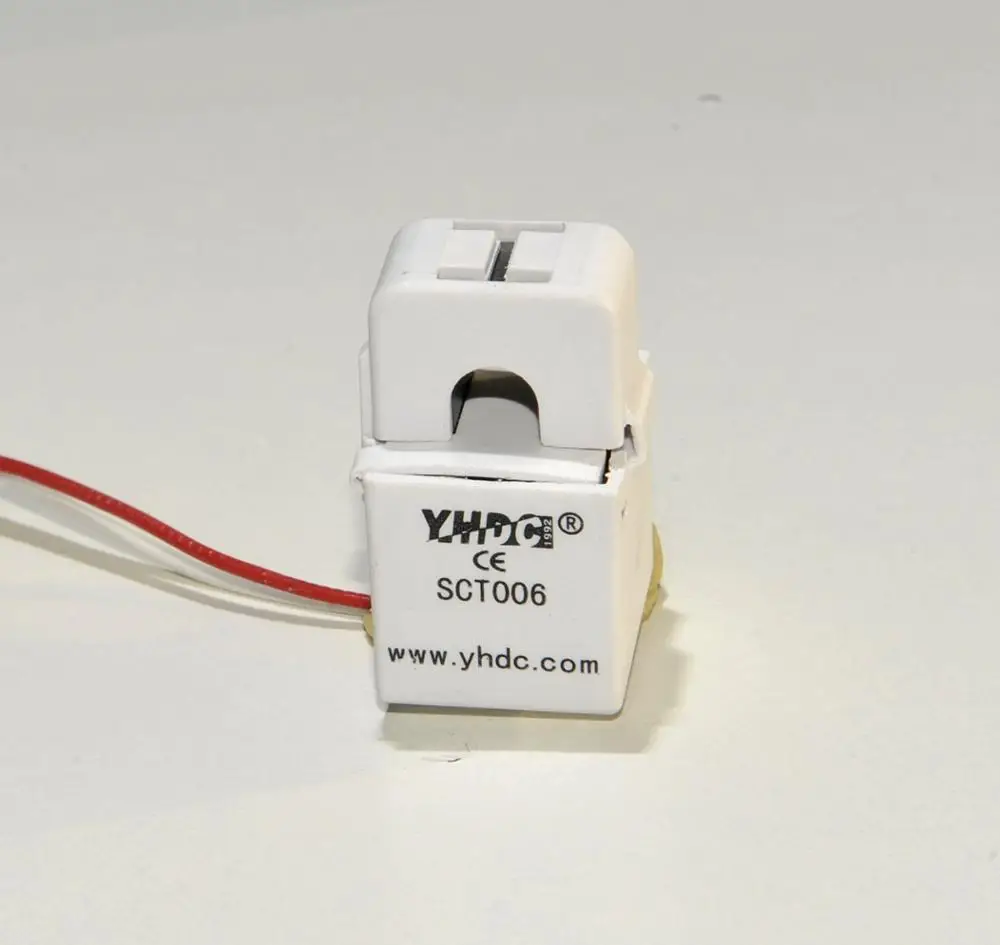

SCT006 split core current transformer 0 20A input 0 25mA output
- Category: >>>
- Supplier: Beijing Yaohua Dechang Electronic Co. Ltd.
Share on (60210809665):
Product Overview
Description
SCT006 split core current transformer 0-20A input 0-25mA output
Model: SCT-006 Rated input current: 0-20A
Openning size: 6mm*6mm,
Purpose:Used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor et
Core material: ferrite
Safty index:Dielectric strength(between shell and output)1000V AC/1min
Fire resistance property: In accordance with UL94-Vo
Work temperature: -25°C~+70°C
The following table Just for your reference, please contact with our company or dealers for detailed parameters.
Model | SCT-006 | SCT-010 | SCT-013 | SCT-016 |
Opening diameter(mm) | 6 | 10 | 13 | 16 |
Transformation ratio | 1:800 | 1:3000 | 1:1800 | 1:3000 |
Work frequency | 50Hz-1kHz | 50Hz-1KHz | 50Hz-150kHz | 50Hz-1KHz |
Outline size (mm) A/B/C | 16.5X19X29 | 22.8X25.8X40 | 32X22X57 | 29.5X30.8X46 |
Rated input current | 0-20A | 0-80A | 0-100A | 0-120A |
Linearity | ±1% | ±1% | ±1% | ±1% |
Output type | Current output | Current output | Current/voltage output | Current output |
Output current/voltage | 25mA | 26.6mA | 50mA/1V | 40mA |
Dielectric strength (AC/1min) | 1000V | 1000V | 3000V | 1000V |
Signal leading-out mode | 30cm | 50cm | 1m | 50cm |
Mounting mode | Suspension type | Suspension type | Suspension type | Suspension type |
Material of iron core | Ferrite | Ferrite | Ferrite | Ferrite |
Weight | 15g | 45g | 78g | 70g |

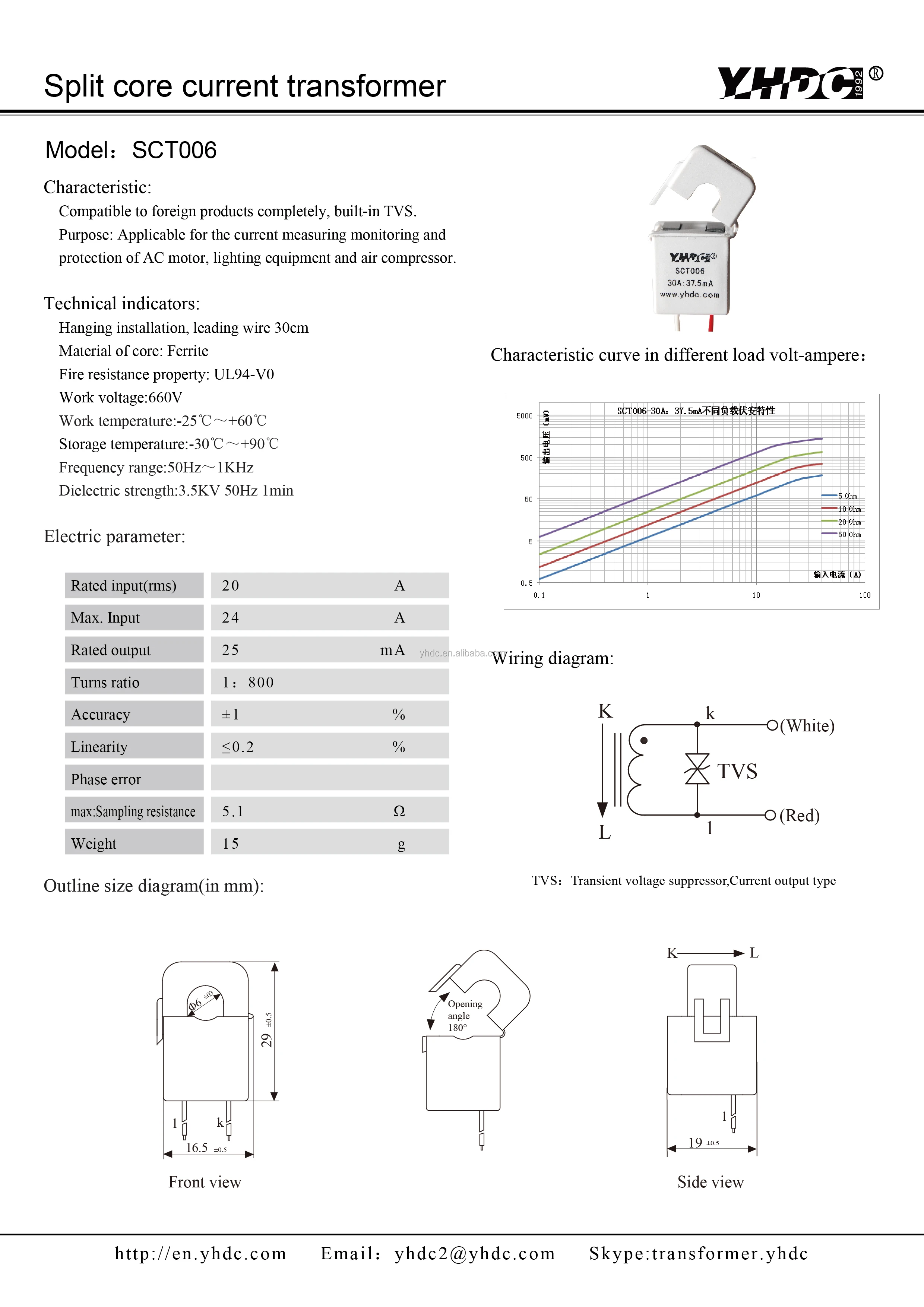

Technical data sheet of SCT006 split core current transformer 0-20A input 0-25mA output
We are the manufacturer of SCT006 split core current transformer 0-20A input 0-25mA output, we have our own factory, so that we can provide you OEM service and my split core current transformer have got ISO / ROHS certificate, there is no need for you to worry about the quality, meanwhile as the split core current transformer manufacturer, we can promise you low price and regular supply, welcome to order our SCT006 split core current transformer 0-20A input 0-25mA output.
