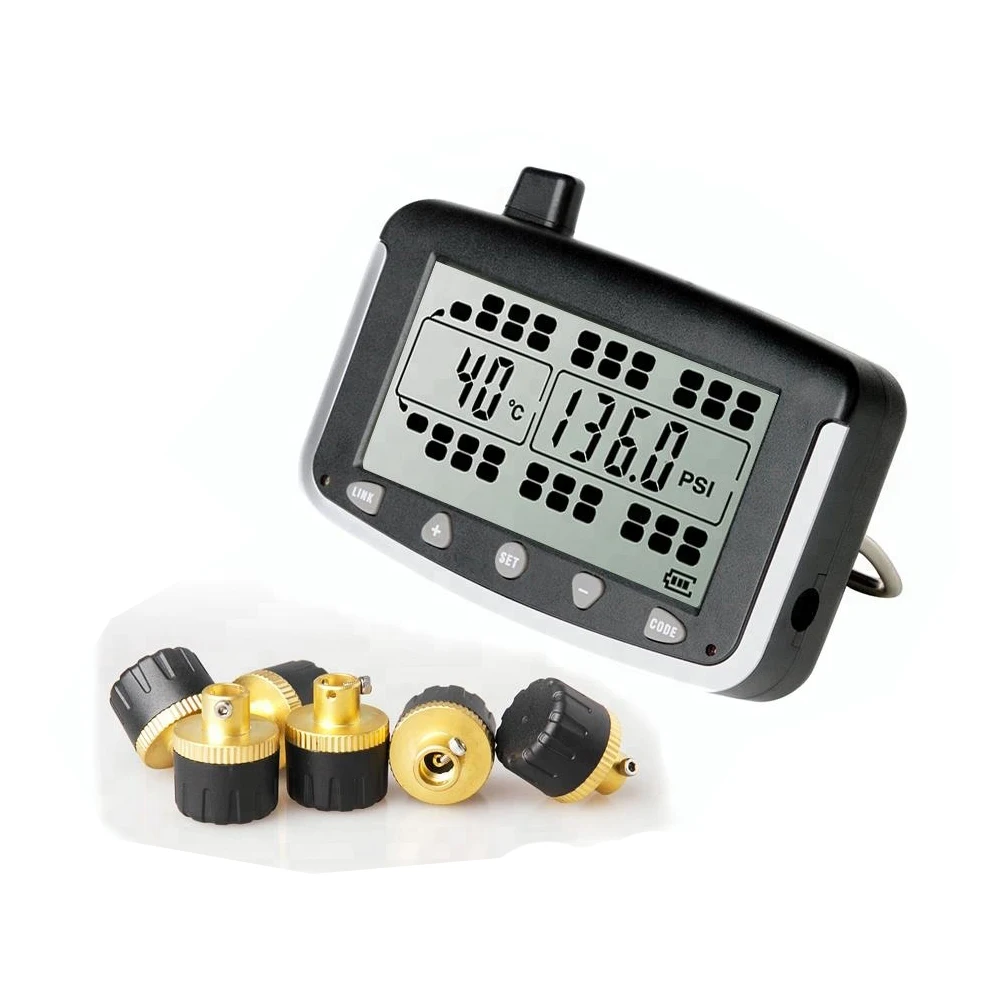

external truck tpms tyre pressure monitoring system

Product Overview

Description

external truck tpms tyre pressure monitoring system TPMS





1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires





2. Features:



Monitor Features:





Full time, real time display tire pressure and temperature
100% wireless transmitting
Sensor transmit tire's pressure and temperature every 5 minutes
Capable of a truck and a trailer with 38 tires in total
Visible and audible alerts for high pressure / low pressure / high temperature / rapid drop in pressure
Fast leakage alert
High pressure/low pressure setting for each axle
Supports trailer-exchange with an optional trailer-exchange repeater





Sensor Features:

Reliable external sensors, easy to install.
Water resistance.
Battery replaceable.
Fast leakage alert.
Individually coded sensors.
Anti-theif design.

Pressure range: 0-188PSI
Pressuer accuracy: ± 1.5PSI
Transmission frequency: 433.92MHz
Battery life: 2 years, replaceable

Operation temperature: -40C~+80C

Weight: 22 grams

Size: 52*26*22(mm, L*W*H)





3. Specifications:

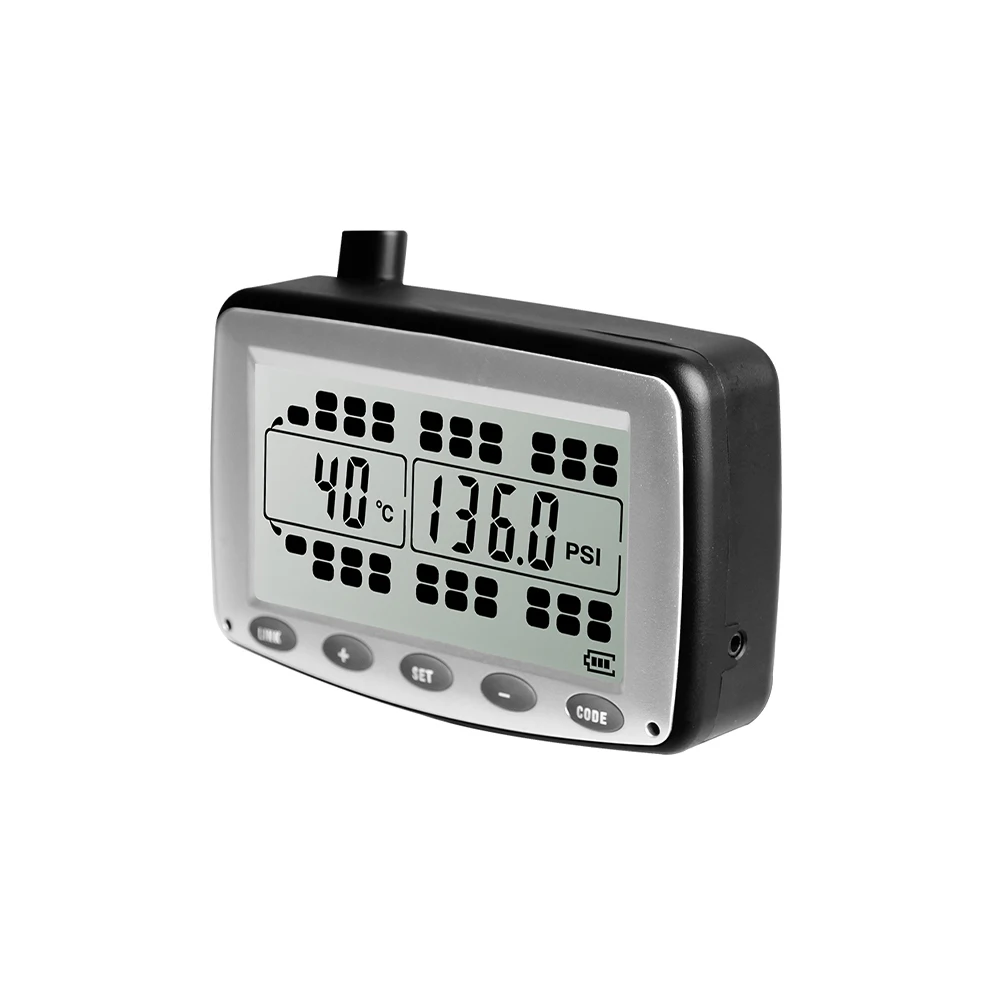

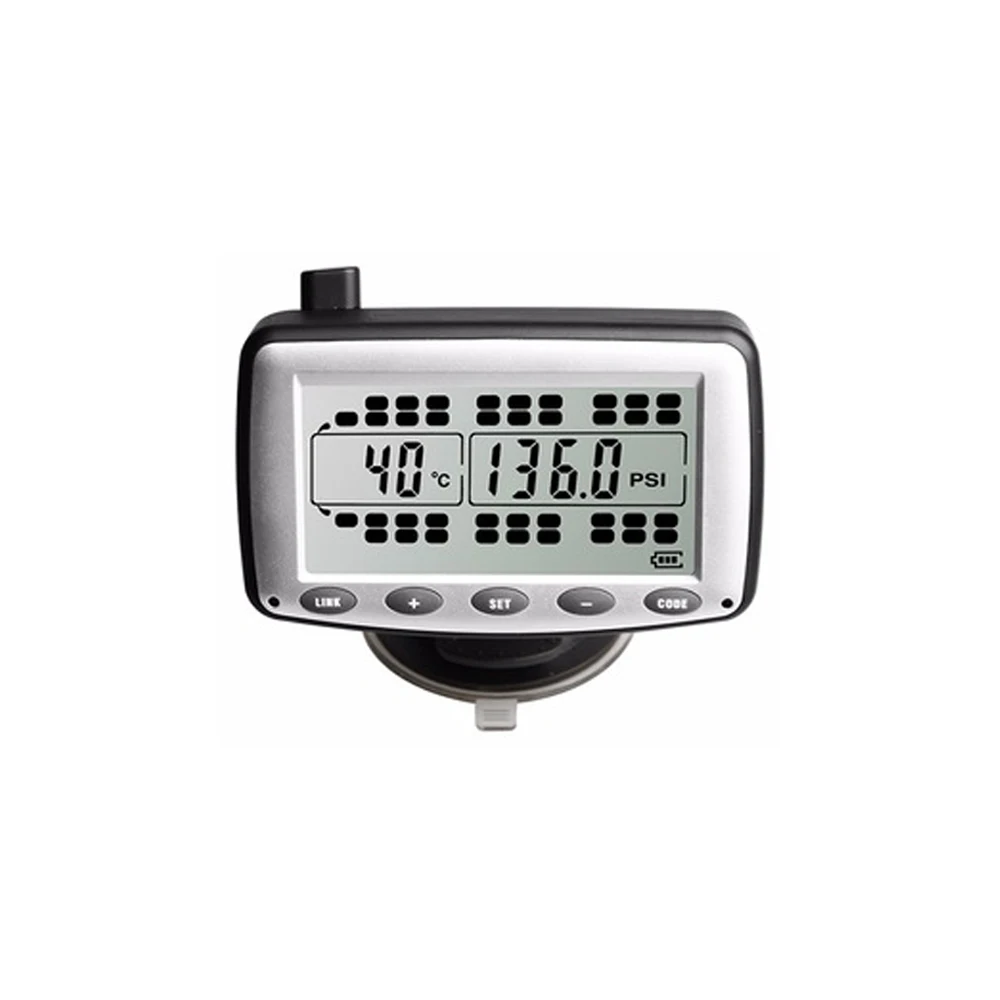

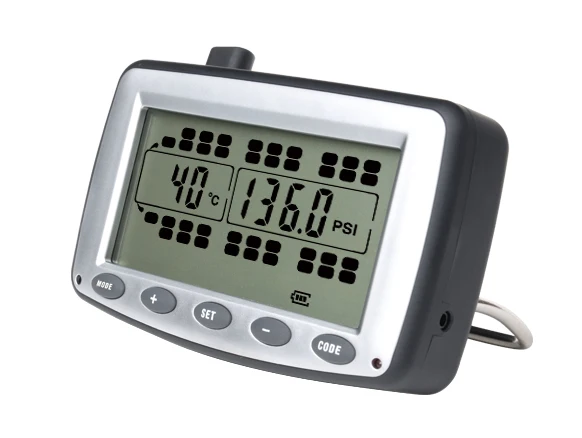

Monitor specifications:



Operating voltage:	12 to 24V
Frequency	433.92MHz
Operating temperature	-40 to +80° C
Size	116(L) x68 (W) x 25(H) mm
Weight	138 g





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	2 years (Sensor battery replaceable)
Operating temperature:	-40 to +80℃
Weight:	22 grams
Size:	52*26*22 mm(L*W*H)



4. Our Facilities:



5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent



6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime







7. Contact info:

































Looking Forward to Cooperating with You!
