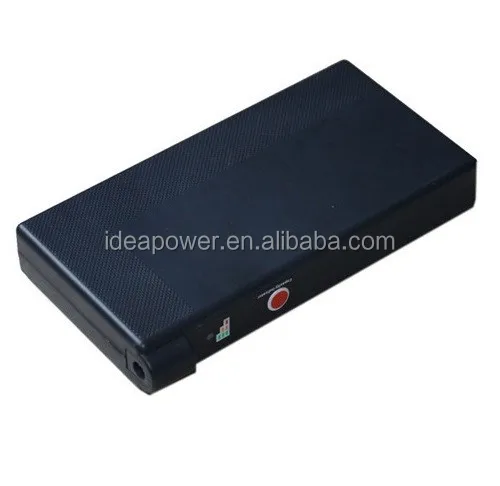

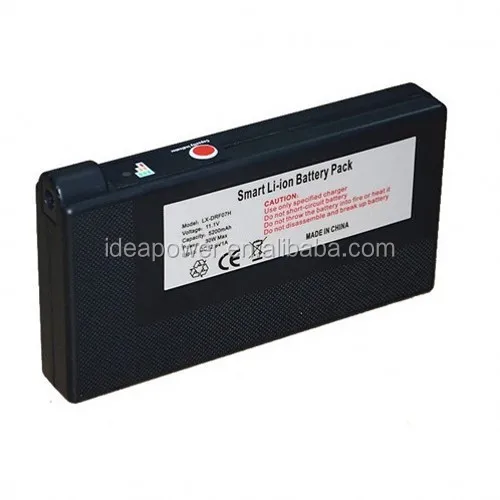

11.1v 5200mAh Lithium Heating Clothes Battery Pack with 4 Temperature Settings

Product Overview

Description

Lithium heating clothes battery pack



11.1v 5200mAh

Power indication

4 temperature settings

500 cycles life

CE FCC ROHS MSDS approval

One year warranty



Product description:

1. Item name: Li-ion Rechargeable Battery for Heating Clothes

2. Model: LX-DRF07H

3. Voltage: 11.1v(12v)

4. Capacity: 5200mAh

5. Cell type: Brandnew Grade-A Li-ion

6. LED display: 4-step temperature control, capacity indication

7. Charge/discharge port: DC5.5*2.1*10mm

8. Size: 139*72*23mm

9. Color: black

10. Usage: for heating clothes, heated clothing

11. Warranty: 1 year



Parameter:

Nominal Voltage	11.1v(or 12v)
Model	LX-DRF07H
Working Voltage	9V-12.6V
Nominal Capacity	5200MaH
Charge Cut-off  Voltage	12.6V
Charge Current	1000m A
Standby Current	≤50μA
Max. Output Power	45W MAX
Operating Efficiency	≥99%
Loading Resistance	5Ω-200Ω
Charge Method	CC/CV-Constant Current/Constant Voltage
Charge Temperature	0℃—40℃
Discharge Temperature	-20℃~ +60℃
Charge Duration	5.5-6hrs(Standard)
Cycle Life Time	Above 500 cycles
Internal Impedance	PCB Internal Impedance<80mΩ, Battery Internal Impedance <180mΩ
Output Terminal	DC5.5*2.1*10mm
Output terminal polarity	positive inside



Application:

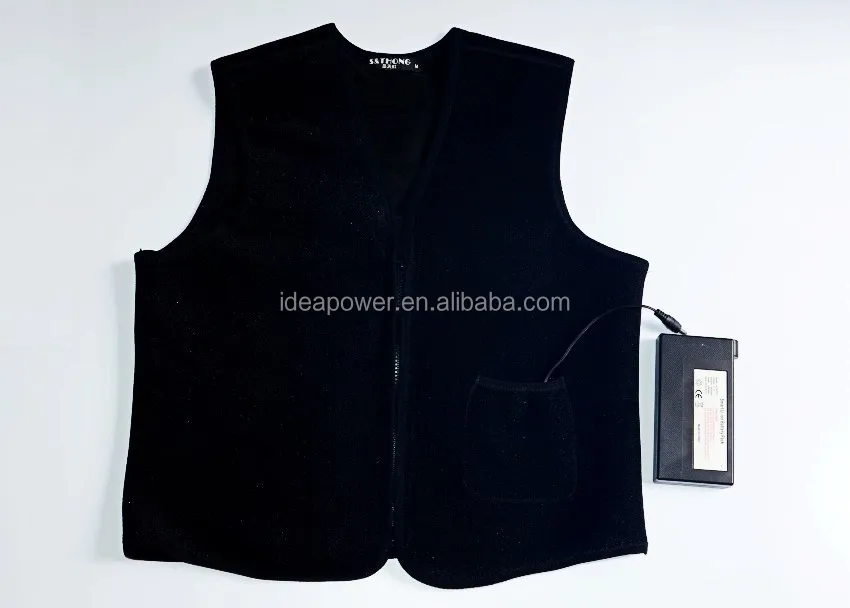

For Heated Motorcycle Gear/ Heated Clothing/ Heated Garment/ Heated Jackets/ Heated Vests/ Heated Pants/ Heated Gloves/ Heated Seat Cushions/ Heated Belts, etc.



How to operate:

(1) 3-level capacity indication

Without load, press & hold the red button to check capacity level:

LED in RED - 90%~100% remaining capacity

LED in ORANGE - 30%~90%

LED in GREEN - 0%~30%

Remaining Capacity	LED
90~100%	•
30%~90%	•
0%~30%	•



(2) 4-level output control

1. With load, press & hold the red button for 2 seconds to power on, the default setting is Max output(LED in RED);

2. Press the red button to change output level:

LED in RED - 98% output

LED in ORANGE - 75% output

LED in GREEN - 50% output

LED in GREEN BLINKING - 25% output

Output Power	LED#1
98%	•
75%	•
50%	•
25%	•|°
Off	°



3. Press & hold the red button for 2 seconds, the LED is off, and the power output also is off.

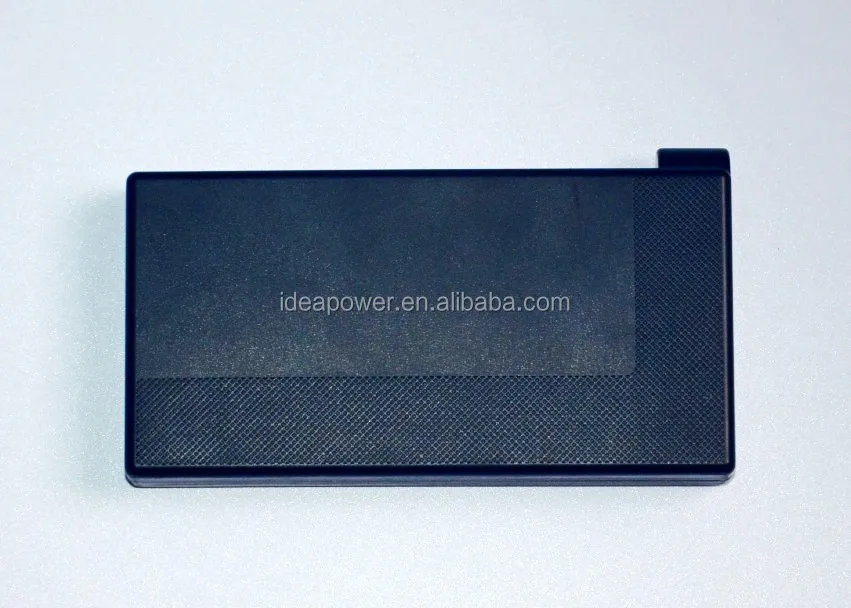

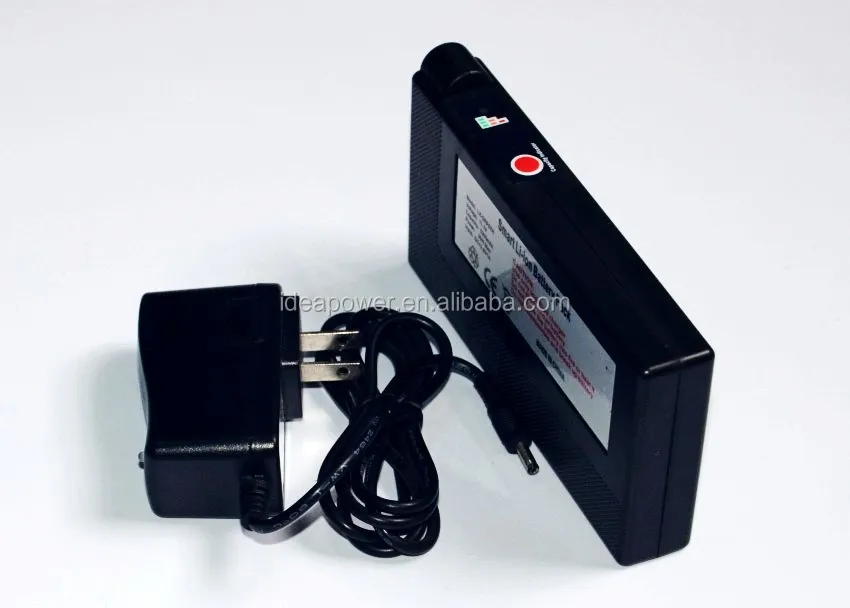

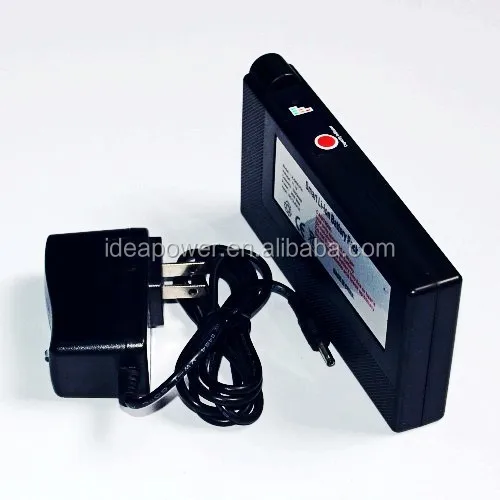

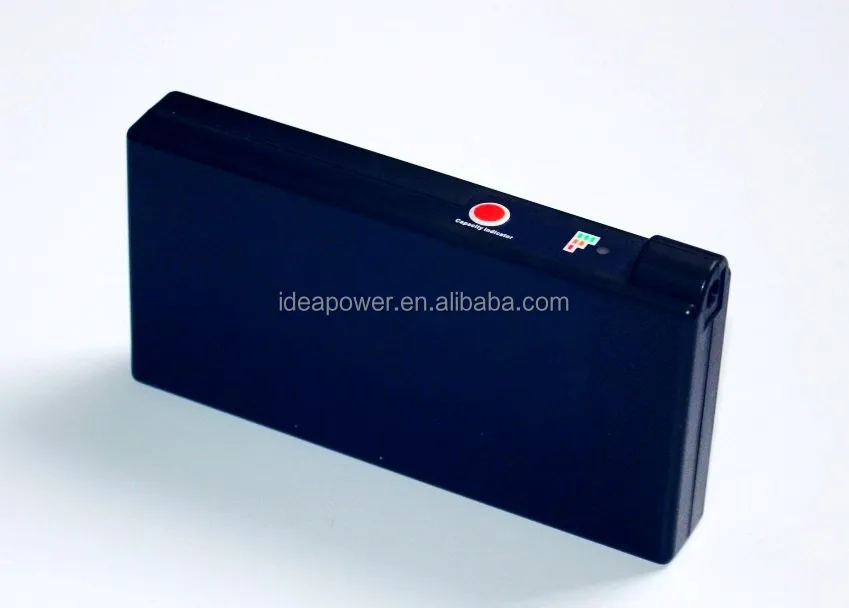

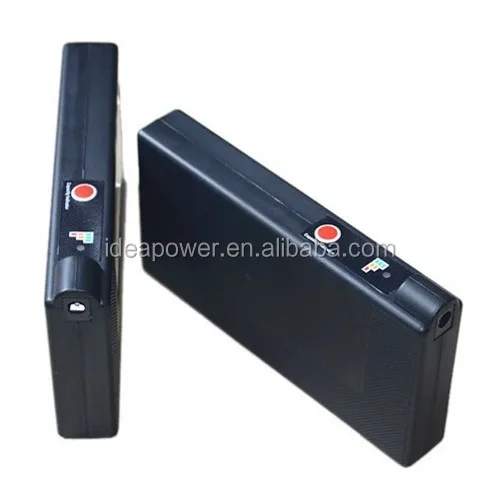

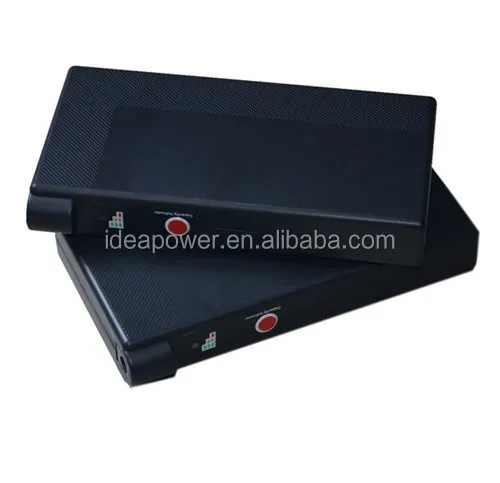

More battery photo:















Contact:

Name: Ms.June Qiu

Mobile phone/ WhatsApp: +86-15018549165

Skype: junejune20097

WeChat: uarefunny



Package:





Certificates





Company overview





Our Advantage:
1) As we are factory, we can guarantee our price is first-hand, very cheap and competitive with high quality.
2) To make sure provide customer with high quality product & good service, sample can be sent for approval fristly. Beforeshipment, our QC staff will check quality 1 pc by 1 pc.
3) If you receive defective items, please email us photo of the defectives.
4) Provide OEM service. Our factory can offer OEM service to customer. Please offer us your LOGO & all OEM design information, and we can do special OEM tooling & OEM service for you.
5) After-sale service: all prodcuts are with 1 year warranty.

FAQ:
Q: 1. Can I have a sample order?
A: Of course.
Q: 2. What is the lead time?
A: 3~7 days for sample, 20~25 days for bulk order.
Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.
Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive. For large quantity, ship by airplane or ocean, shipping time will depend on destination port.
Q: 5. How to proceed the order if I have logo to print?
A: Firstly MOQ 1000pcs request, then we will prepare artwork for visual confirmation, next we will make a real sample for second confirmation. If sample is ok, finally we will go to mass production.
Q: 6. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
