Fire Wall With Fire Resisting doors : Up to 4 hours
Fire resistant composite panel for Fire compartmentation Partition walls and separations Fire Barrier
Fireproofing & Fire Protection Material
Steel Faced Cement Fibre Core For Fire Rated Duct Works / Partitions / Ceilings & Industrial Fire Doors,Blast Wall,Blast Barrier
Company Information
Jiangsu Aifuxi New Building Material Co., Ltd have made Fiber Cement Products, Calcium Silicate Board, Fireproof material, Blast-Resistant board over 30 years. More company info, please refer to here : //fc.en.alibaba.com/company_profile.html
Product Description

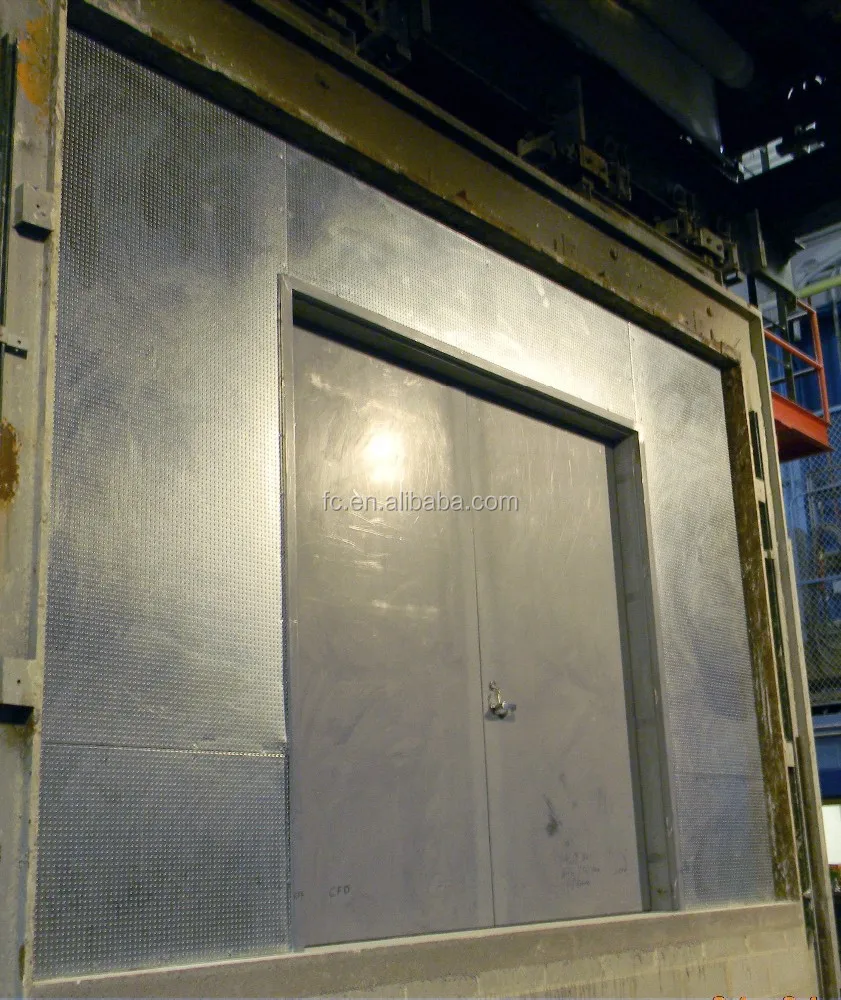

Fire Wall With Fire Resisting doors : Up to 4 hours
Fire Barrier, Blast wall ,Fireproof Media Vault, Fire and Blast Enclosure,Transformer Barrier
BLAST WALL FEATURES
Blast resistant, tested from 0.3 to 2 bar over pressure
Resistant to hydrocarbon fires
Impact resistant to 4000J after 180 minute fire test
High energy absorption
Hose stream resistant to a 5 Bar high pressure hose
For more fireproof Calcium silicate Board infomation ,please move to here:
If you also have blast-resistant design, please go ahead :
FC-Steel is a steel composite panel of fibre reinforced cement mechanically bonded to punched steel sheets on both outer surfaces. It’s a unique non-combustible material with highly impact and moisture resistant. FC-Steel is lightweight and used in the construction of fire and blast resistant barriers, ceilings, doors, ductwork, enclosures and structures.
Whether for fire or blast, some of the most common systems utilizing FC-Steel are:
Fire Rated Ventilation duct Systems
Fire Rated Ceilings, Floors, Walls & Door Assemblies
Oil, Gas Pipe & Cable Tray Enclosures
Fire Barriers,& Blast Barrier
Outdoor & indoor transformer Barriers
Protection from hydrocarbon fires & blasts
Fire & Blast containment for gas storage
Escape tunnels and shafts
Portable Barriers
Document Storage Vaults
Acoustic Barriers & Enclosures
Blast Walls & Doors
Blast Resistant Duct
The sheets come 1200mm x 2400 mm (approximately 4 x 8 feet) in size and are available in the following options:
Standard 3/8" (9.5mm) thickness
Optional 1/4" (6mm)& 1/2" (12mm) thickness
Standard galvanized finish
Optional stainless steel finish
Other specialty metals available
FC-Steel is by far the most extensively tested material in Passive Fire Protection. It has been tested for the following characteristics:
Four Hour Fire Resistant (240 minute) - integrity and insulation
Blast Resistant - tested to 2 bar (200kN/m² overpressure)
Hydrocarbon Fire Resistant
Impact Resistant
Moisture and Hose Stream Resistant
Vibration Resistance
Lightweight Space-Saving
Demountable and Remountable
Maintenance Free
40 Year Design Life
