Single Side Metal Pipe Beveling Machine
- Category: Chamfering Machines >>>
- Supplier: Dongguan Chine Chern Machinery Manufacturing Co. Ltd.
Share on (60211635998):
Product Overview
Description
Product Description
Single Side Metal Pipe Beveling Machine
Features :
1.The clamp mould and knife wheel are designed finished to guarantee the central line of workpiece and knife wheel is exact. Thus, the outer angle, inner angle and pipe end machining may be finished evenly at one time.
2.It makes use of the change of belt wheel to shift different rotate speeds, so the life of blade may be as long s possible according to different metal materials.
3.The double-step feeding system saves working time. And the speed is slow for regulating easily.
Parameters:
| Model | JC-60SA(Pneumatic) |

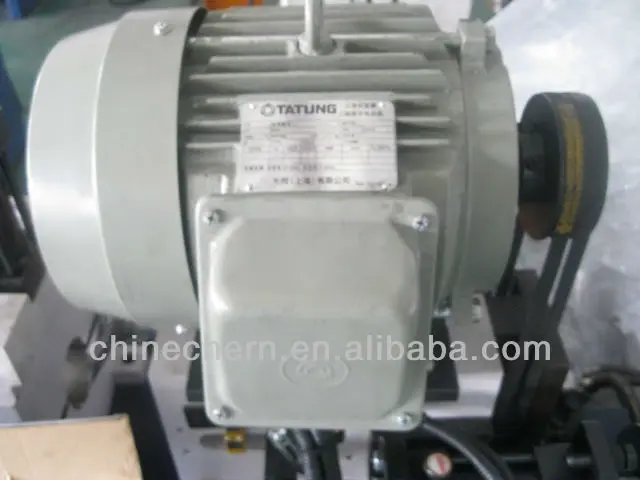

| Host motor | 2HP/4P |
| Speed (RPM) | 90/600 2000/3560 |
| Air pressure | Mpa6-8kg/cm²,130m1/min |
| Standard cutter(Diameter) | 12mm-60mm |
| Processing range(Inner,outer and tube end surface) | Pipe diameter: 3.2mm-60mm Bar outer:6mm-38mm |
| Suitable Material | Steel pipe,Iron pipe,Stainless steel pipe,Aluminium pipe,Copper pipe |
| Machine dimension(W*D*H) | 545×655×1080mm |
| Weight | 220 |
| Accessory | 1.one set clamps 2. one tool box 3.One user manual |

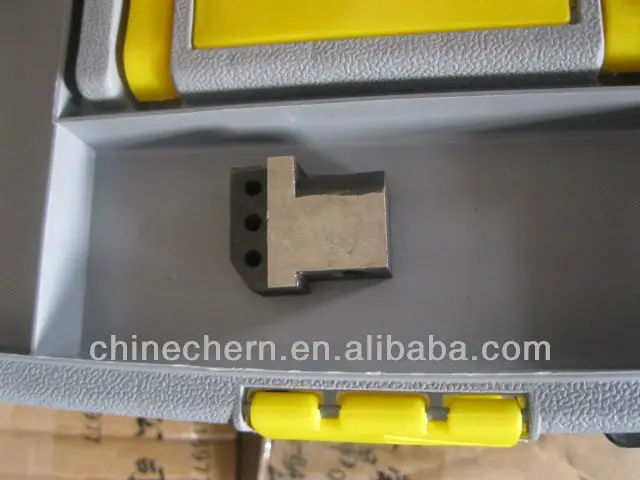

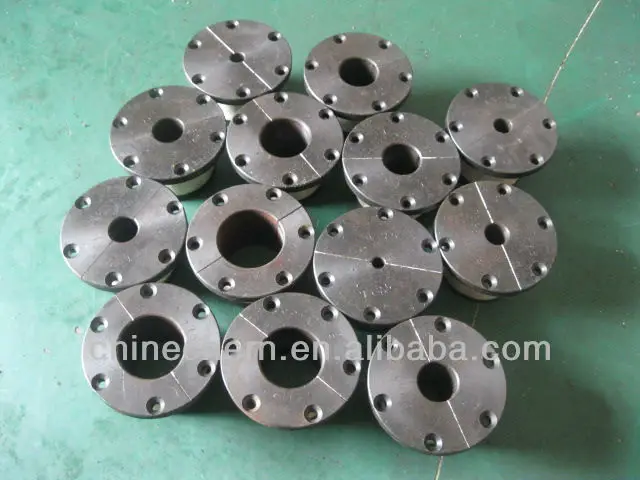

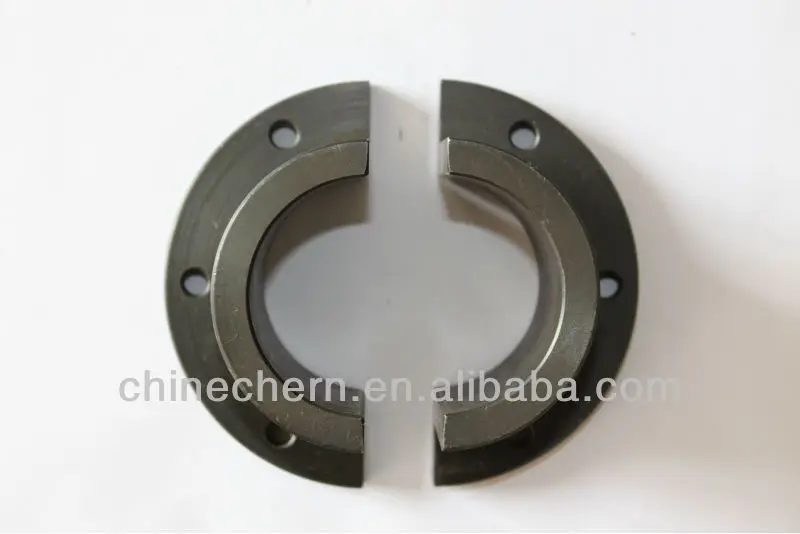

Parts :

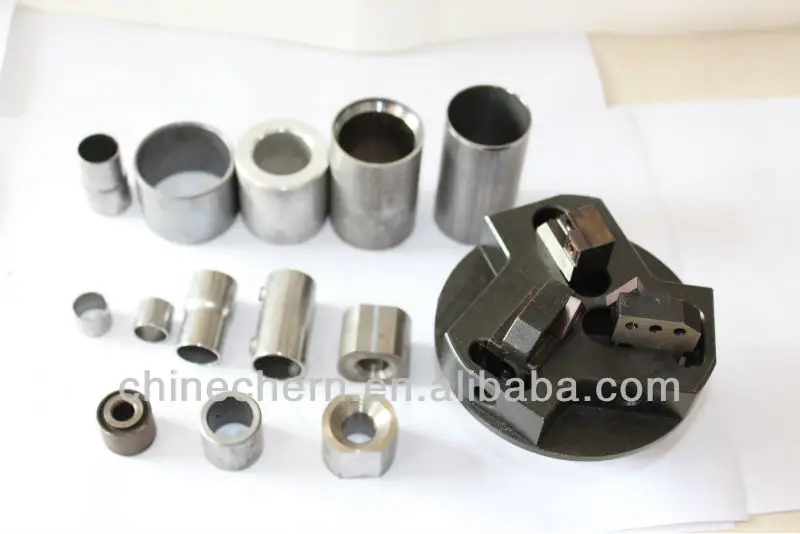

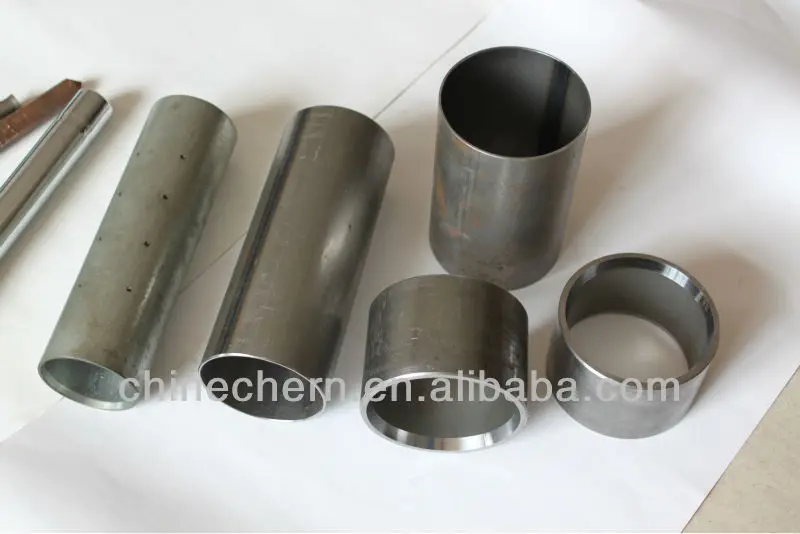

Samples :

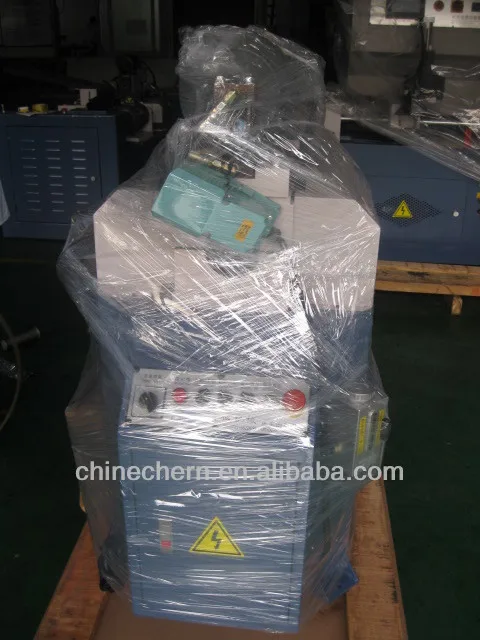

Package:
