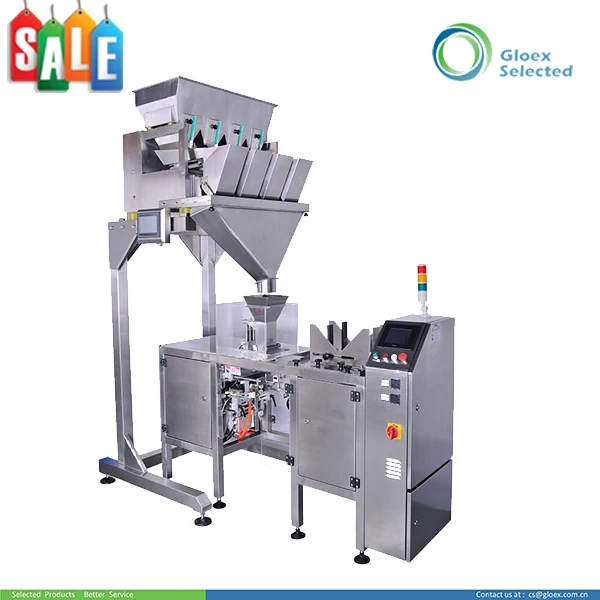

Multi Function Stand Up Pouch Filling and Sealing Machine

Application

This machine is applicable for, subject to configure with

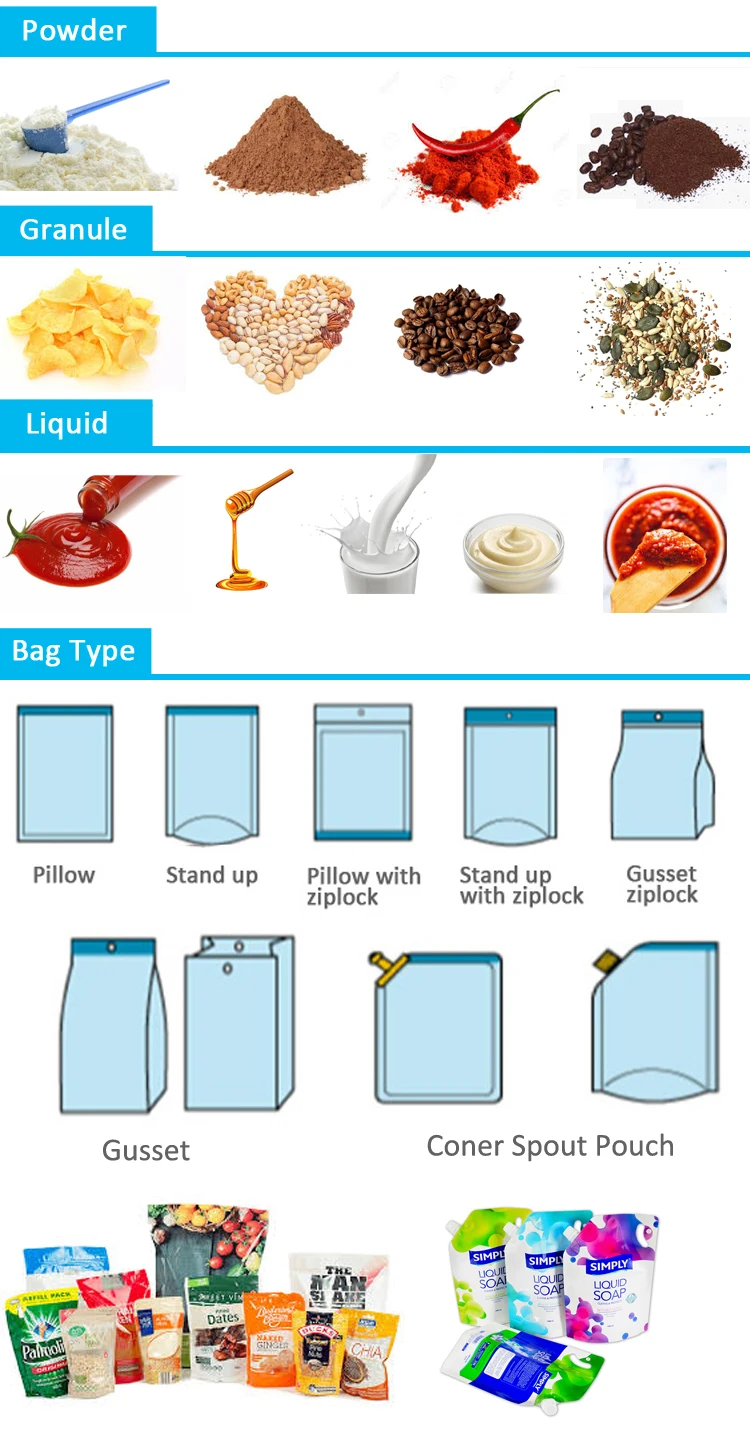

different dosing device, filling with powder, granule or liquid into a premade pouch and sealing, the detail application description as following table:

Working Processes

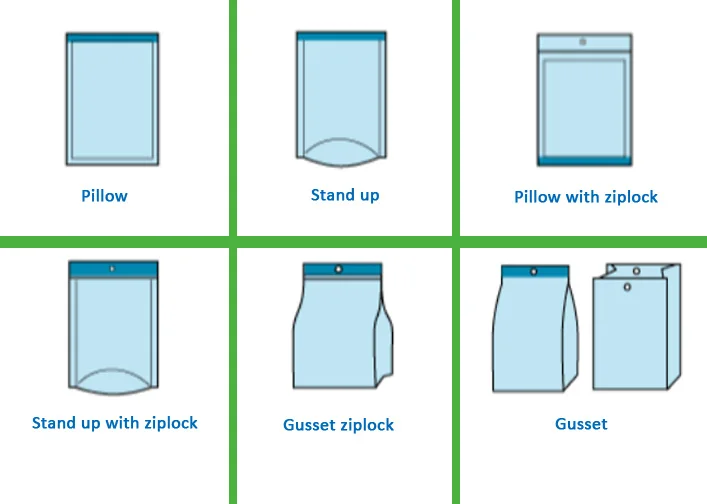

The working processes include: pouch pick up, pouch open, dose, fill and seal. By configuring with different accessories, like zipper opening device, vacuuming and gassing device, capable to fill with different type of pouch, or achieve different process requirement. following are the typical working process diagram:

Standard Features

•      Non-zipper pre-closed type flat or stand up pouch fill and seal


•      Durable stainless steel 304 construction for frame and surface


•      Stainless steel 304 for product touching parts


•      Electrical and pneumatic driven, simple operation and maintenance


•      Program Logic Controller and touch screen HMI Control


•      Complete trouble shooting program with sound and light alarm


•      Simple and quick pouch format changeover


•      Separate Temperature Controller configuration, ensure reliable sealing quality


•      No bag no fill and seal


•      Pouch not open completely, no fill and seal


•      Door open machine stop interlock

Optional Features

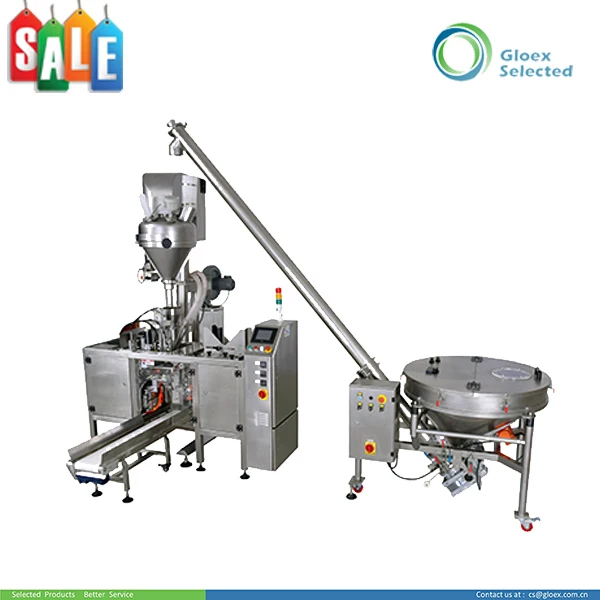

•          Different dosing devices for various products


•          Zipper opening device or gusset pouch device


•          Special pouch magazine


•          Coding devices, like emboss, hot stamp


•          Quality control devices, like checkweigher, metal detector, X-ray inspection


•          Dust collectable type hopper and/or dust collector


•          Pouch vibrating supporter for heavy fills or for loose product


•          Inkjet or Laser printer mounting and moving device


•          Vacuuming and pre-sealed jaw devices


•          Vacuuming, gassing and pre-sealed jaw devices


•          Air blowing type pouch opening device


•          Air exhausting device


•          Computerized vacuum, temperature control module by PLC


•          Vacuum pump


•          Incline, bucket or other types infeed, exit conveyor

Note:

1)         the zipper opening device and gusset pouch device can’t be mounted on the same machine

2)         Vacuuming and/or gassing device shall be mounted with pre-sealed jaw

3)         The ribbon coding device applies the pouch width >=120mm only

Note:

1)         Type 200, Type Duplex, Type Pickup apply for flat pouch, stand up pouch only, the other types are upgradable for zipper, gusset or qual sealed pouch subject to configure with necessary accessories

2)         Production speed may vary depending on product characteristics, pouch conditions, operator skills and ambient filling conditions

3)         For side gusset pouch without pre-welded gusset, in order to ensure the re-gusseting process, from the top edge to the level of fill shall >=110-140mm, which depend on the characteristic of the packaging material

4)         The size of pouch shall meet the following requirements if apply for zipper pouch:

a)         The width >=130mm

b)         The Length >=160mm

c)          The distance from the top edge to the zipper >=30mm
