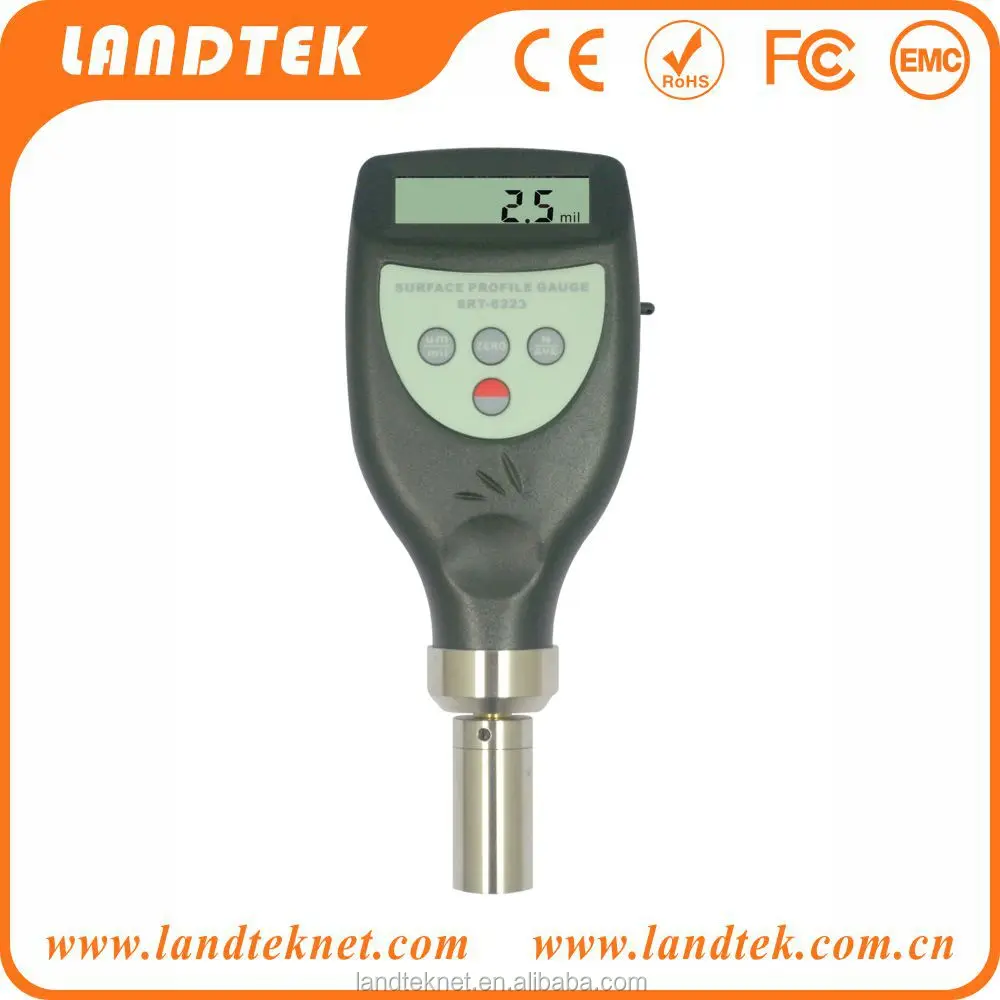

LANDTEK Digital Surface Roughness Tester Profilometer Profile Gauge SRT 6223
- Category: >>>
- Supplier: Guangzhou Landtek Instruments Co. Ltd.
Share on (60212216069):
Product Overview
Description
Surface Profile Gauge SRT-6223
Spec: For fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surface. Widely used in field of blast cleaned surface measurement.
Product Description
Features
* It meets the standards of ASTMD- 4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI- 63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.

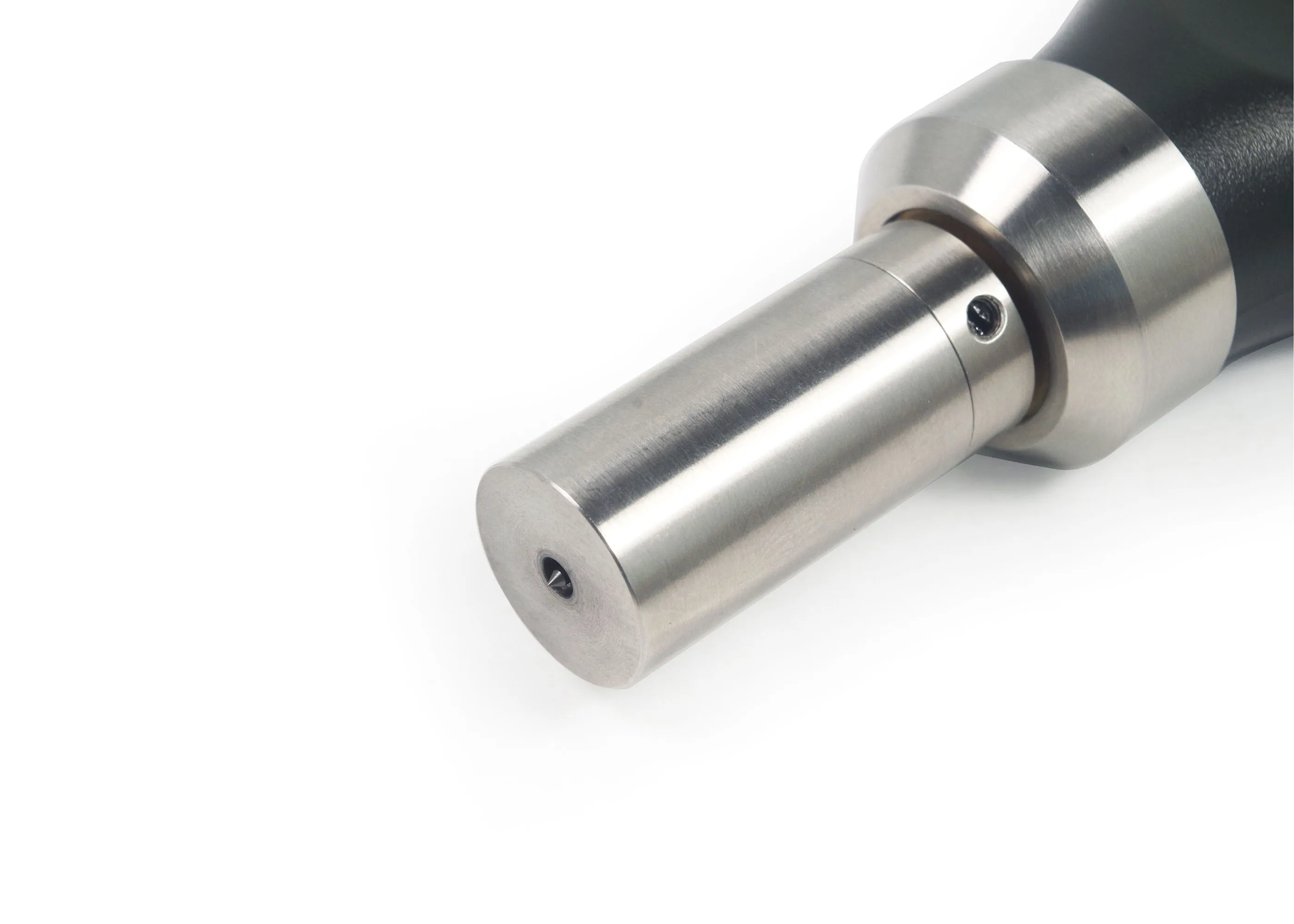

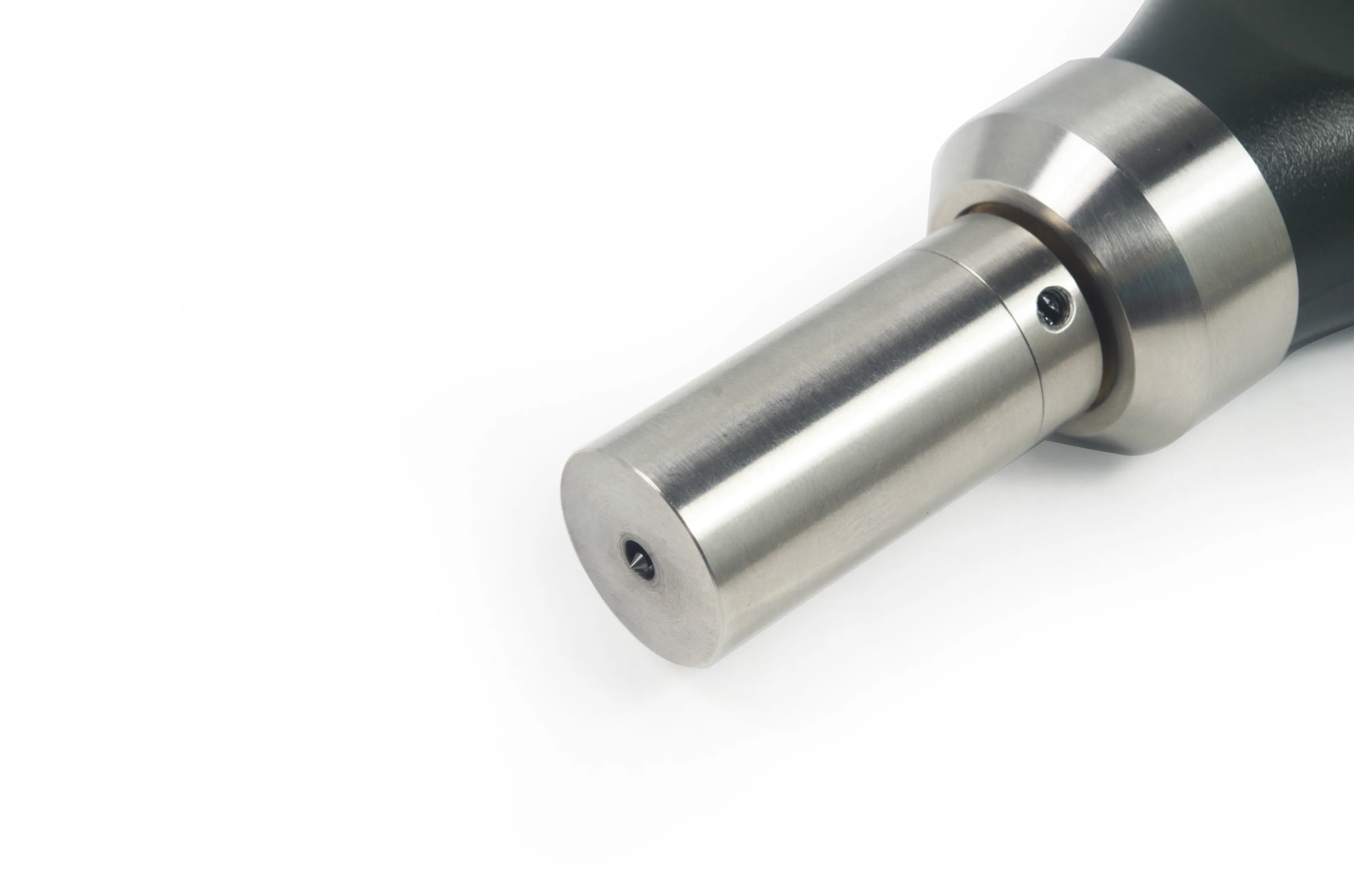

* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial Conversion.
* With average calculation function.

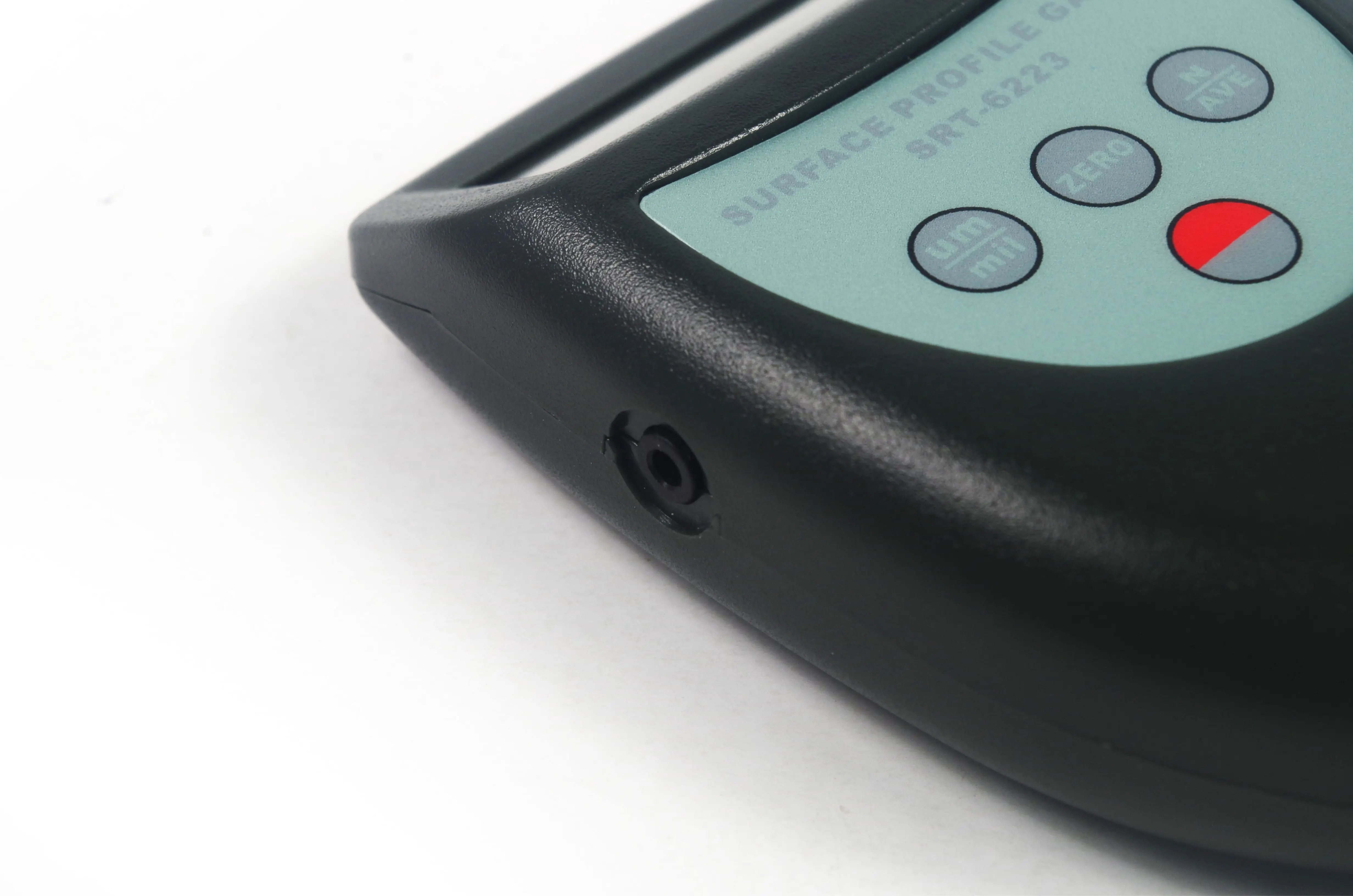

* Use USB/RS-232 data output to connect with PC.
* Provide BT data output choice.
Specifications:

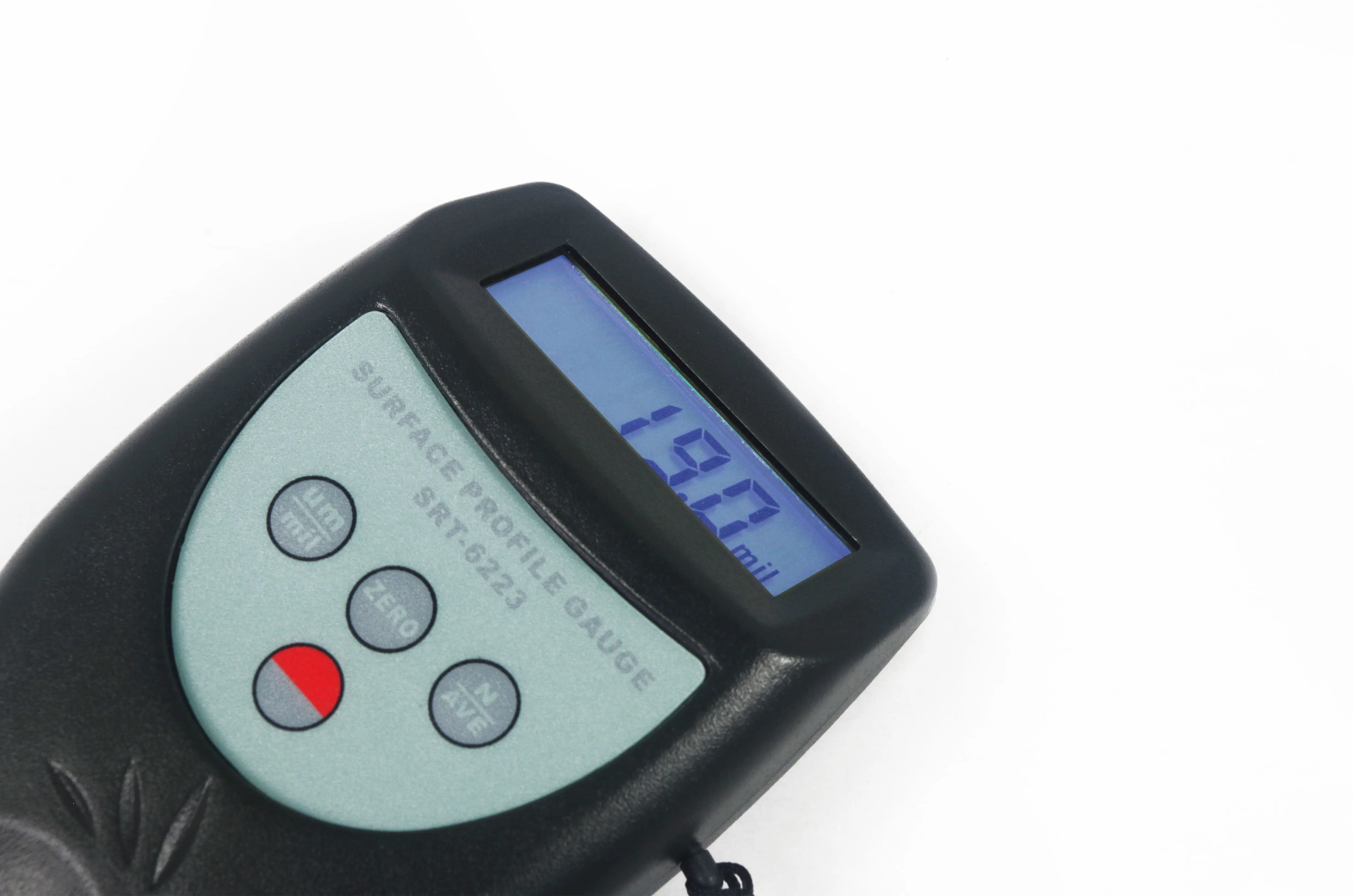

Display | LCD |
Range | 0~800 µm/29.5 mils |
Accuracy | ±5% or ±5 µm,(whichever is the greater) |
Resolution | 0.1 µm/1 µm |
0.1mils | |
Principle | Inductance Type |
Operating | Temperature:0~50ºC |
Conditions | Humidity:<80%RH |

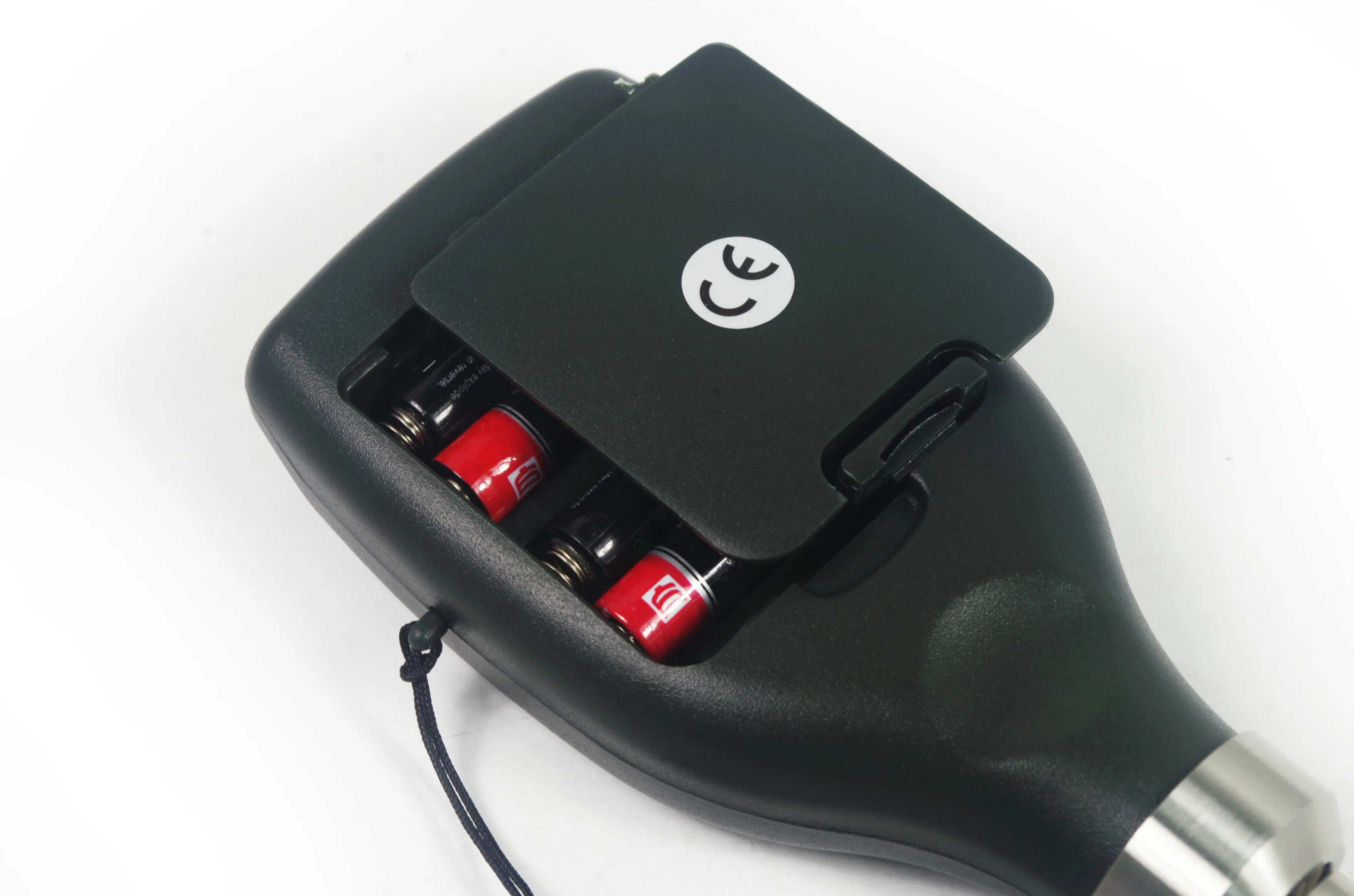

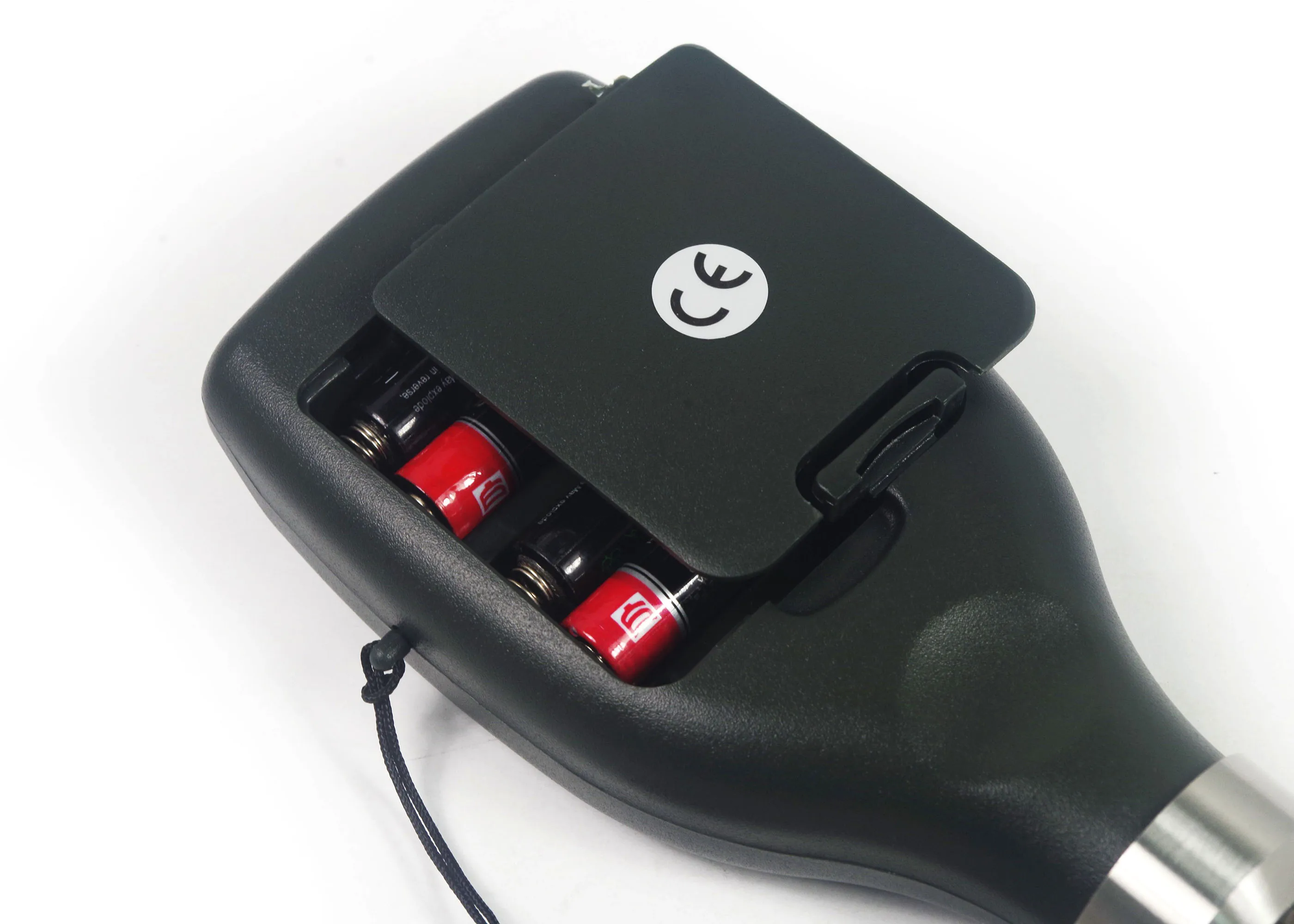

Power Supply | 4x1.5V AAA(UM-4)Battery |
Dimensions | 162x65x28 mm |
Weight | 280g |

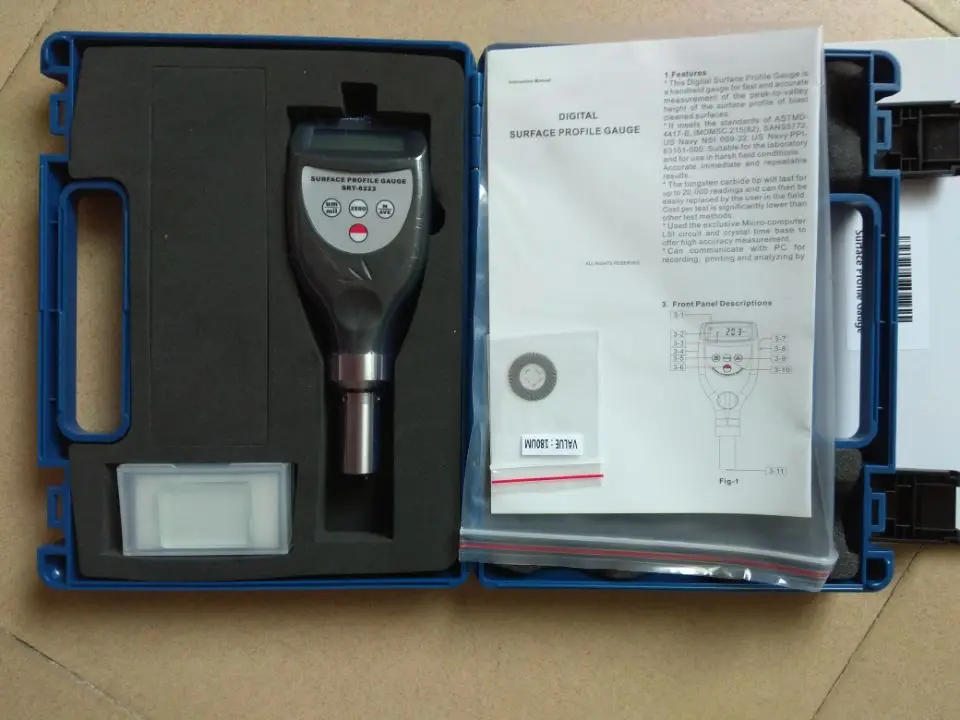

Standard Accessories | Main Unit |
Standard Sample Plate | |

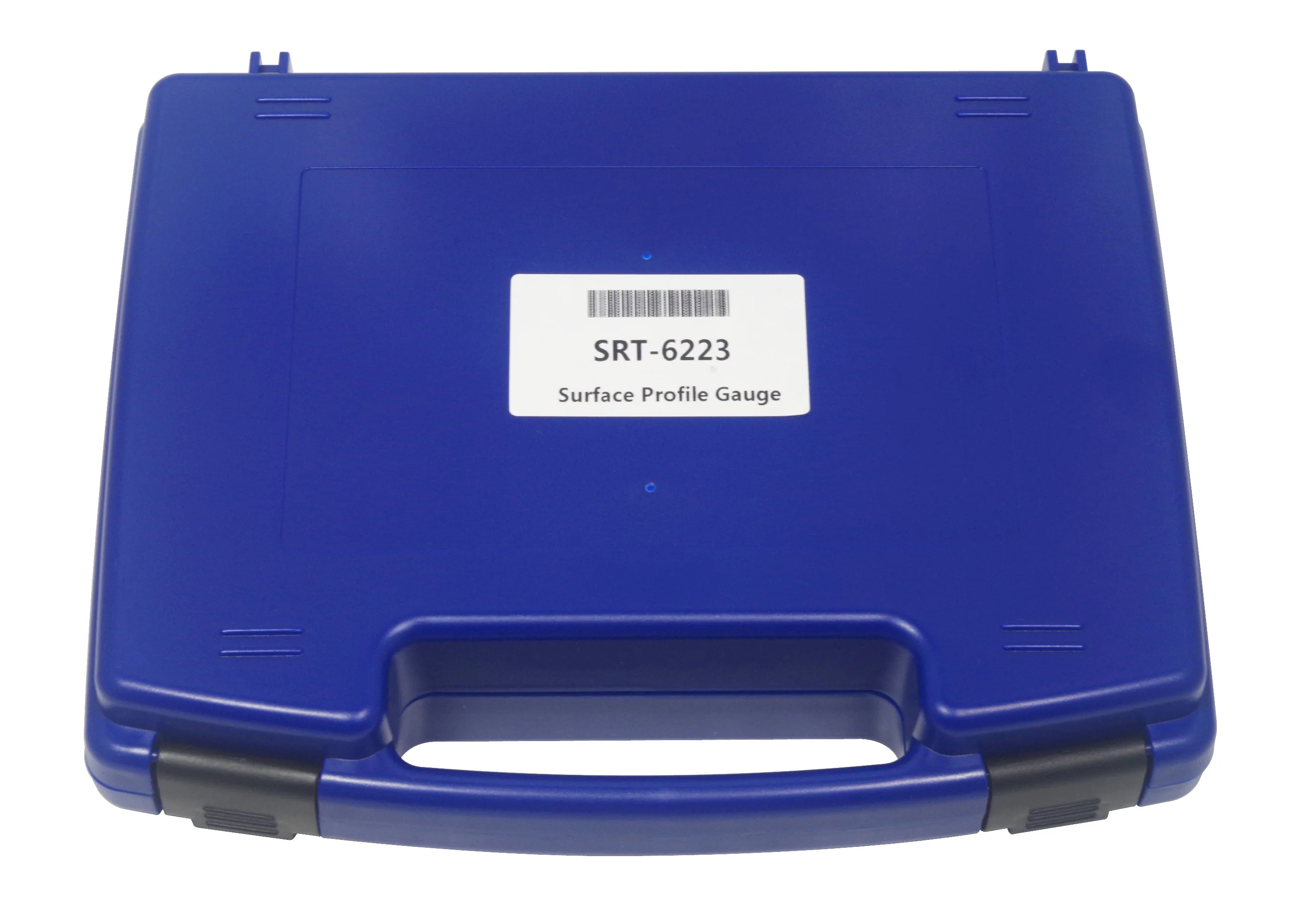

Carrying Case ( B04 ) | |
Operation Manual | |
Optinal Accessories | RS-232C Cable with Software |
BT Adapter with Software |
Our Services
one year after-sale service, supply service forever.
Packaging & Shipping
1 unit is 1.5kg. carton size: 26*26*8.5cm
20pcs is 14.5kg. carton size: 45*28*57cm
