Rigging Factory Galvanised Din580 Wire Eye Bolt, Eyelet Bolts
- Category: >>>
- Supplier: Qingdao Q-Ran Import & Export Co. Ltd. [Shandong China]Qingdao
Share on (60212272820):
Product Overview
Description

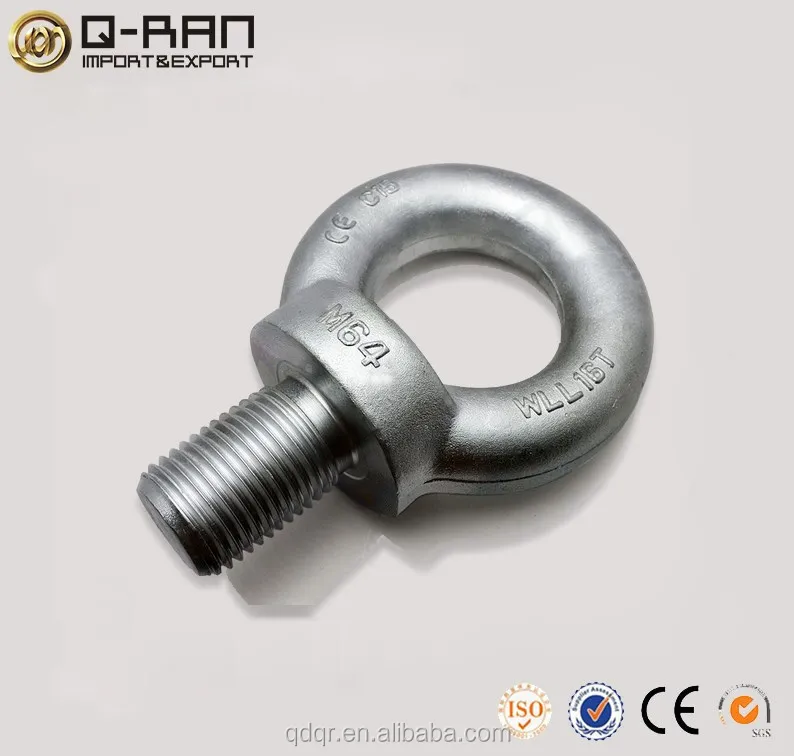

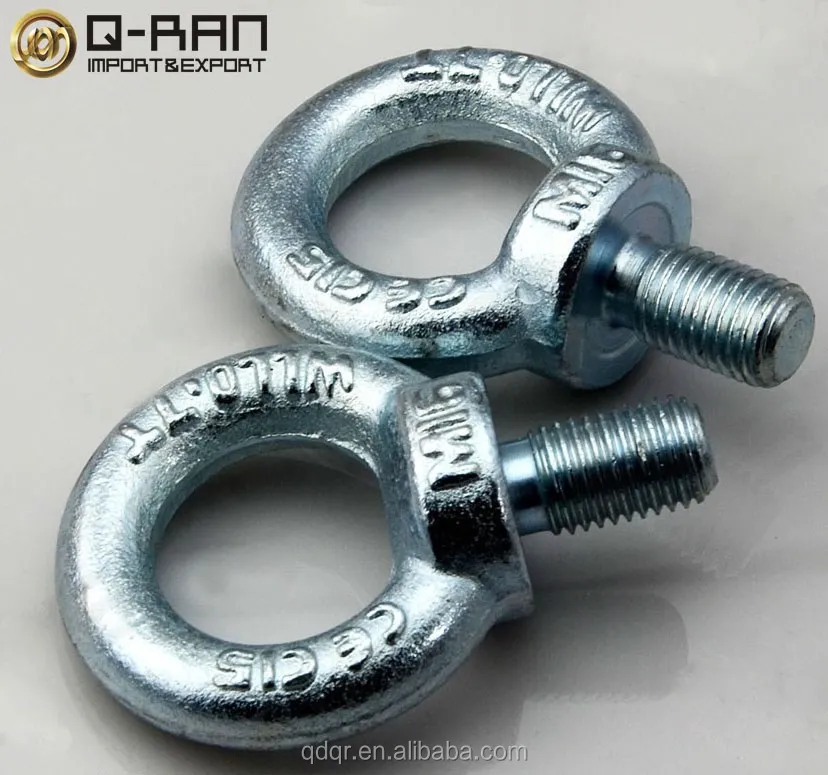

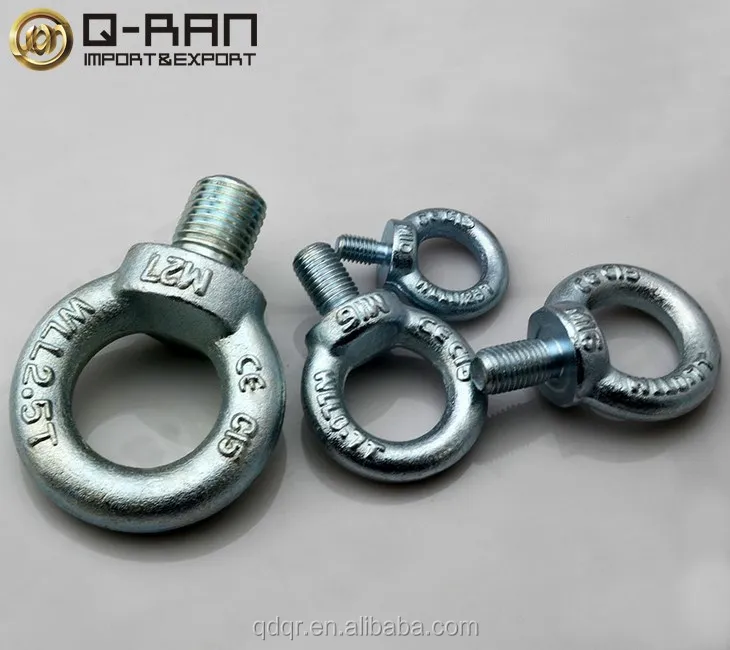

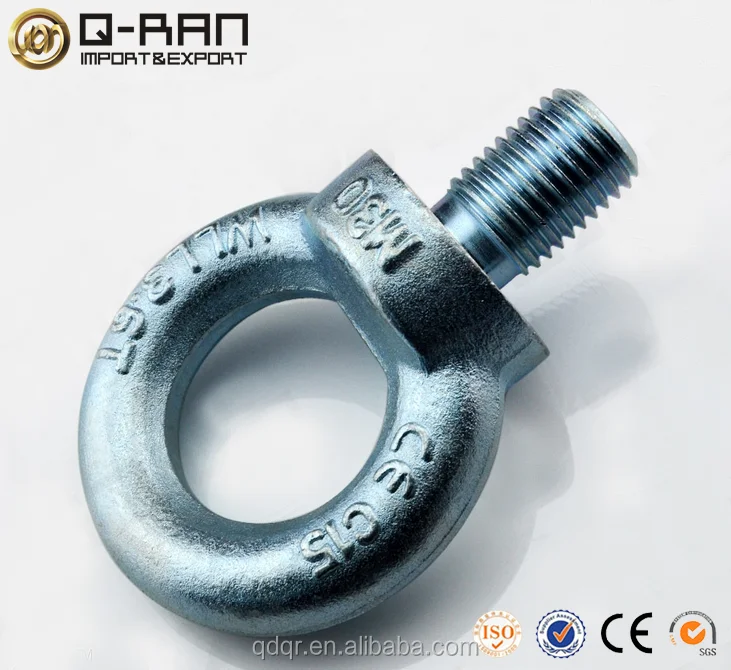

Rigging Factory GalvaniSsed Din580 Wire Eye Bolt, Eyelet Bolts
Product Description
What is the Specifications of Rigging?
Commodity Name | DIN 580 Eye Bolt |
| Type | DIN 580 |
| Process | Forged |
| Surface | Electric Galvanized,Hot Dip Galvanized |
| Size | M6-M64 |
Dimensions for Rigging Factory GalvaniSsed Din580 Wire Eye Bolt, Eyelet Bolts
Size | WLL | Dimensions (mm) | Weight | |||||
d1 | d2 | d3 | b | e | h | |||
M6 | 0.08 | 17 | 28 | 16 | 13 | 6 | 17 | 5 |
M8 | 0.14 | 20 | 36 | 20 | 15 | 6 | 18 | 6 |
M10 | 0.23 | 25 | 45 | 25 | 18 | 8 | 22 | 11 |
M12 | 0.34 | 30 | 54 | 30 | 22 | 10 | 26 | 18 |
M14 | 0.49 | 35 | 63 | 35 | 28 | 12 | 30 | 28 |
M16 | 0.70 | 35 | 63 | 35 | 28 | 12 | 30 | 28.5 |
M18 | 0.90 | 35 | 63 | 35 | 28 | 12 | 30 | 45 |
M20 | 1.20 | 40 | 72 | 40 | 30 | 14 | 35 | 45 |
M22 | 1.50 | 45 | 81 | 45 | 35 | 16 | 40 | 67 |
M24 | 1.80 | 50 | 90 | 50 | 38 | 18 | 45 | 87 |
M27 | 2.50 | 55 | 95 | 53 | 40 | 22 | 50 | 115 |
M30 | 3.60 | 65 | 108 | 60 | 45 | 22 | 55 | 166 |
M33 | 4.30 | 65 | 108 | 60 | 45 | 22 | 55 | 172 |
M36 | 5.10 | 75 | 126 | 70 | 55 | 26 | 65 | 265 |
M39 | 6.10 | 75 | 126 | 70 | 55 | 26 | 65 | 280 |
M42 | 7.0 | 85 | 144 | 80 | 65 | 30 | 75 | 403 |
M45 | 8 | 85 | 144 | 80 | 65 | 30 | 75 | 425 |
M48 | 8.6 | 100 | 166 | 90 | 70 | 35 | 85 | 638 |
M52 | 9.9 | 100 | 166 | 90 | 70 | 35 | 85 | 660 |
M56 | 11.5 | 110 | 184 | 100 | 80 | 38 | 95 | 880 |
M64 | 16.0 | 120 | 206 | 110 | 90 | 42 | 105 | 1240 |
Packaging & Shipping
1.Safety Carton and pallet,sack and pallet,according to customers requirement.
2.Within 30-60 Days on Request.
Technology
Technology of Rigging Factory GalvaniSsed Din580 Wire Eye Bolt, Eyelet Bolts

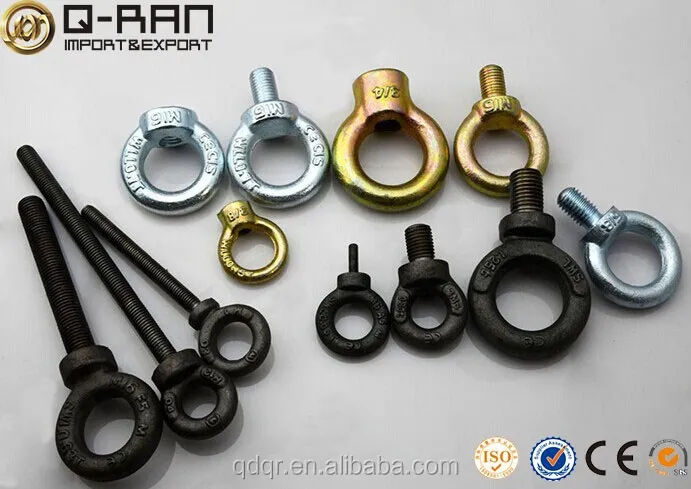

Our Main Products
Qingdao Q-RAN import & export co., ltd is major in producing and saling rigging hardware,such as shackle,eyebolt,eye nut,wire rope clip,turnbuckle and so on.
Advantages
Why Choose us?
1.Ourselves factory with strong produce capacity;
2.Supply high quanlity products with lower cost;
3.Experienced and well-trained engineers and salesmen;
4. Professional and timely service for customers.
