Automatic 64 pin idc cable connector crimping machine
- Category: >>>
- Supplier: Changzhou Hechang Intelligent Technology Co. Ltd.
Share on (60212302839):
Product Overview
Description
Product Description

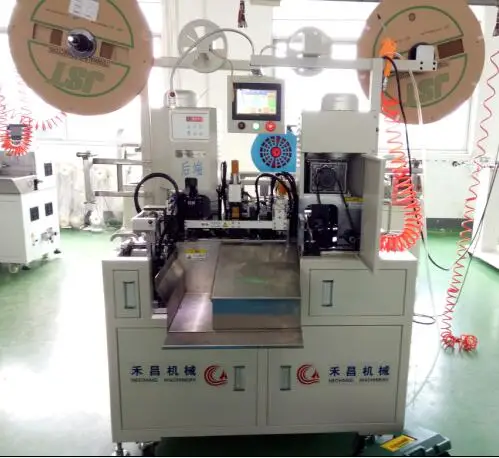

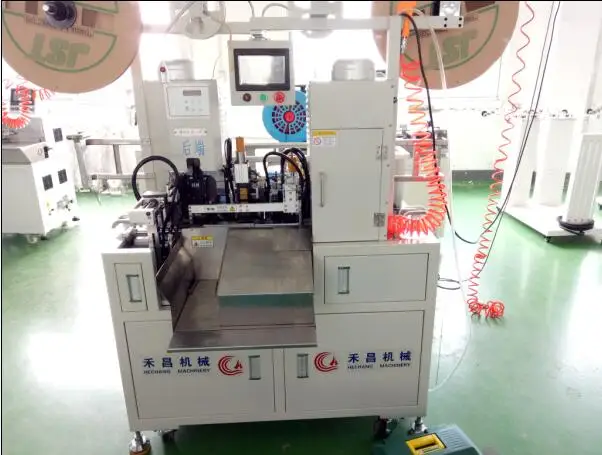

HC-20PX 10 pin flat ribbon cable stripping and crimping machine manufacturer
HC-20PX is mainly used for crimping different types terminals, such as, PH.XH.EH,ZH etc,
Color flat cable wiring harness communication terminals. Flat cable terminals used in SCN,
SM,VH, DuPont etc.Automated production to ensure the fixed-length cutting, stripping precisely
and terminal pressure on balance,also makes the wiring harness terminal pressure and tidy.
The machine adopts imported servo motor drive, no matter how much the cable harness number ,
terminal precise pressure control to ensure that the wiring harness , cable conduction performance
positioning is more accurate , real stable , precise effect high speed, low noise.
Features :
- Fully automated production, saving labor costs
- High efficiency: the equipment can work 24 hours a day
- Electric adjustable, adjust length and sub-line length, stripping length, easy to operate, stable, efficient
- High precision,economical, user-friendly
Technical Date :
Mode | HC-20PX |
Description | Fully-automatic flat cable double ends terminal crimping machine Cutting stirpping spliting and both ends crimping |
Dimension | 1000L*750W*1500H(MM) |
Weight | 350KG |
Display | LCD color touch screen |
Operation mode | Automatic movement + receive running |
Adjust blade | electric adjustable |
Drive mode | Servo + stepper |
Blade material | Rapid Steel |
Lead screw and guide rail
| Original HIWIN |
Cutting length | 90-9999MM |
Tolerance | ±0.01MM |
Wire width
| Max28mm width /20pin |
Stripping length | 0.1-8MM |
Wire size | OD 0.6mm- 2.5mm/single wire |
processing capability |
12000-14000pcs terminals/h |
Terminals pressure | 2.0T Standard 2.0 T |
Air pressure | 5KG At least 5kg, dry and clean air |
Power |
AC220V |
rated power
| 2.5KW |
detection device | Lack of line detection , lack of terminal testing, crimping testing, air testing, voltage detection
|
Processing Capabilities: cable cutting,cable stripping,double ends cable cutting , stripping and crimping

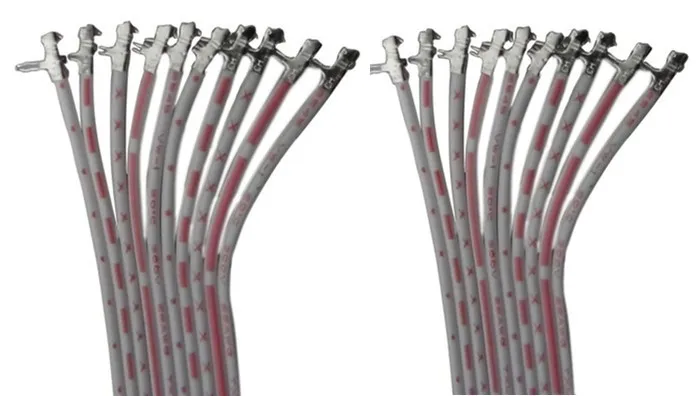

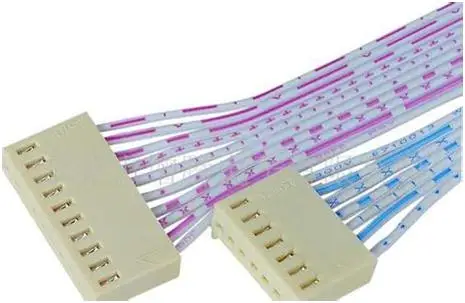

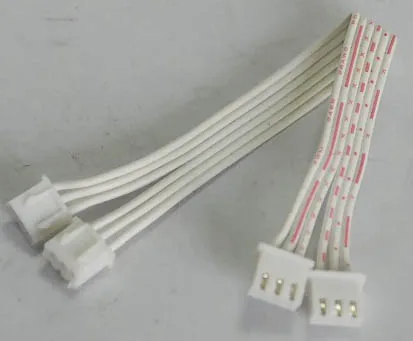

Samples : cutting stripping crimping automaticlly
Our main products included Fully-automatic terminal crimping machine, Automatic wire cutting and stripping machine,
Terminal crimping machine, cable/wire printing inkjet marking machine,
wire Twisting Tinning machine , Seal insertion, Applicators for terminal crimping, Industrial robot and other
special wiring harness processing electronic equipments.
Certifications
Company Information
Packaging & Shipping
Trade Shows
FAQ
1.What are the wearing parts?
Blade and belt. More spare parts info, please contact us.
2.Operation and user manual?
English and Chinese optional.
3.How long is the warranty period?
1year, all belts and blades without of the warranty.
4.What after sales service do you provide?
Technicians online support, video technical support within 24 hours.
If you need local service please check with Hechang Machinery. Generally require additional charges.
