Product Overview
Description

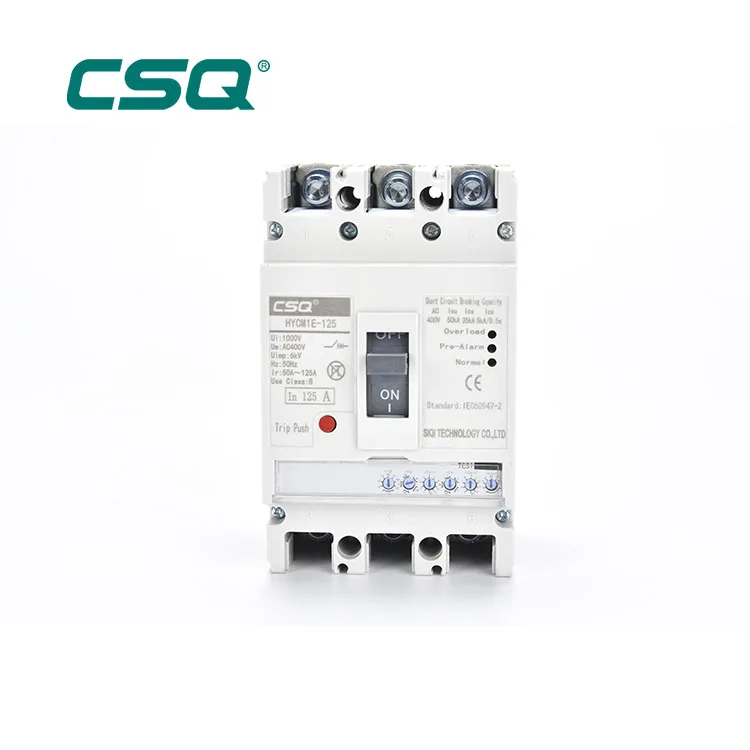

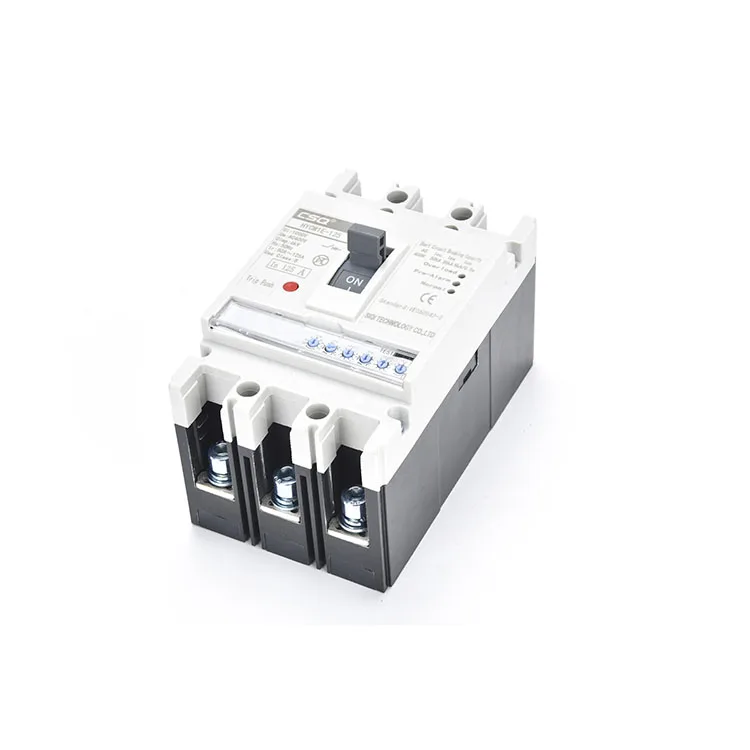

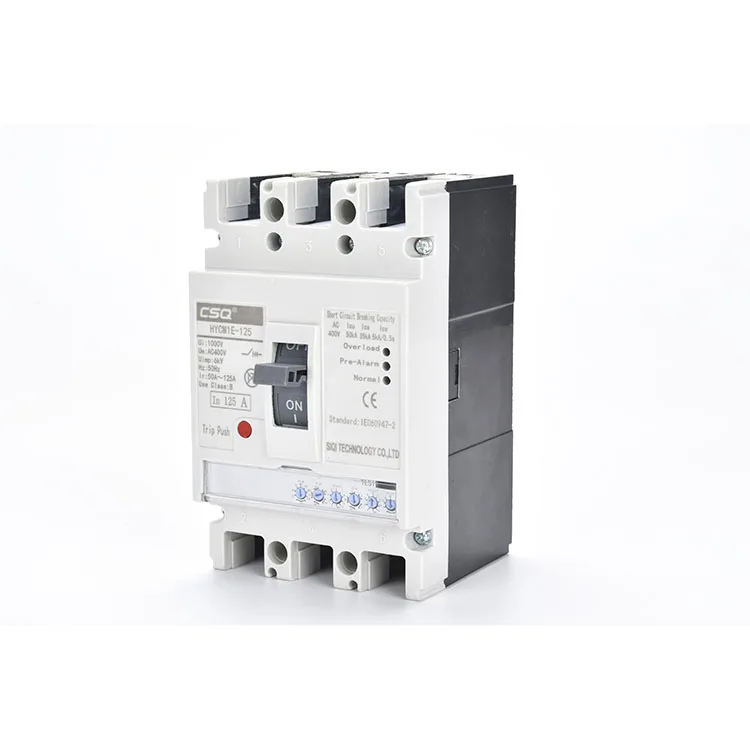

HYCM1 4P AC Moulded Case Circuit Breaker
** Product Description :
HYCM1 series molded case circuit breaker (hereinafter referred to as breaker) is designed by company with international advanced technology, and it is one of the new circuit breakers in the development.
The rated insulation voltage of circuit breaker is 800V, which is suitable in the distribution network with AC 50Hz or 60Hz, rated working voltage of 690V and rated working current from 6A to 1250A. It is used to distribute power and protect the circuit and power equipment against overload, short circuit, under voltage and many other damages.
This product complies with GB140048.2 and IEC60947-2 standards.

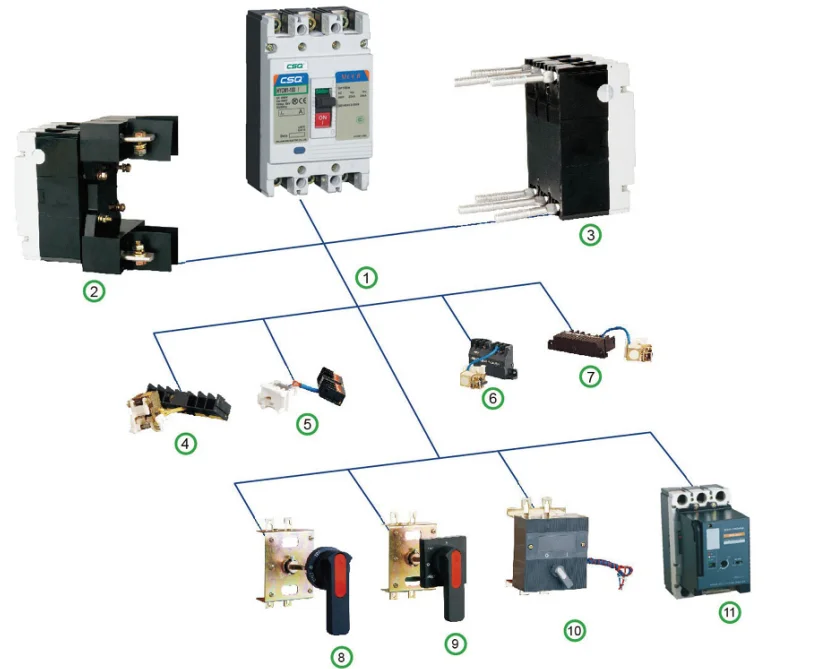

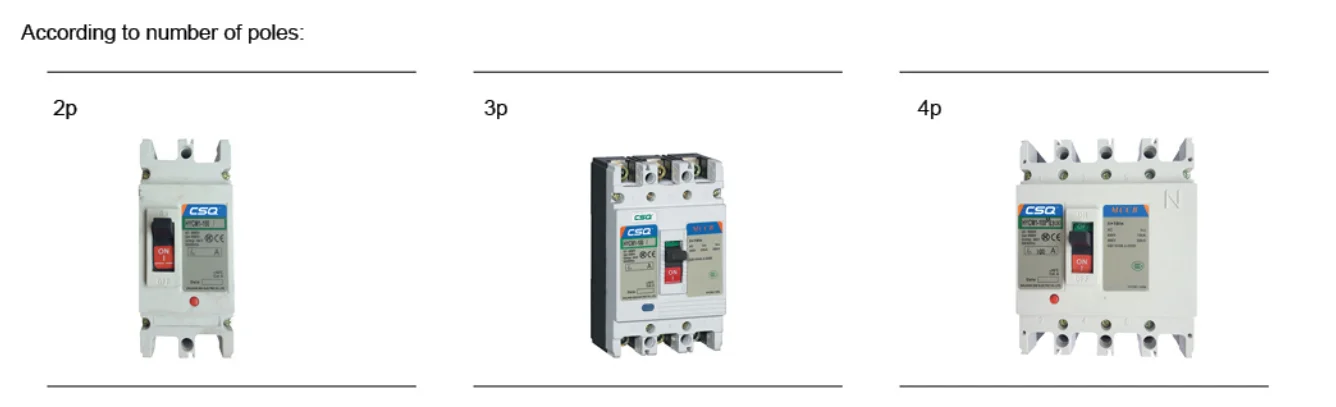

Note: 4 poles mccb is divided into four kinds
N pole of A type doesn’t mount overcurrent tripping component, and N pole always switches on, it can not be on and off together with other 3 poles;
N pole of B type doesn’t mount overcurrent tripping component. It can be on and off together with other 3 poles (On fist, then off);
N pole of C type mount overcurrent tripping component, it can be on and off together with other 3 poles (On fist, then off);
N pole of D type mount overcurrent tripping component, and N pole always switches on, it can not be on and off together with other 3 poles;

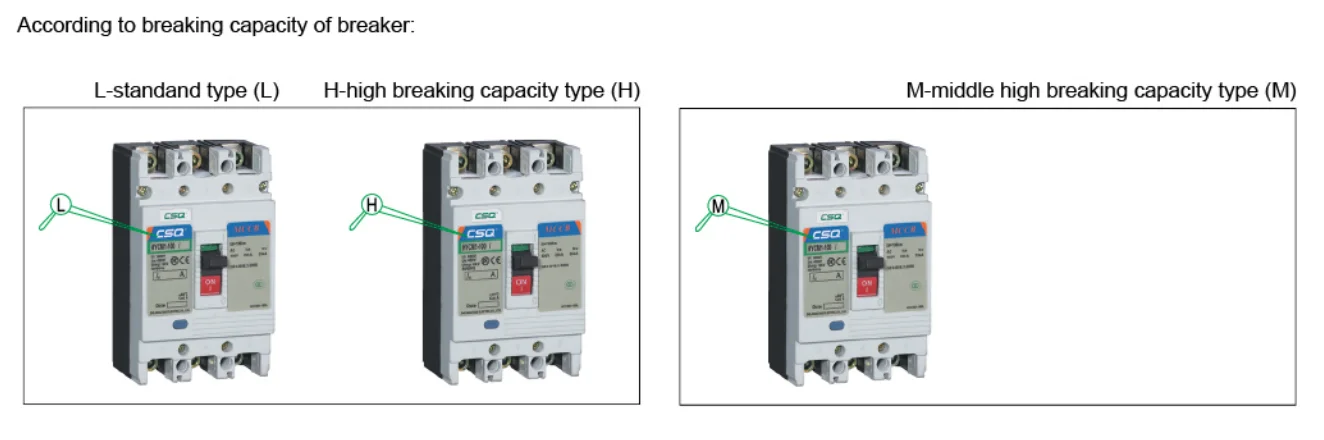

**Basic Specification and Main Parameters
| Model No. | Max. rated current of shell degree(A) | Rated current(A) | Rated working voltage(V) | Rated insulating voltage(V) | Rated limit short breaking capacity(KA) | Rated operating breaking capacity(KA) | Pole No. | Arcing distance mm |
| 400V/690V | 400V/690V | |||||||
| HYCM1- 63L | 63 | 6,10,16,20,25,32,40,50,63 | 400 | 500 | 25* | 12.5* | 3 | ≤50 |
| HYCM1-63M | 63 | 50* | 25* | 3.4 | ||||
| HYCM1-100L | 100 | 16,20,25,32,40,50,63,80,100 | 690 | 800 | 35/8 | 17.5/4 | 3 | ≤50 |
| HYCM1-100M | 100 | 50/10 | 25/5 | 2,3,4 | ||||
| HYCM1- 100H | 100 | 85/20 | 42.5/10 | 3 | ||||
| HYCM1-225L | 225 | 100,125,160,180,200,225 | 690 | 800 | 35/8 | 17.5/4 | 3 | ≤50 |
| HYCM1-225M | 225 | 50/10 | 25/2 | 2,3,4 | ||||
| HYCM1-225H | 225 | 85/20 | 42.5/10 | 3 | ||||
| HYCM1-400L | 400 | 225,250,315,350,400 | 690 | 800 | 50/10 | 25/5 | 3,4 | ≤100 |
| HYCM1-400M | 400 | 65/10 | 32.5/5 | 3 | ||||
| HYCM1-400H | 400 | 100/120 | 50/10 | 3 | ||||
| HYCM1-630L | 630 | 400,500,630 | 690 | 800 | 50/10 | 25/5 | 3,4 | ≤100 |
| HYM1-630M | 630 | 65/10 | 32.5/5 | 3 | ||||
| HYM1-630H | 630 | 100/20 | 50/10 | 3 | ||||
| HYM1-800M | 800 | 630,700,800 | 690 | 800 | 75* | 37.5* | 3 | ≤100 |
| HYM1-800H | 800 | 100* | 50* | 3 | ||||
| HYM1-1250M | 1250 | 700,800,1000,1250 | 690 | 800 | 80* | 40* | 3 | ≤100 |
Note: * is the testing parameter when 400V, 6A has no thermal release
1.Inverse time disconnected action features when every pole of the circuit breaker equipped with powe on at the same time. (Shown in Table 3)
Table 3
| No. | Name of testing current | l/ln | Appointed time | Starting state |
| 1 | Appointed but not tripping current | 1.05 | 2h(ln>63A),1h(ln≤63A) | Cold state |
| 2 | Appointed and tripping current | 1.30 | 2h(ln>63A),1h(ln≤63A) | Start after test 1 |
2.Inverse time disconnected action features when every pole of the circuit breaker used with power motor protection powers on at the same time. (Shown in Table 4)
3.The instantaneous motion characteristics setting of distribution circuit breaker is 10ln±20%,while the motor protection circuit breaker’s is 12ln±20%.
Table 4
| No. | Setting current | Appointed time | Starting state | Note |
| 1 | 1.01ln | >2h | Cold state | |
| 2 | 1.2ln | ≤2h | Start after test 1 | |
| 3 | 1.5ln | ≤4min | Cold | 10≤ln≤225 |
| ≤8min | Cold | 225≤ln≤630 | ||
| 4 | 7.2ln | 4s≤T≤10s | Cold | 10≤ln≤225 |
| 6s≤T≤20s | Cold | 225≤ln≤630 |
4.Neutral pole of four-pole circuit breaker are set on the right of the circuit breaker. The rated current of N pole release in C type and D type are shown in Table 5.
Table 5
| Rated current of shell degree | Rated current of circuit breaker | Rated current of N pole | Rated current of shell degree | Rated current of circuit breaker | Rated current of N pole |
| 63 | 6 | 6 | 225 | 100 | 100 |
| 10 | 10 | 125 | 100 | ||
| 16 | 16 | 160 | 100 | ||
| 20 | 20 | 180 | 100 | ||
| 25 | 25 | 200 | 100 | ||
| 32 | 32 | 225 | 125 | ||
| 40 | 40 | 400 | 225 | 225 | |
| 50 | 50 | 250 | 225 | ||
| 63 | 63 | 315 | 225 | ||
| 100 | 16 | 16 | 350 | 250 | |
| 20 | 20 | 400 | 250 | ||
| 25 | 25 | 630 | 400 | 250 | |
| 32 | 32 | 500 | 315 | ||
| 40 | 40 | 630 | 350 | ||
| 50 | 50 | ||||
| 63 | 63 | ||||
| 80 | 63 | ||||
| 100 | 63 |
