Product Overview
Description

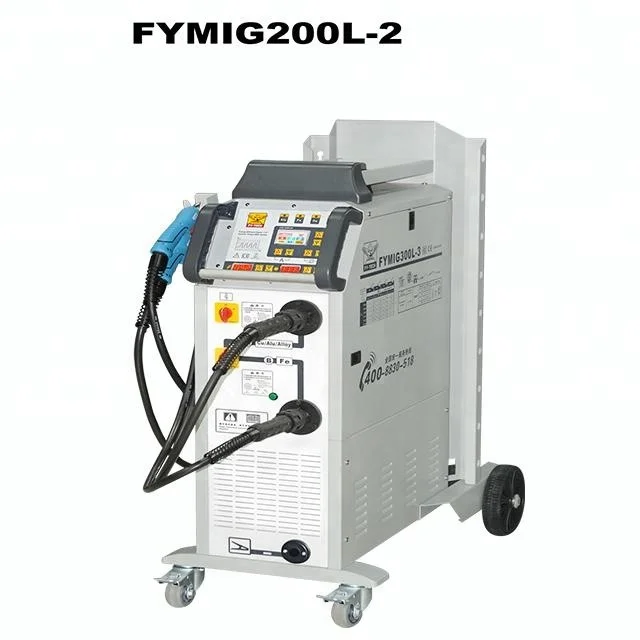

IGBT Inverter Aluminium MIG Welder
Features:
- With a multifunctional color LCD panel and the most advanced DSP control technology. It features one button intelligent design to automatically store equipment information and to select the welding modes for various materials like steel, aluminium, stainless steel, copper and nickel. The user can store the welding parameters easily and safely.
- With a world famous brand of specialized welding power supply, IGBT inverter pulsed technology and soft switching control technology. Unit has high protectiveness, extensive applicability and a world class welding performance.
- Designed with fender panel for gas cylinder to fix onto the machine.
- Complete with a four-roll dual drive wire feeder
Technical data
Input Voltage: Frequency: Rated maximum supply current: Maximum effective supply current: Output current/voltage: No-load voltage: Welding current range: Insulation grade: Voltage regulation range: Dimensions: Weight: | AC 400V or AC230V 50/60Hz 10.5A 15A 35A/17.5V-310A/31V 50V 35-310A 65% F φ0.6-1.2 0.8-1.2 0.6-1.4mm 930x350x830mm 92kg |
IGBT Inverter Power Supply:
With a world famous brand of specialized welding power supply.IGBT nverter pulsed technology
and soft switching control technology.Unit has high protectiveness,extensive applicability and a
world class welding performance.
Febder Panel:
Desigend with fender panel for gas cylinder to fix onto the machine.
Digital control system:
Didital control system is easy to use.Standard welding gun is 3m long.Wire drawing gun is available as
an option,please specify when ordering.
Wire Feeder:
Complete with a four-roll dual drive wire feeder.
Accessories:
Multifunctional Welding Gun 15AK | Gas Regulator Power:120-210W | Shield Cup & Contact Tip φ12mm φ0.6-1.0mm | Welding Gun Holder |
Welding Gun For Aluminium 15K | Air Tube & Chain | Fuse 4A | Anti-Blocking Agent |
