floor type blood bag OEM Utra high capacity centrifuge with swing bucket rotor DL8M 12L
- Category: >>>
- Supplier: Hunan Xiangxin Instrument And Meter Co. Ltd.
Share on (60212794137):
Product Overview
Description
DL8M-12L
Super large capacity refrigerated centrifuge
Feature

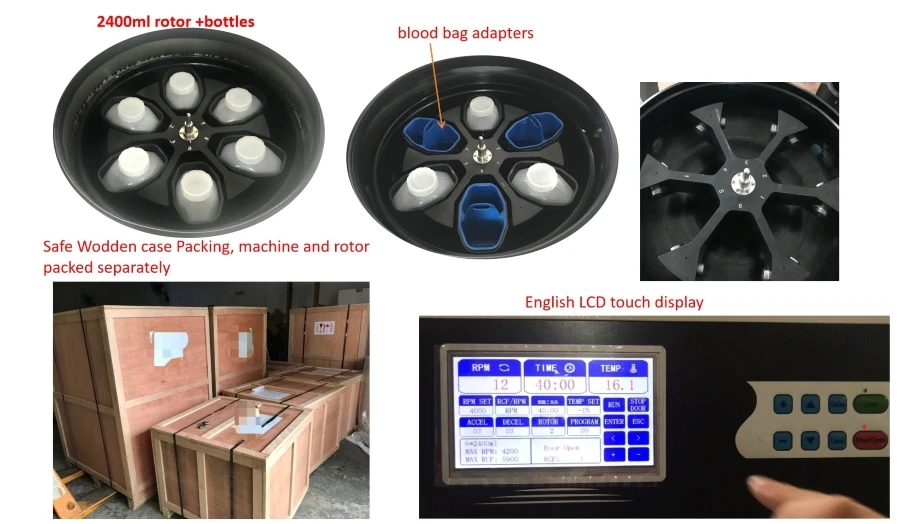

l Large color touch screen display, both shows the set parameters and operation parameters.
l All stainless steel internal and external structure, corrosion resistance and durable.
l Use the imported compressor from TAIKANG,FRENCH,with the accurate temperature control system.
l Max capacity:6×2400ml or processing 18 bags of 400ml whole blood at one time.
l An easy-going operator interface with a standard English operating software, user can operate freely.
l With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use
l With the self-diagnositc system and protection for imbalance, over-speed and over-temperature. Both automatic electronic lock and mechanical lock to ensure safety.
l Acc/Dec 10 rates from 0~9 grade; Display speed of rise and fall curve, integral curve and temperature curve.
l Equipped with standard interface can connect computer to operate centrifuge, and composition local computer management system.
l Widely used in the field of blood station,pharmaceutical factory,biochemistry,biological products and so on.
Technical Parameters
Model | DL8M-12L |
Max Speed | 8000r/min |
Max RCF | 16872xg |
Max Capacity | 6×2400ml, 6×3×400ml(whole Blood) |
Speed Accuracy | ±50r/min |
Timer Range | 0-23h 59 min |
ac/dc Rate | 0-9(Grade) |
control&drive | (microprocessor control/direct drive) |
Daily-use Program | 9 |
Program Storage Capacity | 35 |
Refrigeration System | Imported High-performance Compressor CFC-free Refrigeration System |
Motor Power | 3KW |
Refrigerator Power | 2.5KW |
Noise | ≤65dB(A) |
Power Supply | AC220v 50Hz 35A |
Weight(Without Rotor) | 500kg |
Dimensions | 960×860×1200mm(L×W×H) |
Rotor
Number | Max Speed | Max RCF | Capacity |
NO.1 Swing Rotor | 4000r/min | 5900 xg | 2×6×1000 ml |
NO.2 Swing Rotor | 4000r/min | 7060 xg | 6×2400 ml |
NO.3 Swing Rotor | 4200r/min | 5900 xg | 24×200mlQuadruple Tube 12×400-500mlBlood Bag |
No.4 Angle Rotor | 8000r/min | 16872xg | 6×1000ml |
Centrifuge:
Company Profile
Transport
FAQ
Q1. Are you manufacturer or trading company? Can y ou offer OEM/ODM service?
Yes, we are manufacturer of centrifuges, and we have our sales team. OEM and ODM are welcomed.
Q2. How long of your warranty period?
Our centrifuge warranty period is 18 moths, during warranty period we offer all parts free charge, and over period, we only charge the basic cost, and we do the after service for centrifuge lifetime.
Q3. if our centrifuge broken, what should we do?
Please contact us, we will reply you within 24 hours.
Q4. How about the delivery term?
By air or by shipment, according to the quantity ordered or customized. Usually deliver within 2-7 workdays after received your advanced payment.
Q5: What about the payment term?
We accept Money Gram, West Union, T/T, L/C, etc.
