Product Overview
Description
Product Description

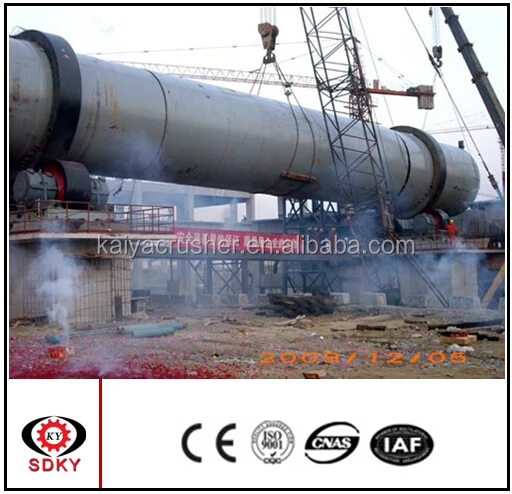

1. The rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry.
2. In our company, this series applies the new type scatter plate device; it can guide direction, flow on average and scatter the material and so on.
3. And it can make the material in the thin, average and complete condition.
4. Contact the heat airflow completely and use the heat energy fully. Moreover, it adopts reasonable operational parameter, and compared with general drier, it reduce the coal and power consumption above 10-15%, and increase the output above10-15%.
5. At present, it is widely used in cement and mining industries.
Working Principle
1. Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.
2. Materials enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together.
3. Materials go to the lower side by gravity when the barrel is rotating.
4. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer
Features
1. Our dryer adopts new Spreading plate device, which has guidance, flow, material functions
2. It can make the material content in the dryer radial cross section to full uniform, material will become thin and all.
3. The state of the heat flow entirely, to achieve the purpose of make full use of the heat.
4. Our dryer choose reasonable operating parameters, coal consumption and power consumption of general baked dry machine more than 10-15%, one machine yields above 10-15%.
5. It has been widely used in the cement and mineral processing enterprise.
Technical data
Technical parameters of of poultry manure rotary dryer:
Model (mm) | Obliquity (%) | Rotation speed (r/min) | Inlet air temperature (°C) | Power (kw) | Capacity(t/h) | Weight (t) |
Φ 600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 3 |
Φ 800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
Φ 800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
Φ 1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Φ 1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
Φ 1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
Φ 1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
Φ 1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
Φ 2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
Φ 2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
Φ 2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
Φ 2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
Φ 3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
Φ 3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
After-Sales Service
1) Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and
detailed process, and complete process of export crusher
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
