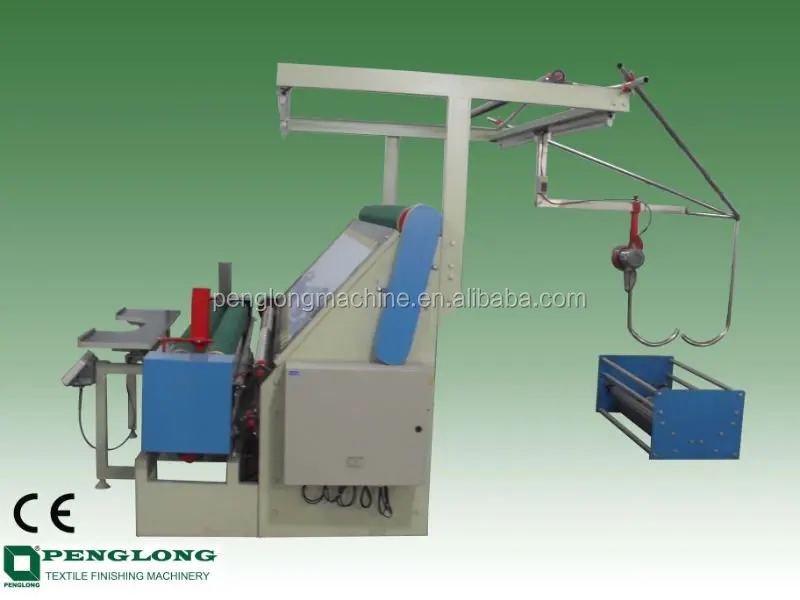

Jiangsu Tubular knitted fabric slitting cum inspection machine

1.edge-aligning system

2.Fabric tension can be adjust

Usage

This machine is suitable for knitting mill, it is specially designed for tubular knitted fabric which is needed to slit into full widthm inspection and winding.

Characteristics

1. Photoelectric hydraulic edge aligning system is adopted.

2. Forward and reverse running, stepless speed change.

3. It is can be used to inspect and wind fabric in full width also.

4. Fabric tension is adjustable via two inverters.

5. Cutting device is driven by an independent motor.

Technical Parameters

1. working width: 1800-2600mm

2. Motor: Inverter: 2HP*4P, Edge aligning motor: 1/2HP*4P, Expanding motor: 1/2HP*4P

3. Winding Speed: 10-85 yards/min

4. Operating Space: 2800*2050*2000mm

5. Pack Size: 2900*2150*2200mm

 Shipping date: 4days after the contract confirmed.

 Packing detials: wooden case / Air film.
