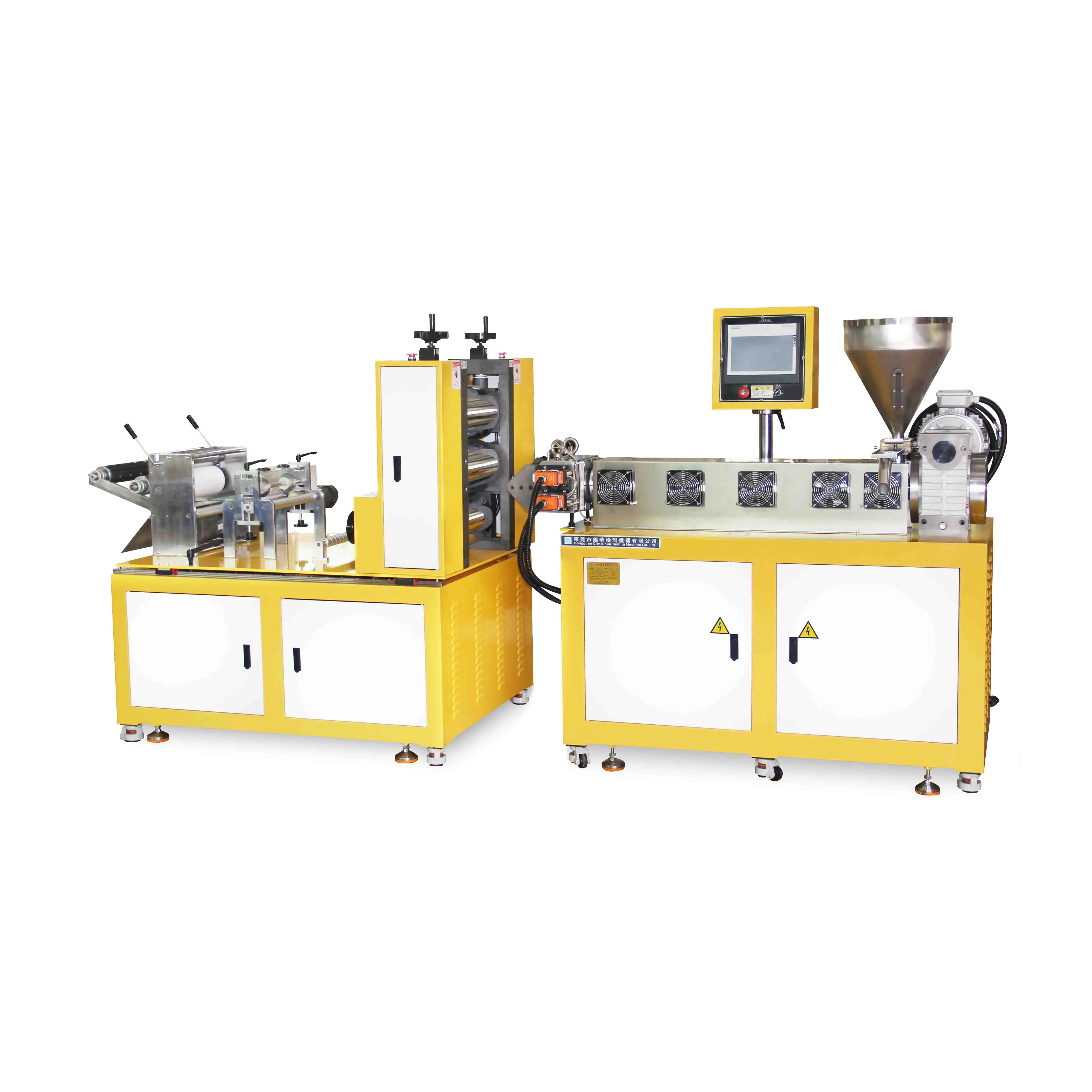

Lab PE Cast Stretch Film Machine/Mini Plastic Extruder Machinery

Share on (60213620336):


Price:$16,000.00 - $20,000.00

Quantity:


Product Overview

Description



Product Description


Product Application

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.



SPECIFICATIONS FOR XH-432-25 CAST FILM MACHINE






 Technical Parameters
Applicable materials
PP, PE, PVC, PS, PET, etc.
Screw diameters
25mm
Screw rotating speed
0-95 rpm (adjustable)
Screw L/D ratio
33:1
Film thickness
0.03-0.3mm
Film width
250mm (customized)
Die width
300mm
Power supply
380V/50Hz/3 phases or Customerized
Control mode
SIEMENS PLC Control




Main Features

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;

2) Using brand melt pressure and temperature sensor to ensure high accurage data

3) Cantilever roll structure making it easy to lead the film and be operated;

4) dopting PLC control system and friendly operation interface to easily operate;

5) On-line testing and displaying melt pressure, temperature and other key data;

6) Emergency stops and devices to protect safety of the operator;



Detailed Images


Machine Parts

Name: PLC Control system
Brand: SIEMENS

Temperature, speed are display on screen, it's very easy for operating.




Main Features

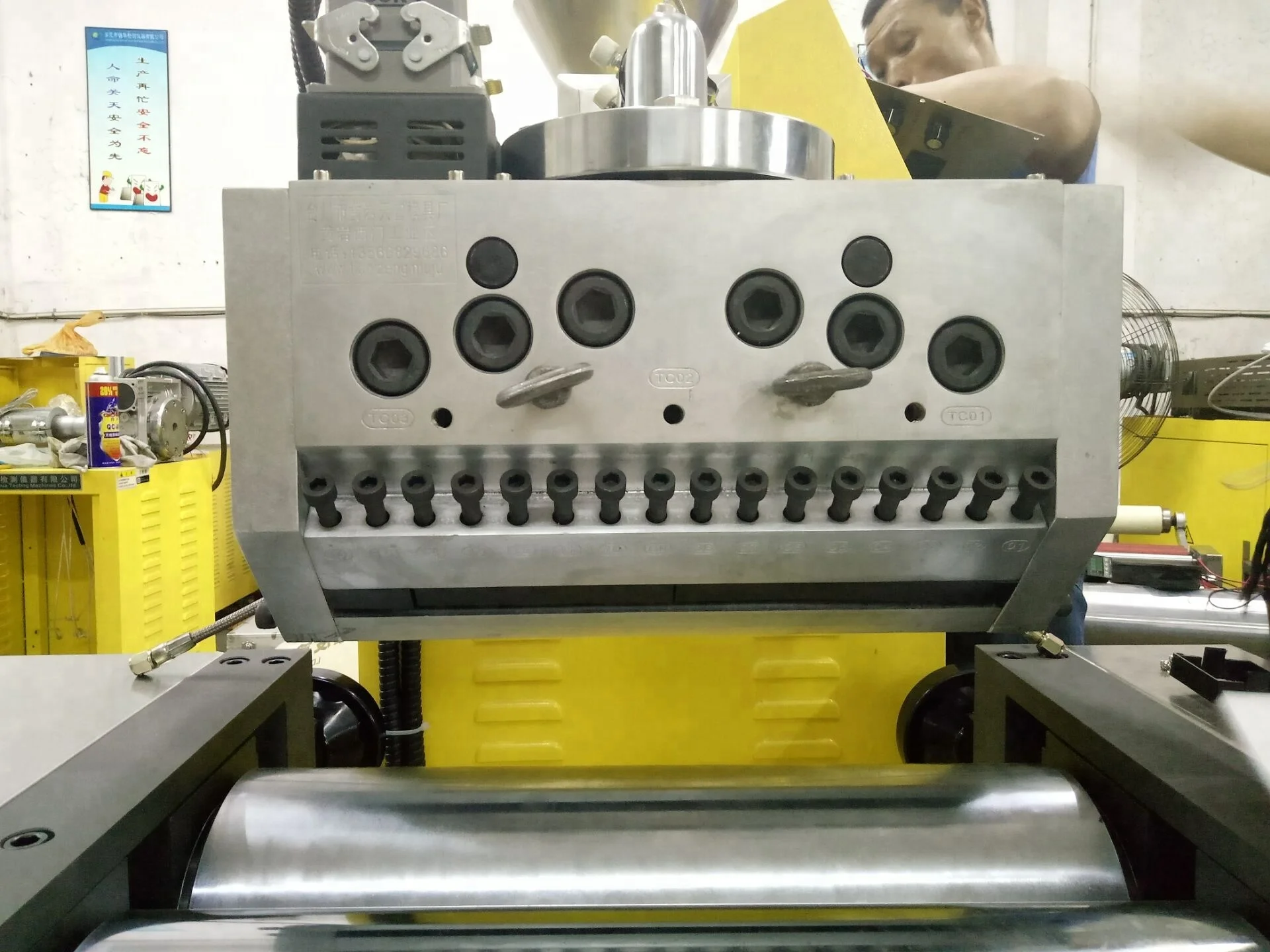

Name: DIE

The die is T style flow channel. The upper die lip is manually push adjustable.




Machine Parts

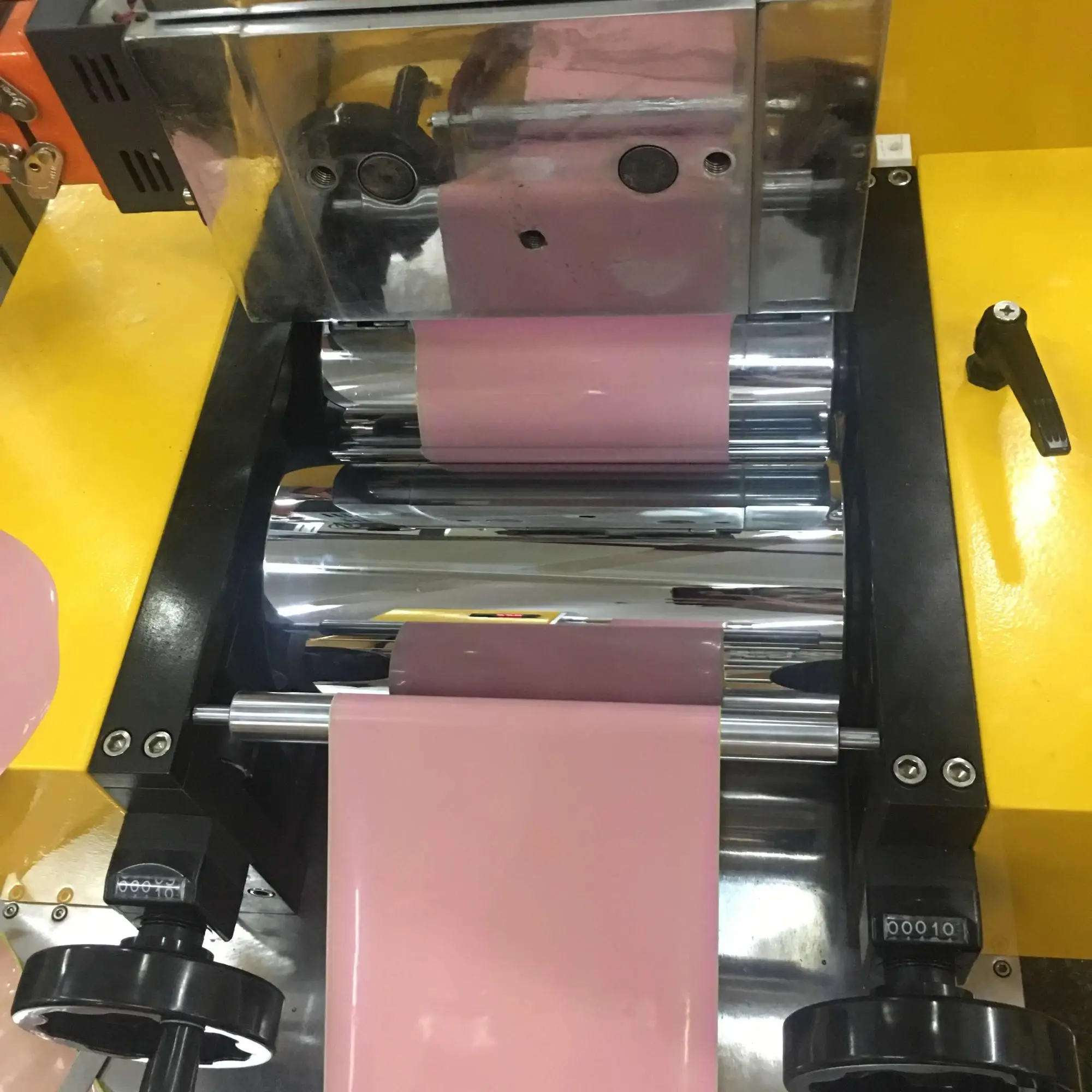

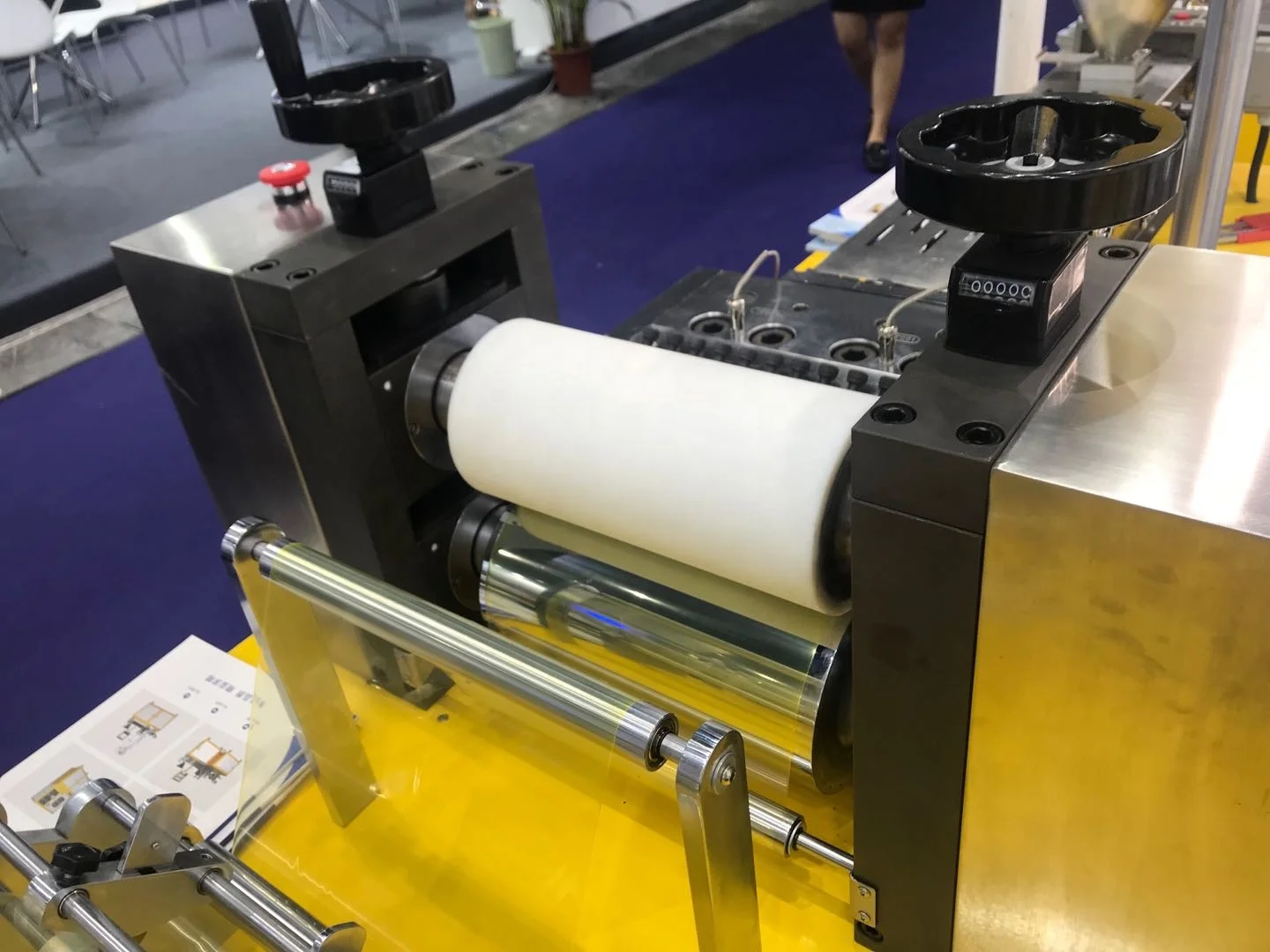

Name: calender roll


The mirror rolls can make the film good gloss.




Main Parts

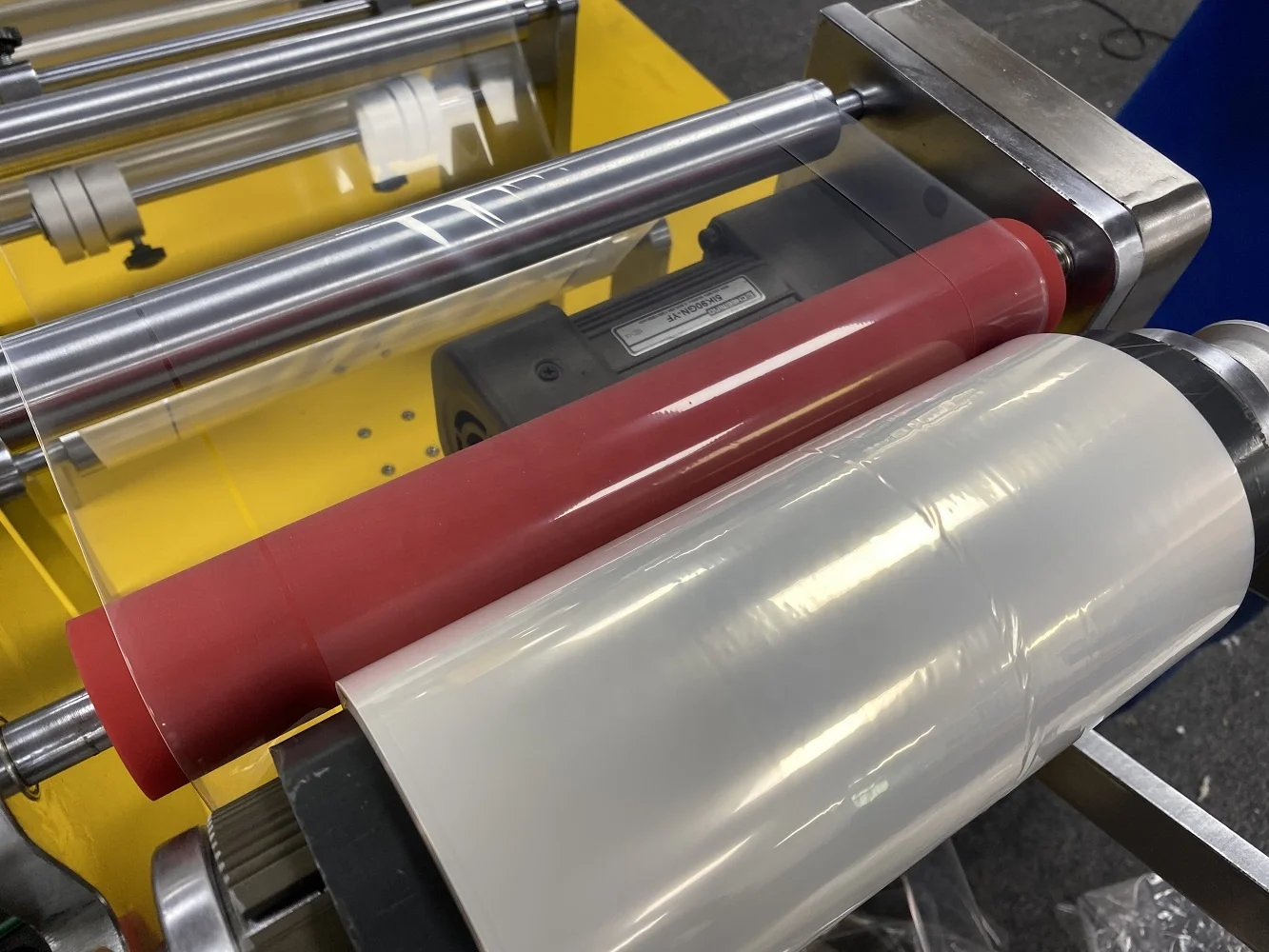

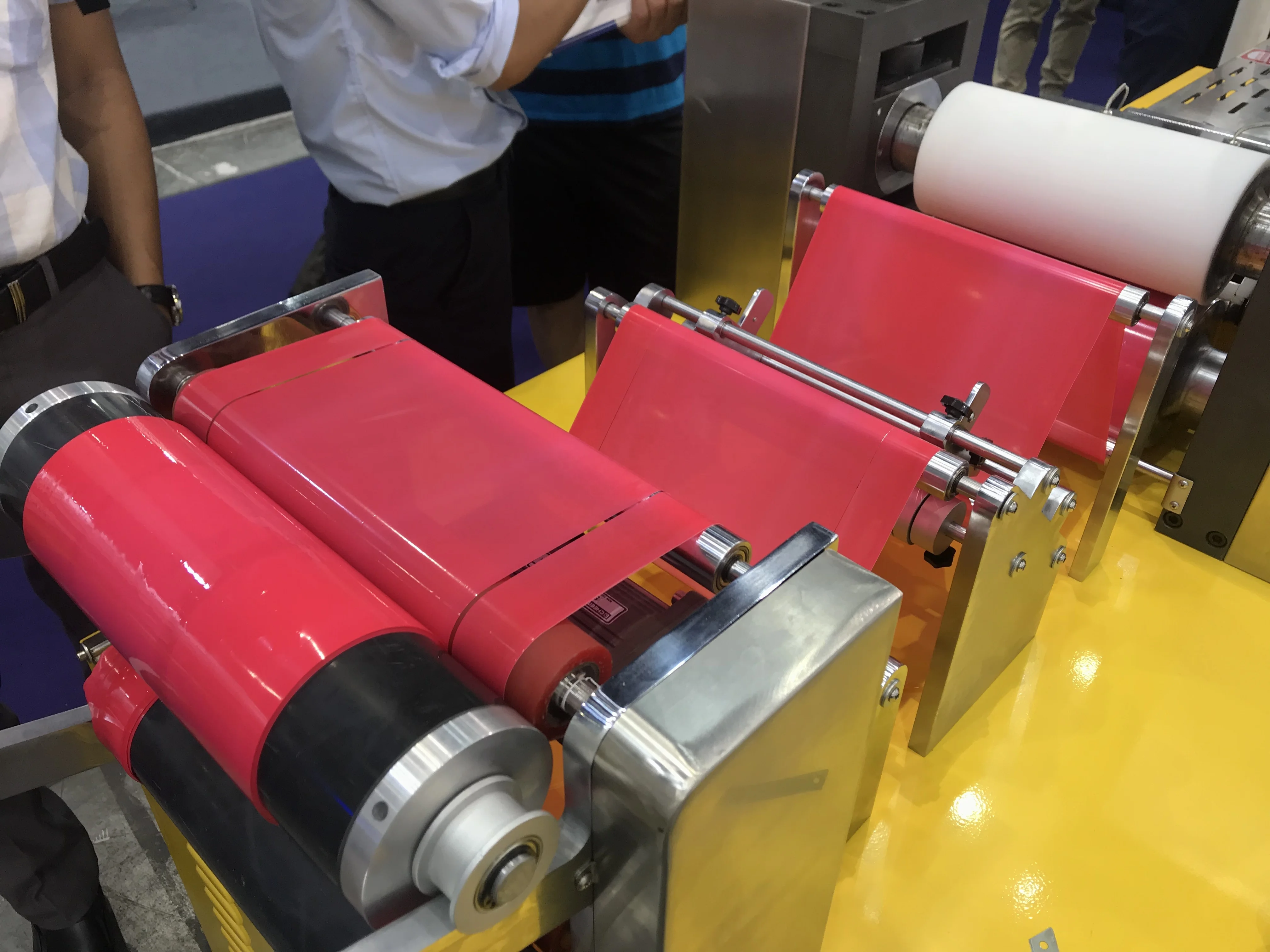

Name: Winding device

The film after tracting by traction roller, it will be rolled by wingding device



Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Packing & Delivery


Packaging
Size
1000×700×800mm
Weight
610kgs


PackagingDetails


The normal package is wooden box
