TCP/IP to 4 wire ip Port RS 232 Converter (ATC 2004)
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (60213764197):
Product Overview
Description
TCP/IP to 4 Port RS-232 Converter
Product Description

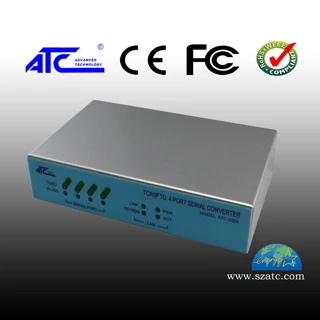

The ATC-2004
is a 4 Port RS232/485/422 to TCP/IP converter integrated with a robust system and network management features designed for industrial equipment to be accessed and controlled via Intranet or Internet. By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, ATC’s ATC-2004 provides not only a robust and high performance system to make your device connecting to Network, but also ease installation and Internet access.
The ATC-2004
Web Configuration is a breeze to operate and totally independent of the operating system platform you use
Specifications
Serial Interface | |||
Interface Type | RS-232/485/422 | ||
Data Rate | 300bps ~ 230.4Kbps | ||
Data Length | 5,6,7,8 bits | ||
Parity | Odd, Even, None, Space, Mark | ||
Stop Bits | 1,2 bits | ||
Flow Control | Software: Xon/Xoff, Hardware: RTS/CTS | ||
Connector | RS-232 | DB-9 male | |
RS-485/422 | 6-pin Terminal block | ||
Serial Line Protection | 600W for RS-232,1000W for RS-485/422 | ||
Network Interface | |||
Interface Type | Ethernet 10/100Mbps (Auto-Sensing) | ||
Connector | 8-pin RJ-45 | ||
Management | ü Support TCP/UDP Server/Client mode ü User name & password protected for web management ü Built-in http server for set up and remote management via any browser easily ü Support backup & restore system configuration data ü Support Windows 95/98/ME/NT/2000/XP/2003 virtual COM drivers | ||
Software | |||
Network Protocols | TCP/IP, UDP, Telnet, ARP, DHCP, PPPoE, ICMP, HTTP, DDNS,SMTP | ||
Configure Options | Support backup & restore system configuration data | ||
OS support | Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/WIN7 x64/WIN8 x64, Linux real,TTY,UNIX | ||
LED Indicators | LINK | 10/100Base-TX Link & Activity Indicator | |
ACT | Date Transmitting between Serial and Ethernet | ||
PWR | Power indicator | ||
Power Supply | 8-24 VDC@500mA | ||
Physical Characteristics | |||
Installation | DIN-Rail Mounting | ||
Weight | 0.8Kg | ||
Dimensions | 160 x 97 x 32 mm (6.3 x 3.43 x 1.26 in) | ||
Environmental Limits | |||
Operating Temperature | -25 ~ 70°C (-13 ~ 158°F) | ||
Ambient Relative Humidity | 5% to 95%(non-condensing) | ||
Standards and Certifications | |||
RoHS, CE, FCC | |||
Order Information
ATC-2004 4-Serial Port device networking converter RS-232/422/485,RJ45

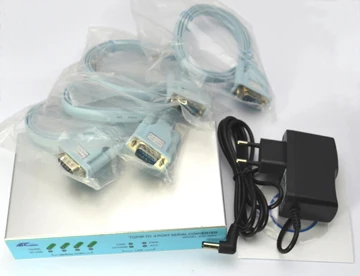

Package Checklist
- ATC-1000 serial server 1 PCS
- Documentation and software CD 1PCS
Packaging & Shipping
We have strong cooperation with DHL,TNT,UPS,FedEx and EMS.
You also can choose your own shipping forwarder.
Our Services
1.We must be based on buyer's requirement to produce/prepare the goods step by step.
2. We are willing to assist buyer to provide related document to send the goods or solve Clearance customs problems.
3.Company Information:
As an experienced supplier of data communication products, Shenzhen ATC Technology Co., Ltd. is counted on by many renowned buyers, such as ZTE, Car Part GmbH (from Germany), Emerson (from Australia), and so on. Car Part GmbH commented on our products like this: "Your products can meet our market requests and the quality makes us satisfied. Hope you can keep the basic of success".
Our company product solutions include: Serial device networking solution, industrial control interface conversion solutions, USB to serial port solutions, optical fiber communication solutions, wireless GPRS/CDMA, RF solutions, interface protection and lightning protection solutions, special requirements and customized solutions.
Every month, we can export 10,000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our export is CE-marked, finding good markets in these continents which include Euro (Belgium,Bosnien und Herzegowina ,Germany,Denmark ,Greece,Ireland ,Italy, Netherland, Norway, Poland, Portugal, Romania,Spain, Hungary, UK) USA, Asia(Korea, Thailand, Malaysia, Singapore, Indonesia,Philippines, Australia, VietNam)Middle East(Pakistan, Israel, Iraq,Koweit ,Iran ,Saudi Arabia,United Arab Emirates Syria, Lebanon ,Algeria ,Egypt ,Turkey)
Welcome to search high quality products at competitive prices from us.
FAQ
- Any Inquiries will be replied within 24hours except the weekend.
- Professional manufacturer. Warm Welcome to visit our website:www.szatc.com
