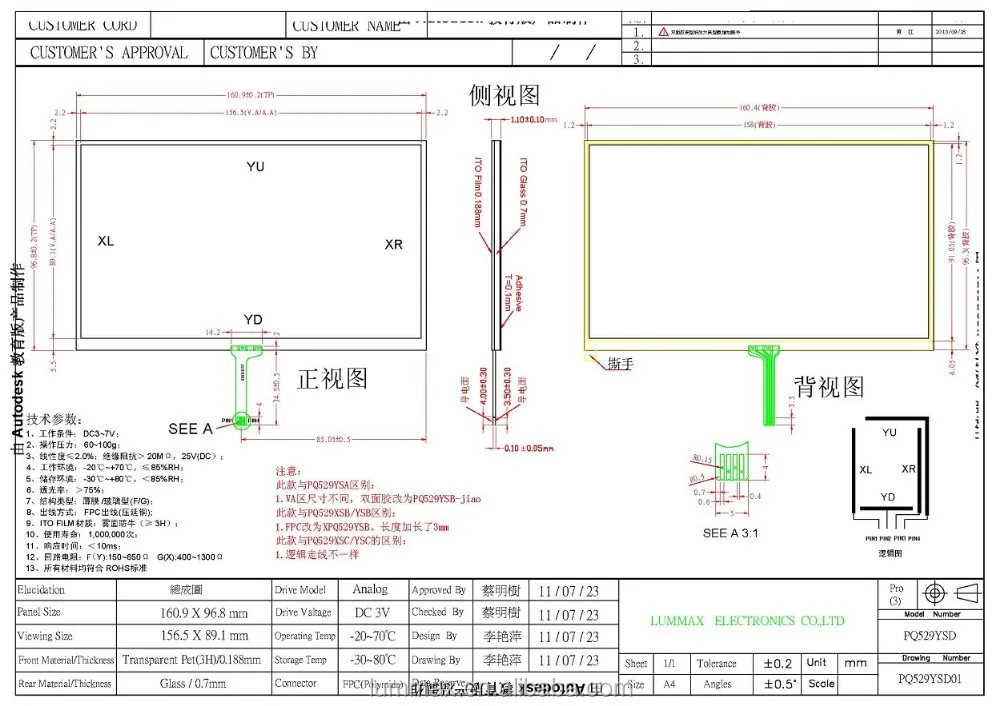

7 Inch Resistive Touch Screen (Size: 160.9(w) *96.8 (h) mm)

7 inch resisitive Touch screen Specifications:

Touch Type: 4 wire Resistive touch screen

Screen Size:  7"Diagonal

Drive voltage: DC 3V

Connector: FPC

Response Time: <10 ms

Activation Force: 60-100 grams per square centimer

Positional Accuracy: 3mm maximum error

Light Transmission: Film +Glass>75%

Scratch Resistance: 3H pencil hardness

Life Expectancy: Over 1 million

Operating Temperature: -20º C ~+70 C

Storage Temperature: -30º C ~ +80 C

Choices of Glass Thickness: 0.7mm, 1.1mm, 2.0mm, 3.0mm, 5.5mm, Single film, double film selectable

Lummax Electronics Co., Ltd. was establishedin May 2004. We are specialized in R&D, production and sales of LCD panel, LCD module, TFT LCD module, and resistive & capacitive touch panel products.

Lummax has 8,000 square meters of workshop and 7,000 square meters of dormitory. Its total investment is up to USD 5 million. We have 620 employees, 15 R&D staff and 40 QC personnel.

In line with quality management standardization, the company sets up quality management system in accordance with ISO9001:2008 international quality management system; In April 2013, we passed the TUV(SUD) certification and obtained ISO9001:2008 certificate.

Our major customers include: EMERSON, SIEMENS, JABIL, WKK and ASTROTECH GROUP etc. In the year of 2013, our annual turnover has exceeded 40 million US dollars.

Mass production leadtime: 15 days.

100% product testing and inspection before shipment.

100% free replacement for defective products.
