Angelon PET mineral water bottle flake sorting machine



https://youtu.be/HuyM1ECuuew



PET sorting to keep transparent white, blue and green PET flake color sorting machine



https://youtu.be/Ga_oqzXICDM





Overview

Angelon  PET plastic scrap color sorting machine is a mature and professional color sorting machine for PET plastic scraps.

1. belt-type (double layer belts is available for removing defects with subtle color variation).


2. high-resolution chromatic CCD sensor


3. Passed ISO9001, CE, ETL and UL.


4. Superior optical lens


5. Intelligent shaker


6. Air valves

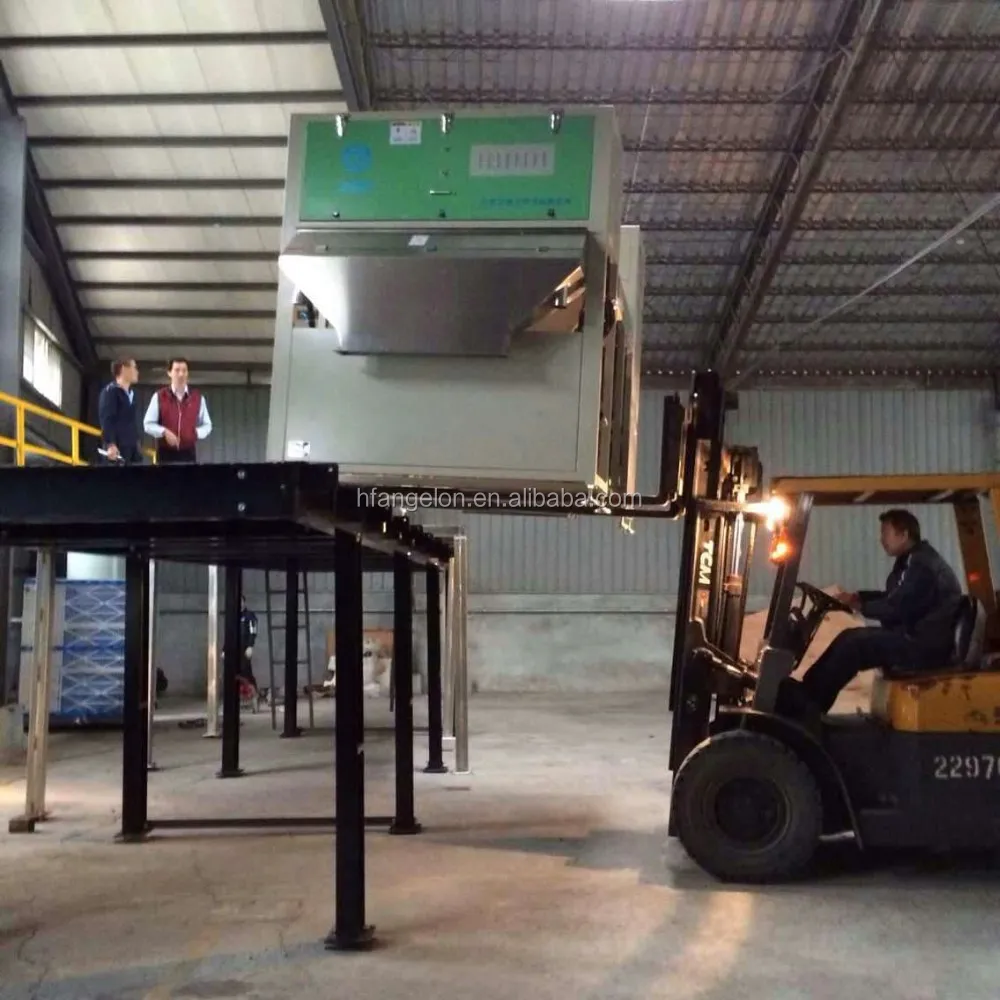

REAL PICTURE of the product













REAL PICTURE of  PET plastic Scrap sorting result









Product Features

1. High-Definition and high-sensitivity chromatic CCD image sensor, together with industrial wide-angle lens for accurate recognition, allows ultimate detection of defects and foreign materials. Be able to remove both lighter and darker colored defect simultaneously.


2. Adopt the international first-class optical lens; the definition is within 0.07 mm, can recognize the subtle chromatic difference and tiny flaws. Two side camera is available for greater defect detection.


3. Belt-type, avoids jumping in traditional chute-type color sorter and increases the output greatly.


4. By using high-speed parallel data processing chip, real-time efficient image acquisition and processing system, the color separator working efficiency has been greatly improved.


5. High quality image processing algorithm: advanced image processing technology is adopted, can effectively identify impurities as small as 0.1mm, which allows higher accuracy of color selecting and lower brought out.


6. Unique LED lighting system, Equipped with LED light source makes Superior illumination to ensure high-definition image quality for better detection of defects, can meet up to 1000 kinds of color separation.


7. Fan self-adaptive working temperature, ensure color separator in the high temperature environment also can work normally.


8. Incomparable ejection accuracy, high frequency, long durability and long service life.


9. Unique double layer belt-type design allows secondary sorting which make more precise sorting result, be able to remove the subtlest color variation.


10. Special shaker ensures homogeneous material feeding and The right speed allows product stability on the sorting belt, which is essential for a proper sorting.


11. Optimized ejection by air valves. Up to 512 air blast valves make a precise and fast rejection.


12. Simple system set up, easy for clients to install. User-friendly computer interface, support saving varies of sorting mode for clients who needs to sort different materials. Low maintenance and no daily calibration required.

Technical Parameters

Type		AL2K1C8-256
Channels		256
Output(t/h)		1.0-2.0
Sorting accuracy (%)		>99.98
Optimized carryover rate(bad :good)		>8/1
Voltage (V)		~220(50Hz)
Power of main machine (kW)		2.0
Air Pressure (MPa)		0.6~0.8
Dimension(L*W*H)(mm)		3080*1820*2150
Weight (kg)		1350







Angelon offers sales and after-sales service in over 20 counties worldwide, and we are glad to expand our territory of sales and after-sales. No matter where you are, if you buy our products, we will surely provide excellent customer support.

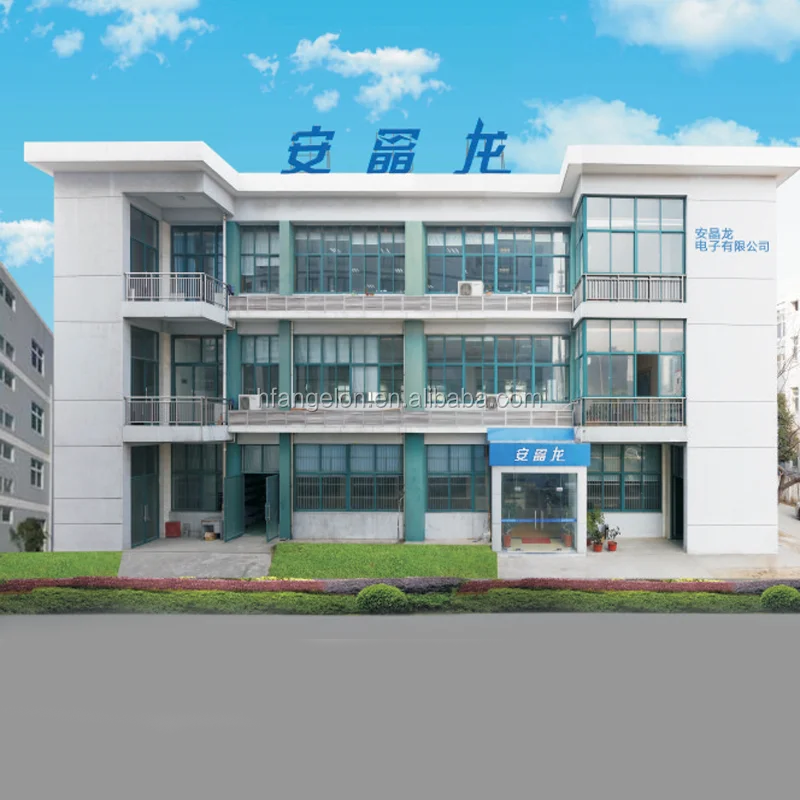

Company Images
