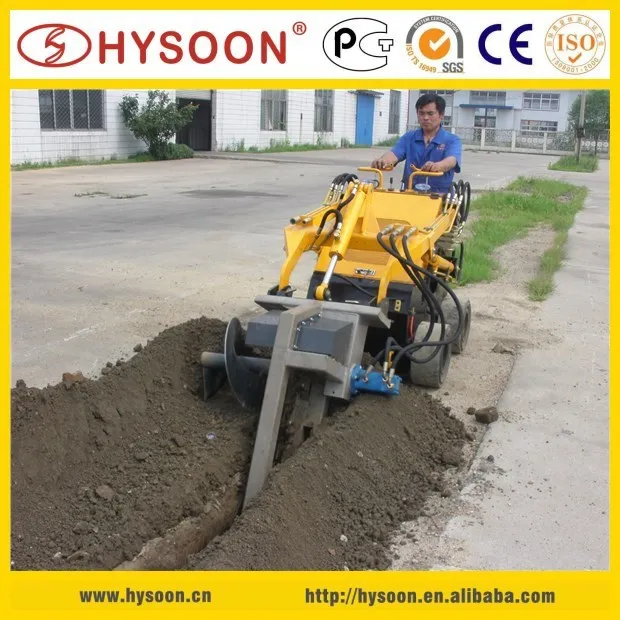

CE certificated trench digging machine
- Category: >>>
- Supplier: Taian Hysoon Machinery Co. Ltd.
Share on (60214512987):
Product Overview
Description
CE Certificated trench digging machine can use dingo attachment,such as digger,breaker,snow blower,fork,auger blade,grapple,lawn mower,trencher can do many works
Mini skid steer loader Hysoon HY380
Brigges&Stratton Engine:23HP
Can load 200kgs,
max lifting force:735kg
Size:1752mm*1033mm*1205mm
CE Certificated
Product Description
Main Technical Specifications:
| Model | CE certificated trench digging machine |
| Engine Model | B&S 3854 or Kohler |
| Rated Power | 20HP |
| Bucket Capacity | 0.15CBM |
| Rated Load | 200KGS |
| Operating Weight | 940KGS |
| Engine Displacement | 627ML |
| System Pressure | 17Mpa |
| Bucket Breakout Force.Bucket Cylinder | 550KG |
| Breakout Force,Lift Cylinder | 375KG |
| Tipping Load | 325KG |
| Grade Ability | 8° |
| Fuel Tank Capacity | 21L |
| Oil Tank Capacity | 27L |
| Max.Travel Speed | 5.5Km/h |
| Item | Data |
| Max Working Height (A) | 2143mm |
| Max Pin Height (B) | 1884mm |
| Max Dump Height (C) | 1488mm |
| Dump Distance at highest point (D) | 348mm |
| Bucket dump angle | 30degree |
| Bucket collectiong angle | 25degree |
| Departure angle | 11degree |
| Total Height (H) | 1233mm |
| Ground Clearance (F) | 118mm |
| Wheelbase (G) | 636mm |
| Length without bucket (J) | 1752mm |
| Total Width (W) | 1160mm |
| Bucket Width (K) | 1150mm |
| Total Length (with bucket) (L) | 2206mm |
| Turning Radius | 1307mm |
More pictures

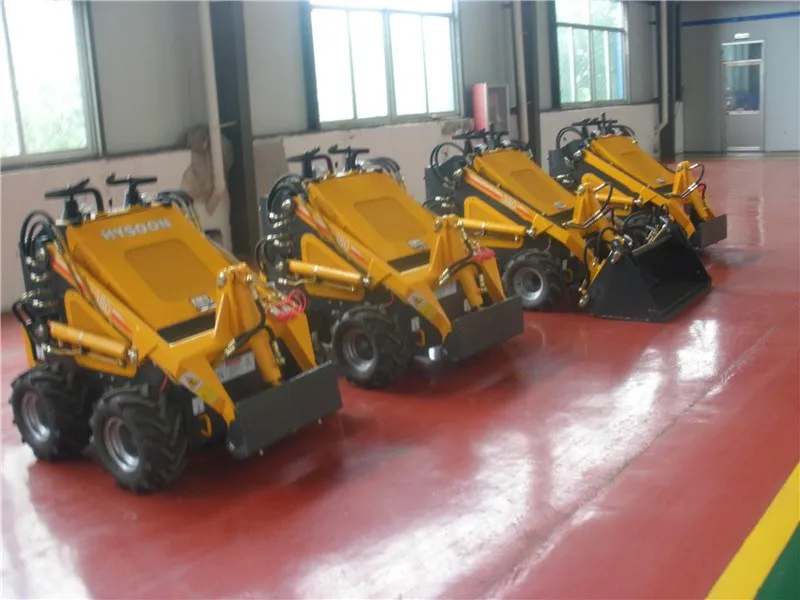

Please check more detail pictures for the CE certificated trench digging machine as below

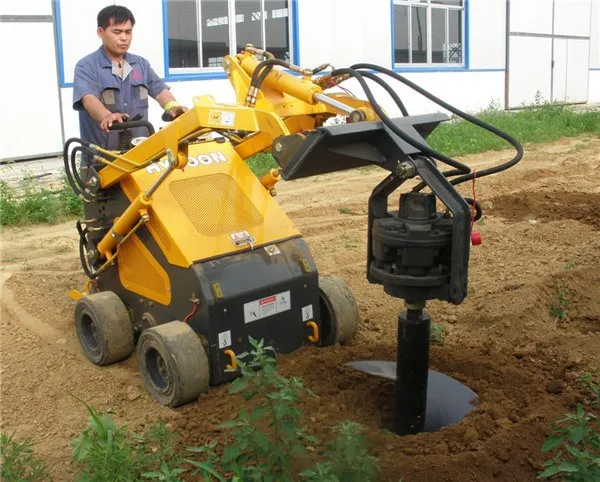

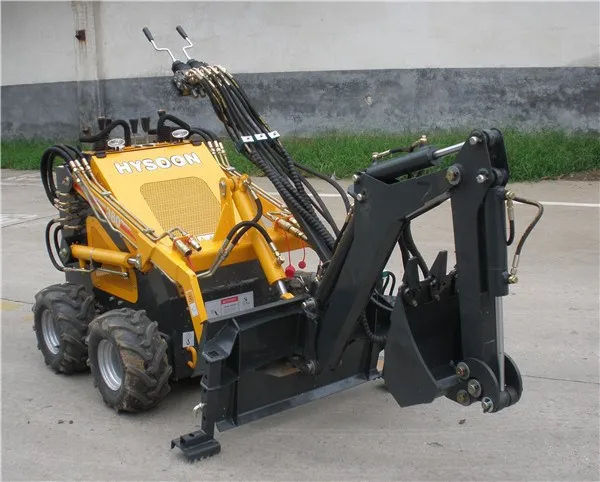

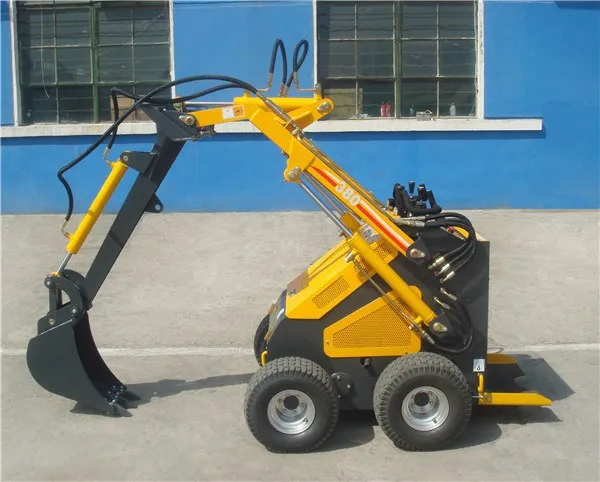

Dingo attachments for the Hysoon CE certificated trench digging machine
Trade Assurance
Tai'an Hysoon Machinery Co.,Ltd is a
supplier on Alibaba.com.
and has been inspected by TUV/BV,there is verified video can be check.
Now we are a member of Trade Assurance service
And habve US $73000 Limited.
that is new service provided by alibaba
which can provides buyers with a number of trade safeguards protect buyers’ payment to suppliers,
and to ensure suppliers fulfill their obligations regarding order delivery time and product quality".
Then no worries to make order CE certificated trench digging machine with us via Trade Assurance.
Certifications
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Hysoon loaders have get the CE Certificateion and GOST Certification,
for the mini skid steer loader HY380 and HY280,
skid steer loader HY700 and HY850,
mini loader HY200,
mini dumper FD350 and HD05 and HD10.
