99% КПД 60A 20A 96V Солнечный контроллер MPPT с Lan

Product Overview

Description

99% efficiency 60A 20A 96V solar controller MPPT with Lan  from Qingdao allrun new energy co., ltd













1.    SPECS FOR THE 96V 60A 40A



Model: ARMSC-DC12V/24V/48V/96V-series		20A	30A
Charge Mode	Maximum Power Point Tracking
Method	3 stages: fast charge(MPPT),constant voltage,floating charge
System Type	DC12V/24V/48V/96V	Automatic recognition
System Voltage	12V system	DC9V~DC15V
	24V system	DC18V~DC30V
	48Vsystem	DC36V~DC60V
	96Vsystem	DC72V~DC120V
Soft Start Time	12V/24V/48V/96V	≤10S
Dynamic Response Recovery Time	12V/24V/48V/96V	500us
Conversion Efficiency	12V/24V/48V/96V	≥96.5%,≤99%
PV Modules Utilization Rate	12V/24V/48V/96V	≥99%
Input Characteristics
MPPT Working Voltage and Range	12V system	DC18V~DC150V
	24V system	DC34~DC150V
	48V system	DC65~DC150V
	96Vsystem	DC125~DC300V
Low Voltage Input Protection Point	12V system	DC16V
	24V system	DC30V
	48V system	DC60V
	96Vsystem	DC120V
Low Voltage Input Recovery Point	12V system	DC22V
	24V system	DC34V
	48V system	DC65V
	96Vsystem	DC125V
Max DC Voltage	12V/24V/48V system	DC160V
	96Vsystem	DC300V
Input Overvoltage Protection Point	12V/24V/48V system	DC150
	96Vsystem	DC300V
Input Overvoltage Recovery Point	12V/24V/48V system	DC145V
	96Vsystem	DC295V
Max. PV Power	12V system	280W		450W
	24V system	560W		850W
	48V system	1120W		1700W
	96Vsystem	2240W		3400W
Output Characteristics
Selectable Battery Types (Default type is GEL battery)	12V/24V/48V/96Vsystem	Sealed lead acid, vented, Gel, NiCd battery (Other types of the batteries also can be defined)
Constant Voltage	12V/24V/48V/96Vsystem	Please check the charge voltage according to the battery type form.
Floating Charge Voltage	12V/24V/48V/96Vsystem
Over Charge Protection Voltage	12V system	14.6V
	24V system	29.2V
	48V system	58.4V
	96V system	116.8V
Rated Output Current	12V/24V/48V/96Vsystem	20A		30A
Current-limiting Protection	12V/24V/48V/96Vsystem	25A		35A
Temperature Factor	12V/24V/48V/96Vsystem	±0.02%/℃
Temperature Compensation	12V/24V/48V/96Vsystem	14.2V-(The highest temperature-25℃)*0.3
Output Ripples(peak)	12V/24V/48V/96Vsystem	200mV
Output Voltage Stability Precision	12V/24V/48V/96Vsystem	≤±1.5%
Display
LCD display		Input,output parameter and output power etc (check the LCD display instruction)
LED display		3 LEDs indicates:Fault indicate light,charge indicate light, power source indicate light(check the LED instruction)
Software Control through PC(communication port)		RS232 (matching) or LAN(optional)
Protection
Input Low Voltage Protection		Check the input characteristics
Input Overvoltage Protection		Check the input characteristics
Input Polarity Reversal Protection		yes
Output Overvoltage Protection		Check the output characteristics
Output Polarity Reversal Protection		yes
Short-circuit Protection		Recover after eliminating the Short-circuit fault,no problem for  long term Short-circuit
Temperature Protection		95℃
Temperature protection		Above 85℃,decrease the output power,decrease 3A per degree.
Other Parameters
Noise		≤40dB
Thermal methods		Forced air cooling,fan speed rate regulated by temperature,when inner temperature is too low,fan ran slowly or stop; when controller stop working,fan also stop ran.
Components		World brand raw materials. Compliance with EU standards. All rated temperature of electrolytic capacitors not less than 105℃
Smell		No peculiar smell and and toxic substances.
Environment Protection		Meet the 2002/95/EC,no cadmium hydride and fluoride
Physical
Measurement DxWxH(mm)		270*185*90
N.G(kg)		3
G.N(kg)		3.6
Color		Blue/Green (optional)
Safety		CE,RoHS, PSE,FCC
EMC		EN61000
Type of Mechanical Protection		IP21
Environment
Humidity		0~90%RH ( no condense)
Altitude		0~3000m
Operating Temperature		-20℃ ~ +40℃
Storage Temperature		-40℃ ~ +75℃
Atmospheric Pressure		70~106kPa







 2. Feature of the products :



            1.MPPT charge mode,conversion efficiency up to 99%,can save 30%~60% of the power than traditional controller.

            2.With high efficient MPPT operation scheme and adopting TI28035 chip,make the Solar panels utilization rate up to 99%.

            Intelligent design,the device can be upgraded online,customers enjoy the lifelong upgrade service.

            4.Compliance with the 2002/95/EC environment protecting demand, doesn’t include the Cadmium, hydride and fluoride

            5.Adopting the well-known brand components,the devices can suffer the temperature not less than 105℃.The service life is designed to extend to 10 years in theory.

6.Charge mode: three stages (fast charge,constant charge,floating charge)

7.12V/24V/48V/96V system auto recognize for easy control.

8. 12V/24V/48V system maximum solar input is DC 150V ,96V system maximum solar input is DC 300V ;

9.Connected Battery Type choosing: Sealed lead acid, vented, Gel, NiCd battery. Other types of the batteries can also be defined.

10. LCD and LEDs show all kinds of parameter like products model, PV input voltage,battery voltage,charge current,charge power,work condition,and also can add customers’company name and website.

11. Communication Port.RS232 communication can provide communication protocol, This make the unified and integrated management more convenient to customers.

12. With providing a Microsoft by connecting with PC that can show the working state and all parameters in 7 languages.

13. Extensible LAN remote control.

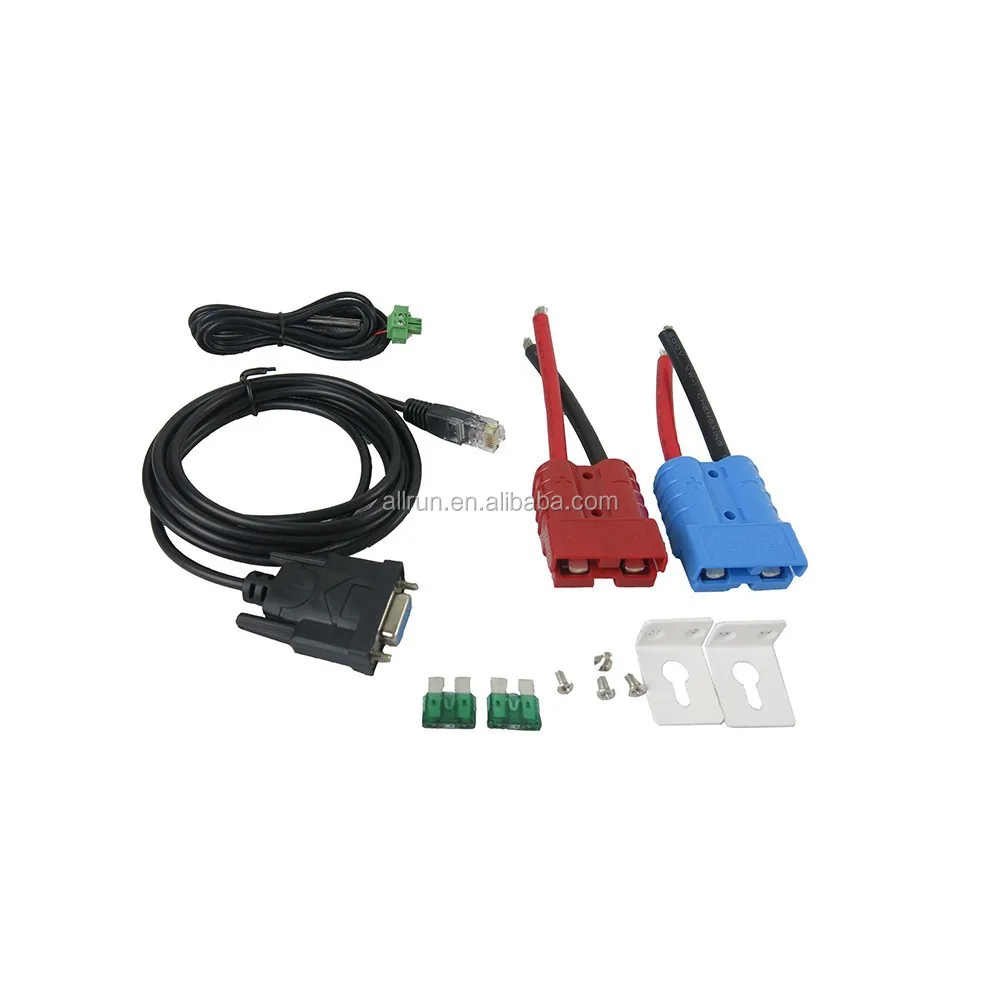

14.Equipment integrity: controller+CD-ROM(microcomputer software) + communication wire+Anderson terminals;

15.CE,ROHS,FCC,PSE certifications approved.The device also can support to pass the other certifications.

16. 5years warranty. And 5~10 years extended warranty service also can be provided.



The specification is only for reference.  Subject  to  change without prior notice.



We provide OEM and ODM service. The 36V/72V/96V model also can be custom made for you.

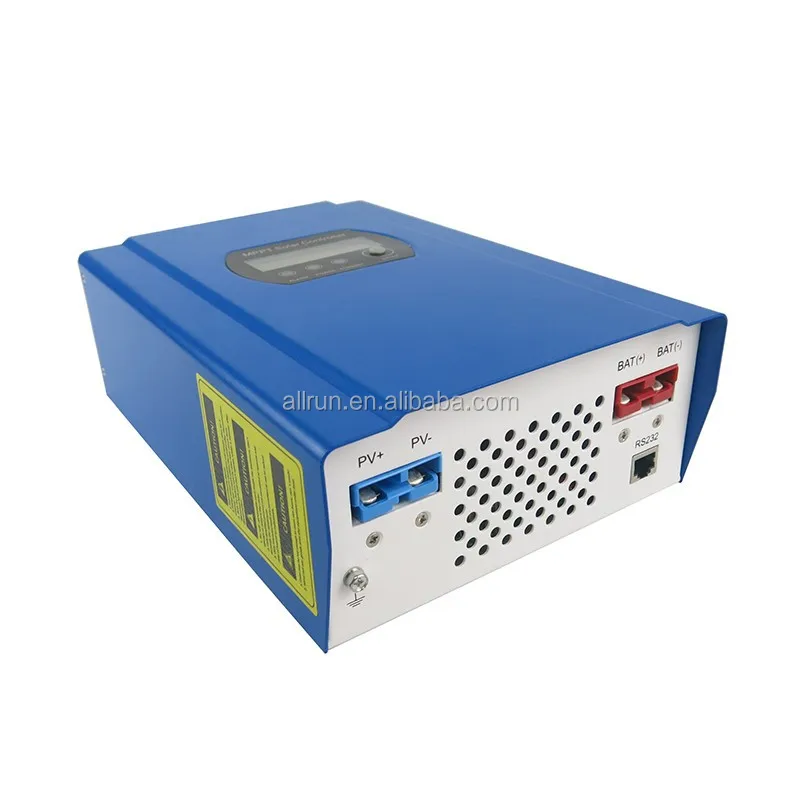

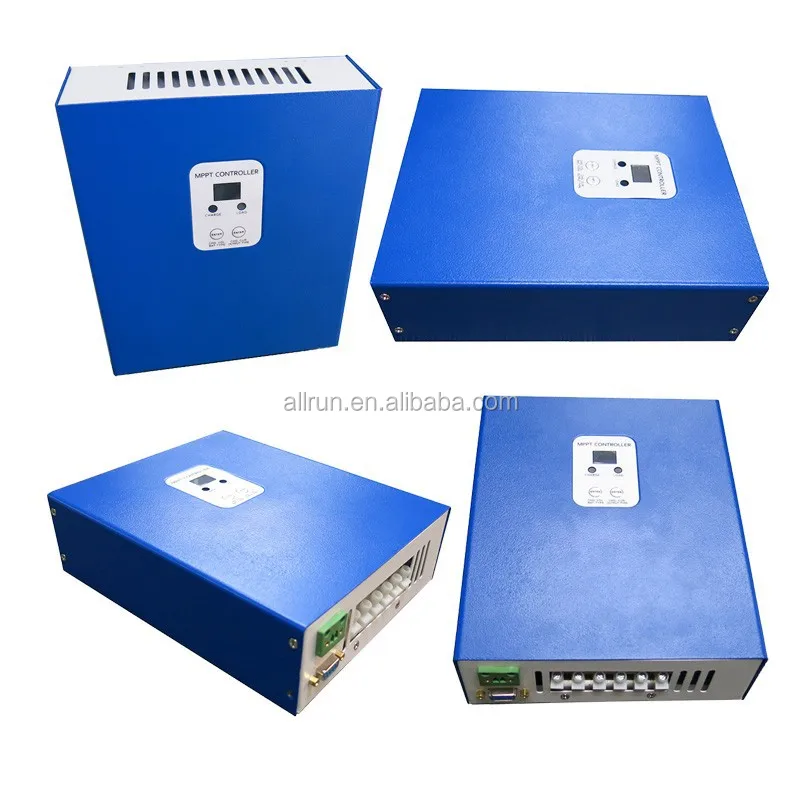

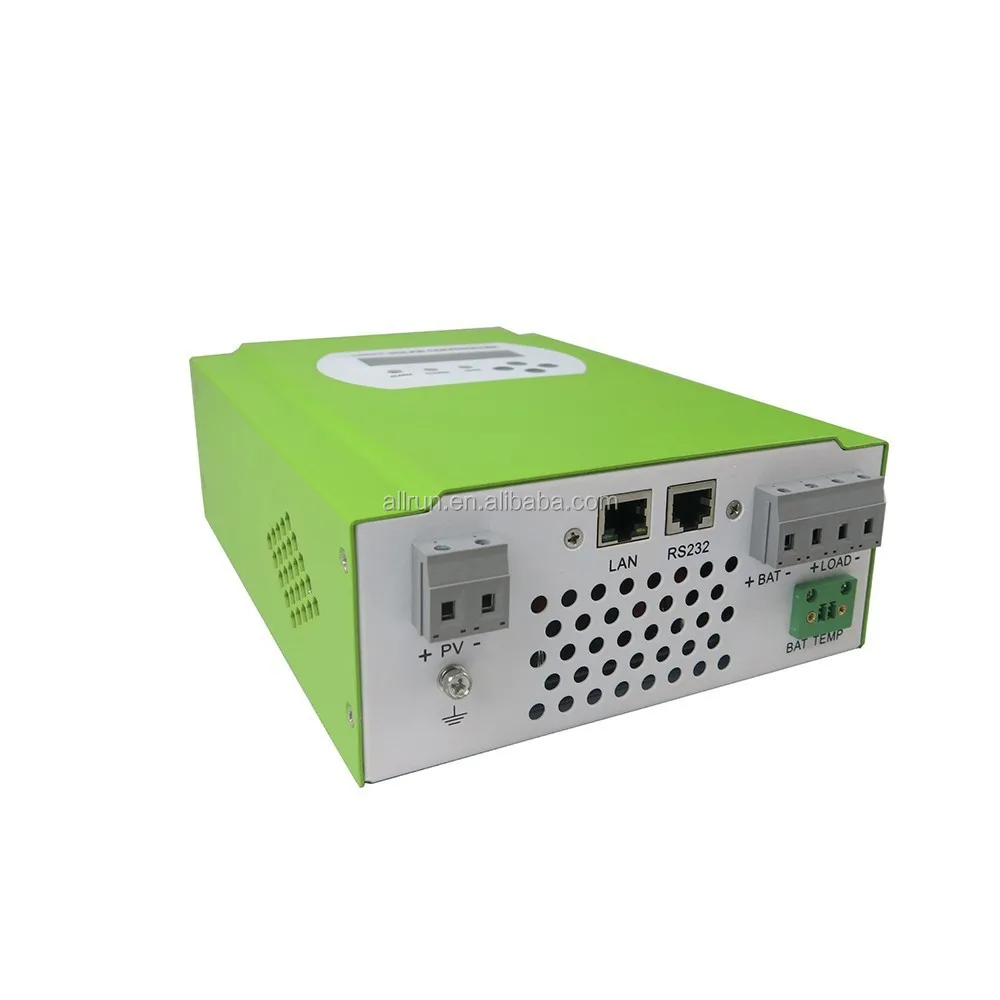

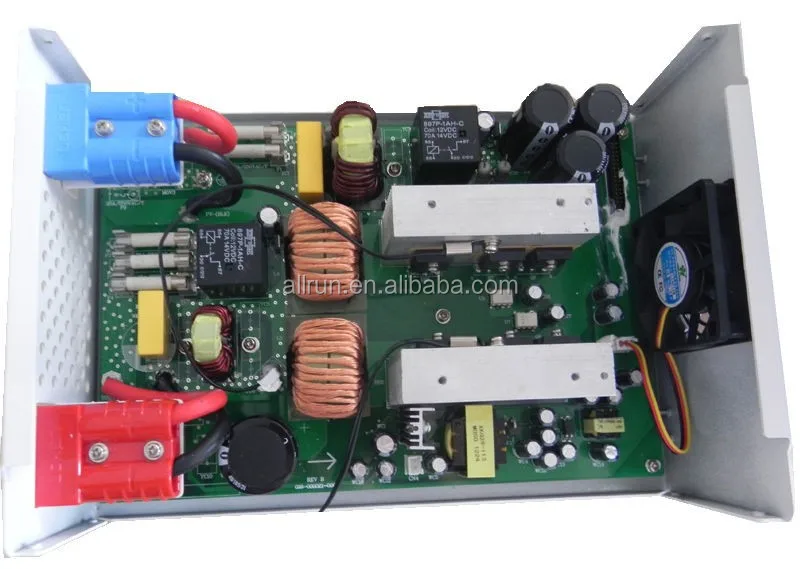

3. showing for the producst :





4. packing and shipping  for the goods





Service and Contact
1. Warranty
1.5 years warranty, lifelong technical assistance.
2. Conditions and Terms
2.1 The warranty starts from the delivery date from our factory.
2.2 During the warranty, any defective product will get repaired or replaced for free.
2.3 The warranty is unavailable for those products which are broken by the violence or the carelessness or
repaired or altered without the authorization.
3. Lead Time
3.1 Sample orders will be delivered from our factory within 3 working days.
3.2 General orders will be delivered from our factory within 7  working days.
3.3 Big orders will be delivered from our factory within15 working days at most.
4. Shipment
4.1 Samples By EMS,DHL,FedEx or other express.
4.2 Wholesale orders by our forwarding agent(by air or by sea).
4.3 Wholesale orders by your own forwarding agent.
5. OEM and ODM
5.1 This page shows basic data, we can provide OEM, ODM service for you.
