Product Overview

Description

1.slide Bearing Introduction

• This series bearings are based on special high density homogenous copper alloy.The inner surface is rolled to diamond or half-ball shape lubrication grooves. They are in high density,good load capacity and wear-resistant.


• The products are widely used in machinery industry, such as auto machines, pumps, plastic injection machines, lifting equipments, mining machinery, construction machines, etc.





2.slide Bearing Features

• Minim oil lubrication, able to be applied in water-lubrication environment


• Good anti-abrasion, low friction coefficient


• thin wall thickness to 1mm



• Layers sturcture of JF(Bimetal) bushing

JF-800	Steel+Bronze(CuSn10Pb10)
JF850	Steel+ Bronze(CuSn6Zn6Pb3)
JF-720	Steel+ Bronze(CuSn4Pb24)
JF-20	Steel+ Bronze(AlSn20Cu)
JF700	Steel+ Bronze(CuPb30)









•  Layers sturcture of DU(SF-1) bushing

Steel backing	Steel+Sinterd Bronze powder+PTFE+Pb+Polymer
Bronze backing	Bronze+Sinterd Bronze powder+PTFE+Pb+Polymer
Stainless steel	S.S.+Sinterd Bronze powder+PTFE+Pb+Polymer
Stainless steel	Stainless Steel+PTFE +Polymer
Pb Free (RoHS)	All above types without Pb available







• Layers sturcture of DX(SF-2) bushing

Steel backing	Steel+Sinterd Bronze powder+ Pb+POM
Pb Free (RoHS)	Steel+Sinterd Bronze powder+POM







•  FB bronze bushing



Mesh material	Bronze, stainless steel, carbon steel
Lining material	PTFE and solid lubricating material

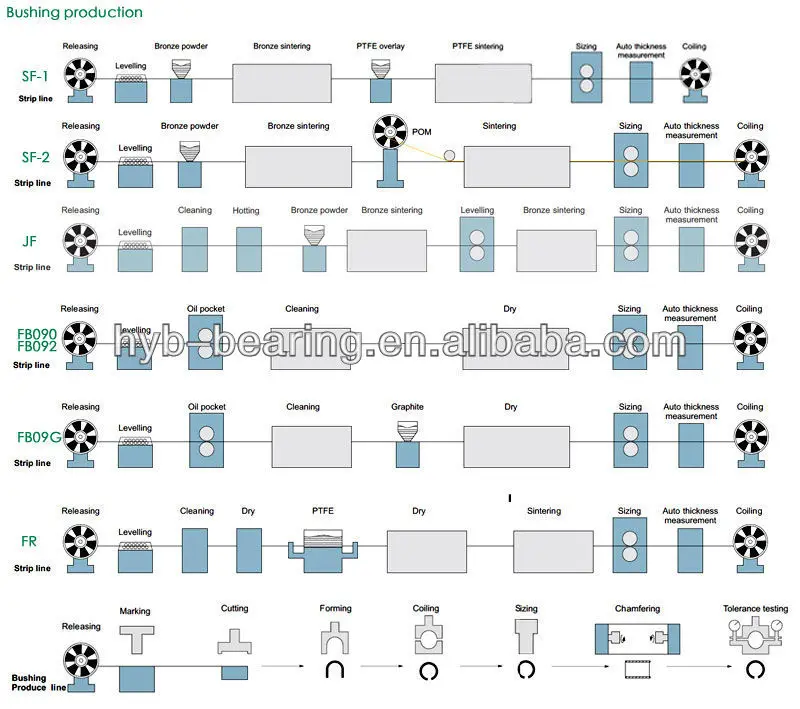

• Production flow





• Application

1.water conservancy industries

2.Automotive industries

3.Agricultural machinery and rolling mills

4.Balance shaft sleeve

5.Car crane

6.Hydraulic cylinders

• Factory informtion

Comapany R&D Center:

Automatic chamfer machine:

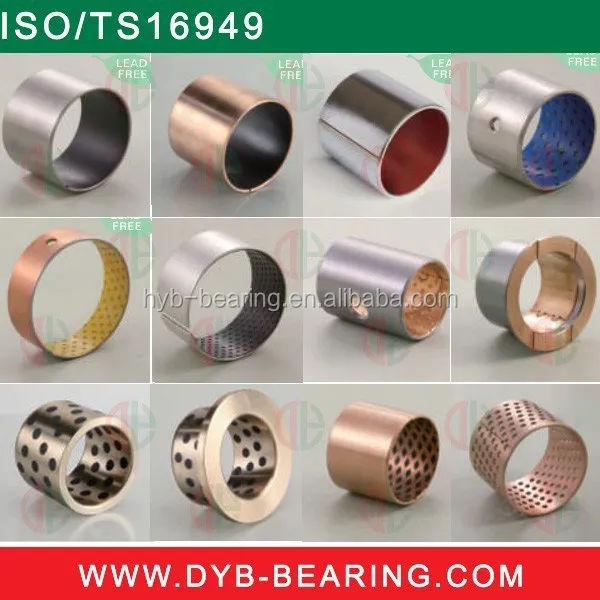

• We are supplying full lines of slide bushings:

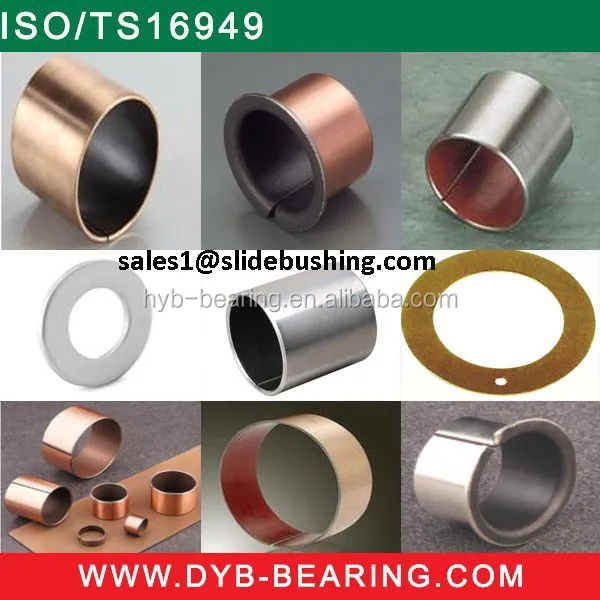

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

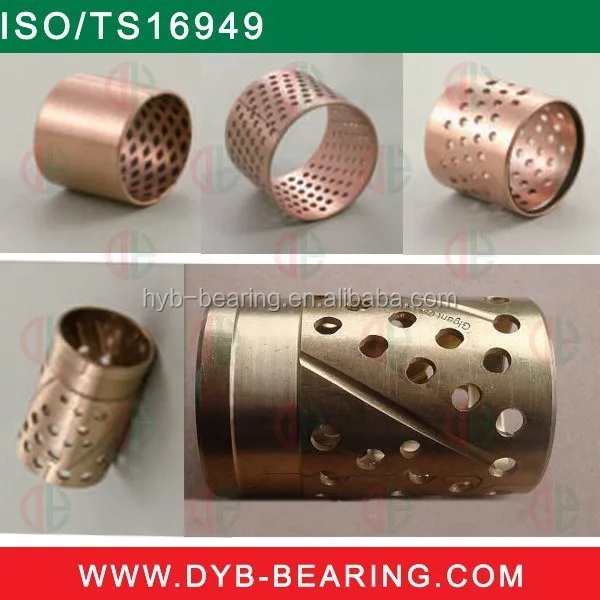

FB090(FB090G) bronze bushing

FB092 bronze bushing

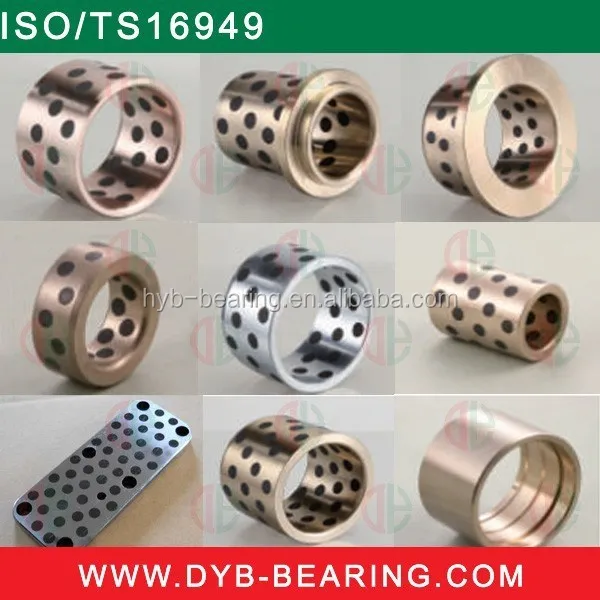

JDB,JFB solid graphite lubricating bushing

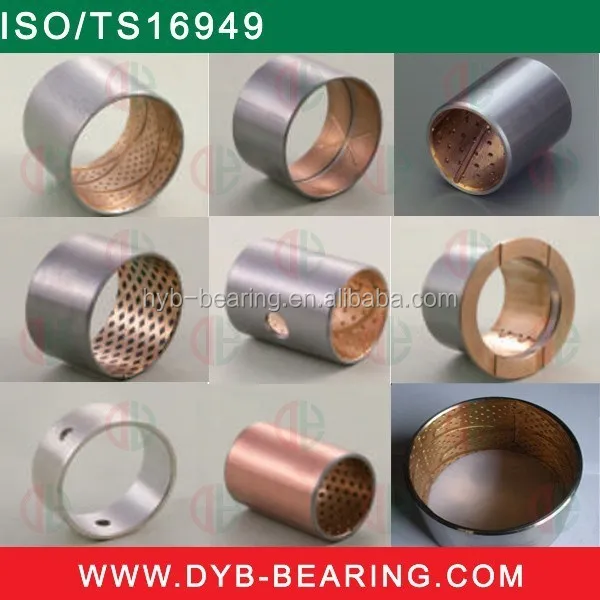

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

Ball Transfer Unit

Other Bearing-deep grove ball bearing,linear bearing etc.



ISO/TS16949 certification
