950TVL Marine Mini Explosion Proof Dome Camera with light For Oil Vessel

Product Overview

Description

950TVL Marine Mini Explosion Proof Dome Camera with light For Oil Vessel

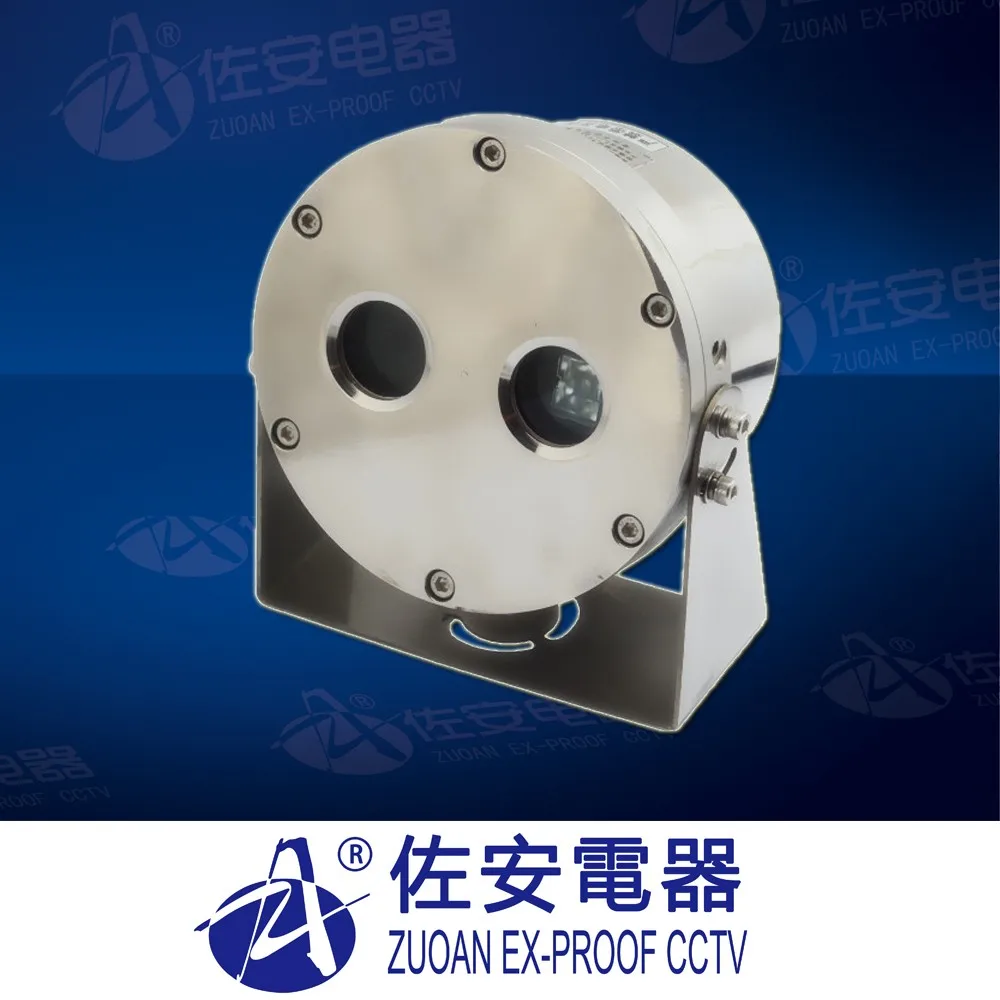

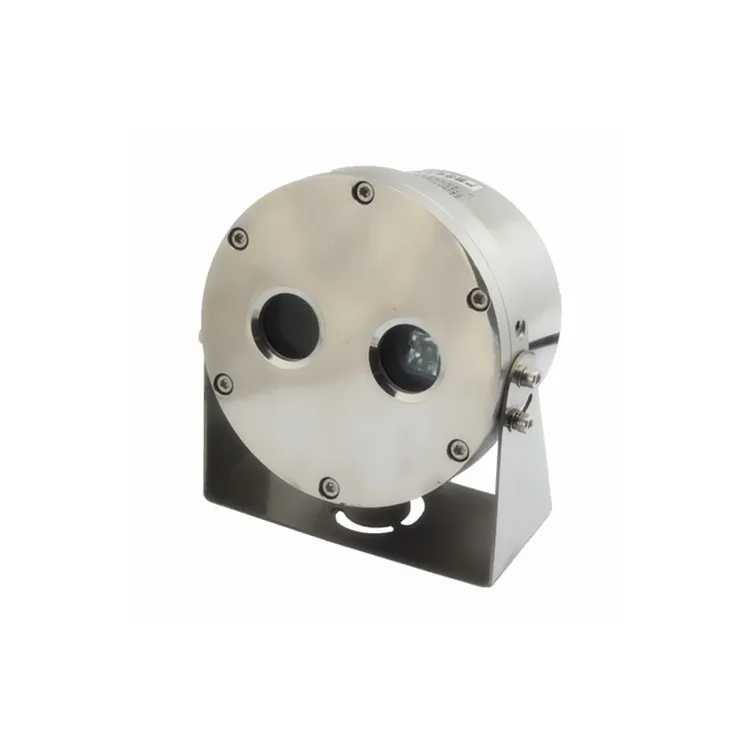

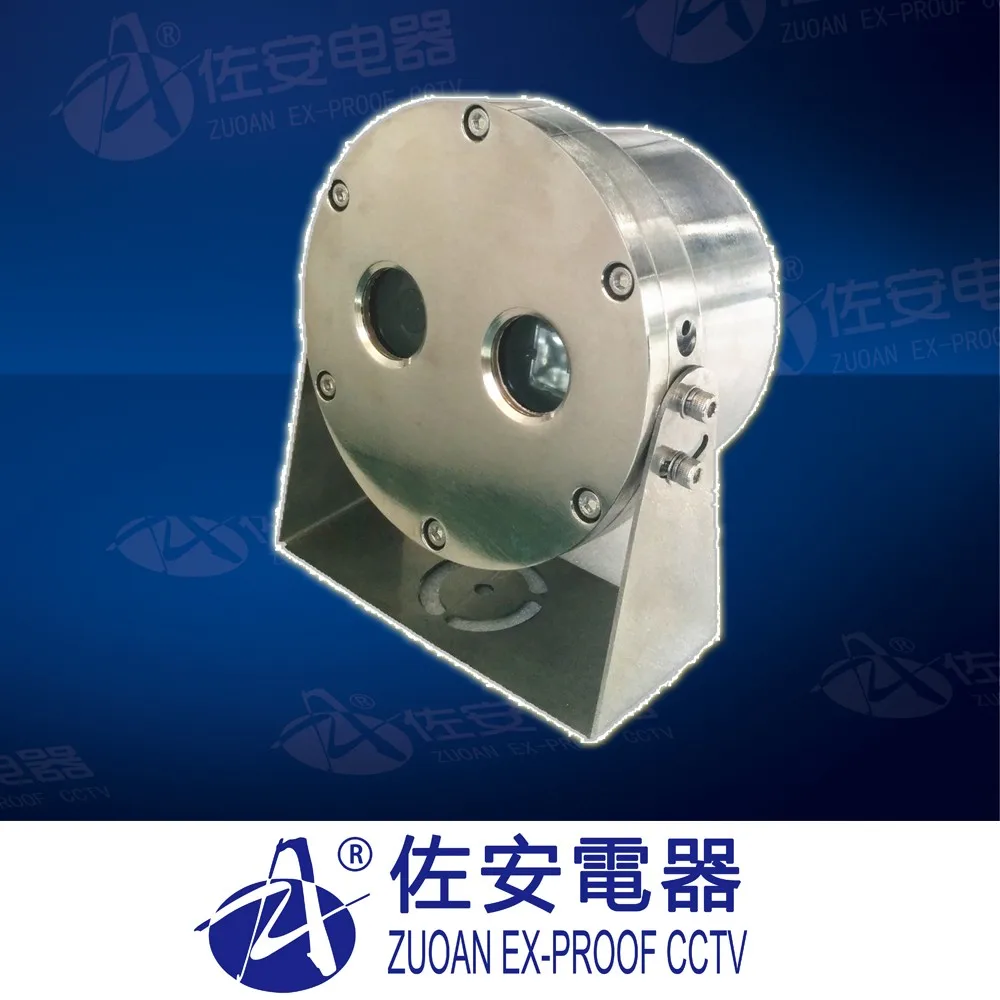

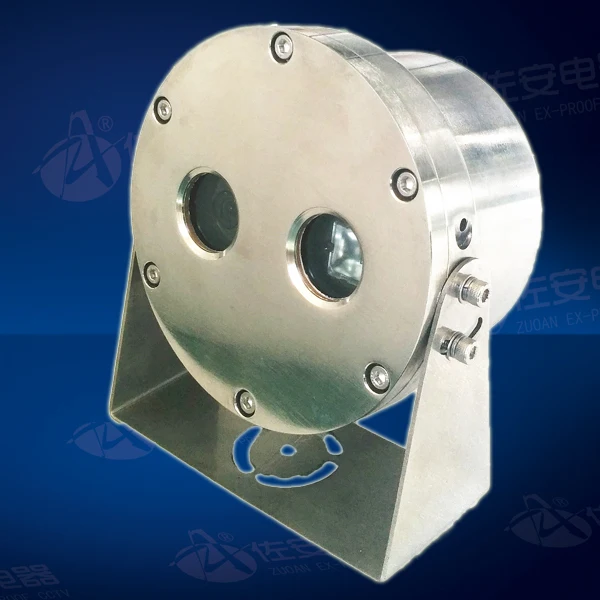

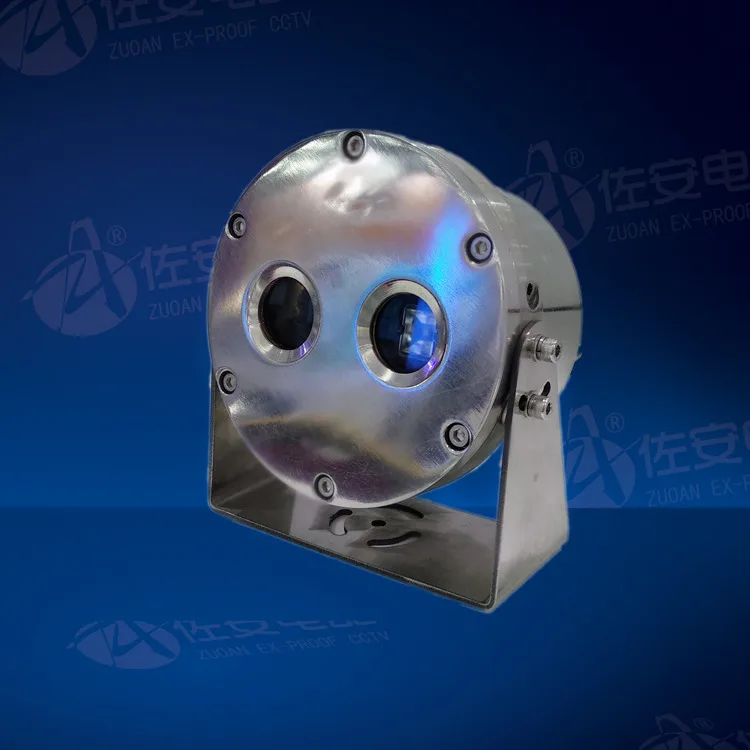

ZAF109 is 950TVL mini explosion proof dome camera, mini Explosion Proof Camera For Oil Vessel. Mini explosion proof

camera is a mini type of high-end ex-proof monitoring equipment. It can be applied in the explosive gas automosphere, like zone1 and zone2 withⅡA,ⅡB orⅡC, and in flammable dust environment, like zone 20,zone21 and zone22.

ZAF109-SS isinternally installed with the infrared lamp with 20-30m viewing distance, which is suitbale for a less scope night vision environment inside and outside. The ex-proof frade and temperature groups all accord with the highest requirements of National standards.

ZAF109-SS ex-proofcamera its window is made of nanometer glass, which has a self- cleaning flunction,thickness 8mm.

ZAF109-SS is installed with 950TVL analog camera.

ZAF109-SS series has get the highest protection: IP68.  for all weather use.

ZAF109-SS series has get the explosion proof certification: CNEX. it's the only one china government authority for explosion proof test and certification.







mini explosion proof CCTV camera	ZAF109-SS
explosion proof marking	Exd II CT6& DIP A20, TA, T6 fit for gas zone 1, zone2; dust zone 20, 21, 22.
explosion proof certificate No.	CNEx11.0584
QS (produce permission No.)	XK06-014-01196
ingress rate	IP68
enclosure material	stainless steel 316L anti corrosion type
camera	950TVL
power	DC12V, POE
infrared lights	20m-30m night vision
netweight	4.4KG









Accessories:





    Explosion Proof Junction Box                       Explosion Proof Flexible Tube
