Экструзионная машина для выдувной пленки, машина для производства пластиковой пленки, машина для производства полиэтиленовой пленки

Product Overview

Description



Use:

It applies to blow various LDPE, HDPE and LLDPE plasticfilms, widely applying to food, fruit, clothing, textile, vesttype bag and etc. Packingof civil industrial products.

Feature:

Mode SJ-50-85 squeezing machine is adopted rotatory die head,machine tube is adopted 38CrMoAl,having the best hardness and corrosion-resisting performance after nitrogen treatment and precision processing.
FM-600 auxiliary machine can adjust and operate freely within the range of 700mm in accordance with the technological demand of different materials, and having package board mechanism which can make vest type bag.
Rolling up device with double-drawing in and do-uble cutting ope, its power is adopted moment motor, with friction plate,it can keepsuitable tension, drawing in and rolling up in good order, easy to change roll.

Technical Parameter:

Model	SJ-45	SJ-50	SJ-55	SJ-65	SJ-75
Screw Diameter	45mm	50mm	55mm	65mm	75mm
Screw Ratio(L/D)	28:1/32:1	28:1/32:1	28:1/32:1	28:1/32:1	28:1/32:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Max. Folding Width of Film	400mm	550mm	800mm	1000-1200mm	1500mm
Extrusion output	30kg/hr	40kg/hr	50kg/hr	60kg/hr	80kg/hr
Screw dia	45mm	50mm	55mm	65mm	75mm
Screw material  Drum materia	Barrel and screw material: alloyed steel 38CrMoAla(Alloy-Steel of High Quality SACM645), high Polished and high Nitrided treatment
Drum cooling	1	1	1	2	2
Driving horsepower	7.5kw	11kw	15kw	22kw	30kw
Heater capacity	11kw	13kw	13kw	22kw	30kw
Die head	60/80mm	80/100mm	120/160mm	160/220mm	150/300
Air Blower	1.1kw	2.2kw	2.2kw	3kw	3kw
Temperture control	5	5	5	6	7
Pinch roller(mm)	165×650	165×650	165×900	165×1350	165×1700
Take-up power	0.75kw	0.75kw	0.75kw	1.1kw	1.5kw
Type	Rise and fall
Take-up speed(m/min)	10-80m/min	10-80m/min	10-100m/min	10-100m/min	10-120min
Voltage	380V,50HZ,3PHASE
Winding unit	Friction or central winding  600mm 5N/m
Installation dimensions(mm)	4800*3000*4300	4800*3000*4300	4800*3000*4300	5200*3500*5800	5450*3800*5800



Main motor and Take-up motor: Controlled by inverter.

Gear box: water cooling system, hard teeth surface.

Rotary die Device: Continuous 360 degree rotation

Heating ring: cast aluminum

With up-and-down take-up unit

Double winder: (with banana roller, cold slitting knives for cutting edge of the film and middle of film 3peces)

Equip with counter

Rewinding motor: torque motor

With air compressor



IRREVOCABLE L/C AT SIGHT . 30% AS DEPOSITE, REMAINING COST BEFORE SHIPPMENT.



DELIVERY TERM:



15-25 DAYS AFTER RECEIPT OF ORIGINAL L/C OR RECEIPT OF 30% T/T DEPOSIT.



DELIVERY PORT:



CHINA NINGBO PORT



INSTALLATION:



OUR COMPANY COULD SEND ECHNICIANS FOR INSTALLATION, ADJUSTMENT, TRAINING FOR CUSTOMER, IF THE BUYER BEAR ALL THE CHARGE SUCH AS ROUND TICKET, ACCOMMODATION, FOOD ETC. THE BUYER ALSO NEED PAY SALARY TO OUR ENGINEER 70USD/DAY/PERSON.



GUARANTEE SYSTEM AND MAINTENANCE:



ONE YEAR GUARANTEE FOR THE MACHINES EXCEPT THE SPARE PART, WE WILL SUPPLY LIFELONG TECHNOLOGY SERVICE TO SOLVE ANY PROBLEMS FROM U. DURING THE GUARANTEE TIME, NOT BCZ OF MAN-MADE SABOTAGE, WE WILL CHANGE THE PARTS FOR FREE,BUT THE DELIVERY COST NEED BY BUYER.

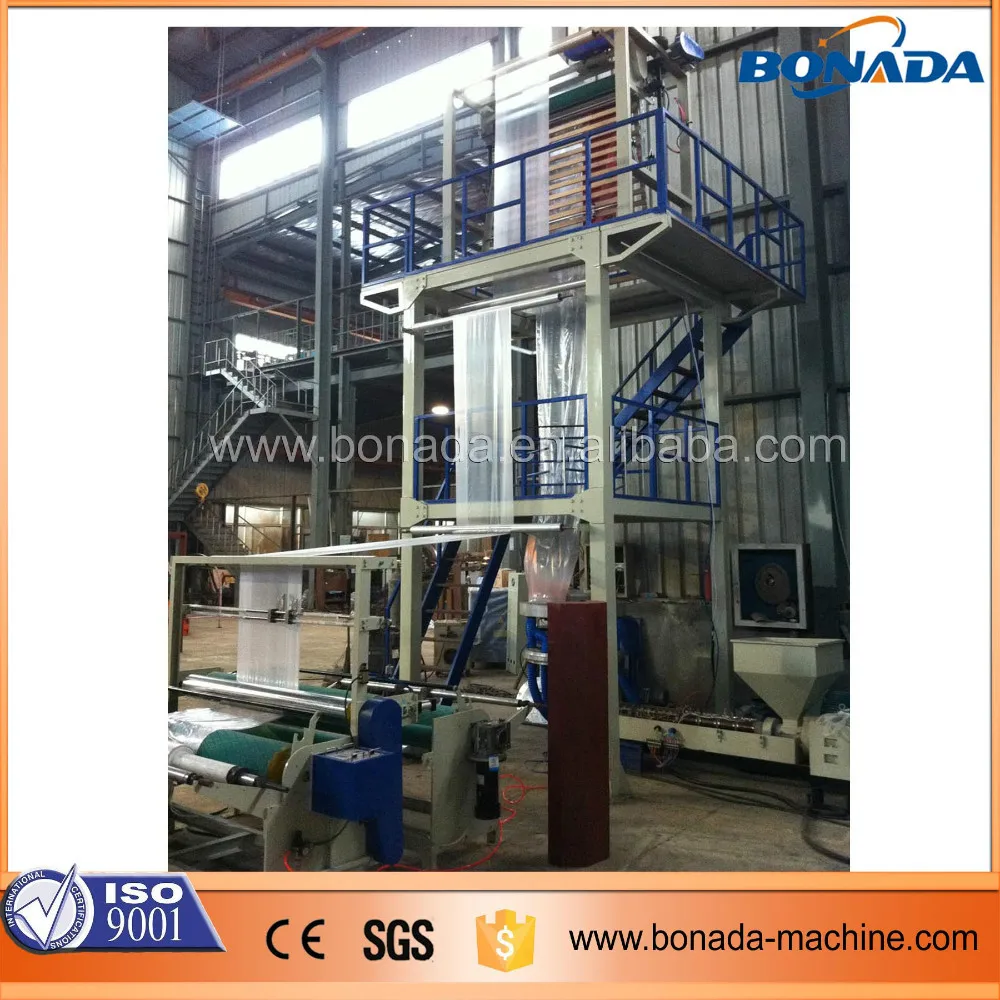

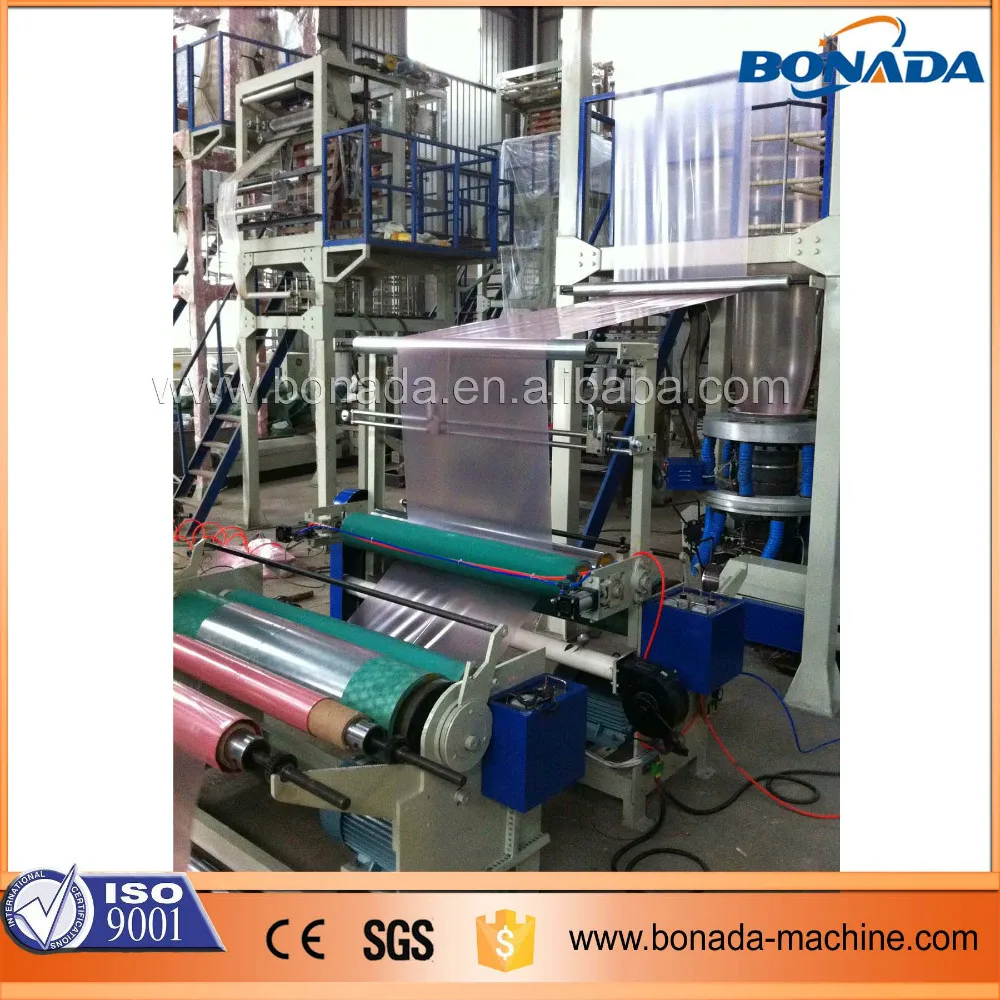

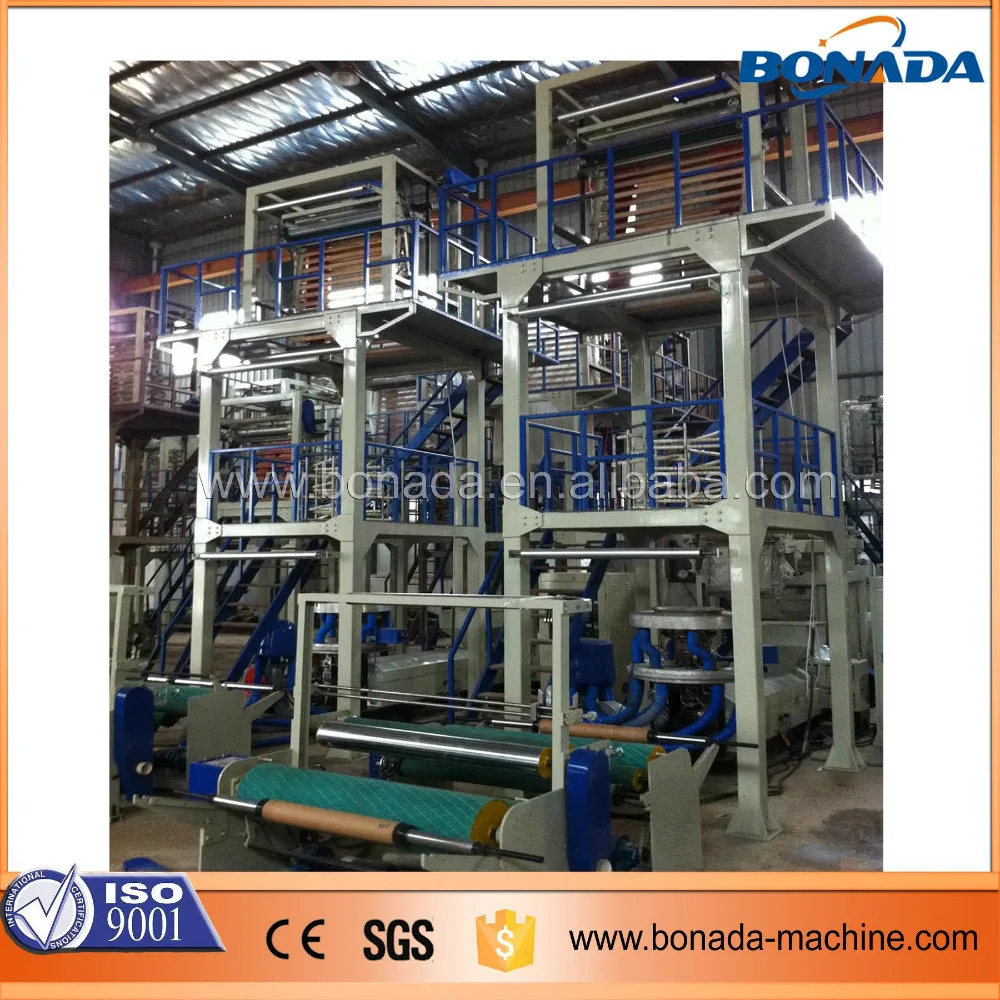

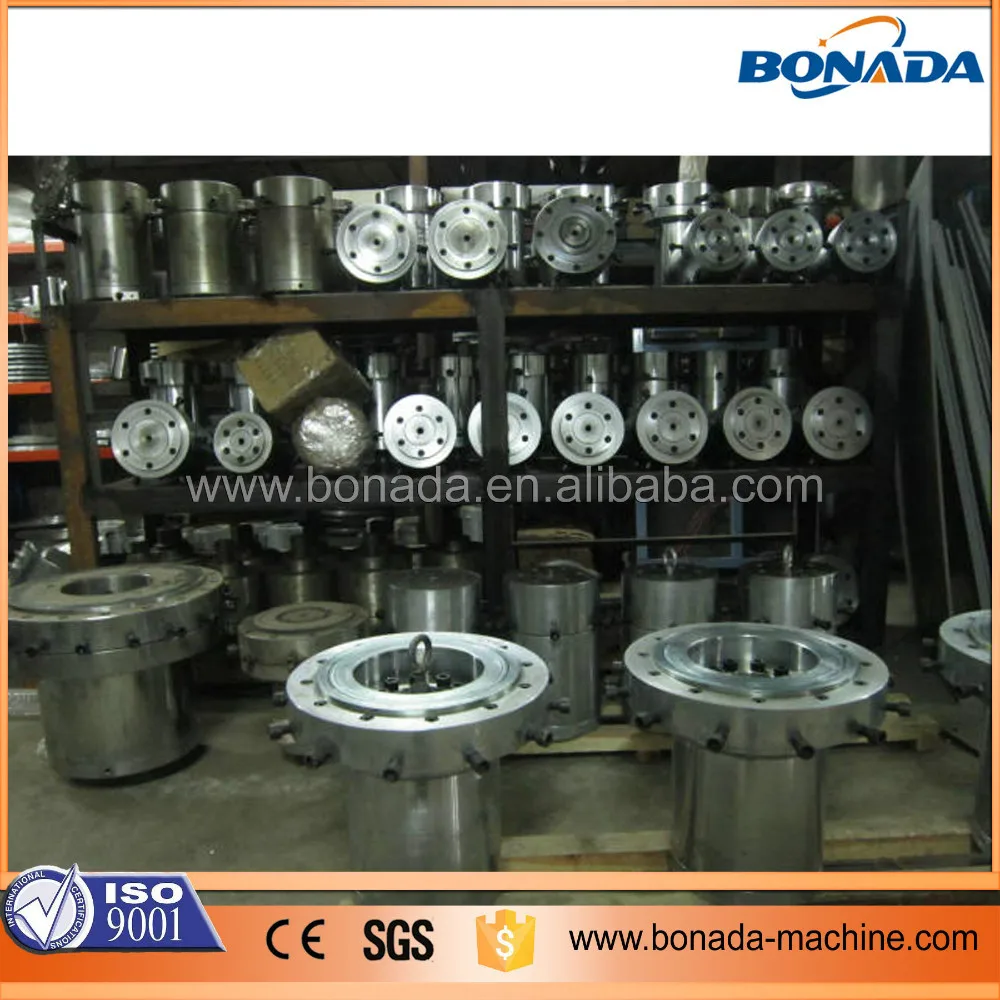

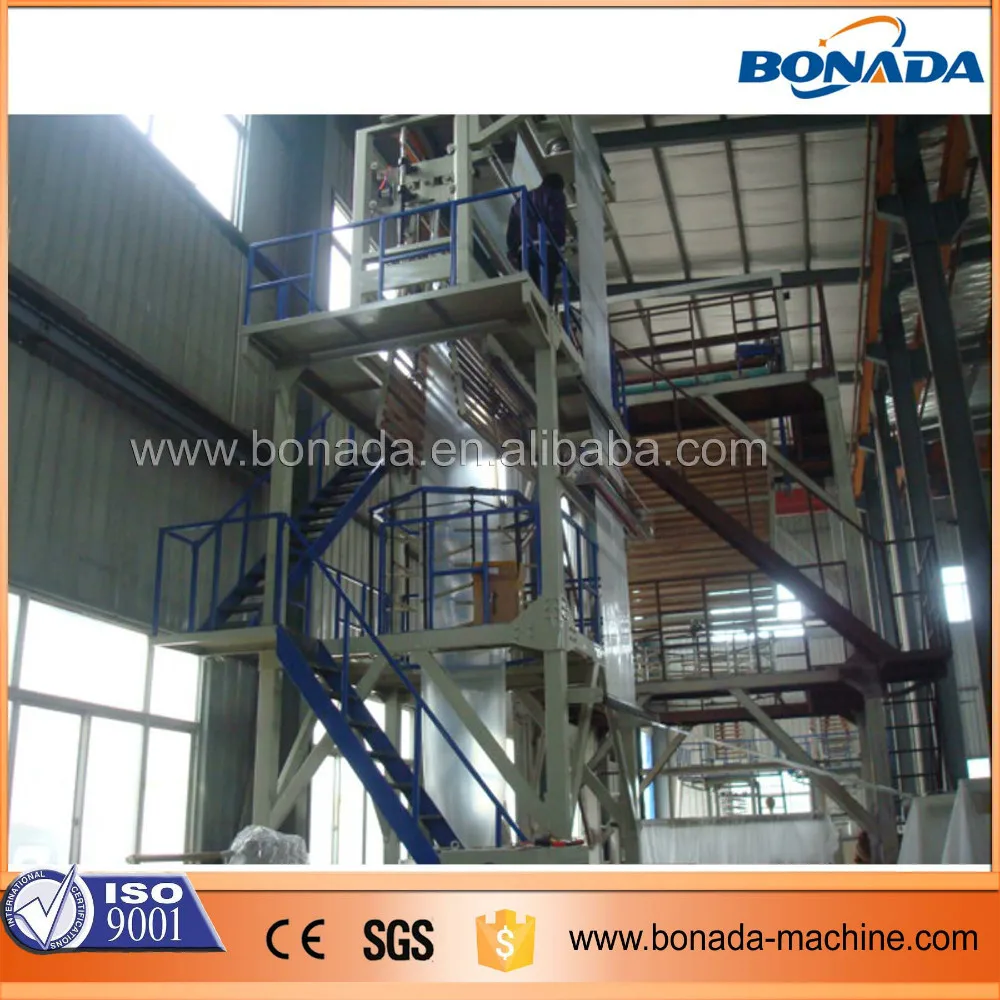

 Machine live photos :
