  INT'L OHA2015 Brand HAP-600/6000 ACL Press Brake, Amada Press Brake Tooling, Press Brake Foot Pedals






Product Description


1. The frame is entirely welded with steel plates and treated to relive stress by tempering, so the precision is well maintained.
2. Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.
3. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision. (the convex structure for the table above 160T)
4. The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.
5. Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safely. (the back of 40T and above 200T without safe fence)








Main Technical Data for HAP-600/6000 ACL Press Brake, Amada Press Brake Tooling, Press Brake Foot Pedals



















































































































































































































































































































































































































































































ModelNominal Pressure kNLength of Working Table mmDistance Between Uprights mmThroat Depth mmSlide Stroke mmMax Opening Height mmMotor Power kWDimensions (L*W*H) mm
40/16004001600130520011030041800x1100x1870
40/2000400200016502001103005.52200x1100x1870
40/2500400250020502001103005.52700x1100x1870
40/3200400320026002001103005.53400x1100x1870
50/3200500320026002501203155.53400x1200x2150
63/1600630160013002501203505.51800x1300x2250
63/2500630250020502501203505.52700x1300x2250
63/3200630320026002501203505.53400x1300x2250
80/2000800200016502501203607.52200x1300x2260
80/2500800250020502501203607.52700x1300x2260
80/3200800320026002501203607.53400x1300x2260
80/4000800400032002501203607.54200x1300x2410
100/25001000250020503201203807.52700x1350x2350
100/32001000320026003201203807.53400x1350x2450
100/40001000400032003201203807.54200x1350x2500
125/25001250250020503201203807.52700x1350x2350
125/32001250320026003201203807.53400x1350x2450
125/40001250400032003201203807.54200x1350x2500
160/2500160025002050320155420112700x1510x2595
160/3200160032002600320155420113400x1510x2595
160/4000160040003200320155420114200x1510x2695
160/6000160060004800320155420116200x1710x2880
200/2500200025002050320200440152700x1680x2675
200/3200200032002600320200440153400x1680x2675
200/4000200040003200320200440154200x1680x2725
200/600020006000480032020044018.56200x1680x3345
250/250025002500190032025052018.52700x1690x2825
250/320025003200260032025052018.53400x1690x2825
250/400025004000320032025052018.54200x1690x2960
250/600025006000480032025052018.56200x1690x3100
300/3200300032002600400250535223400x2020x3150
300/4000300040003200400250535224200x2020x3125
300/6000300060004800400250535226300x2050x3610
350/3200350032002600400250540223500x2040x3100
350/4000350040003200400250540224300x2040x3160
350/6000350060004800400250540226300x2040x3540
400/4000400040003200400320615304300x2100x3500
400/6000400060004700500320615306300x2420x3500
500/4000500040003200400320635304300x2240x3510
500/6000500060004800400320635306300x2240x3615
600/6000600060004800500320635306300x2610x4440

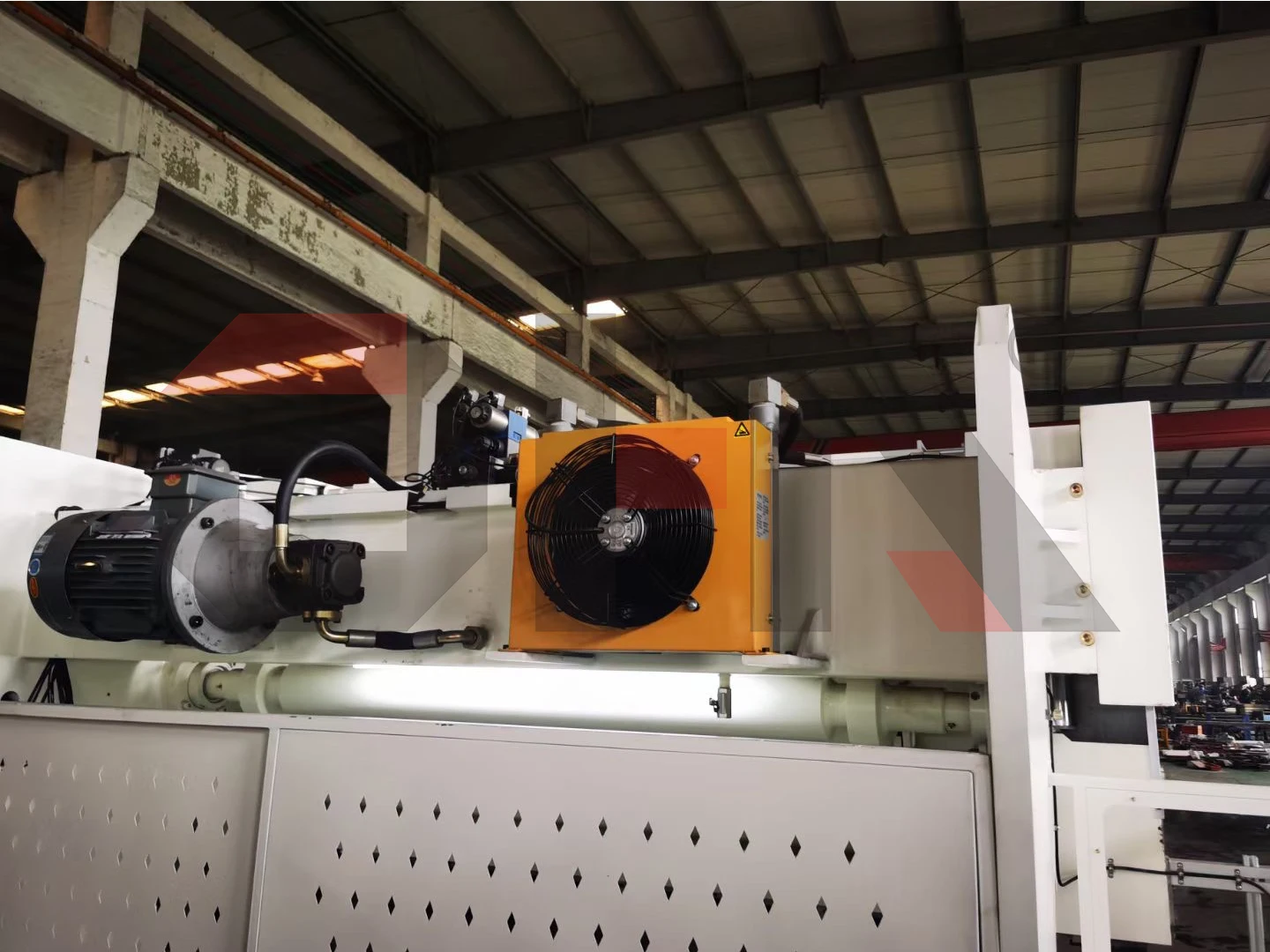

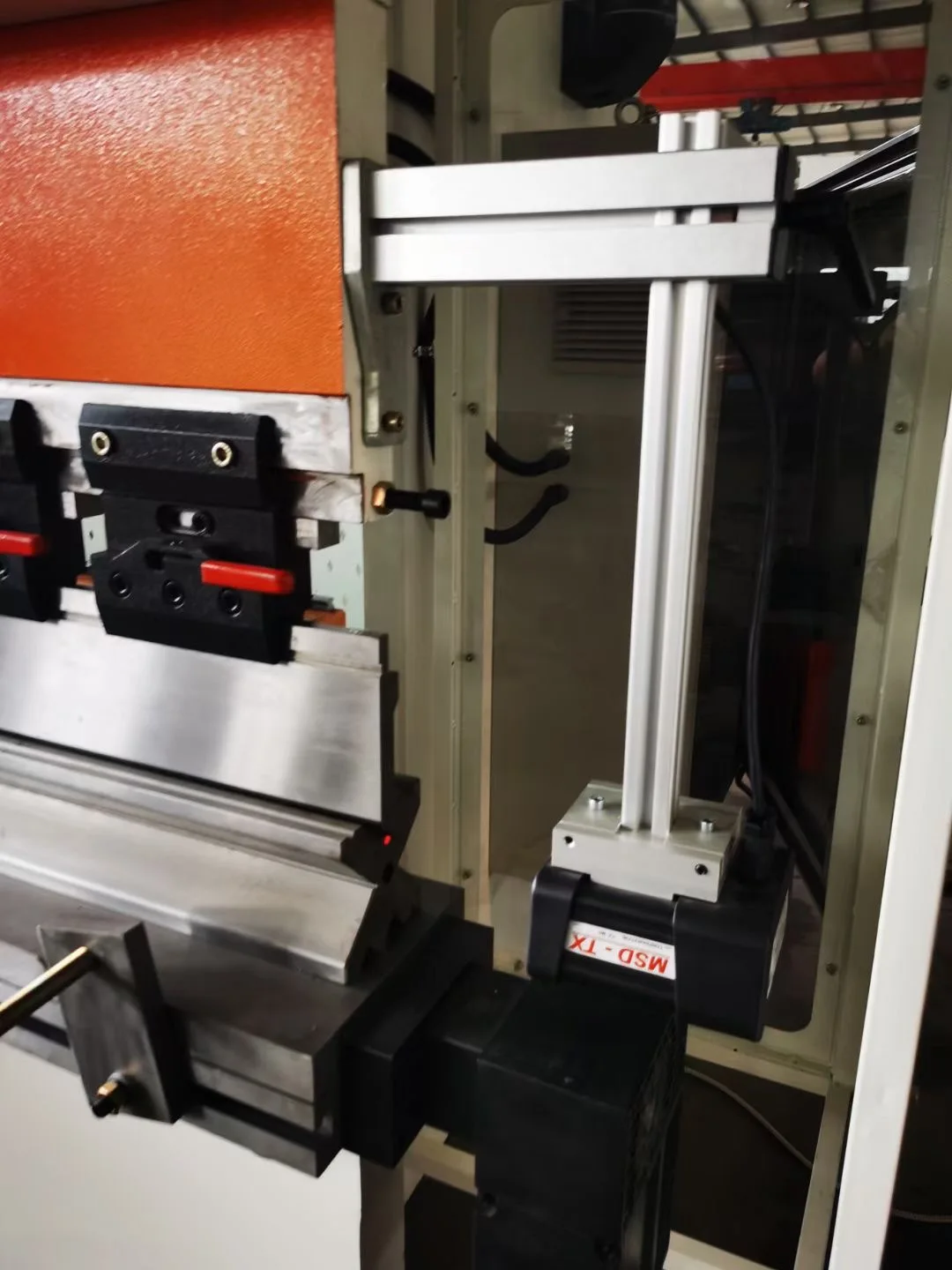

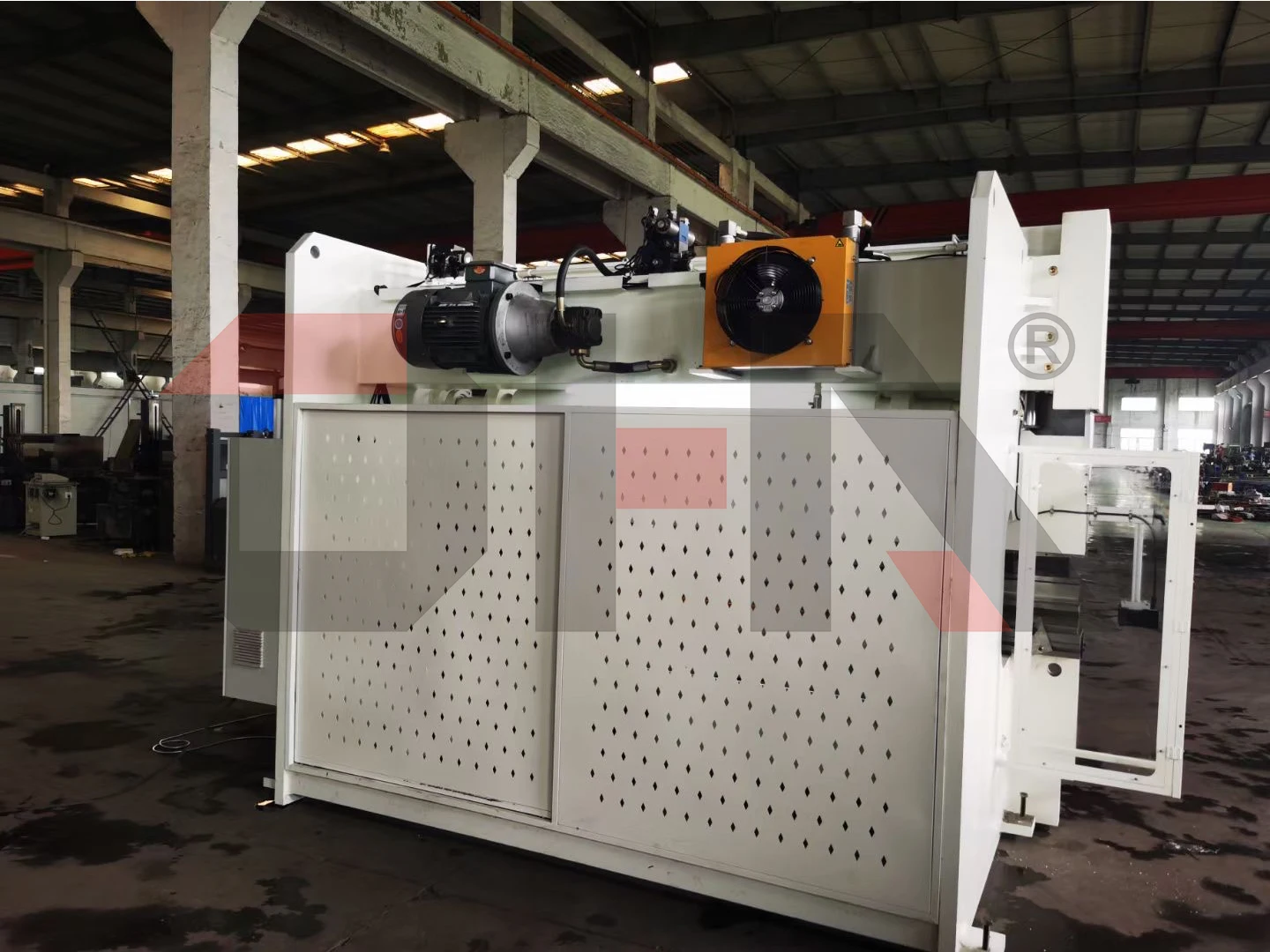

Details Photos for HAP-600/6000 ACL Press Brake, Amada Press Brake Tooling, Press Brake Foot Pedals

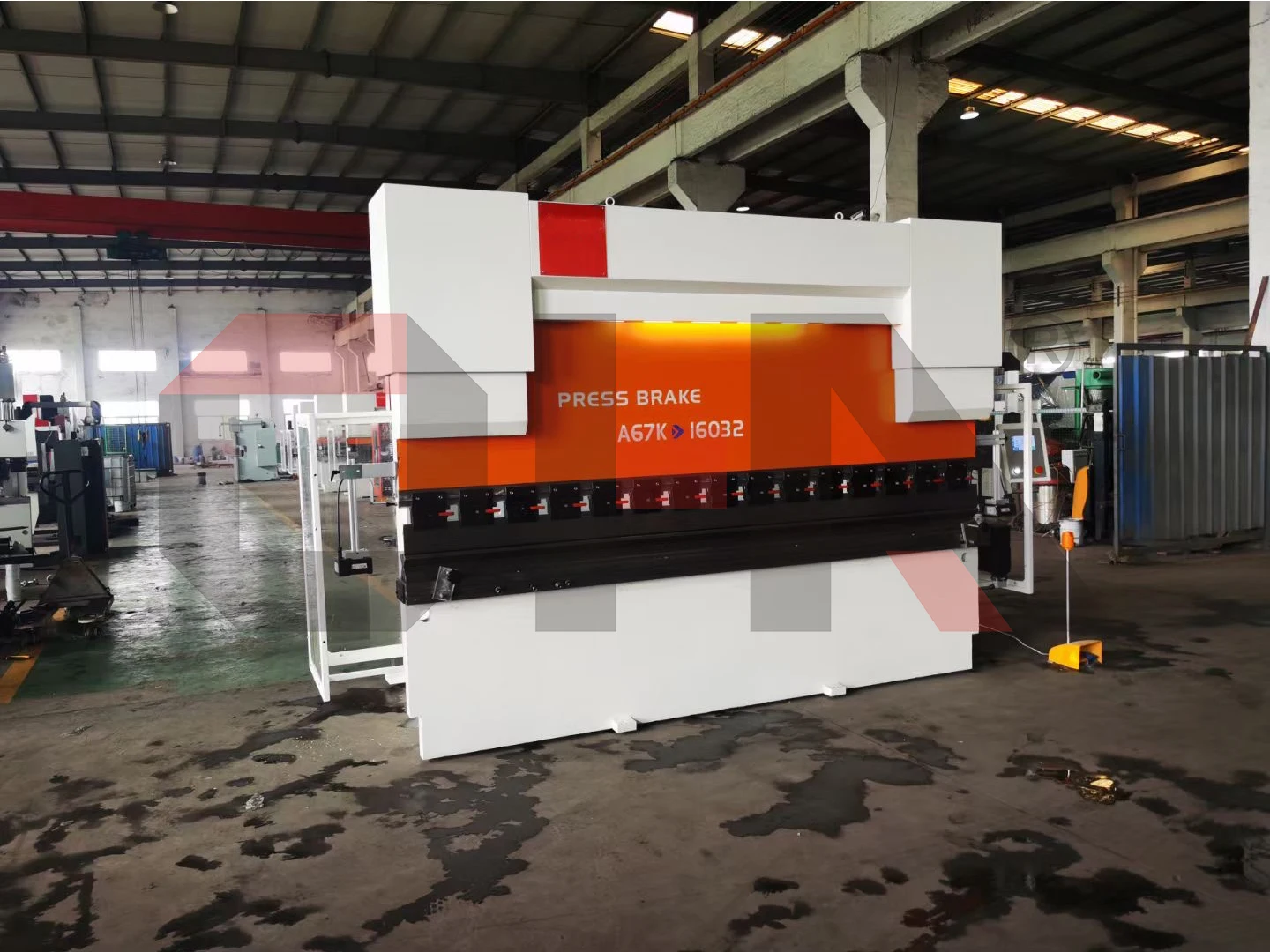

5-1

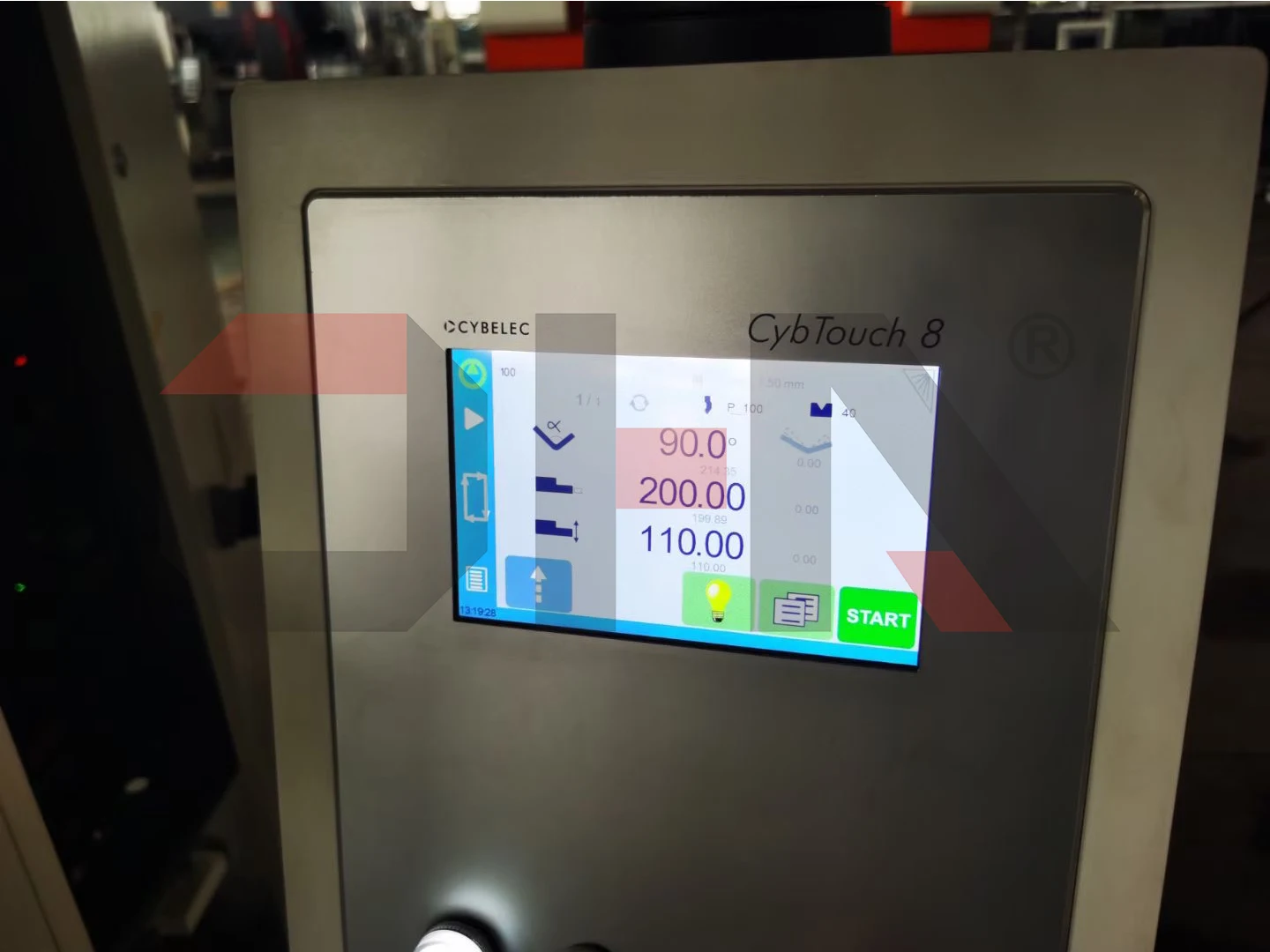

5-4





5-3





5-5

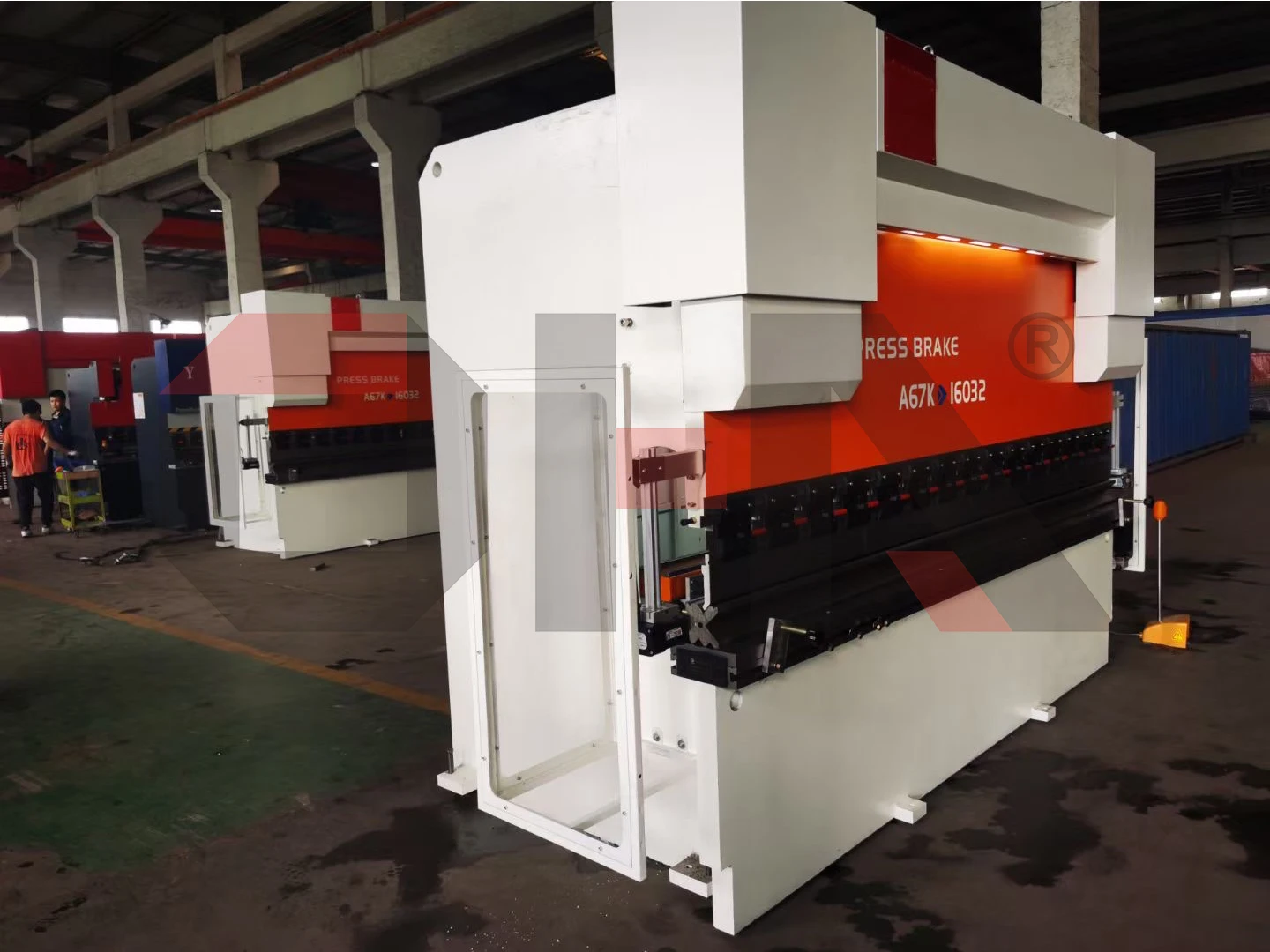

5-2





5-6




















































Color



Any color is available



Logo



Customized Logo for OHA Brand HAP-600/6000 ACL Press Brake, Amada Press Brake Tooling



MOQ



Small MOQ,1 SET for OHA Brand HAP-600/6000 ACL Press Brake, Press Brake Foot Pedals



Delivery Time



(1) 30-60 days –If you want to customize your request


(2) 25 days – For our Standard



OEM Accepted



Yes



Certification available



Yes

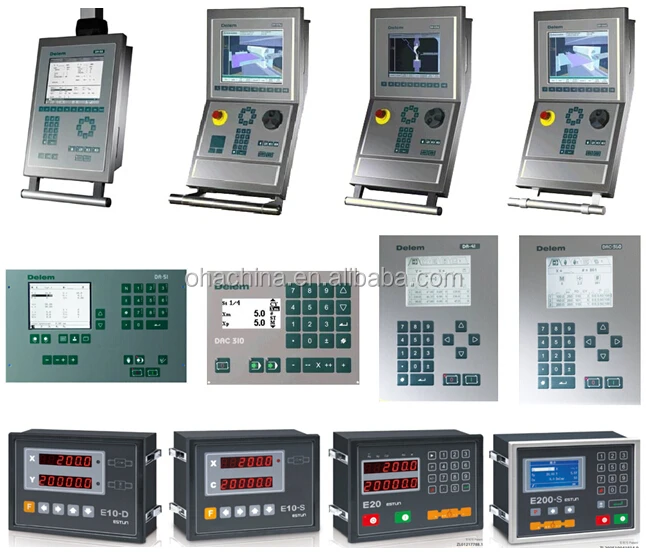

CNC System



Delem, ESTON ……



Packing Details



20GP, 40GP, 20 OT or LCL



Production Capacity



500/set OHA Brand HAP-600/6000 Amada Press Brake Tooling, Press Brake Foot Pedals Per Month



Payment Term



L/C, T/T, D/A, WESTERN UNION, MONEY GRAM















CNC System (Option)
