120m3 Germany control system wood drying kiln, Timber drying kiln, kiln dryer for wood
- Category: >>>
- Supplier: Harbin Hildebrand Machinery Co. Ltd.
Share on (60215494380):
Product Overview
Description
What is our feature?
1. Suitable for drying both hardwood and softwood.
2. Economical and energy efficient.
3. Reliable performance
4.New kilns for refurbishing existing ones.
5. Quick delivery times.
6. Tailored solutions.
| Maximum drying temperature | 110°C |
| Kiln Housing | Stainless Steel or All Aluminum or Masonry |
| Insulation | Fiber Giass 100mm to 200mm |
| Gate System | Sliding lifting kiln door |
| Control System | LIGNOMAT Fully Automatic Control System |
| Wood Probes | Wirebound and Wireless |
| Fans | Axial Fans 800mm/1200mm,Reversible |
| Heating Source | Hot Water or Steam or Thermal Oil |
| Kiln inner dimensions: | Width 8640mm |
| Depth 8640mm | |
| Height 5700 mm | |
| Stack dimensions: | Width 8400 mm |
| Depth 6600 mm | |
| Height 4500 mm | |
| Kiln capacity: | Approx 120m3/corresponding to 25mm of thickness of material to be dried and 25mm stickers |
| Type of door: | Lift-sliding door |
| Way of loading: | Forklift |
| Performance Data: Model LDFJ-120 | |
| Bearing structure: | Aluminum alloy |
| Heating medium: | Hot water 90C |
| Humidification medium: | Water 20C |
| Number of fans: | 6 units |
| Diameter of fan: | 800mm |
| Volume of circulating air: | 30,000 m3 /h |
| Motor: | 3kw, class IP55 |
| Electricity demand: | 18kw |
| Voltage & Frequency: | 380v, 50Hz |
| Snow Loading: | 150 Kg/m2 |
| Wind loading: | 120 km/h |
More details:
Measurement.:
Capacity m3 Model | Kiln Inner dimensions W×D×H(m) | Stack Dimensions W×D×H(m) | Fans |
LDFJ-40 | 4.23×4.68×5.7 | 4.0×4.5×4.5 | 2 |
LDFJ-50 | 4.32×7.7×5.7 | 4.0×5.8×4.5 | 3 |
LDFJ-60 | 4.32×8.64×5.7 | 4.0×6.6×4.5 | 3 |
LDFJ-80 | 6.48×7.7×5.7 | 6.2×5.8×4.5 | 3 |
LDFJ-100 | 8.64×7.7×5.7 | 8.4×5.8×4.5 | 5 |
LDFJ-120 | 8.64×8.64×5.7 | 8.4×6.6×4.5 | 6 |
LDFJ-150 | 12.96×7.7×5.7 | 12.5×5.8×4.5 | 8 |
LDFJ-180 | 12.96×8.64×5.7 | 12.5×6.6×4.5 | 9 |
LDFJ-200 | 12.96×9.37×5.7 | 12.5×6.8×4.5 | 10 |
LDFJ-250 | 12.96×9.37×6.4 | 12.5×8.0×5.0 | 12 |
LDFJ-300 | 21.4×9.3×5.7 | 21.0×7.3×4.5 | 15 |
LDFJ-400 | 25.68×9.3×5.7 | 25.0×7.3×4.5 | 20 |
LDFJ-NS135 | 9.72×8.64×5.4 | 9.4×6.6×4.3 | 7 |
LDFJ-NS150 | 10.80×8.64×5.4 | 10.5×6.6×4.3 | 8 |
LDFJ-NS160 | 11.88×8.64×5.4 | 11.5×6.6×4.3 | 9 |
Production Lines
We have six productions lines:
Client's facotries:
Product photos:

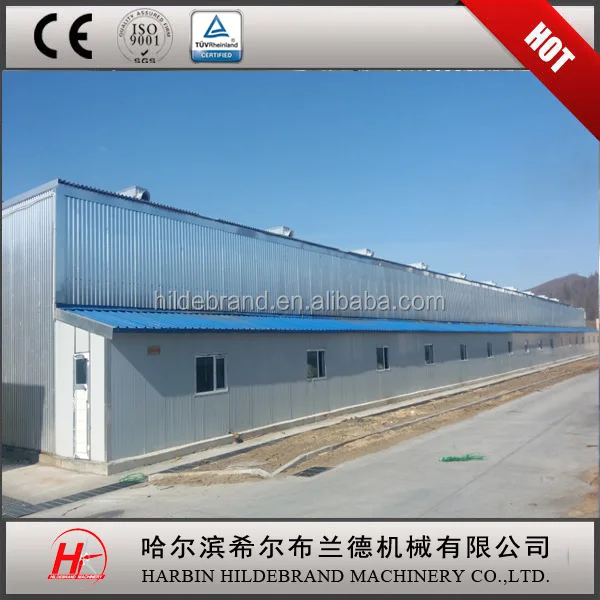

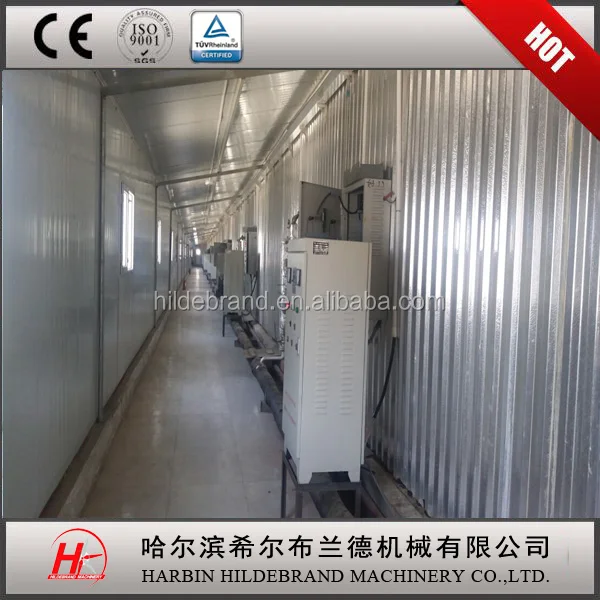

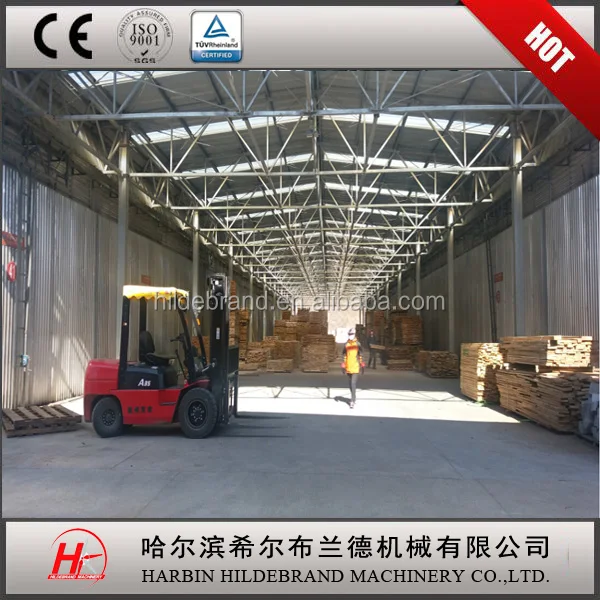

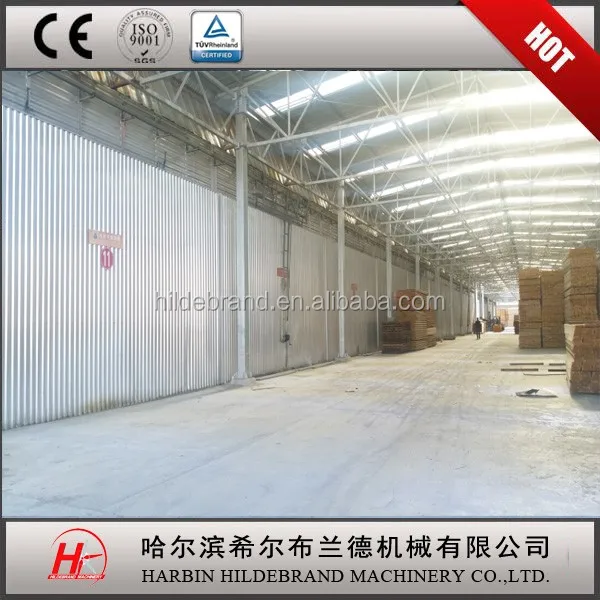

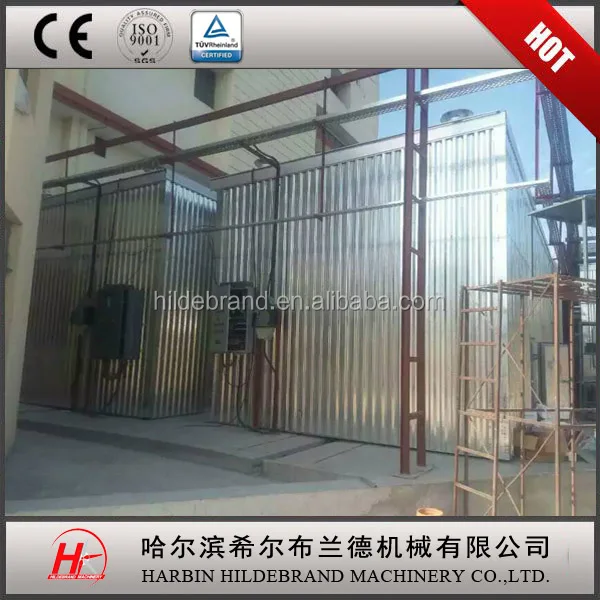

Installation Photos:
Why choose us?
1, The first professional timber dry kilns manufacturer in China ( established in 1985) .
2, Joint venture enterprise with world famous enterprise Hildebrand's (the first modern timber drying kiln manufacturer founded in 1948) engineer, the hildebrand Germany technology.
3, You don't need worry technology or quality problems happened, as they have been solved in these 30 years. Patented technology shorten the drying time, energy saving and improved the drying quality.
4, You don't need worry about installation as our supervisor and installation workers will be on site to instruct the installtion of all equipment for the commissioning untill all equipment is properly functioning.
5, You are not able to find other supplier in China with fully automatic Lignomat control system, because we are the exclusive Lignomat kiln control system agency in China, and Lignomat only cooperated with the most trustworthy manufacturer.
6, You will be suprise with the low price with the high quality, and you will be satisfied with how much cost we save for you, how much profit we will bring for you.
7, You will enjoy the professional before- in- and after- service we provide, and have a pleasant cooperation with us.
Certifications
CU-RT For Russia, Belarus, Kazakhstan:
Authorization Certifcate from Lignomat
