MCS Argon 2000Y surgical bipolar coagulator and cutter

Product Overview

Description

MCS-Argon-2000Y surgical  bipolar coagulator and cutter

Model: MCS-Argon-2000Y



Technical Specifications of the LED High Frequency Argon Electrosurgical Unit:



Power: 220V±22V, 50Hz±1Hz (110V±11V, 60Hz)

Operating frequency: 512KHz

Power rating: 880VA±10%



Output Rating of the LED High Frequency Argon Electrosurgical Unit:



Monopolar Cut

a) Pure cut: 1W~300W( Load 800Ω)

b) Blend1: 1W~200W(Load 800Ω)

c) Blend2: 1W~150W(Load 800Ω)

Monopolar Coag

d) Spray Coag: 1W~80W( Load 800Ω)

e) Forced Coag: 1W~120W( Load 800Ω)



Argon beam coagulator parameter of the LED High Frequency Argon Electrosurgical Unit:



  Flow rate Range                            0.1~15.0L/min

  Regulating Step                             0.1L/min

  Pressure of  Nozzle                       0-0.1MPa

  Power Consumption                      <100VA

  Argon Purity                                   ≥99.99%

  Pressure of Inputting                     0.20-0.50MPa

  AC Power                                      AC90~250V, 50Hz



Configuration Sheet of the LED High Frequency Argon Electrosurgical Unit:



Electrosurgical Pencil                  5pcs

Electrosurgical Pad                    10pcs

Electrosurgical Pad Cable          1pc

Bipolar Forceps and cable         1set

Footswitch                                 1set

Argon Pencil                              1pc

Laparoscopic Electrode             1pc



Main Parameters of the LED High Frequency Argon Electrosurgical Unit:



1. Humanistic board design, simple operation, direct-viewing demonstration.

2. Argon Plasma Coagulator and Electrosurgical Generator that unify the collection, has strong practicality and applicability.

3. REM system and Power Peak System that provides surgeons with improved performance at Lower power settings, minimizing the risk of tissue damage.



4. The newest AIC technology, double pattern argon current regulation, may respectively output 0.2-3.0L/min and 1-15L/min current capacity, the adjustment length of stride respectively is 0.2L/Min and 1L/Min

5. We use the SMART INTERRUPT safe system to real-time monitor nozzle pressure, which avoids nozzle jammed.

6. It initiates AUTO-ADJ. Adaptive pressure adjustment, allowing 0.20-0.50MPa broad argon indefinite pressure inputting, avoiding the limitation of the on-the-spot source of the gas.

7. It offers the effective and economical method for hemostasis and tissue deactivating in the opening digesting-scope operations.

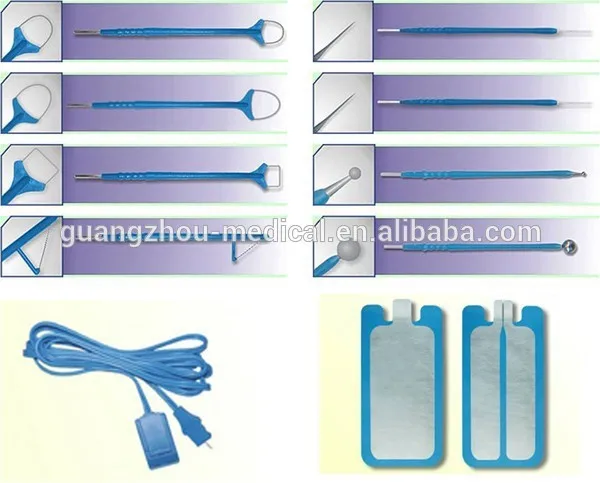

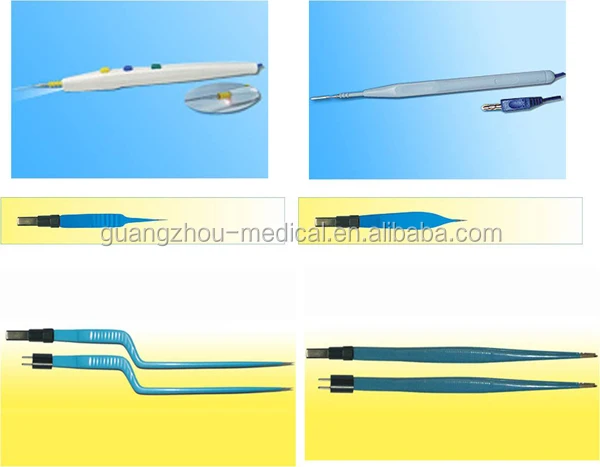

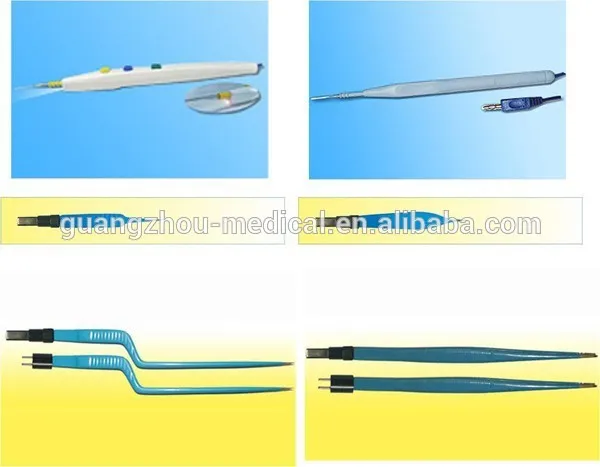

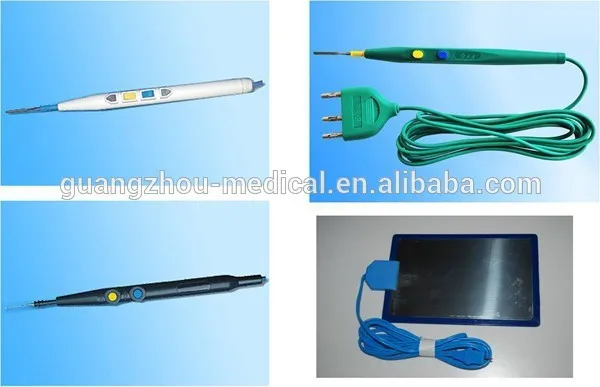

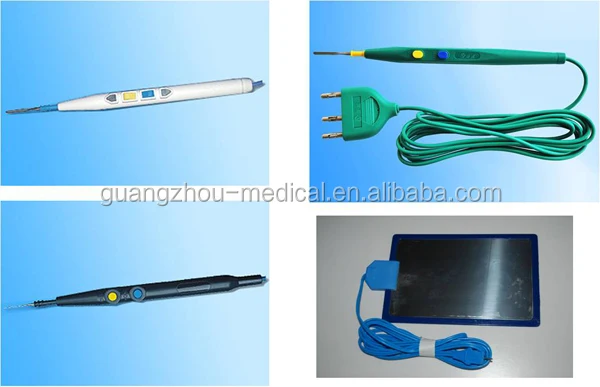

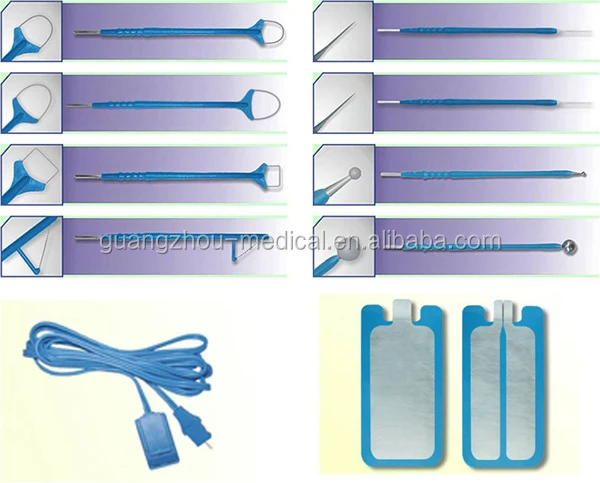

Accessories of the LED High Frequency Argon Electrosurgical Unit:
